Product Details
Features
? 3.0 ampere operation at TA = 95°C
with no thermal runaway.
? For use in low voltage, high frequency inverters free
wheeling, and polarity protection applications.
Product Description
| Type | Description |
| ANSC PART# | ANSC-1N5822 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Cut Tape (CT) |
| Tape & Box (TB) | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 2 mA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction |
150°C (Max) |
| Base Product Number | 1N5822 |

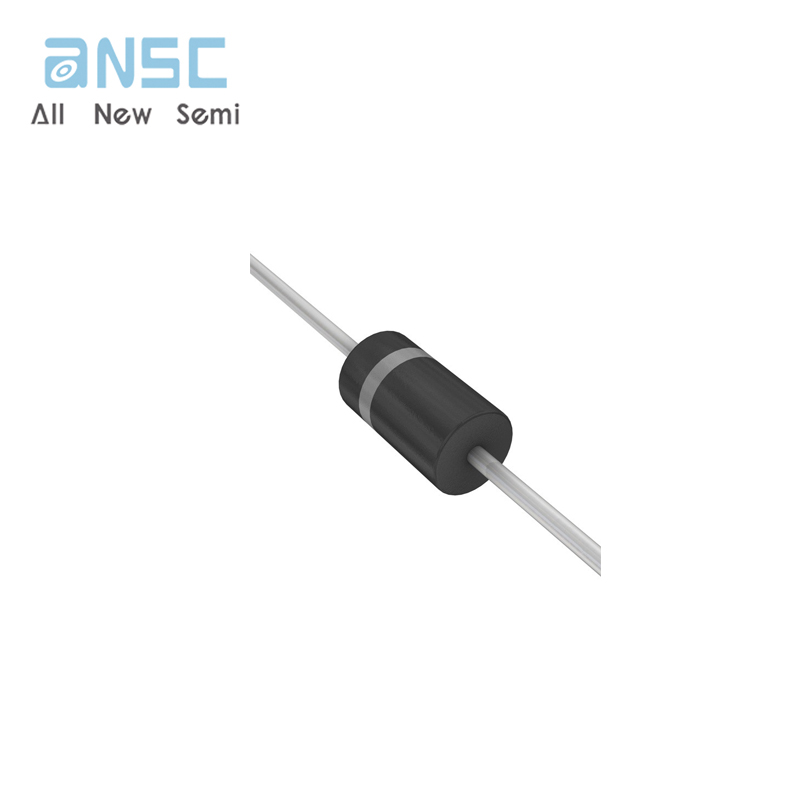

Product Photos

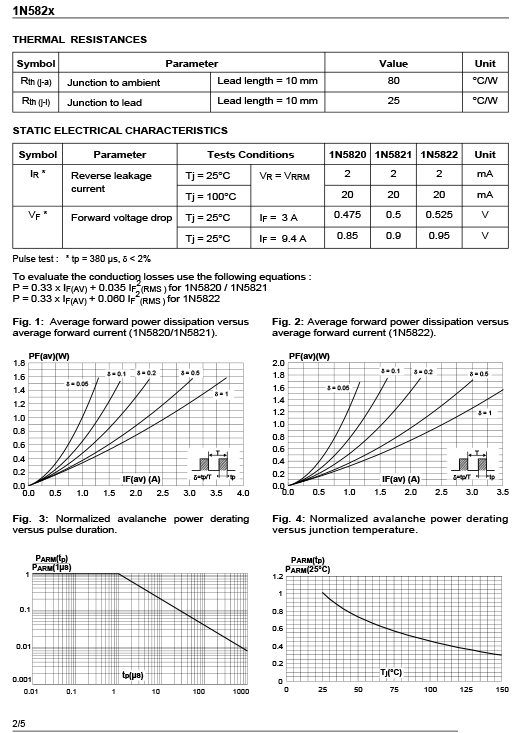

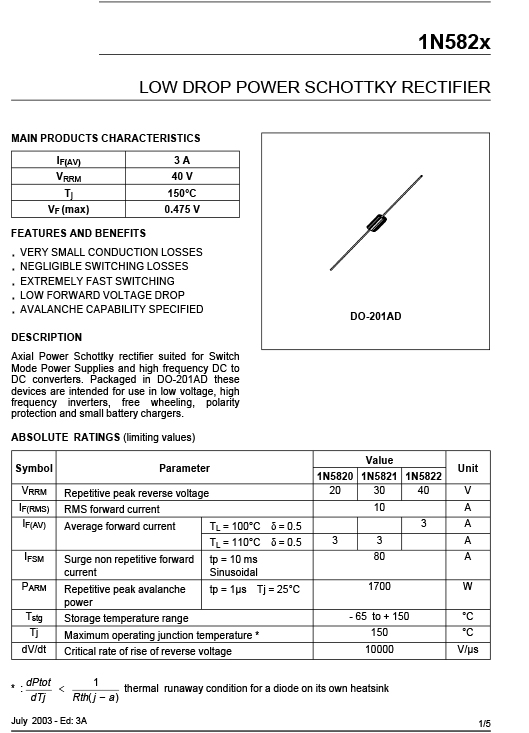

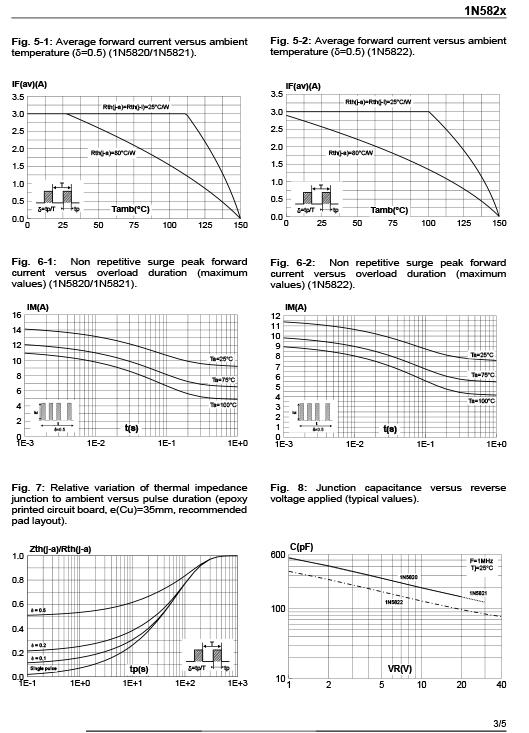

Product datasheet
For more information, please download
