Product Description
The 1SV270 is a high-frequency, variable capacitance diode (VCD) integrated circuit (IC)
designed for surface-mount applications. This small outline, rectangular package IC features
a dual terminal configuration with a gull wing terminal form.
The IC is designed to operate at a maximum temperature of 125°C and has a reverse test voltage
of 10V.
Product Features
High-frequency operation (ULTRA HIGH FREQUENCY)
Variable capacitance diode (VCD) technology
Dual terminal configuration with gull wing terminal form
Surface-mount package with a small outline rectangular package body
Operating temperature range of 0°C to 125°C
Reverse test voltage of 10V
Reverse current maximum of 0.003 μA
Breakdown voltage minimum of 10V
Diode capacitance nominal value of 16 pF
Diode capacitance ratio minimum of 1.8
Diode capacitance tolerance of 6.25%
Product Applications
High-frequency applications such as wireless communication systems, radar systems,
and satellite communication systems
Low-power consumption applications such as portable devices and wearable electronics
High-reliability applications such as aerospace and defense systems
Product Description
| Type# | Description |
| ANSC PART# | ANSC- 1SV270 |
| Part# | 1SV270 |
| Type： | Electronic components |
| Manufactor | Original |
| DC | new |
| Part Status | Active |

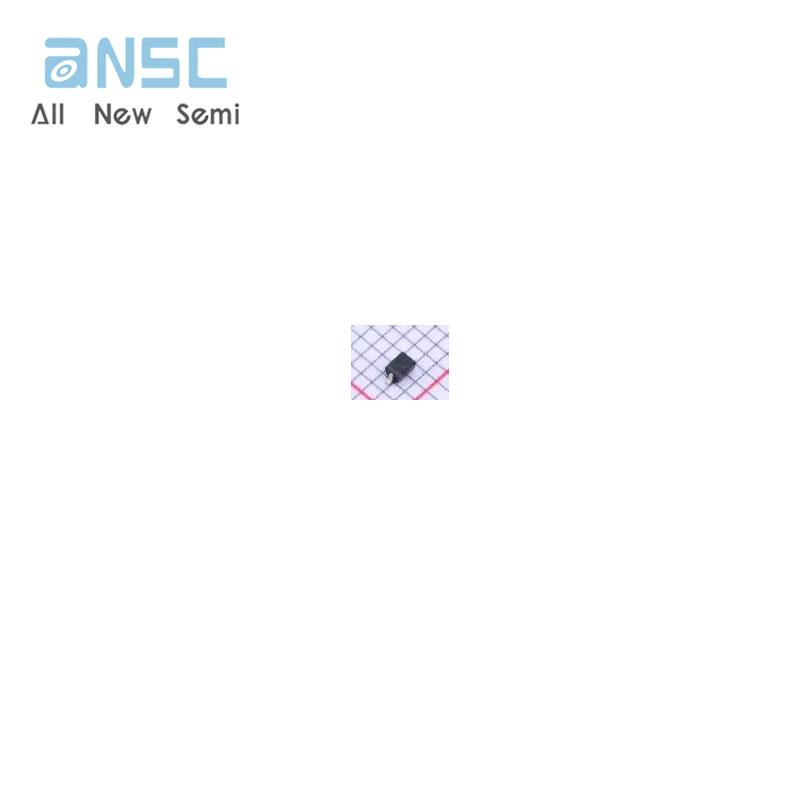

Product Photos

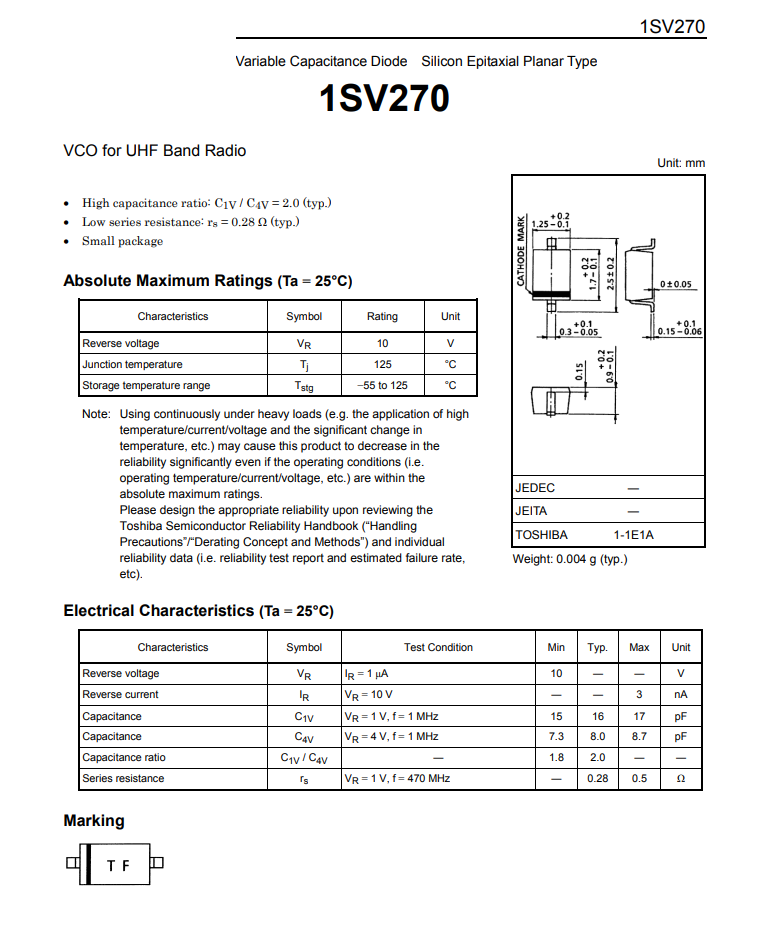

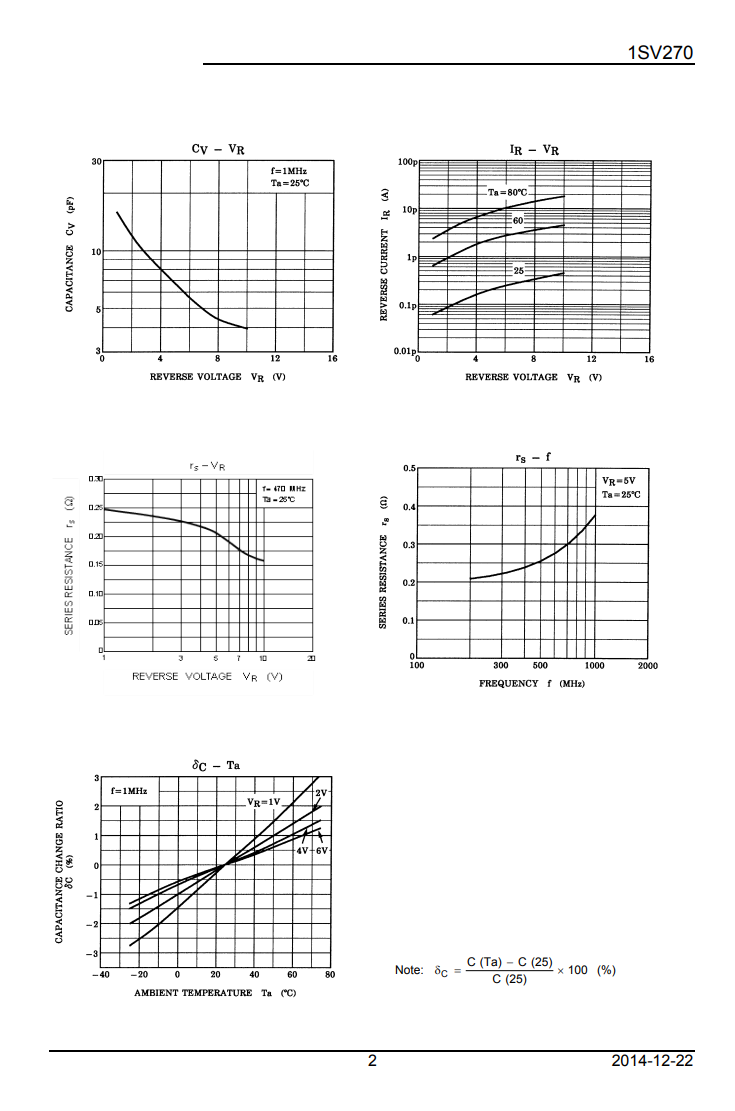

Product datasheet
For more information, please download
