Product Details
WESTCODE TRANSISTOR MODULES are designed for use in various types of motor control and other high power switching applications and consist of insulated type DARLINGTON TRANSISTORS. The electrodes are fully isolated from heat sink. Single ended electrode construction is used to greatly simplify mounting. A wide variety of devices are available with current capability up to 400A and voltage rating up to 1400V.
Product Description
| Type# | Description |
| PART# | MG20G6EL1 |
| Ihs Manufacturer | TOSHIBA CORP |
| Package Description | FLANGE MOUNT, R-PUFM-D15 |
| Pin Count | 15 |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 20 A |
| Collector-Emitter Voltage-Max | 450 V |
| Configuration | COMPLEX |
| DC Current Gain-Min (hFE) | 100 |
| Number of Elements | 6 |
| Number of Terminals | 15 |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | NPN |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | SOLDER LUG |
| Terminal Position | UPPER |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

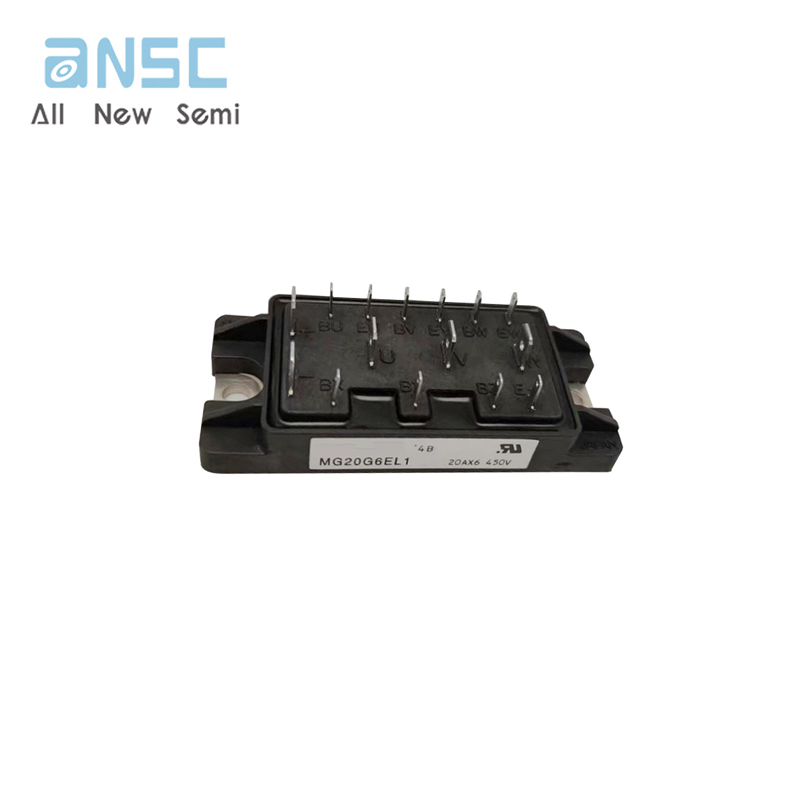

Product Photos
