Product Description
CC2538 + CC2592 module, long-distance communication, support zigbee/6lowpan CC2538(new version)
Features:
*2.4GHz open frequency band
*Transmitting power 24dBm, receiving sensitivity -103dBm

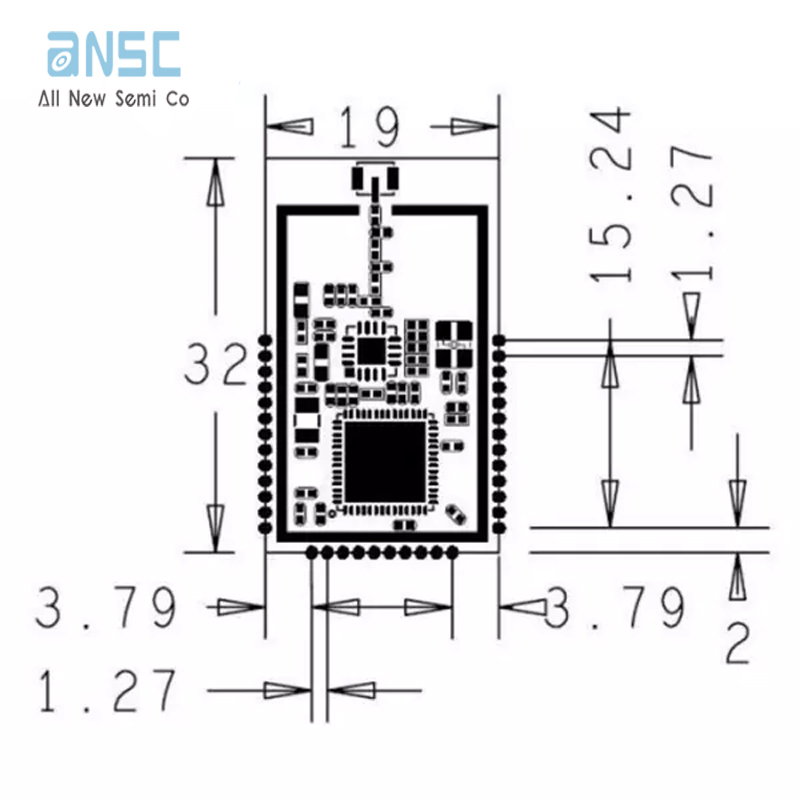

*Dimensions 32*19mm, standard 1.27mm stamp hole package
*Reliable transmission distance of up to 1000 m in a sunny and open environment
*Ultra-low power consumption: receiving current ≤ 30mA, emission current ≤ 200mA, deep sleep current ≤ 10uA, deep sleep power ≤ 1.5uA
*SoC, less peripheral circuits, full-chip high-quality crystal oscillator, high reliability, low failure rate
*PCB antenna and IPEX external dual-purpose antenna connection
Technical Parameters:
Name | parameter indicator |
MCU chip | Industrial grade ZigBee chip, CC2538+CC2592 |
Communication standard and frequency band | IEEE 802.15.4 ISM 2.4~2.5GHz |
Line of sight communication distance | 1000m |
Transmitting power | +24dBm |
Communication theory bandwidth | 250Kbps |
Receive sensitivity | -103dBm |
Network topology | point-to-point, point-to-multipoint , peer-to-peer and mesh networks |
Channel | 11 to 26 |
Maximum serial port data | 400 Bytes |
Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces will you buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by TNT, DHL, UPS etc Worldwide Express or by shipment. Delivery charge is ofen $35.00,but it will be decided by how many you order and where will you need us to send or you may offer us your account
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quanatity order.
Q:Guarantee?
A:Product guarantee 30days covers form, fit, and function and is limited to prorated refund or replacement
Q:If you want to get more information about our company,pls contact us immediately.
