Product Description The 1SMA5919BT3G is a surface-mount, unidirectional Zener diode with a breakdown voltage of 5.88V. This diode is designed to provide a reliable and efficient voltage regulation solution in various electronic applications. With a maximum power dissipation of 500mW and a power rating of 1.5W, it can handle high current and voltage requirements. Product Features · Breakdown Voltage: 5.88V · Forward Voltage: 1.5V · Maximum Reverse Leakage Current: 2.5μA · Operating Temperature Range: -65°C to 150°C · Package: DO-214AC (SMA) · Packaging: Cut Tape (CT) · RoHS Compliant: ROHS3 Compliant · Lead Free: Lead Free · Halogen Free: Halogen Free · ESD Protection: Yes Product Applications · Primary Applications: Voltage regulation, overvoltage protection, and surge protection in electronic circuits. · Secondary Applications: Power supplies, motor control, and audio equipment. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -1SMA5919BT3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Original |
| Series | 1SMA59xxBT3G |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ±5% |
| Power - Max | 1.5 W |
| Impedance (Max) (Zzt) | 2 Ohms |
| Current - Reverse Leakage @ Vr | 2.5 μA @ 3 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Operating Temperature |
-65°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | 1SMA5919 |

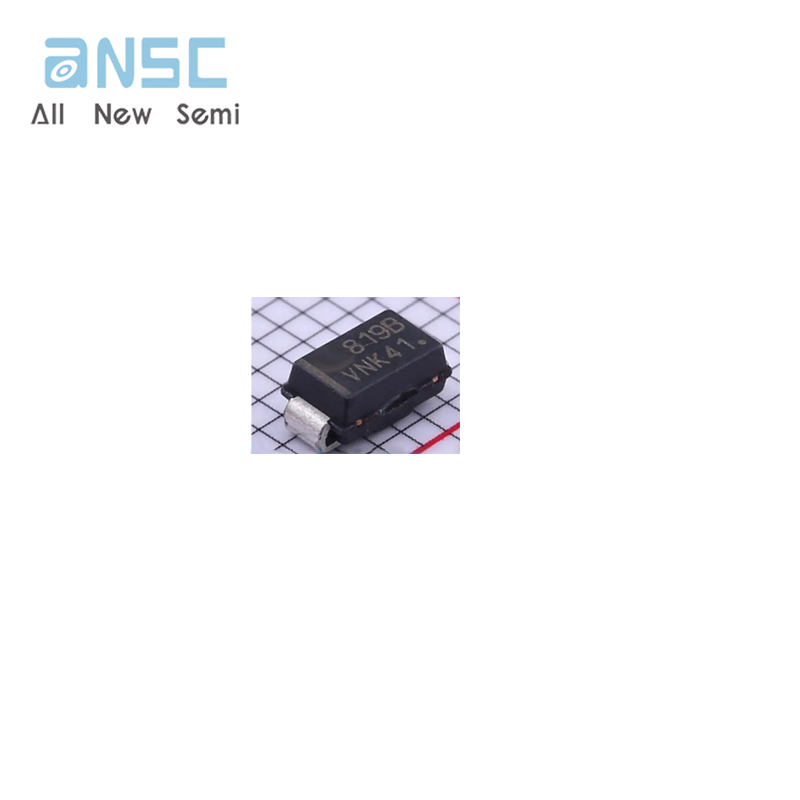

Product Photos

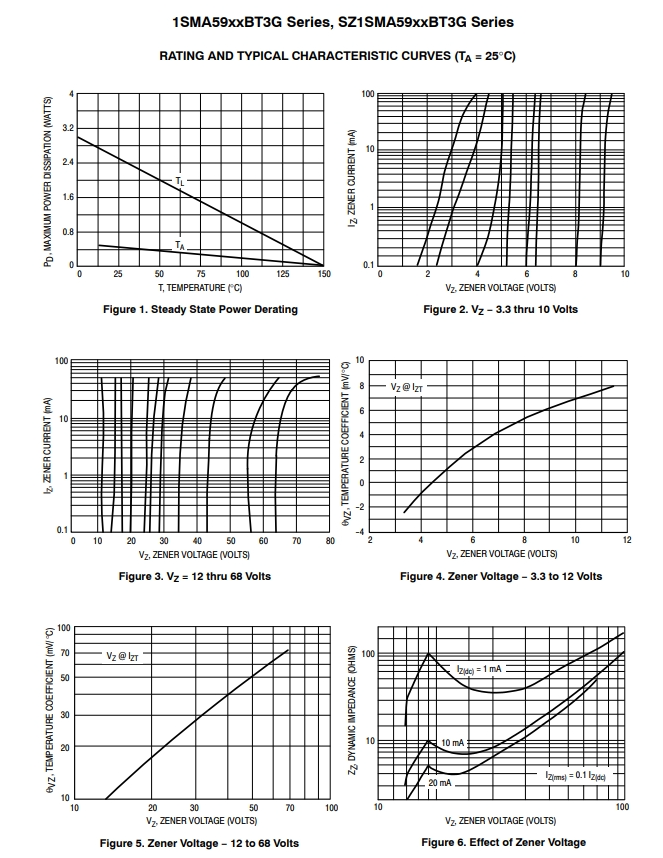

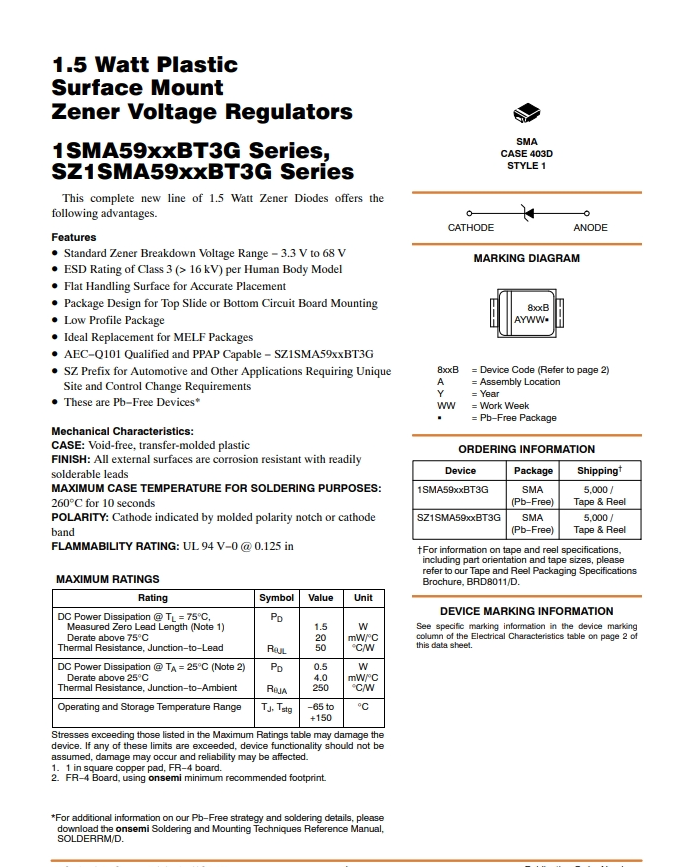

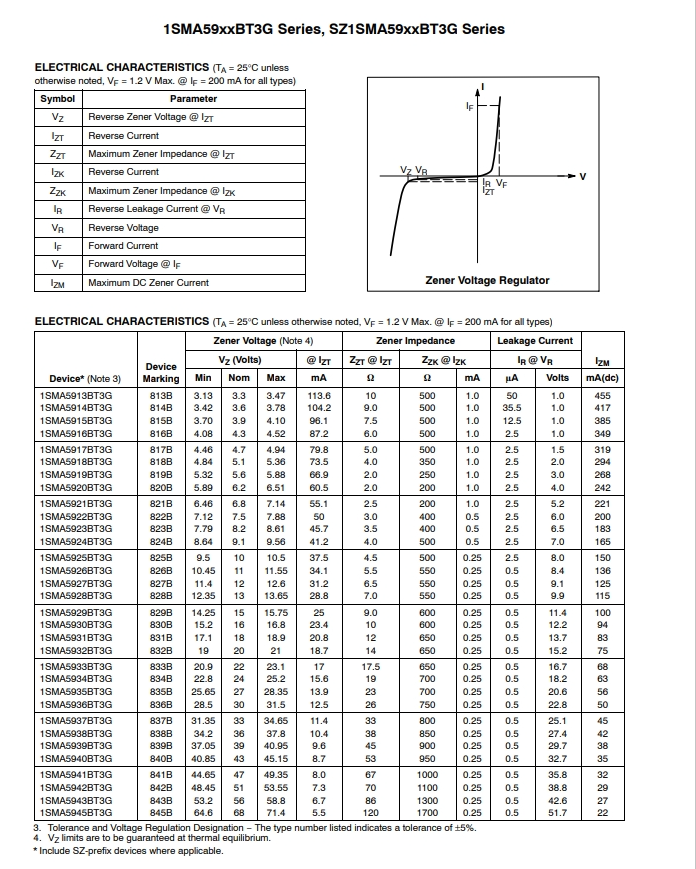

Product datasheet
