Product Description
The 1812L050/60MR is a surface-mount polymeric PTC resettable fuse designed for circuit protection applications. This fuse is part of the POLY-FUSE series and is available in a 1812 (4532 Metric) concave package. It features a high ambient temperature range of -40°C to 85°C, making it suitable for use in a wide range of applications.
Product Features
· High current rating of 10A
· Trip current of 1A with a time to trip of 150ms
· Hold current of 500mA
· Initial resistance of 150mOhms and post-trip resistance of 1Ohms
· Operating temperature range of -40°C to 85°C
· RoHS3 compliant
· Available in a tape and reel packaging
Product Applications
· Primary applications: Power supplies, motor control circuits, and other high-current applications where circuit protection is critical.
· Secondary applications: Audio and video equipment, industrial control systems, and other applications where reliable circuit protection is required.
Product Description
| Type | Description |
| ANSC PART# | ANSC -1812L050/60MR |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer | Original |
| Series |
POLY-FUSE?, 1812L |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 1 A |
| Current - Max | 10 A |
| Time to Trip | 150 ms |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071" (1.80mm) |
| Lead Spacing | - |
| Approval Agency | - |

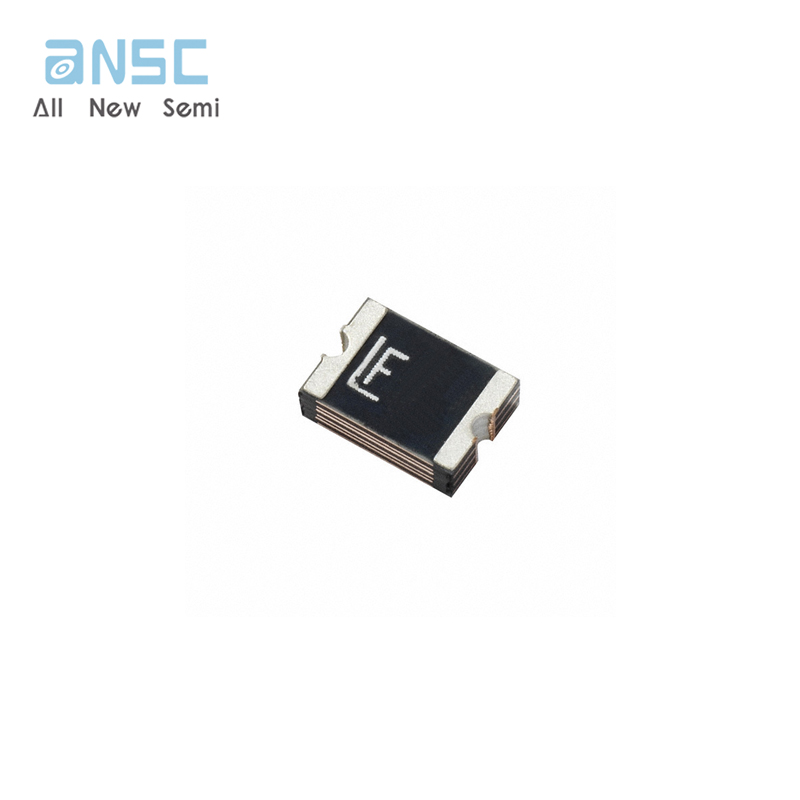

Product Photos

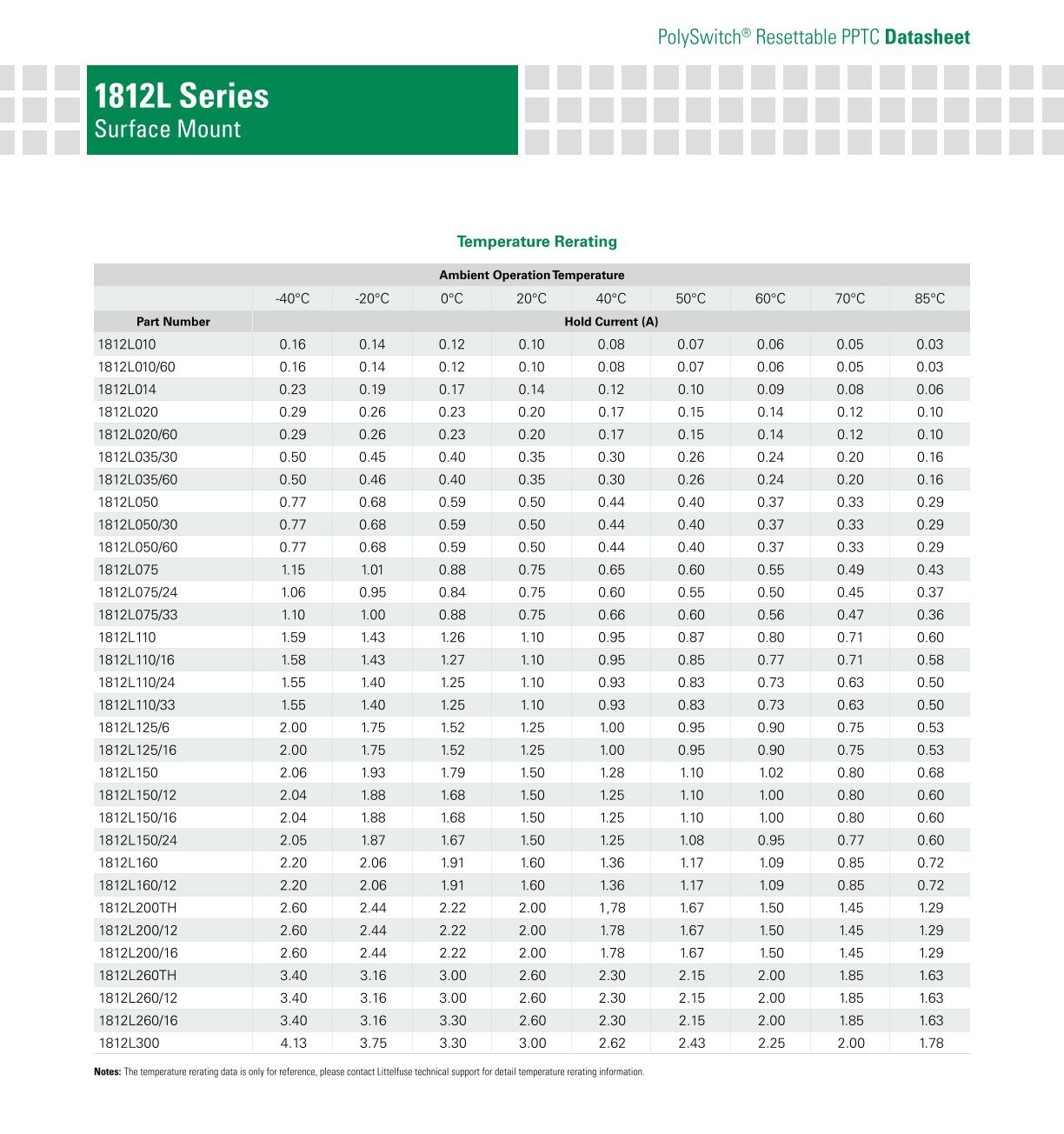

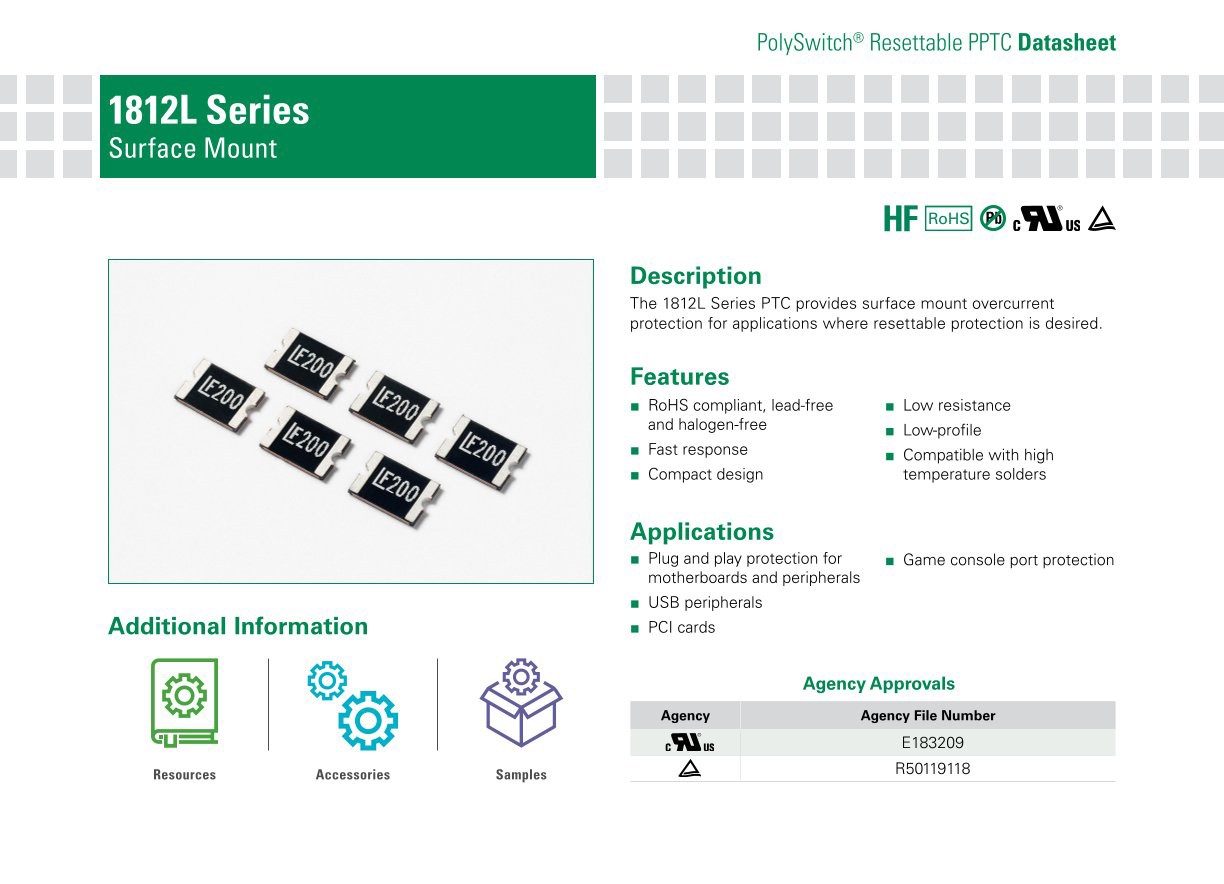

Product datasheet
For more information, please download
