Product Features
? Supports 1 wired WAN port with switchable LAN port
? Supports LORAWAN gateway
? Support LED status monitoring (display of power PWR, LINK, ETH, WLAN, LoRaRX, LoRaTX;)
? Support for Web platform management configuration methods.
? One-click recovery of factory settings.
? Support 10/100Mbps rate for both wired network ports.
? Support wired and wireless online at the same time, multi-network intelligent switching.
? Support firmware upgrade and firmware configuration backup function.
? Firewall, NAT, DMZ host, black and white list of access control, IP speed limit.
? QOS, traffic service, can limit the speed according to the interface.
? Support for VPN clients.
? Support load balancing multi-network port flow control settings, with network port priority, enable, flow control ratio and other working methods.
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-E870-L915LG12 |
| Chip scheme | SX1302 |
| Working frequency band | US915, AU915, AS923, KR920 |
| Transmit power | 27dBm |
| Communication distance | 3km |
| Product weight | 417±5g |
| Product size | 116*105*41mm |
| Introduction | Half-duplex LoRaWAN standard protocol gateway |
| Product size(H*W*D) | 110*105*41 |
| Product weight | 417±5g |
| Operating temperature | -40°C~+85°C |
| Storage temperature | -40°C~+85°C |
| Working humidity | 5% ~ 95% |
| Storage humidity | 1% ~ 95% |
| Operating voltage | 8V~28V |
| Current consumption | 120mA@12V (room temperature) |
| Precision | 0.20% |

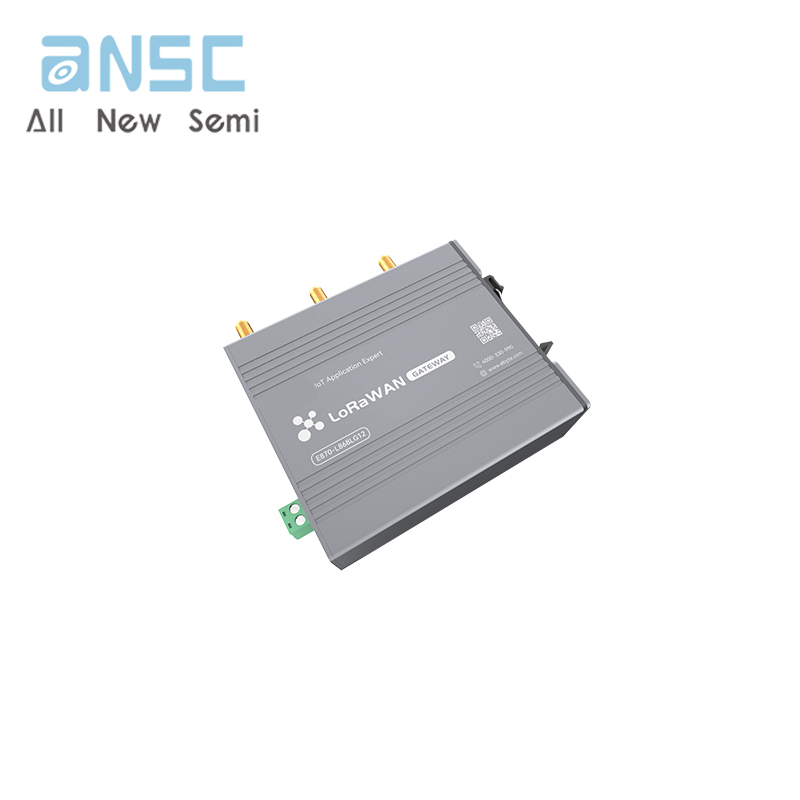

Actual product photos
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
