Product Descriptions

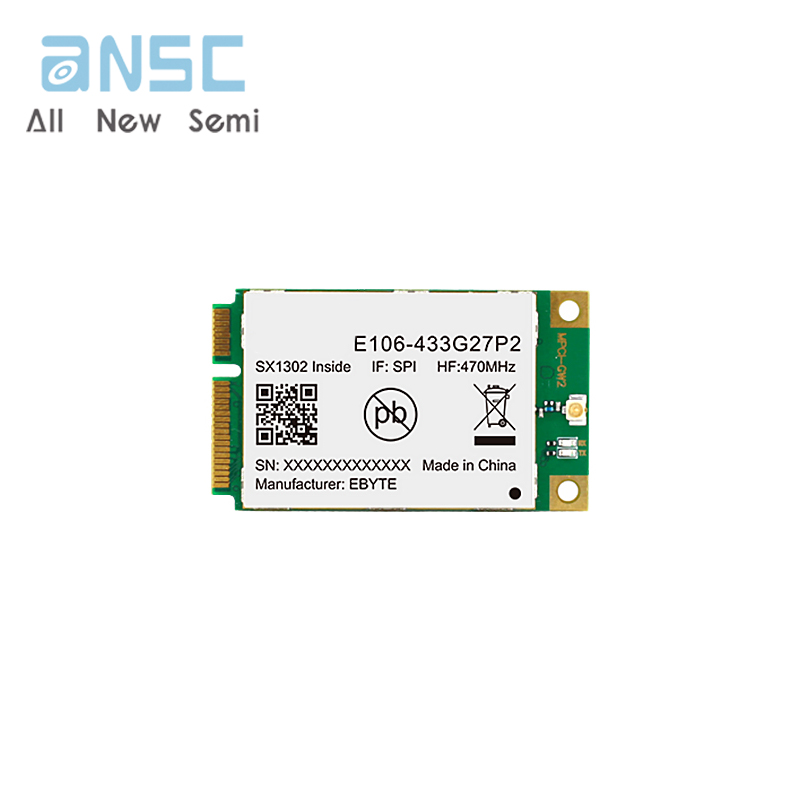

The E106-433G27P2 module is a LoRa gateway RF module designed based on the SX1302 chip scheme. It uses standard Mini PCI-e form packaging, SPI interface, built-in PA and LNA in the module, and half duplex design to facilitate users to quickly develop LoRa gateway equipment.

SX1302 is a new generation of LoRa gateway baseband chip introduced by Semtech, equipped with front-end SX1250, which can support spread spectrum factors SF5~SF12. Compared with the previous generation SX1301 gateway scheme, it can support higher rate data communication, while significantly reducing power consumption, simplifying the hot design of the gateway, and significantly improving performance.

Product Features

? PCI Express Mini Card 1.2 standard interface is adopted;

? The maximum sending current is 360mA, and the receiving current is 60mA;

? I-PEX antenna interface, half duplex communication;

? Standard SPI digital interface;

? Support 8 receiving channels, SF5~SF12 full solution, and the receiving sensitivity is as low as - 141dBm;

? Support 1 transmission channel, and the maximum transmission power is 27dBm (typical value is 26dBm);

? Support for license free frequency bands: EU433, CN470, EU868, US915;

Product Specifications
