Product Descriptions

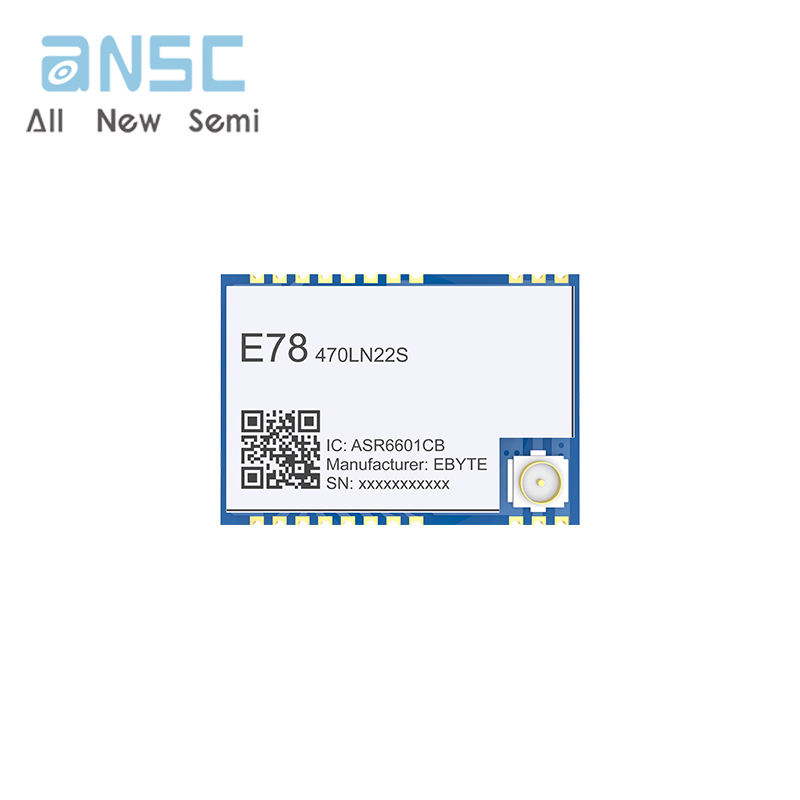

The E78-470LN22S(6601) series is a standard LoraWan node moduledesigned and produced by Chengdu EBYTE Electronic Technology Co., Ltd., withoperating band CN470 to 510MHZ,supporting CLASS -ACLASS-C node type thatsupports both ABP/OTAA access, while the module features a variety of low-powermodes, with a standard UARTfor external communicationinterfaces and ATfor userS The instructions are simply configured to access the standard LoraWan Inthe network, it's a great choice for current loT applications.
Product Applications
Smart home and industrial sensors, etc.
Security system, positioning system;
Wireless remote control, drones,
Wireless game remote control;
Healthcare products,
Wireless voice, wireless headphones,
Automotive applications.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E78-470LN22S（6601） | |
| IC | ASR6601CB | - |
| Form factor | 20* 14*2.91 mm | - |
| Weight | 1.3±0.1g | - |
| Operating temperature | -40 ~ 85℃ | - |
| Working temperature | 10% ~ 90% | - |
| Storage temperature | -40 ~ 125°C | - |
| Emission current（Lora@2.4kbps） | 110~130mA | - |
| Receive current（Lora@2.4kbps） | 13~15mA | - |
| Turn off the current | 2.4~2.6μA | - |
| Transmit power | 22dBm | - |
| Receive sensitivity | -139~-140dBm | - |
| TCXO crystal | 32MHz | - |
| TCXO crystal voltage configuration | 1.8~3.3V | - |
| Recommended operating band | 470/490/510MHz | - |
| Reference distance | 5600m | Clear and open, antenna height 2 meters, air rate 1kbps |
| Crystal frequency | 32MHz | - |
| Modulation | LoRa | GFSK Mode ，F(xiàn)LRC Mode，LoRa Mode |
| Package | SMD | - |
| Interface mode | 1.27mm | - |
| The communication interface | SPI | 0～10Mbps |
| Antenna interface | IPEX/stamp hole | with an equivalent impedance of about 50Ω |
