Product Descriptions

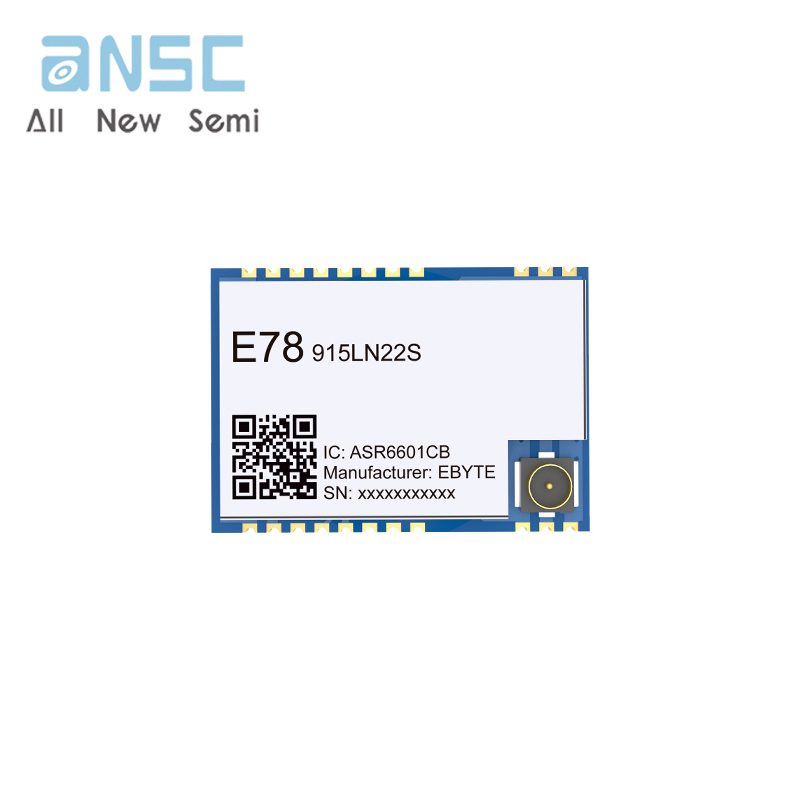

The E78-900LN22S (6601) series products are standard LoraWan node modules designed and produced by Chengdu Yibite Electronic Technology Co., Ltd. The operating frequency band is EU850-925MHZ, supports US915/AU915/AS923/KR920 standards, supports CLASS-A/CLASS-C node types, and supports two network access methods, ABP/OTAA. At the same time, the module has a variety of low-power modes, and the external communication interface uses a standard UART. Users can access the standard LoraWan network through simple configuration of AT commands, which is an excellent choice for current IoT applications. The module code demo is open, and secondary development canbedownloaded from the official website.
Product Features
? Smart home and industrial sensors, etc.
? Security system, positioning system;
? Wireless remote control, drone;
? wireless game remote;
? healthcare products;
? Wireless voice, wireless headphones;
? Automotive industry applications.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E78-915LN22S(6601) | |
| IC | ASR6 601CB | - |
| Form factor | 20* 14*2.8mm | - |
| Weight | 1.2g | - |
| Operating temperature | -40 ~ 85℃ | - |
| Working temperature | 10% ~ 90% | - |
| Storage temperature | -40 ~ 125°C | - |
| Emission current（Lora@2.4kbps） | 110~130mA | - |
| Receive current（Lora@2.4kbps） | 13~15mA | - |
| Turn off the current | 2.4~2.6μA | - |
| Transmit power | 22dBm | - |
| Receive sensitivity | -139~-140dBm | - |
| TCXO crystal | 32MHz | - |
| TCXO crystal voltage configuration | 1.8~3.3V | - |
| Recommended operating band | 868/900/915MHz | - |
| Reference distance | 5600m | Clear and open, antenna height 2 meters, air rate 1kbps |
| Crystal frequency | 32MHz | - |
| Modulation | LoRa | GFSK Mode ，F(xiàn)LRC Mode，LoRa Mode |
| Package | SMD | - |
| Interface mode | 1.27mm | - |
| The communication interface | SPI | 0～10Mbps |
| Antenna interface | IPEX/stamp hole | with an equivalent impedance of about 50Ω |
