Product Descriptions

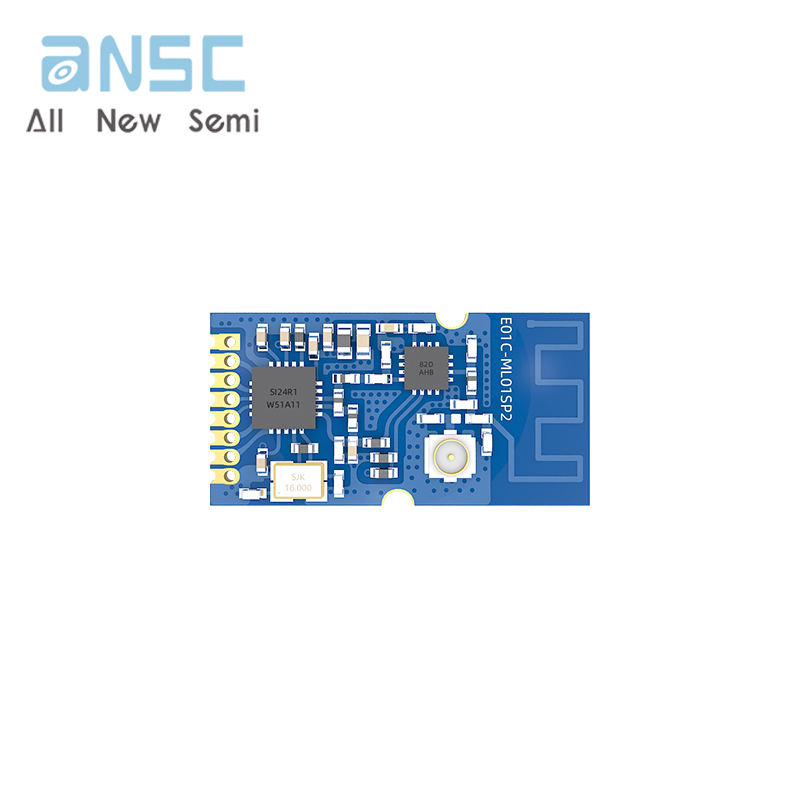

E01C-ML01SP2 is a small size, self-contained PCB antenna and a 2.4GHz patchtype wireless module with a maximum transmission power of 100mW based on thedomestic SI24R1.

Built-in power amplifier (PA) and low noise amplifier (LNA) on the original basisso that the maximum transmission power reaches 100mW, while the receivingsensitivity is further improved, and the overall communication stability is less thanthere is no power amplifier and low noise amplifier The products have been greatlyimproved.

This product has obtained FCC, CE, RoHS and other authoritative certification reports at home and abroad, and usesindustrial-grade high-precision 16MHz crystal oscillator.

Since E01C-ML01SP2 is a pure radio frequency transceiver module, it needs to use MCU driver or use a dedicated SPdebugging tool.

Product Features

Ultra-small size, only 12.8x25mm;

RFX2401C power amplifier scheme, the maximum transmission power is 100mW, and the software is multi-leveladjustable;

Under ideal conditions, the communication distance can reach 1 .8km；

At the same time, it has PCB onboard antenna and IPX interface, users can choose to use according to their own needs；

Professional radio frequency shield, anti-interference and anti-static；

Support the global license-free ISM 2.4GHz frequency band；

Support 2Mbps, 1Mbps and 250kbps air rate；

125 communication channels to meet application requirements such as multipoint communication, grouping, andfrequency hopping;

Connect with MCU through SPl interface, rate 0~10Mbps；

Support 2.0~3.6V power supply, power supply greater than 3.3V can guarantee the best performance；

Industrial standard design, support -40~+85°℃ long time use;

Product Applications

Wearable device.

Smart home and industrial sensors, etc.;

Security system, positioning system;

Wireless remote control, UAV.

Wireless game remote control；

Healthcare products;

Wireless voice, wireless headset,

Automotive industry applications.

Product Specifications
