Product Descriptions

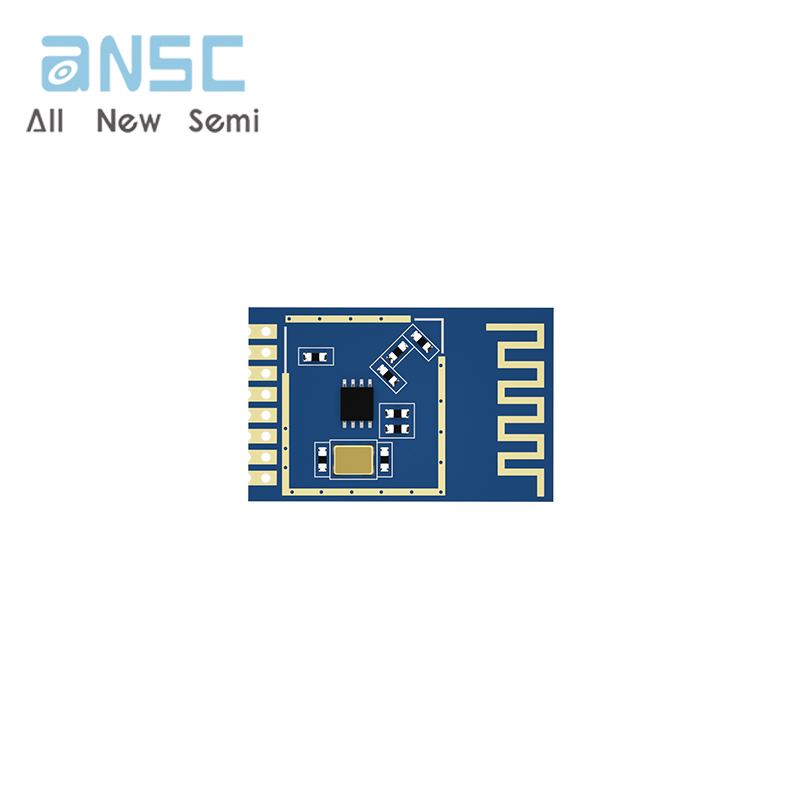

E01C-2G4M11S is a small size, 2.4GHz SMD wireless module with PCB antenna based on the core of Nanjing CSM Ci24R1, which uses industrial grade high precision 16MHz crystal.
Since E01C-2G4M11S is pure RF transceiver module, it needs to use MCU driver or special SPI debugging tool.
Product Features
? Maximum transmit power of 11dBm, which can meet the battery power and greatly expand the communication distance.
? Communication distances of up to 120m under ideal conditions.
? Support for the global license-free ISM 2.4 GHz band.
? Support for 2 Mbps, 1 Mbps and 250 kbps air rate.
? 126 communication channels to meet the needs of multi-point communication, grouping, frequency hopping and other applications.
? Connection to MCU via 2-Pin hardware SPI interface at 0 to 10 Mbps.
? Professional RF shield, anti-interference and anti-static.
? Industrial grade standard design, supporting long time use at -40 to +85°C.
? Self-contained PCB onboard antenna, no need for external antenna.
Product Applications
? Wearable devices.
? Smart homes and industrial sensors, etc..
? Security systems, positioning systems.
? Wireless remote control, drones.
? Wireless game remote controls.
? Health care products.
? Wireless voice, wireless headphones.
? Automotive industry applications.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E01C-2G4M11S | |
| Reference Distance | 100m | 250kbps Clear and open environment, air rate250kbps |
| FIFO | 32By te | Maximum length of single transmission |
| Crystal Frequency | 16M1z | - |
| Modulation mode | GFSK | - |
| Packaging method | SMD | - |
| Interface method | Half hole 1.27mm | - |
| Communication Interface | SPI | 0-10Mbps |
| Dimension | 19*12mm | On-board PCB antenna included |
| Antenna Interface | PCB antenna | Characteristic impedance approx. 50 Ω |
| Product Weight | 0.47g | 士0.05g |
