Product Descriptions

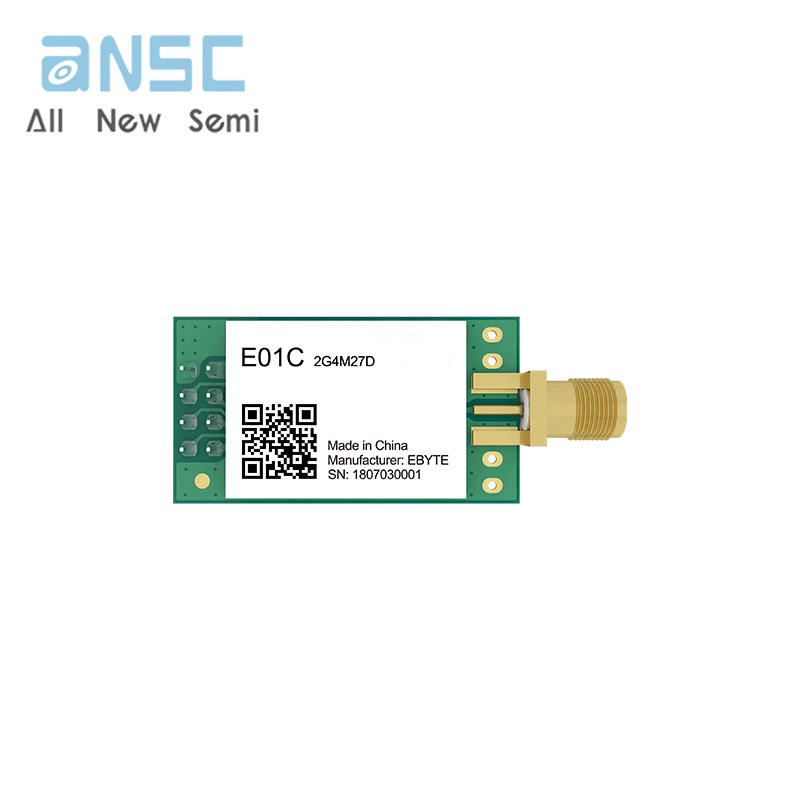

The E01C-2G4M27D is a 2.4GHz DIP wireless module with a maximum transmit power of 500mW based on the domestic Si24R1.
The module has built-in power amplifier (PA) and low-noise amplifier (LNA), which makes the maximum transmitting power reach 500mW, and the communication stability is greatly improved compared with the products without power amplifier and low-noise amplifier, and the industrial-grade high-precision 16MHz crystal is used.
As the E01C-2G4M27D is a pure RF transceiver module, it needs to be driven by MCU or use a special SPI debugging tool.
Product Features
? Maximum transmitting power of 27dBm (about 500mW), adjustable at multiple software levels.
? Communication distance up to 5km under ideal conditions.
? Support for the global license-free ISM 2.4 GHz band.
? Support for 2Mbps, 1Mbps and 250kbps air rates.
? 125 communication channels to meet the needs of multi-point communication, packet, frequency hopping and other applications.
? Connection to MCU via SPI interface at 0 to 10Mbps.
? Professional RF shield, anti-interference and anti-static.
? Support 2.5 ~ 5.5V power supply, greater than 3.3V power supply can ensure the best performance.
? 4 fixing holes reserved for module welding and fixing.
? SMA-K male threaded internal hole, can easily connect coaxial cable or external antenna The enhanced ShockBurst.
? Enhanced ShockBurst, can interoperate with Nordic's nRF24L01+, nRF2401 and other 2.4G product series.
Product Applications
? Smart homes and industrial sensors, etc..
? Security systems, positioning systems.
? Wireless remote control, drones.
? Wireless game remote controls.
? Health care products.
? Wireless voice, wireless headphones.
? Automotive industry applications.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E01C-2G4M27D | |
| Reference Distance | 5000m | Clear and open, antenna gain 5dBi, antenna height 2.5m, air rate 250kbp |
| FIFO | 32Byte | Maximum length of single transmission |
| Crystal Frequency | 16MHz | - |
| Modulation mode | GFSK | - |
| Packaging method | SMD | - |
| Interface method | 2.54mm pin | - |
| Communication Interface | SPI | 0-10Mbps |
| Dimension | 18 * 33.4mm | SMA not included |
| Antenna Interface | SMA-K | Equivalent impedance about 50Ω |
| Product Weight | 5.0g | ±0.1g |
