Product Descriptions

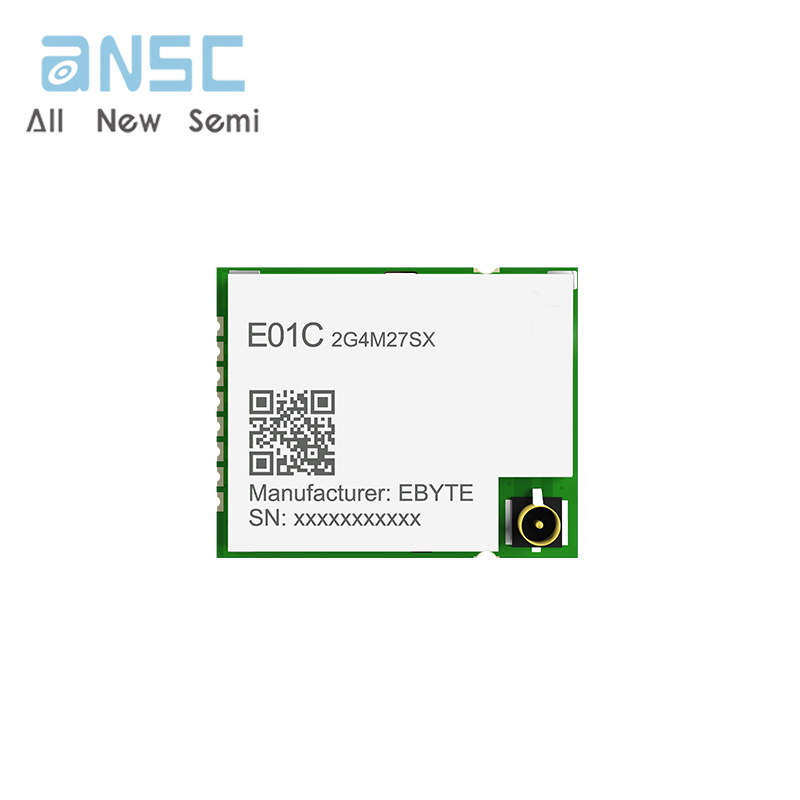

The E01C-2G4M27SX is an ultra-small 2.4GHz SMD wireless module with a maximum transmit power of 500mW based on the domestic Si24R1 core.
The module has a built-in power amplifier (PA) and low noise amplifier (LNA), which enables the maximum transmit power of 500mW and further improves the reception sensitivity, and significantly improves the overall communication stability compared to products without power amplifier and low noise amplifier.
The product uses an industrial grade high precision 16MHz crystal.
Since the E01C-2G4M27SX is a pure RF transceiver module, it needs to be driven by MCU or use a special SPI debugging tool.
Product Features
? Ultra-small size, only 18 * 14.5 mm.
? Maximum transmitting power of 500 mW, adjustable in multiple steps by software.
? Communication range of up to 4 km under ideal conditions.
? Support for the global license-free ISM 2.4 GHz band.
? Support for 2 Mbps, 1 Mbps and 250 kbps airtime rates.
? 125 communication channels for multipoint communication, packet, frequency hopping and other applications.
? Connects to MCU via SPI interface at 0 to 10 Mbps.
? Support 2.3~3.6V power supply, more than 3.3V power supply can ensure the best performance.
? Professional RF shield, anti-interference and anti-static.
? IPEX interface for easy connection to coaxial cables or external antennas (shared IPEX interface).
? Enhanced ShockBurst, interoperable with Nordic's nRF24L01+, nRF2401 and other 2.4G product families.
Product Applications
? Smart homes and industrial sensors, etc..
? Security systems, positioning systems.
? Wireless remote control, drones.
? Wireless game remote controls.
? Health care products.
? Wireless voice, wireless headphones.
? Automotive industry applications.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E01C-2G4M27SX | |
| Reference Distance | 4000m | Clear and open, antenna gain 5dBi, antenna height 2.5m,air rate 250kbp |
| FIFO | 32Byte | Maximum length of single transmission |
| Crystal Frequency | 16M1z | - |
| Modulation mode | GFSK | - |
| Packaging method | SMD | - |
| Interface method | 1.27 mm pin | - |
| Communication Interface | SPI | 0-10Mbps |
| Dimension | 18*14.5 mm | - |
| Antenna Interface | IPEX | Equivalent impedance approx. 50Ω |
| Product Weight | 1.1g | ±0.1g |
