Product Descriptions
ESP32-C3-MINI-1-TB and ESP32-C3-MINI-1U-TB are two entry-level development boards for developing and testing small-sized ESP32-C3-MINI-1 & ESP32-C3-MINI-1U modules.
This group of development boards has complete Wi-Fi and Bluetooth low energy functions, and most of the pins of the modules on the board have been led out to the pin headers on both sides. Developers can easily connect various peripherals through jumpers according to actual needs. The device can also be used by plugging the development board into the breadboard.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-ESP32-C3-MINI-1U-TB | |
| Support module | ESP32-C3-MINI-1U | WiFi serial module |
| Module size | 38.91* 25.4mm | Including USB connector |
| Production Process | Lead-free process, | Wireless products must be machine-mounted to ensure batch consistency and reliability |
| machine sticker | ||
| Power supply interface | USB | - |
| Communication Interface | TTL | - |
| Operating temperature | -40~+85 ℃ | Industrial grade |
| Working humidity | 10% ~ 90% | Relative humidity, non-condensing |
| Storage temperature | -40 ~ +125 ℃ | Industrial grade |

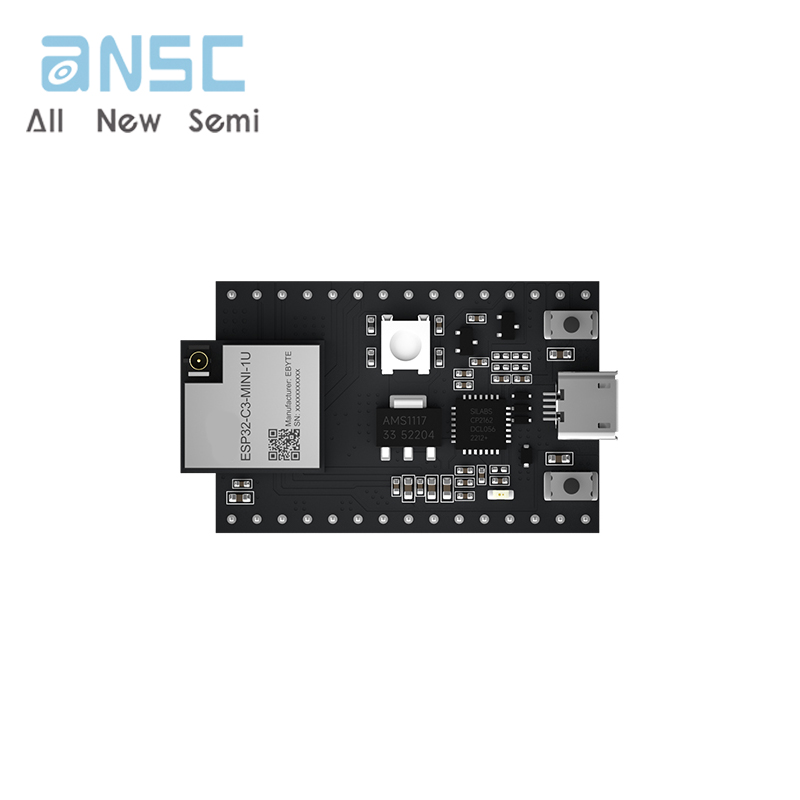

Actual product photos
