Product Descriptions

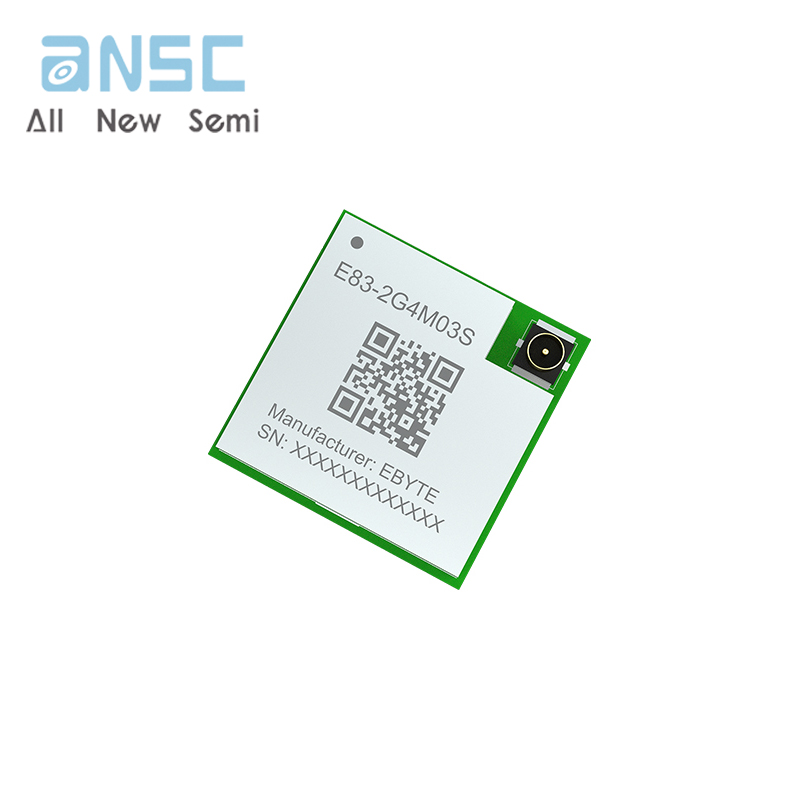

E83-2G4M03S is a small and low-power Bluetooth module developed by EBT. It uses the nRF5340 RF chip imported from Nordic Company and supports Bluetooth BLE5.2; The chip has a dual core high-performance ARM CORTEX-M33 core, uses 32M industrial crystal oscillator, and has rich peripheral resources such as UART, I2C, I2S, high-speed SPI, QSPI, USB, ADC, DMA, PWM, PDM, etc; It also supports ZIGBEE, Thread, NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols. Please refer to the pin definitions for details; NRF5340 introduces most of the I/O ports to facilitate users' all-round development..

E83-2G4M03S is a hardware platform, the module has no program by default, and users need to develop firmware; please refer to the official Datasheet for nRF5340 chip information, and the module has maximized the RF characteristics of the chip.

Product Features

? Ultra-small size, only 16x16mm;

? Support BLE5.2;

? The maximum transmission power is 3dBm, and the software is adjustable at multiple levels;

? Support global license-free ISM 2.4GHz frequency band;

? Built-in 32MHz clock crystal oscillator;

? Built in dual core high-performance low-power 128/64 MHz ARM ? Cortex ? - M33 processor;

? Rich resources, application core: 1MB FLASH, 512KB RAM; Network core: 256KB FLASH, 64KB RAM;

? Support 1.7 ~ 5.5V power supply, more than 3.3V power supply can ensure the best performance;

? Industrial-grade standard design, support long-term use at -40 ~ +105 ℃;

? Generation 1 IPX interface, external antenna.

? Under ideal conditions, the communication distance can reach 170m(Transmission power 0dBm);

? Supported protocols: BLE5.2,ZIGBEE, Thread, NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols.

? The pure hardware platform requires secondary development by the customer.

Product Applications

? Smart home and industrial sensors, etc.;

? Security system, positioning system;

? Wireless remote control, drone;

? wireless game remote control;

? healthcare products;

? Wireless voice, wireless headset;

? Automotive industry applications.

? Wearable device.

? Asset tracking and RTLS.

Product Specifications
