Product Descriptions
E810-DTU (RS) is a high cost-effective RS232 to RS485/RS422 isolated interface bidirectional converter independently developed .The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray. This product is featured by it’s small size, simple wiring, convenient installation, etc. It is a reliable assistant tool for engineering application, project debugging and product development.
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-E810-DTU(RS) |
| Power Supply | 5V ~ 36V, over 36V may burn out,12V or 24V power supply is recommended |
| Working Current | 24mA @ 12V |
| Transmitting Method | Asynchronous half-duplex or asynchronous full-duplex |
| Transmission medium | Twisted pair or shielded wire |
| Interface characteristics | Interface compatible with EIA / TIA RS232C, RS485 / RS422 standards |
| Interface method | RS232: DB9 female connector,RS485 / RS422: 1 * 5 * 3.81, crimping method |
| Transmission distance | 1200 meters (RS485 port), 5 meters (RS232 port) |
| Operating temperature | -40 ℃ ~ + 85 ℃, industrial grade |
| Working humidity | 10% ~ 90%, relative humidity, non-condensing |

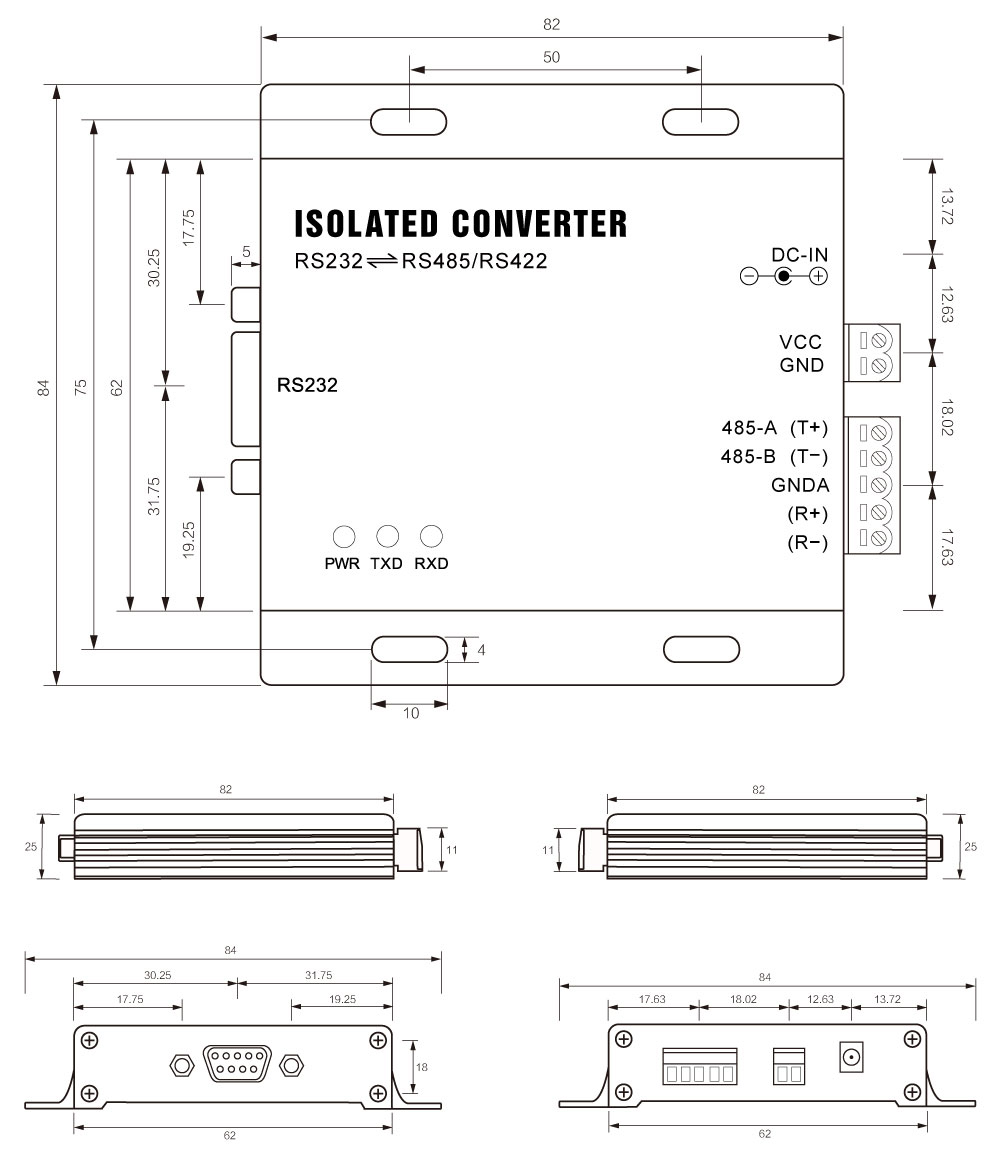

| Size | 82 × 84 × 25mm |
| Average weight | 130 ± 5g |

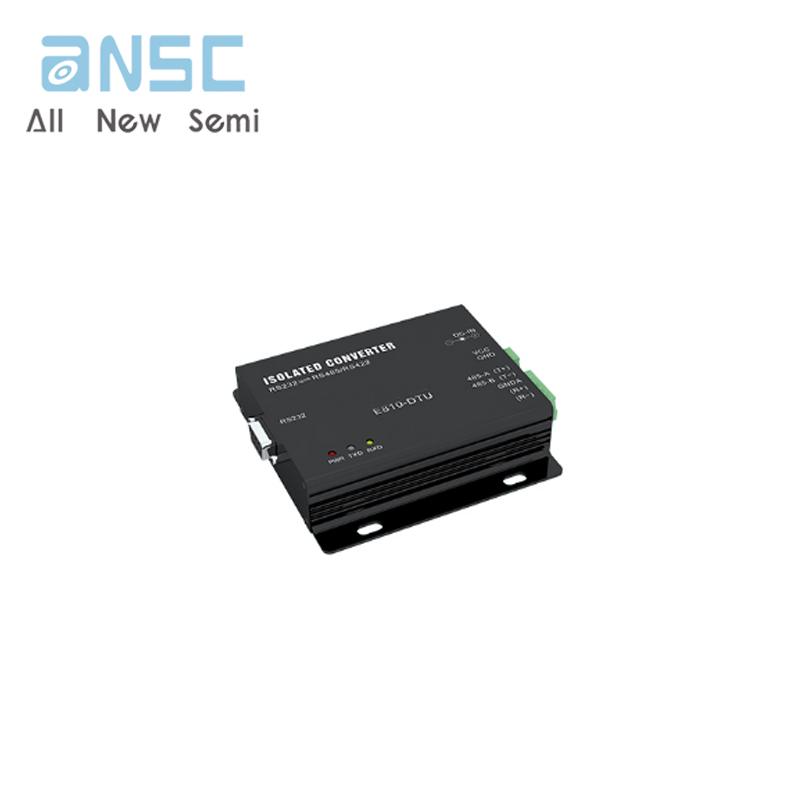

Actual product photos

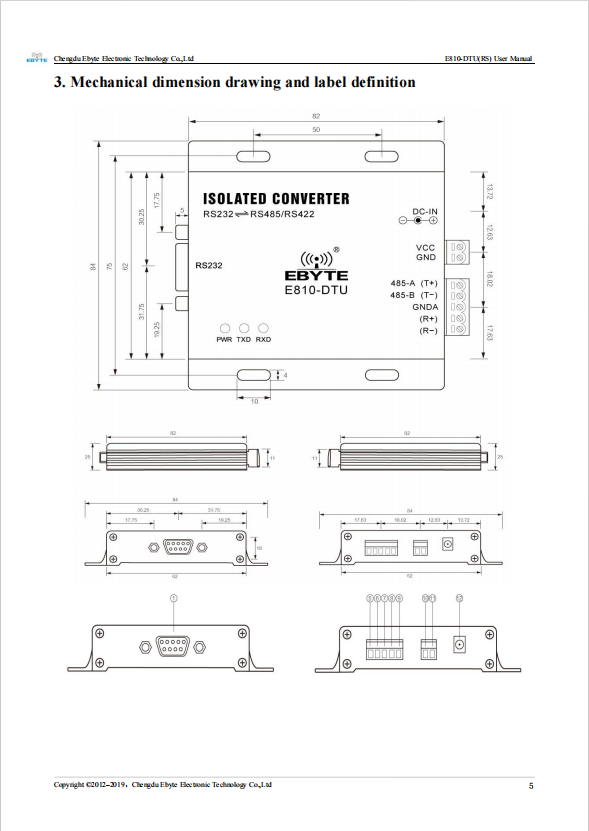

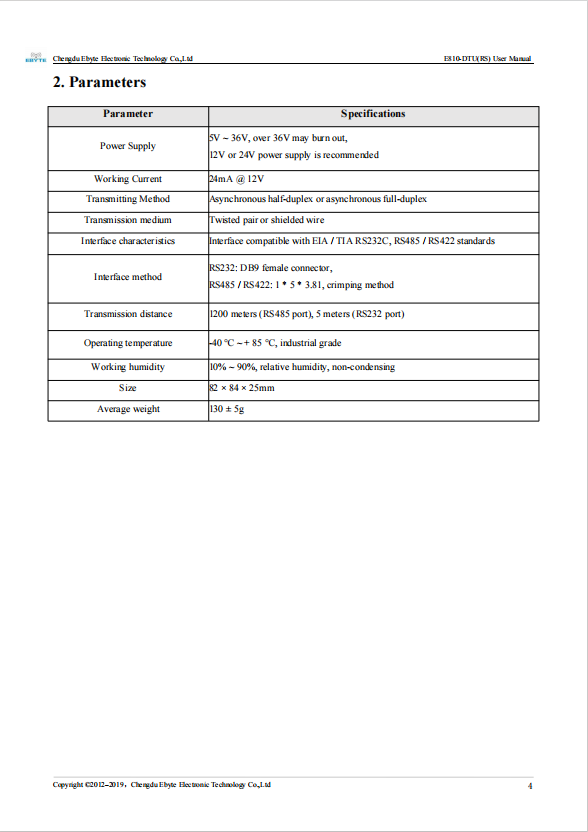

Product Data Manual：
For more product information, please download the PDF
