Product Descriptions
E72-2G4M23S1A is a small volume patch ZigBee and 6LoWPAN wireless module independently developed based on the CC2630 chip, with a maximum transmission power of 100mW. It uses a 24MHz industrial grade high-precision low-temperature drift active crystal oscillator.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E72-2G4M23S1A | |
| Working frequency | 2402~2480 MHz | Default: 2.4GHz (24MHz oscillator) |
| Transmitting power | 23 dBm | About 200mW |
| Receiving sensitivity | -102 dBm | Air data rate: 1Mbps |
| Air data rate | 1Mbps | Please refer to IC datasheet for IEEE802.15.4 |
| Test distance | 1500m | In open and clear air, with maximum power, 5 dBi antenna gain, height of 2m, air data rate: 1M bps |
| IC | CC2630F128RGZR | - |
| FLASH | 128 KB | - |
| RAM | 28 KB | - |
| Core | M3+M0 | - |

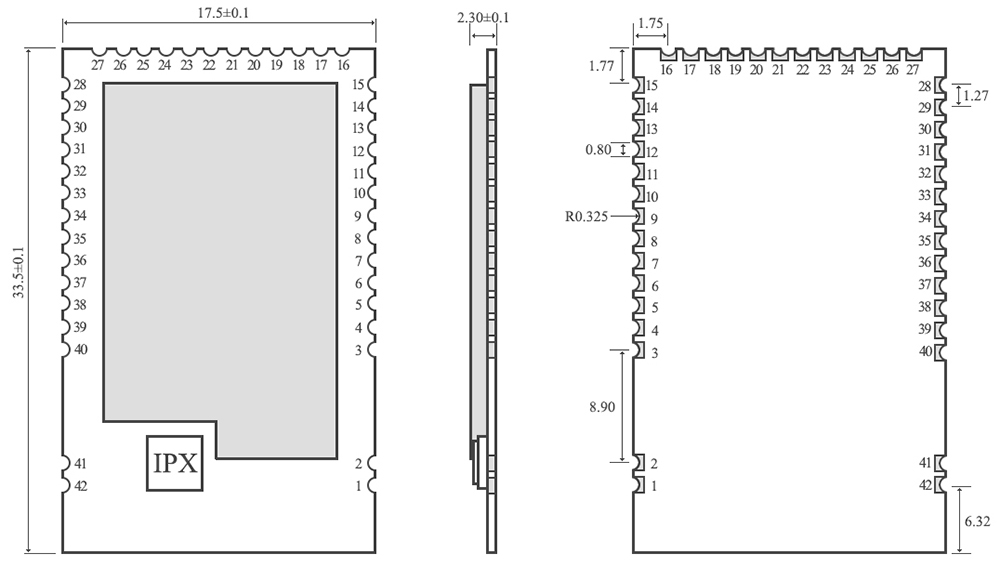

| Size | 17.5*33.5 mm | - |
| Antenna type | PCB / IPEX | - |
| Communication interface | I/O | - |
| Package | SMD |

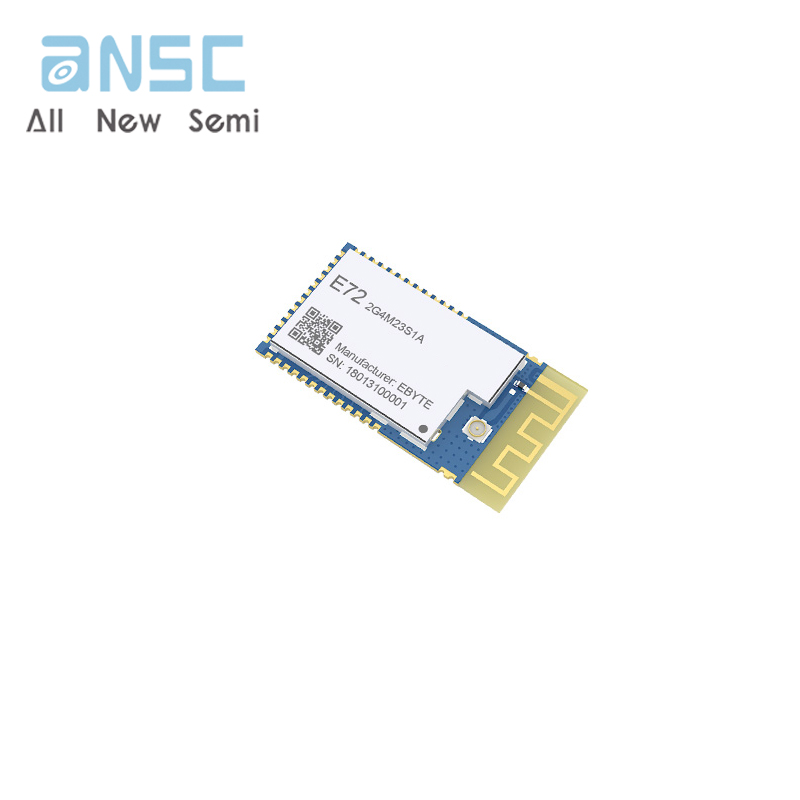

Actual product photos

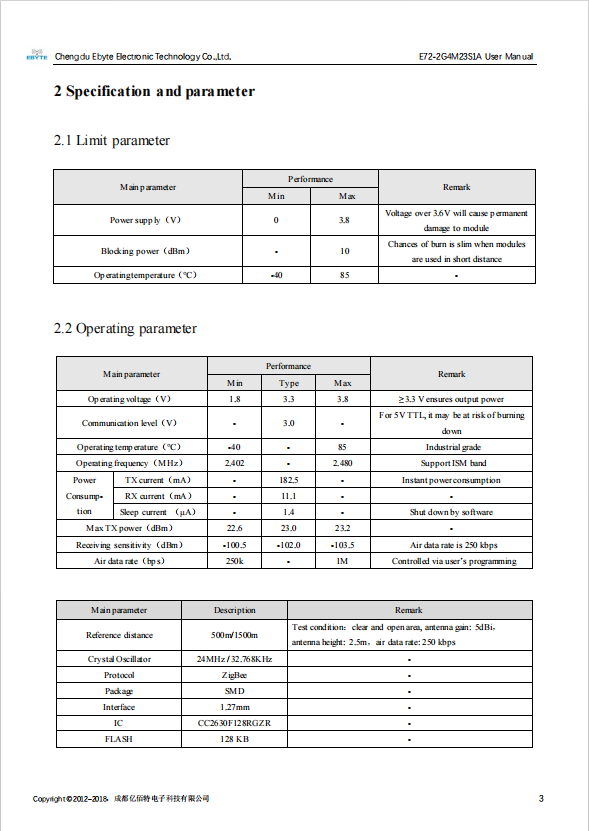

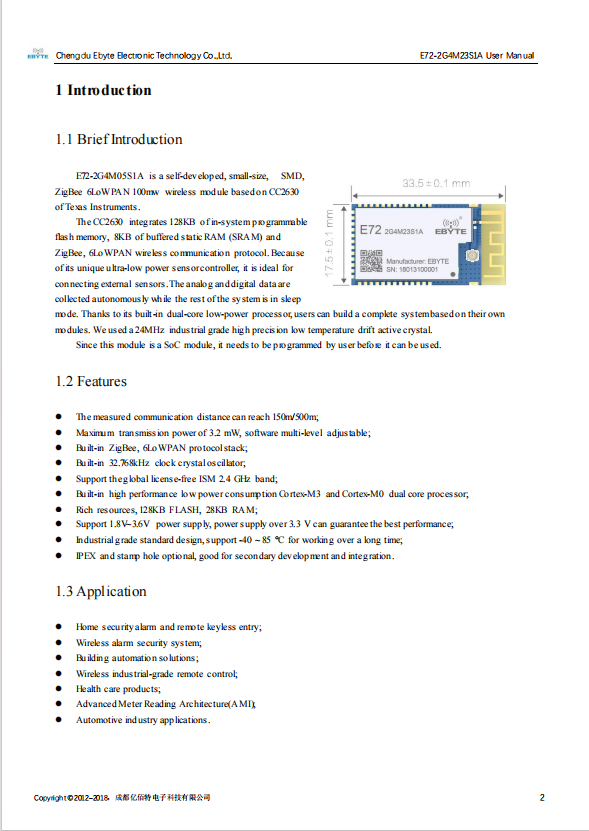

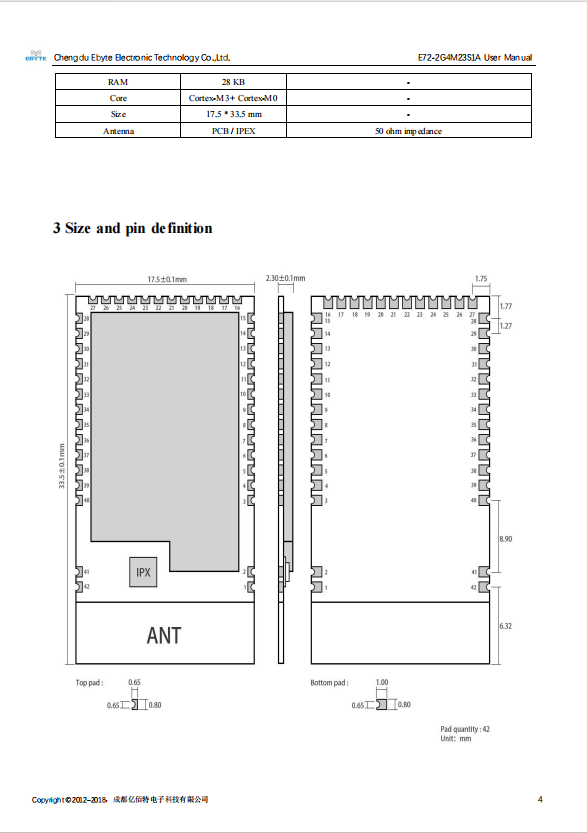

Product Data Book：
For more product information, please download the PDF
