Product Details
Features
? Plastic package has Underwriters Laboratory flammability classification 94V-0
? Optimized for LAN protection applications
? Ideal for ESD protection of data lines in accordance with IEC 1000-4-2 (IEC801-2)
? Ideal for EFT protection of data lines in accordance with IEC 1000-4-4 (IEC801-4)
? Low profile package with built-in strain relief for surface mounted applications
? Glass passivated junction
? Low incremental surge resistance, excellent clamping capability
? 400W peak pulse power capability with a 10/1000μS waveform, repetition rate(duty cycle) : 0.01% (300W above 78V)
? Very fast response time
? High temperature soldering guaranteed : 250℃ /10 seconds at terminals
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# | ANSC- SMAJ36CA |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse |
| Series | SMAJ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 36V |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Current - Peak Pulse (10/1000μs) | 6.9A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |

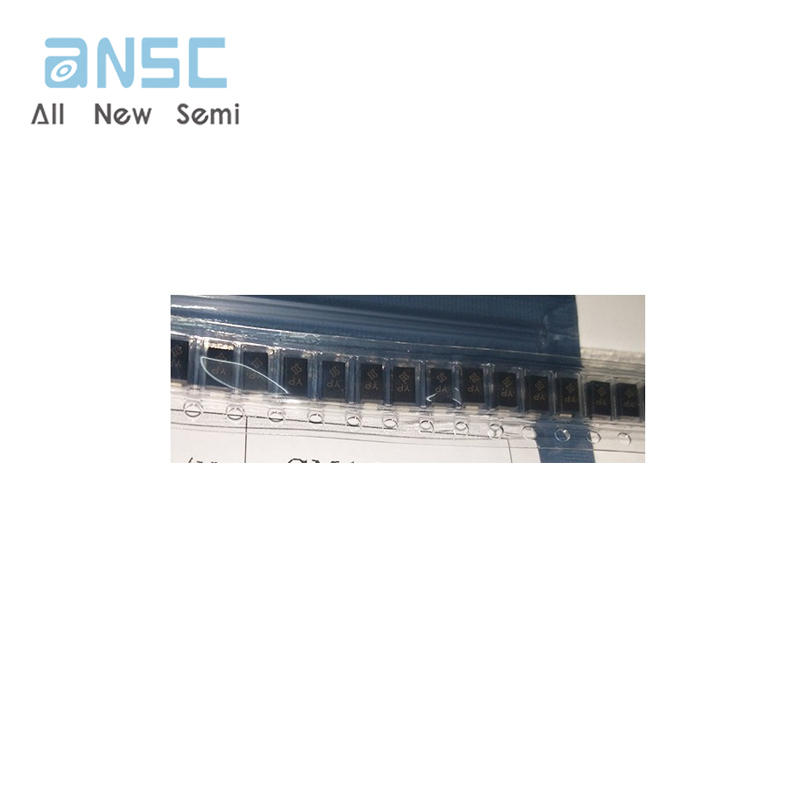

Product Photos
