Product Introduction

Connect the 24 pin or 20 pin plug wires of the desktop chassis power supply to the sockets on the ATX power module board, transfer the voltage and current to each protective fuse line, and allocate four groups corresponding to four road outputs.

ATX power module board, which includes power indicator lights and a main switch for turning on and off power, is suitable for developing low-voltage power supplies for physical computing projects (embedded systems).

Product Parameter

Output voltage: Provides 4 sets of output voltages, including 3.3V, 5V, 12V, and -12V

Output current: Refer to the parameters of the desktop power box (maximum current per group cannot exceed 20A)

Pin Description: Standard 24 pin ATX computer power socket, compatible with 20 pin socket

Compatible port: ATX (compatible with some BTX types)

Equipped with replaceable glass fuses: Each output channel has replaceable glass fuses and corresponding ground binding posts for easy connection

Matters Needing Attention

Attention: The output current of each group should be used within 20A, and the maximum current should not exceed 20A. Please use it in a standardized manner, otherwise it will directly damage the module.

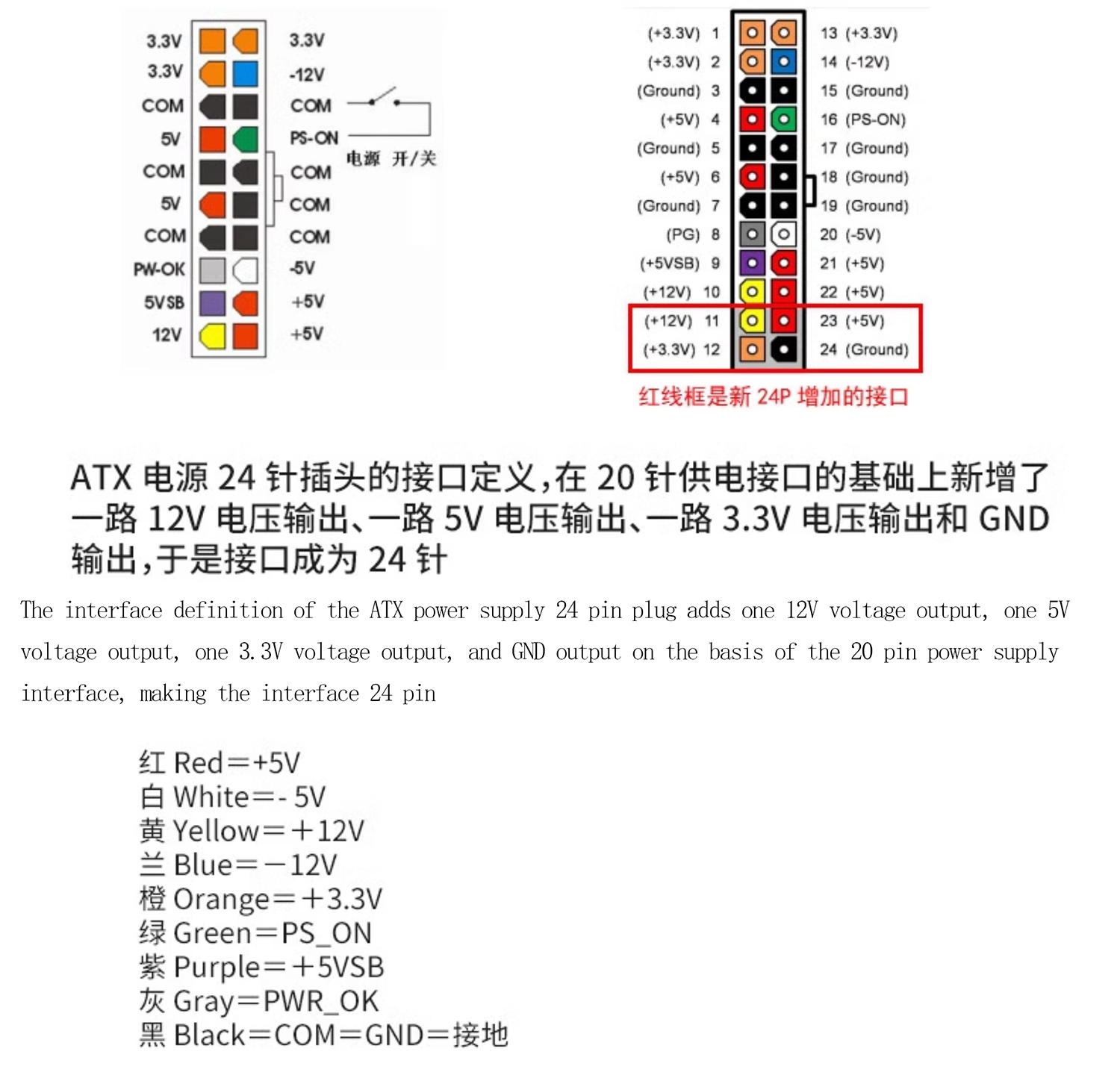

Product Funtions

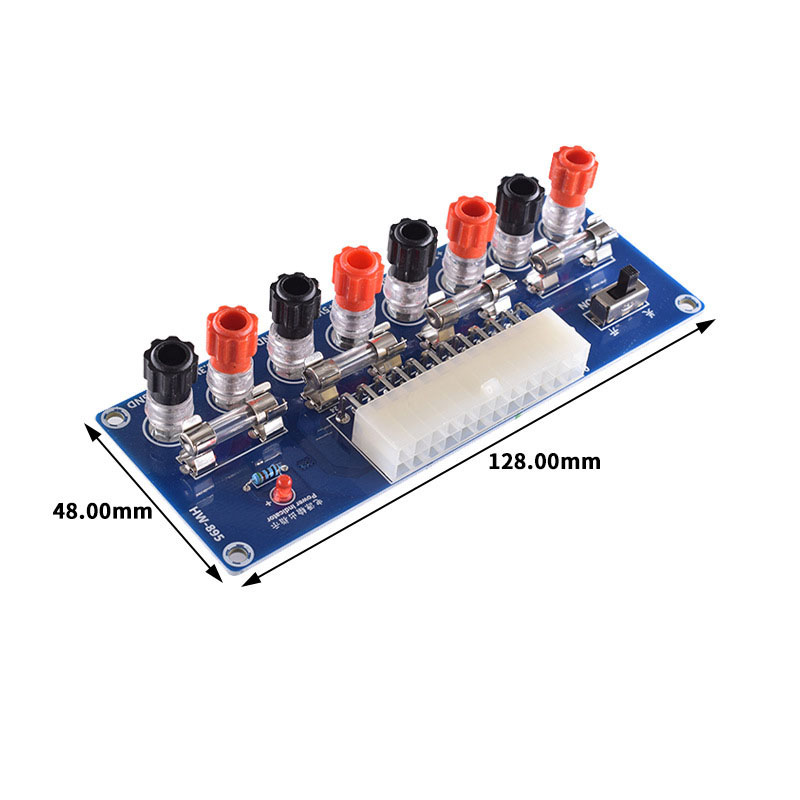

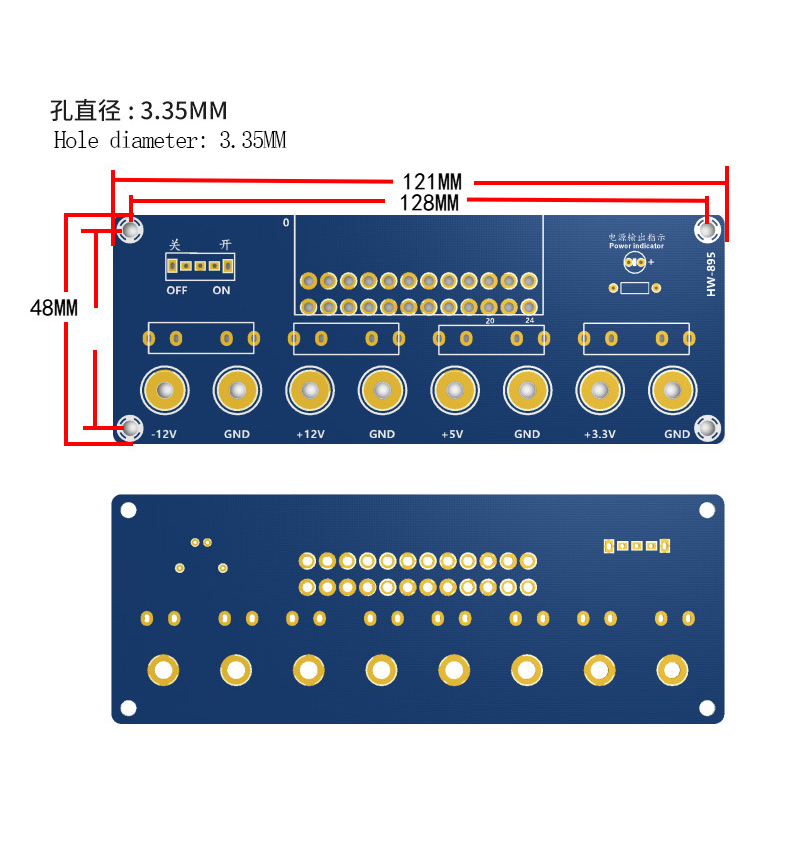

Product Size

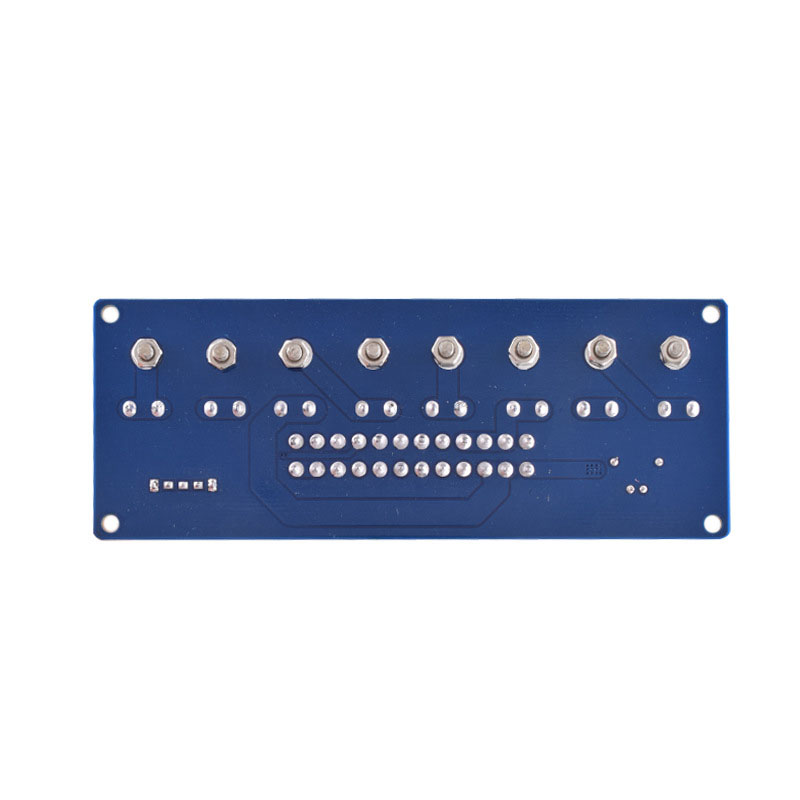

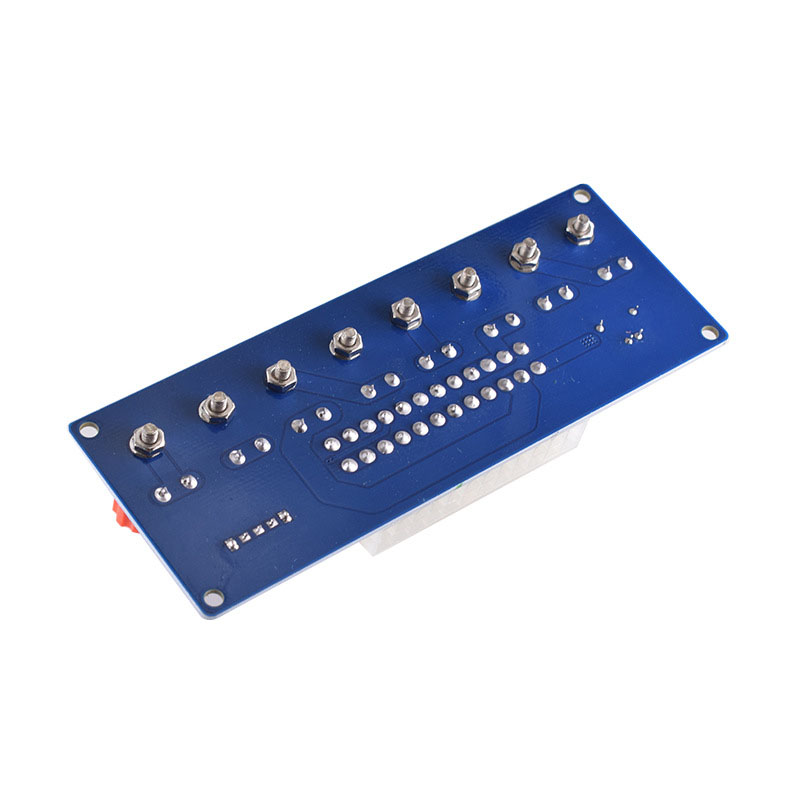

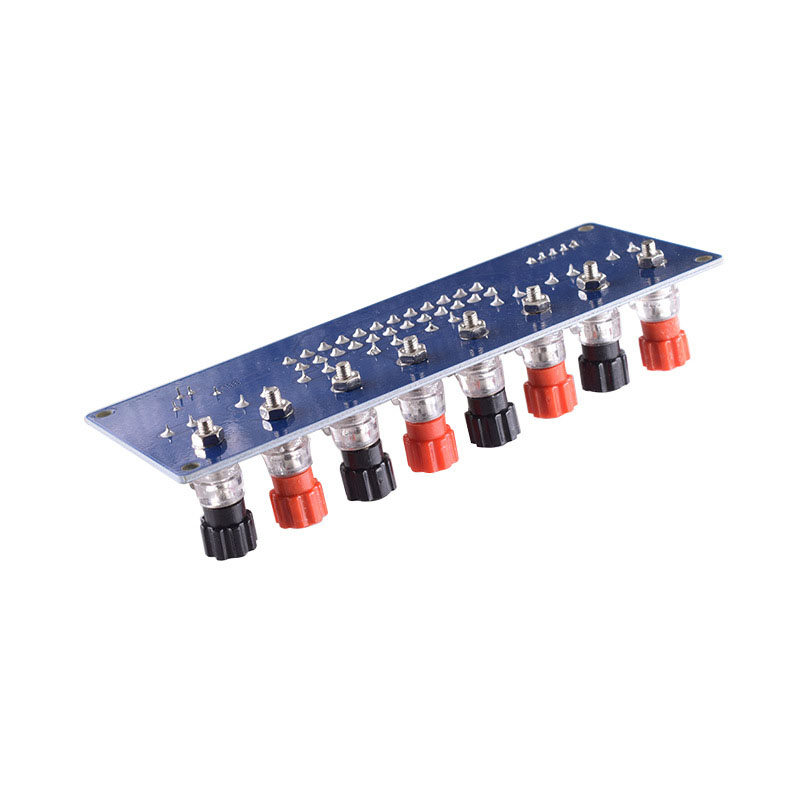

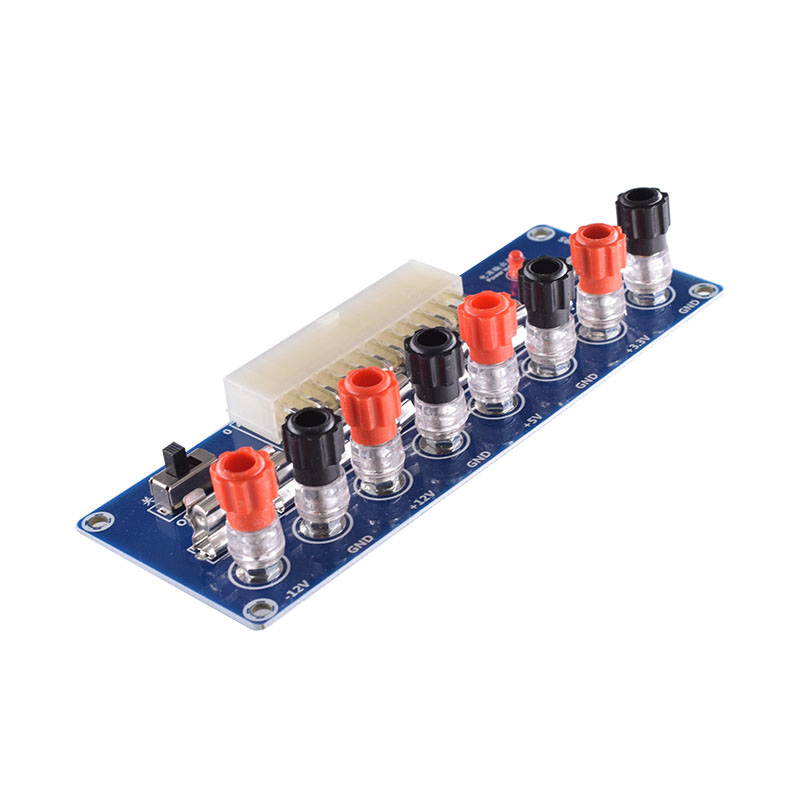

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
