Product Introduction
The Arduino Nano ENC28J60 Ethermet shield V1.0 network module The Arduino Nano board can be connected to the Internet.
Product Features
Controller: The microcontroller ENC28J60 Ethernet/HR911105A provides efficient libraries and examples for use as a server or client
PCB size: 63x18mm
PCB with Ethernet connector: 67x18x17mm
Pin below PCB: 9.5 mm
Compatible with Nano Ethernet driver: Microchip ENC28J60
Ethernet connector: HR911105A
Product Matters Needing Attention

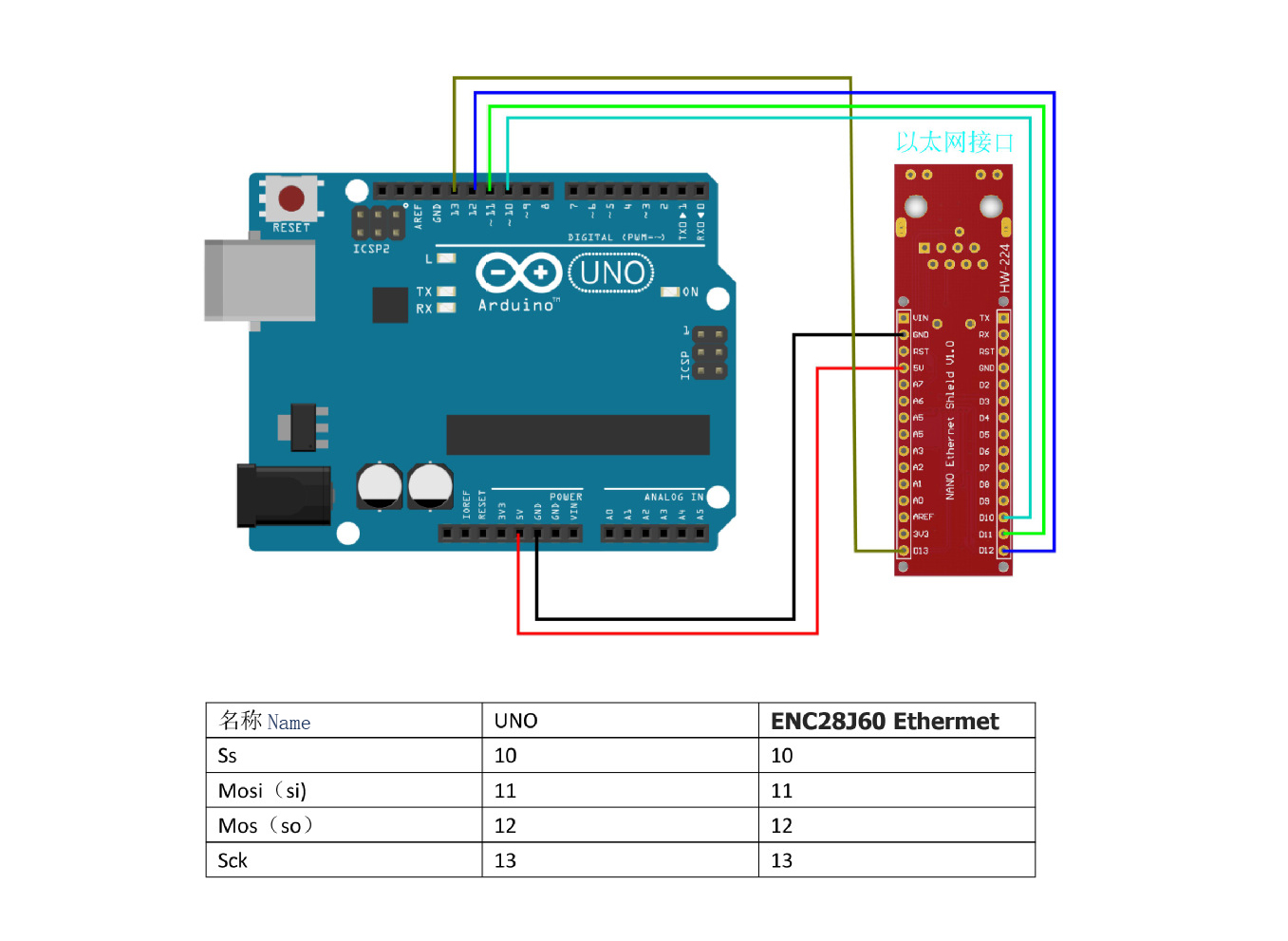

1. Pay attention to wiring according to the diagram and do not make mistakes
2. This document only represents the product parameters at the time of editing, and any changes in the future will not be notified separately.
3. When connecting the high-voltage power module, please pay attention to the wiring to avoid short circuiting and causing equipment damage.
Product Funtions

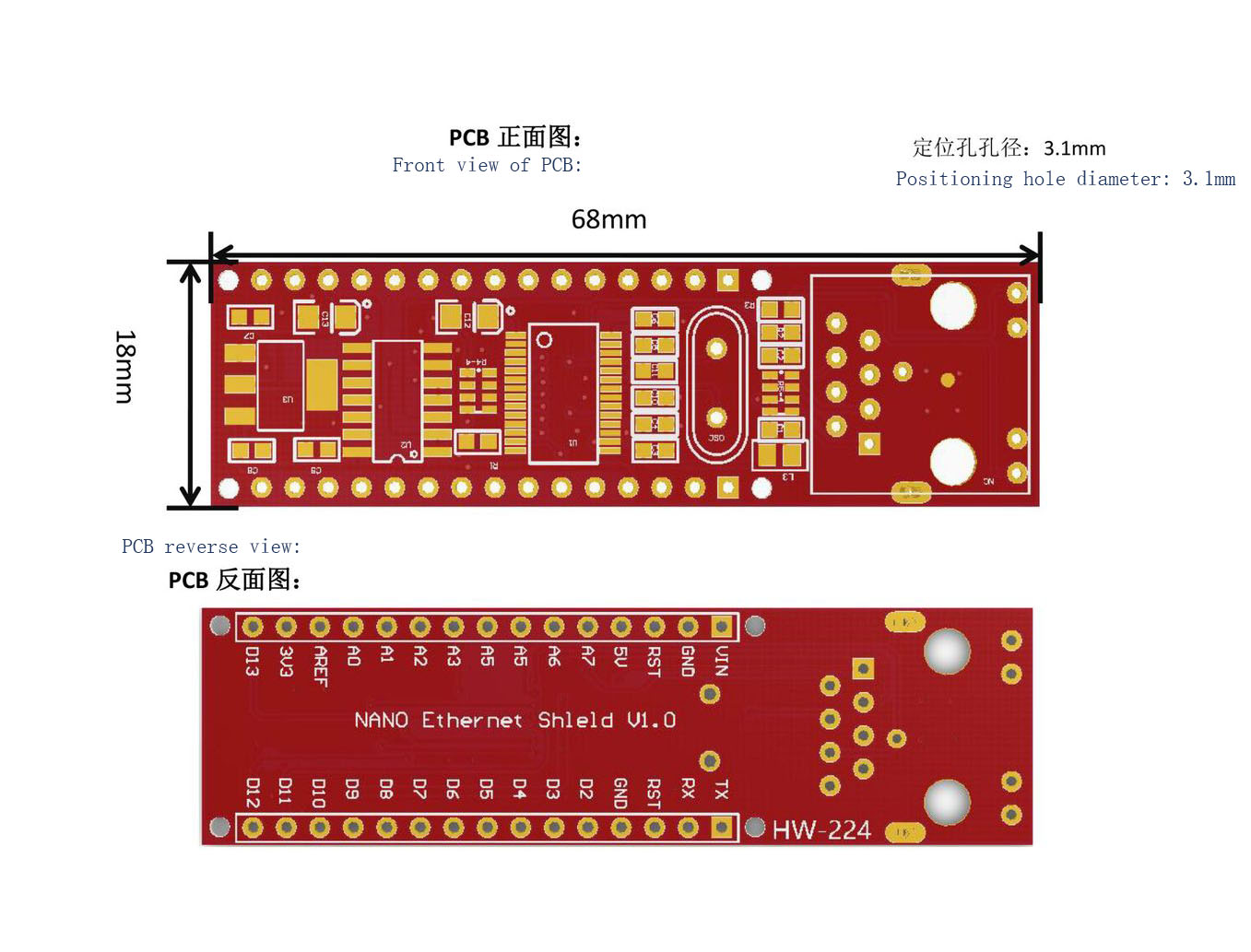

Product Size

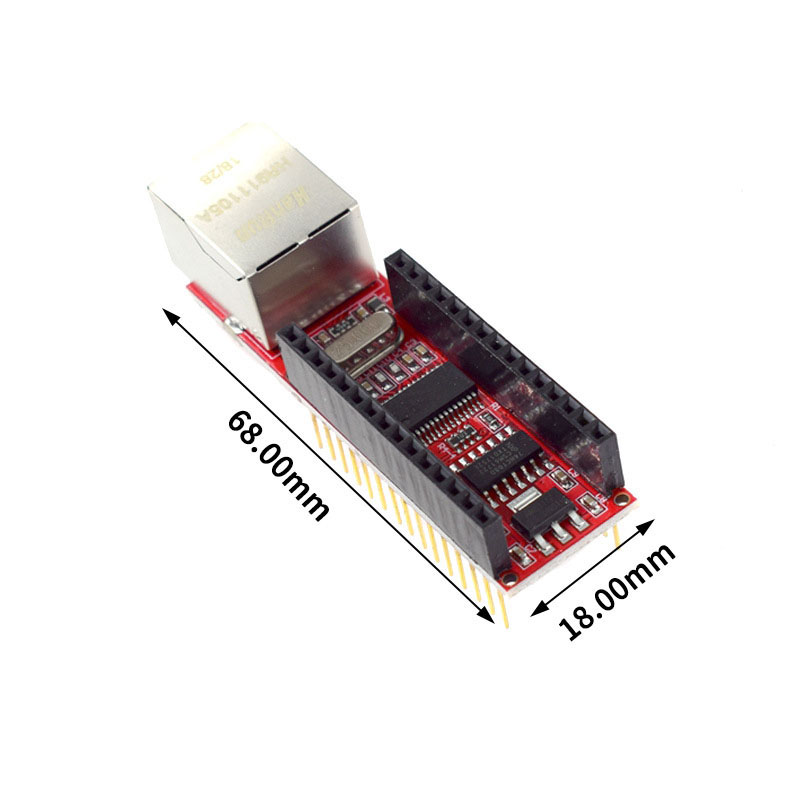

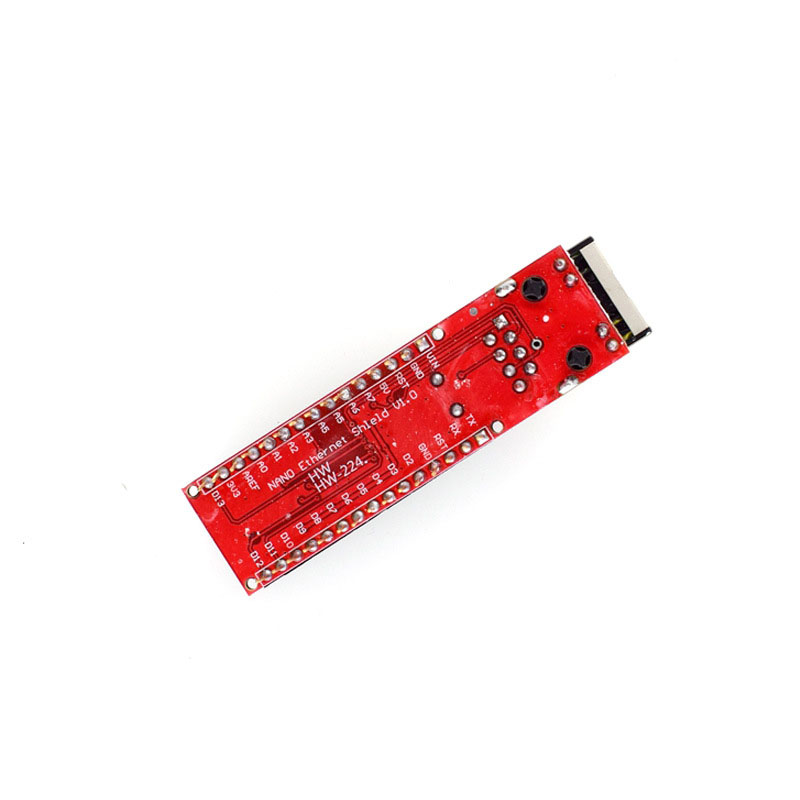

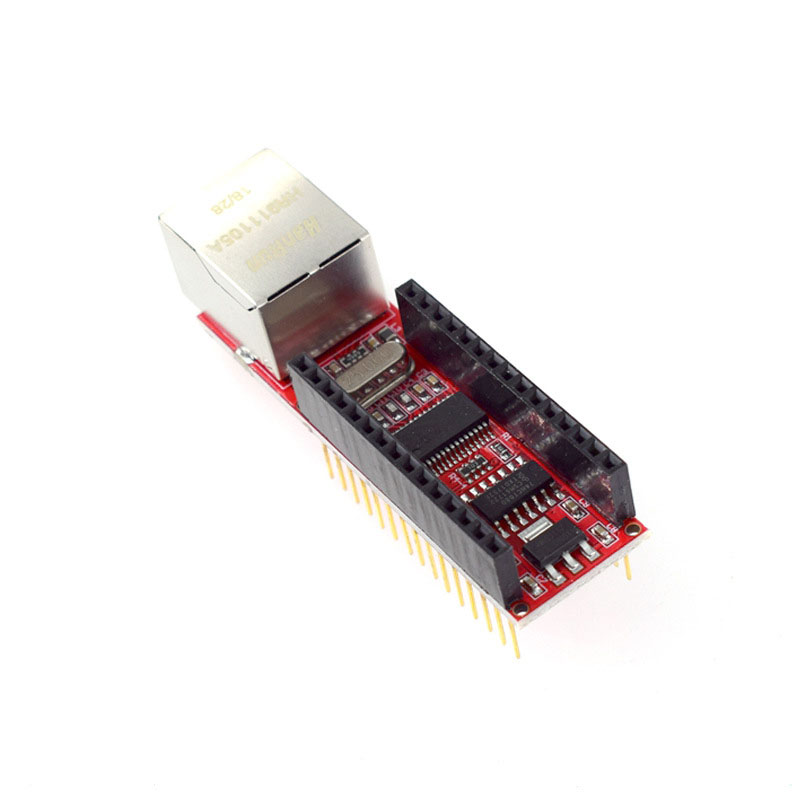

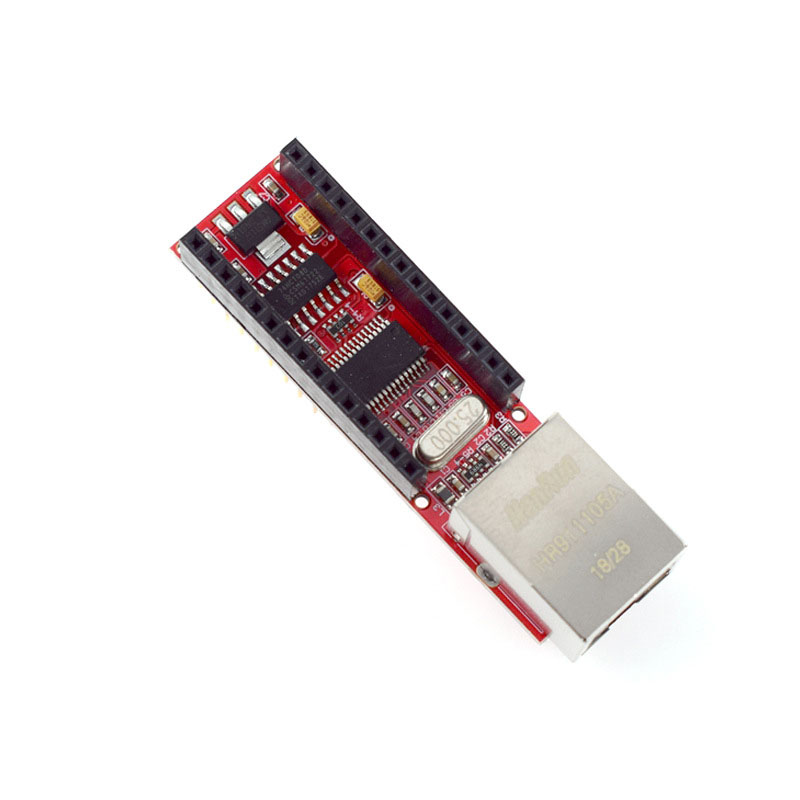

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
