Product Performance
Motor power supply voltage: 6.5V-45V
Logic level: The IN pin has a logic level of up to 5.5V
Typical RDS (on): 565mQ
Peak current: 3.6A
Undervoltage lockout: Yes
Overcurrent protection: Yes
Product weight: 6.3g
Product Description
PWM control
Current limit/regulation without inline detection resistor
Hot shutdown

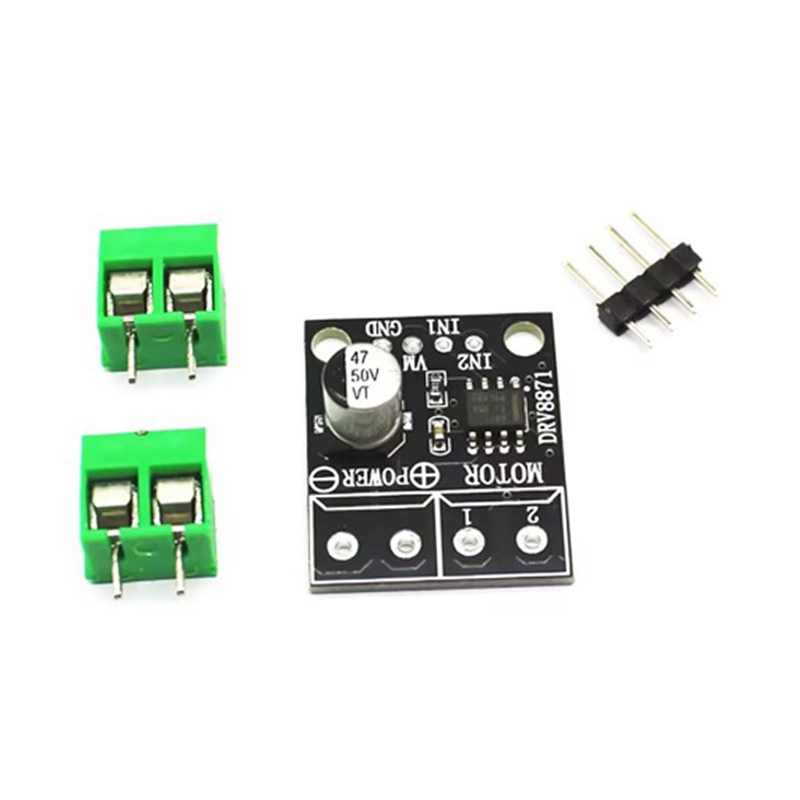

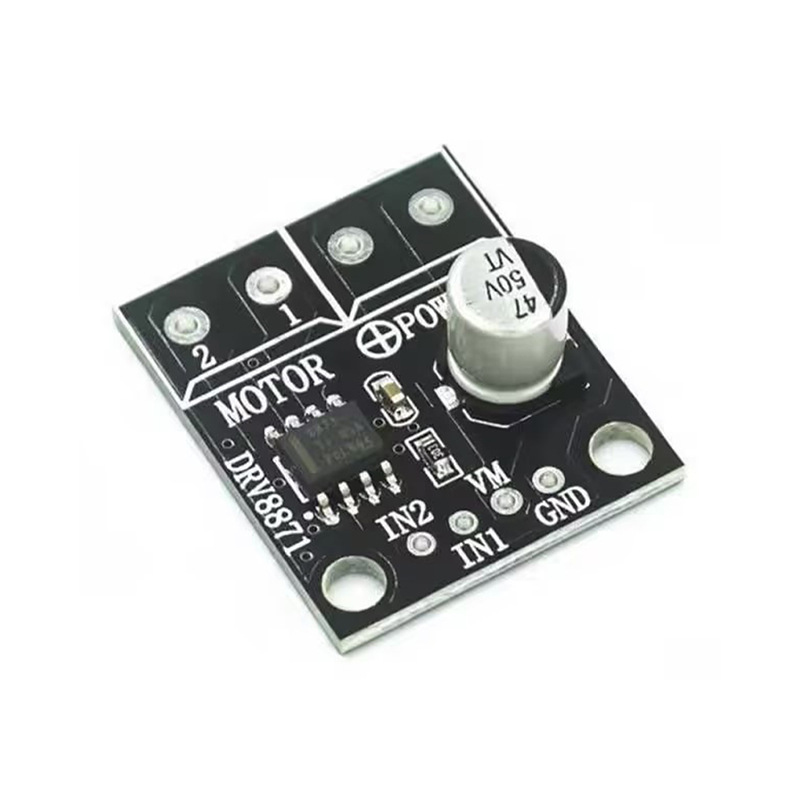

Using it is actually quite simple. Connect the motor to the OUT terminal block. Power supply 6.5-45VDC on VMotor and provide H-bridge input control on IN1 and IN2. You can even input PWM, and the driver chip will do the right thing.
You can use the external resistor Rlim to set the current limit. By default, we weld a~2A current limit on a 30K resistor, but you can remove the resistor and/or weld a resistor on it to change the resistance and limit.

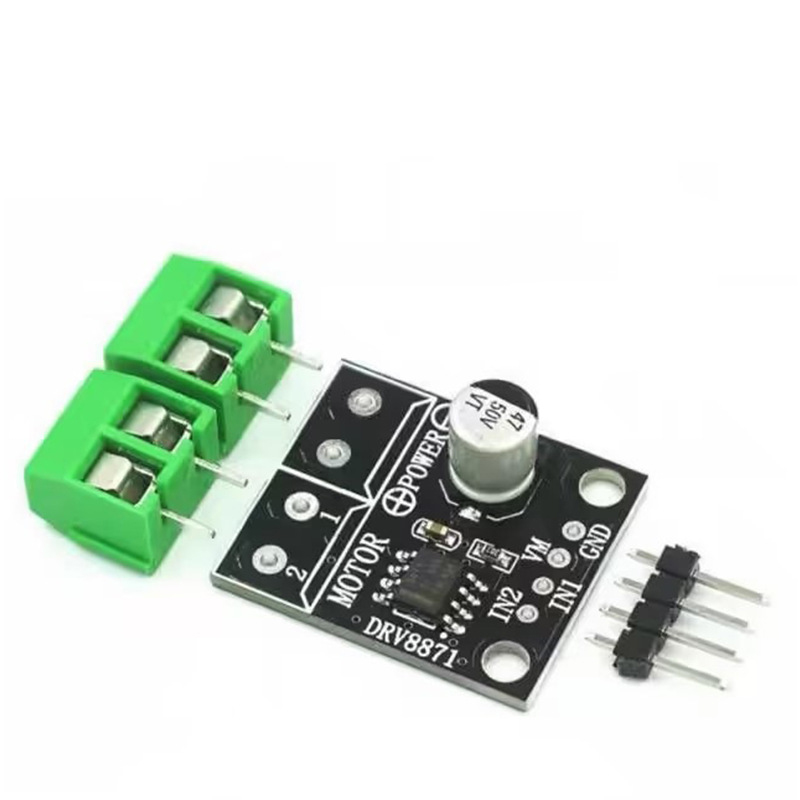

Each order has a fully assembled and tested motor driver that breaks through two 2-pin terminal blocks and a small section of connector. It requires some light welding to connect the joints and wiring terminals, but it is a simple task that can be completed with basic welding equipment.

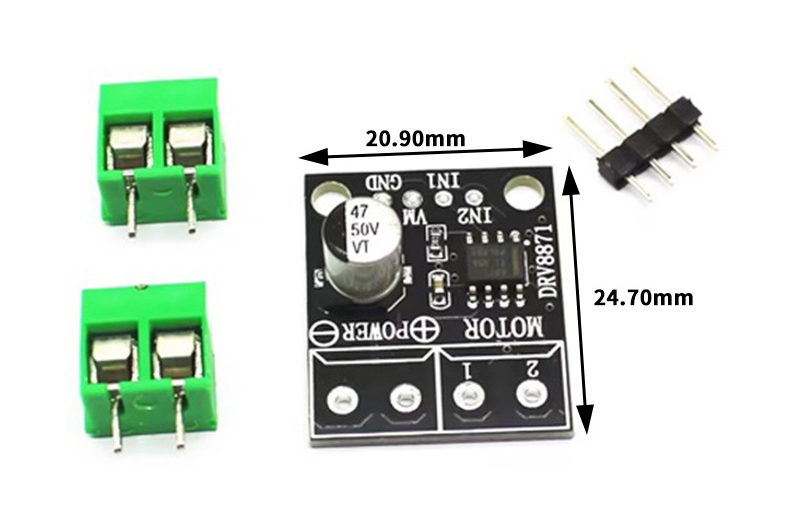

Product Size
