Product Parameter
1. Driving capability: Two DC motors or one four wire stepper motor
2. Working voltage: DC2~10V;
3. Signal voltage: DC1.8~7V;
4. Maximum output current per channel: 2.5A;
5. Support PWM speed regulation, PWM frequency range 10KHZ-50KHZ
6. Static current: 0.1UA

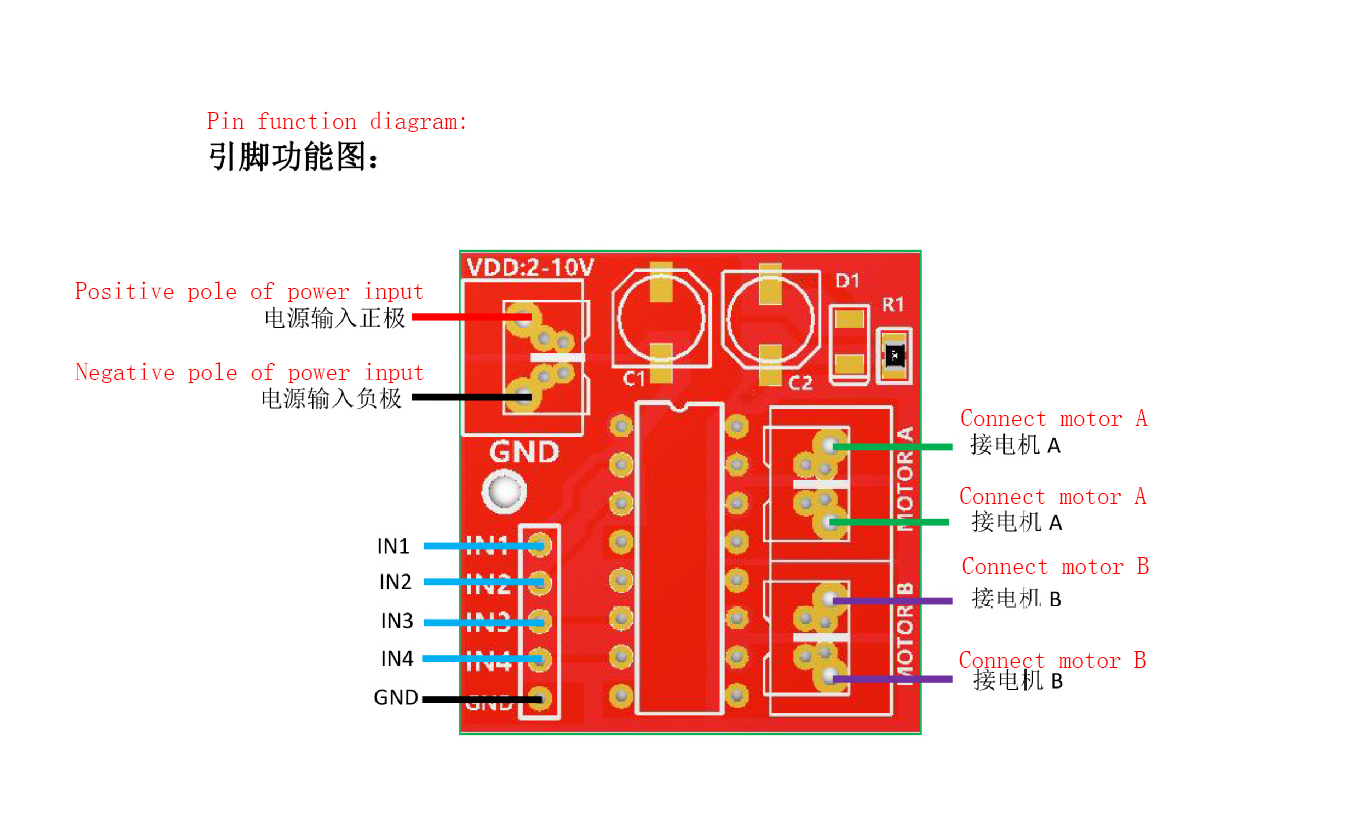

Product Funtions
Logic Truth Table
| 直流電機 DC motor | 旋轉方式 Rotation method | IN1 | IN2 | IN3 | IN4 |
| MOTOR-A | 正轉(調速） Forward rotation (speed regulation) | 1/PWM | 0 | ||
| 反轉(調速) Reverse (speed regulation) | 0 | 1/PWM | |||
| 待機 Standby mode | 0 | 0 | |||
| 急停 Emergency stop | 1 | 1 | |||
| MOTOR-A | 正轉(調速） Forward rotation (speed regulation) | 1/PWM | 0 | ||
| 反轉(調速) Reverse (speed regulation) | 0 | 1/PWM | |||
| 待機 Standby mode | 0 | 0 | |||
| 急停 Emergency stop | 1 | 1 |
Note: "1" represents high level; '0' represents low level; PWM "stands for pulse width modulation wave, which adjusts the duty cycle to change the speed.
IN1, IN2 control DC motor A; IN3, IN4 control DC motor B; The two routes are completely independent.
The input terminal INx has anti common state conduction function, which is equivalent to a low-level input when suspended.

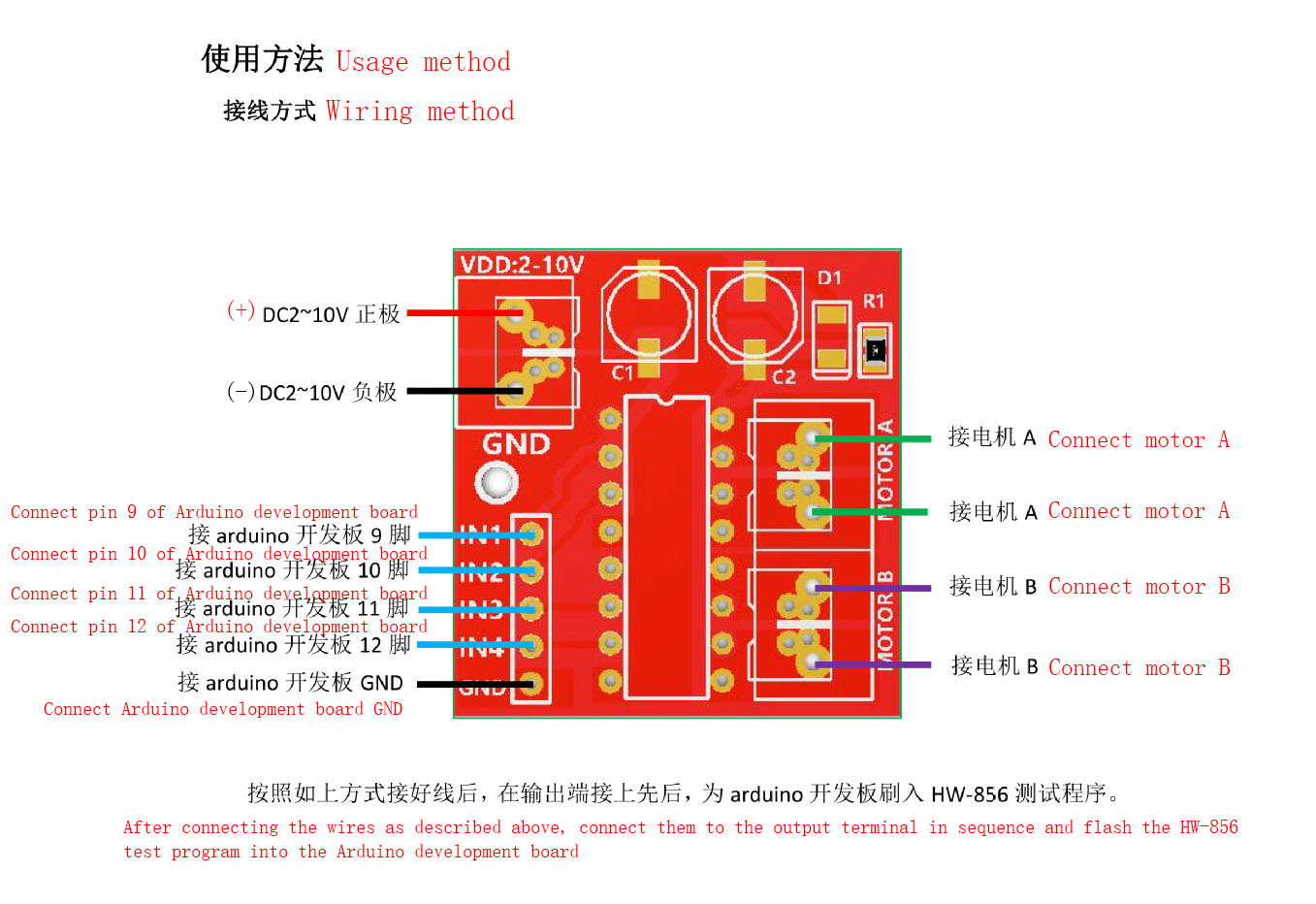

Product Use

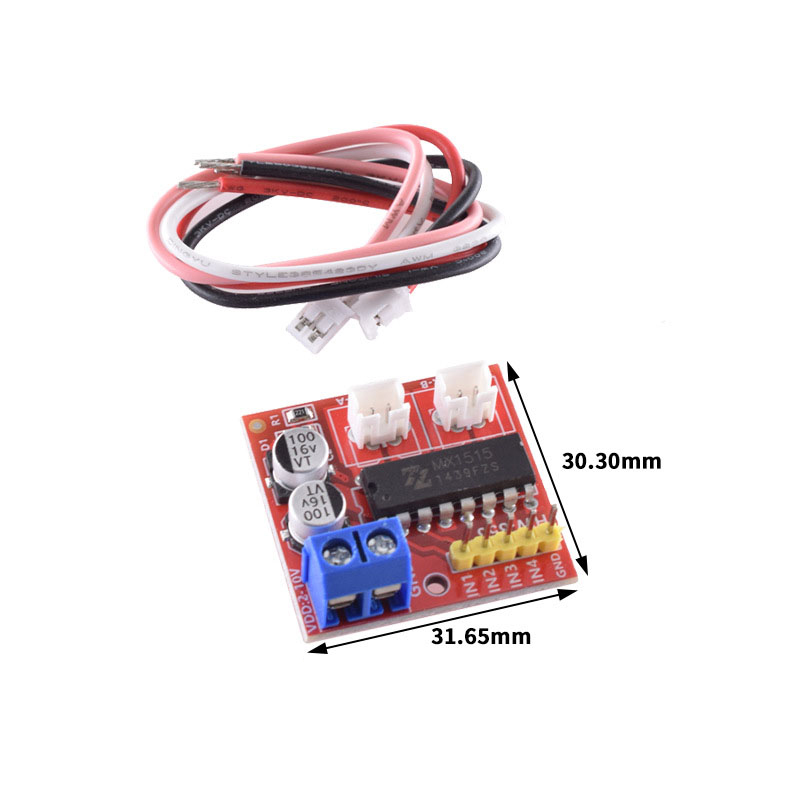

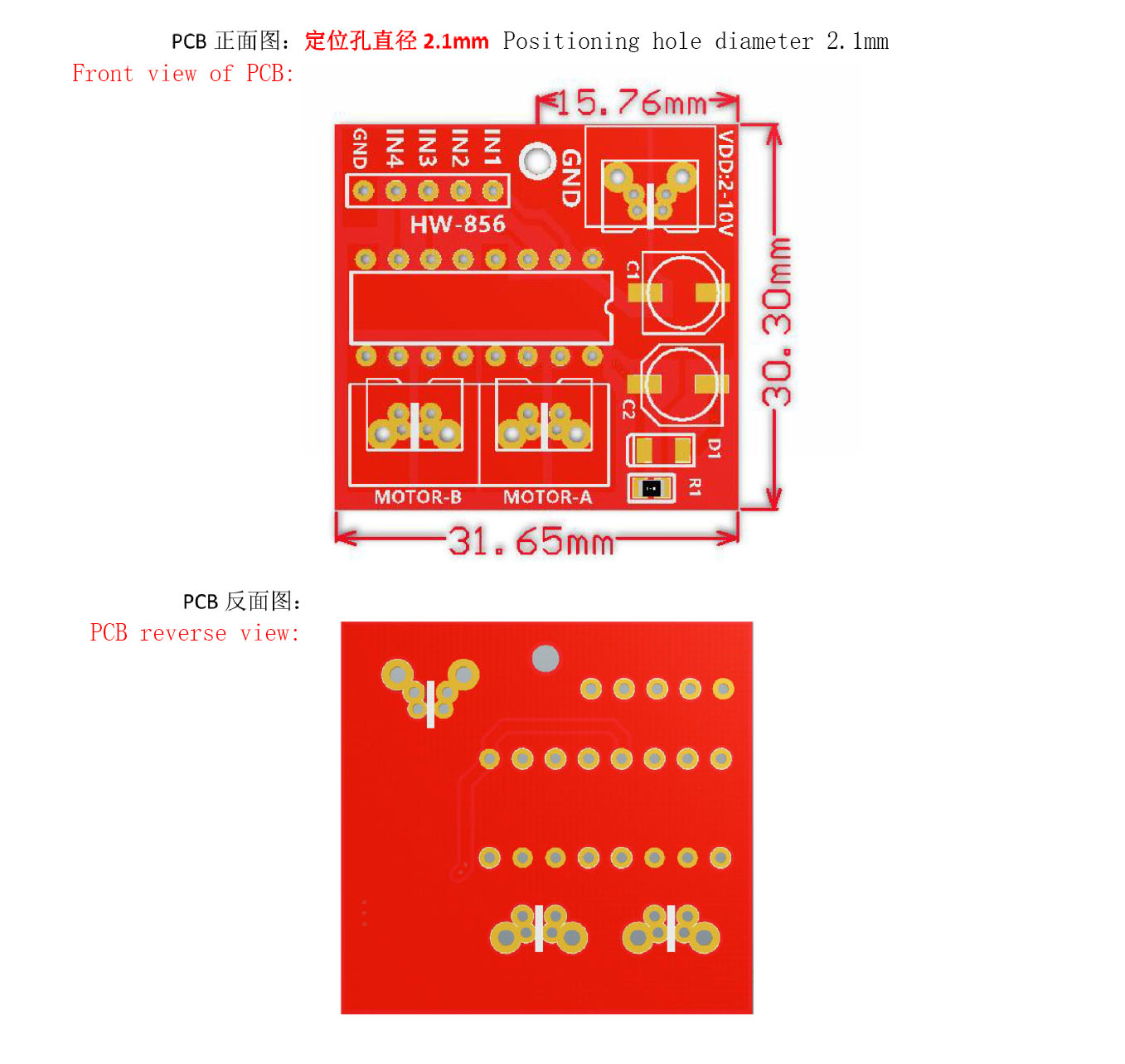

Product Size

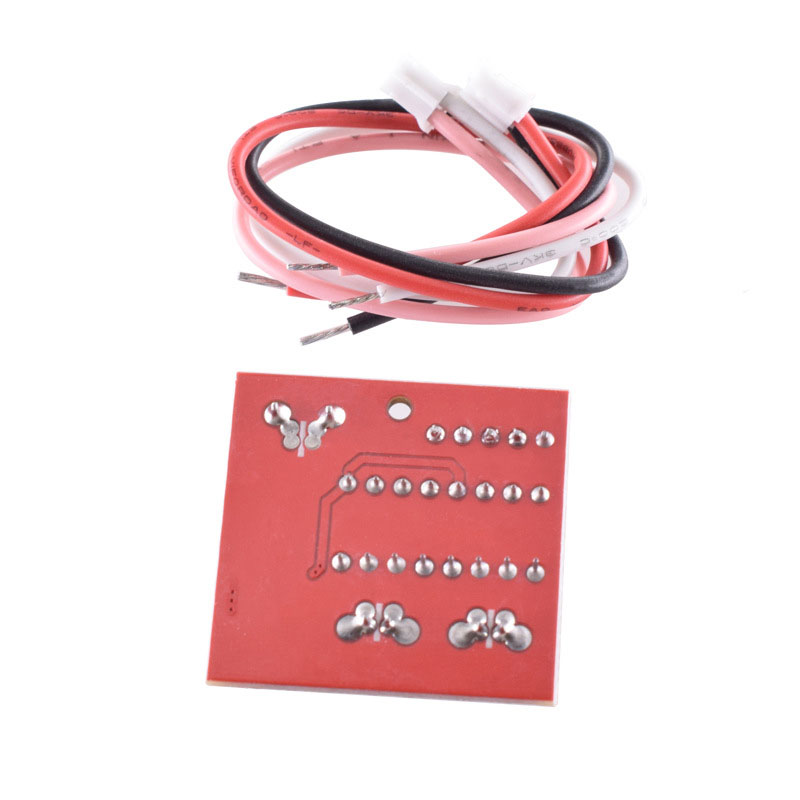

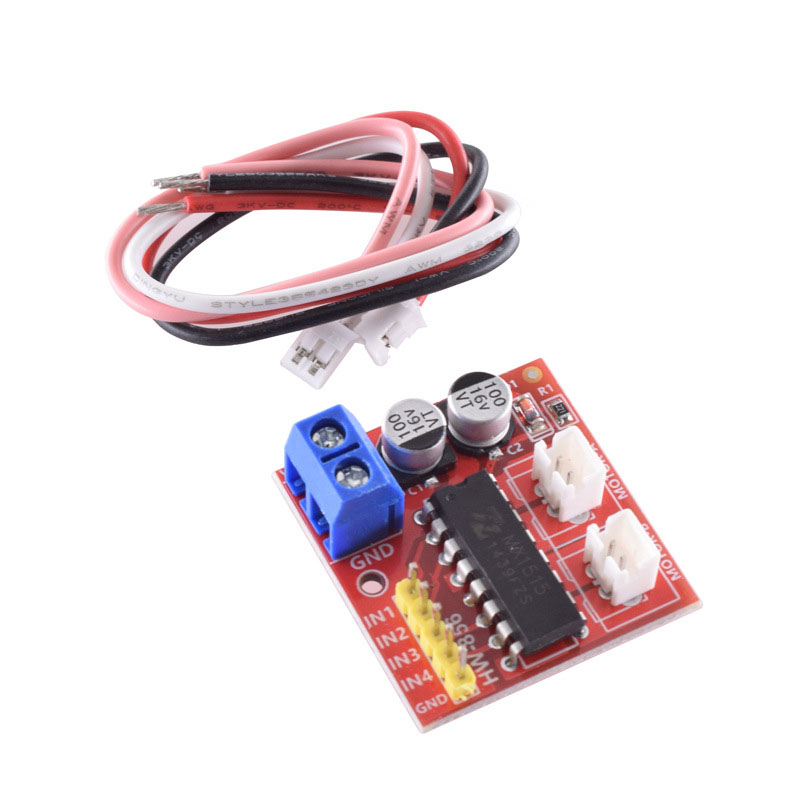

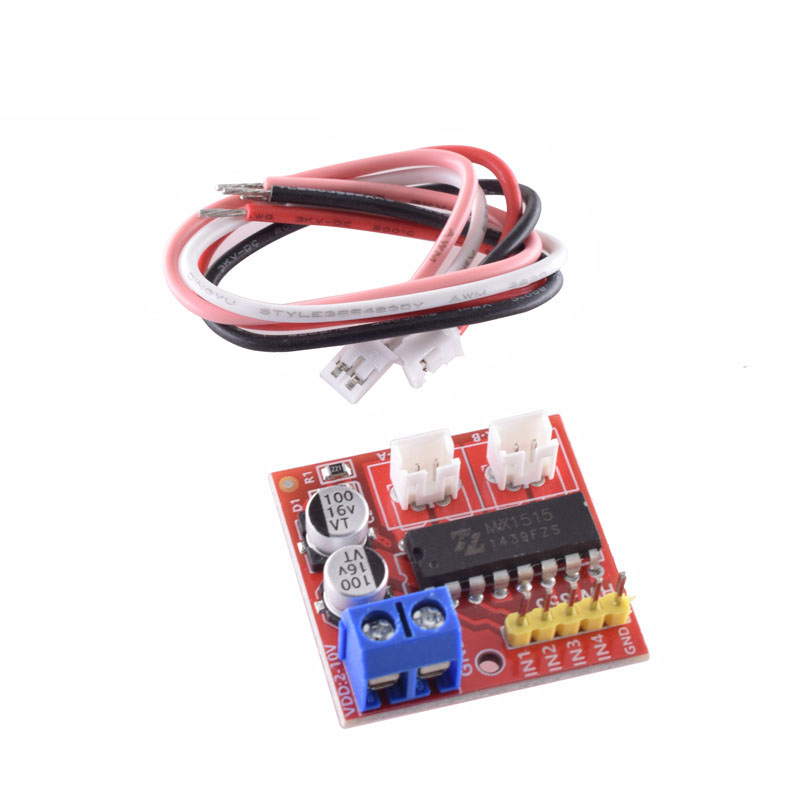

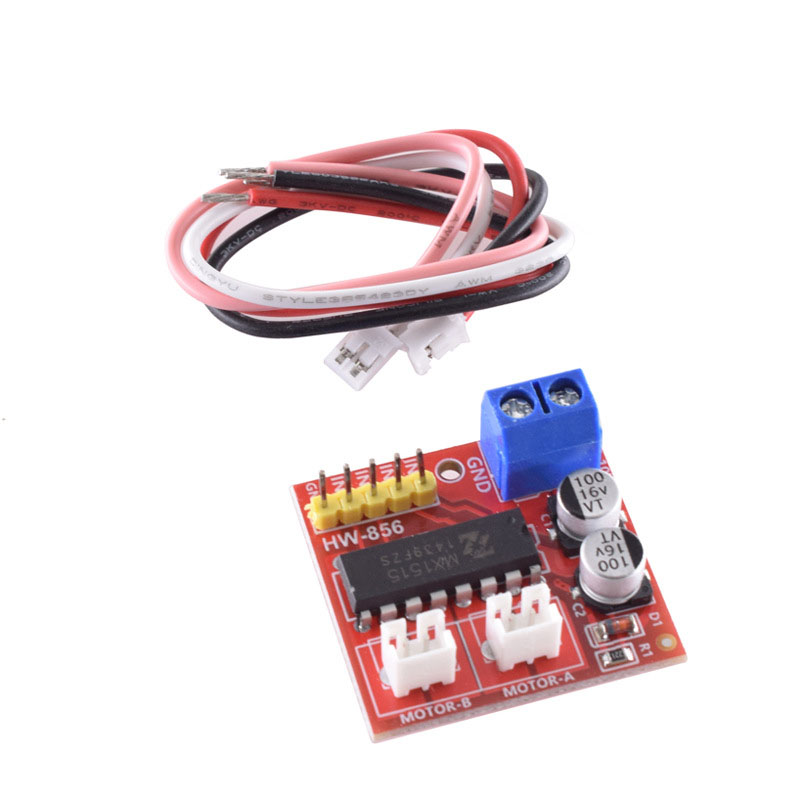

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
