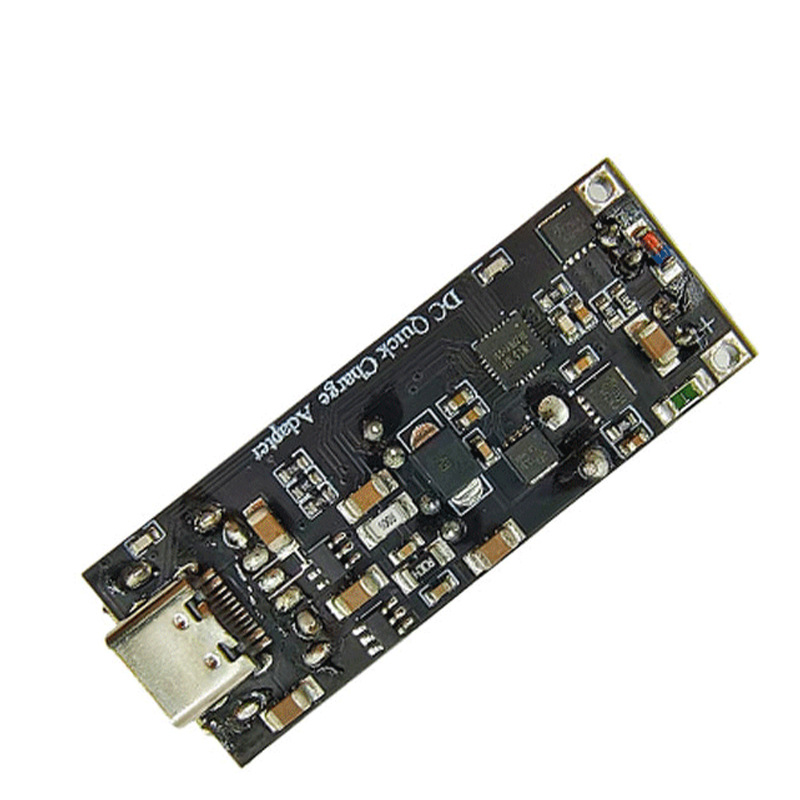

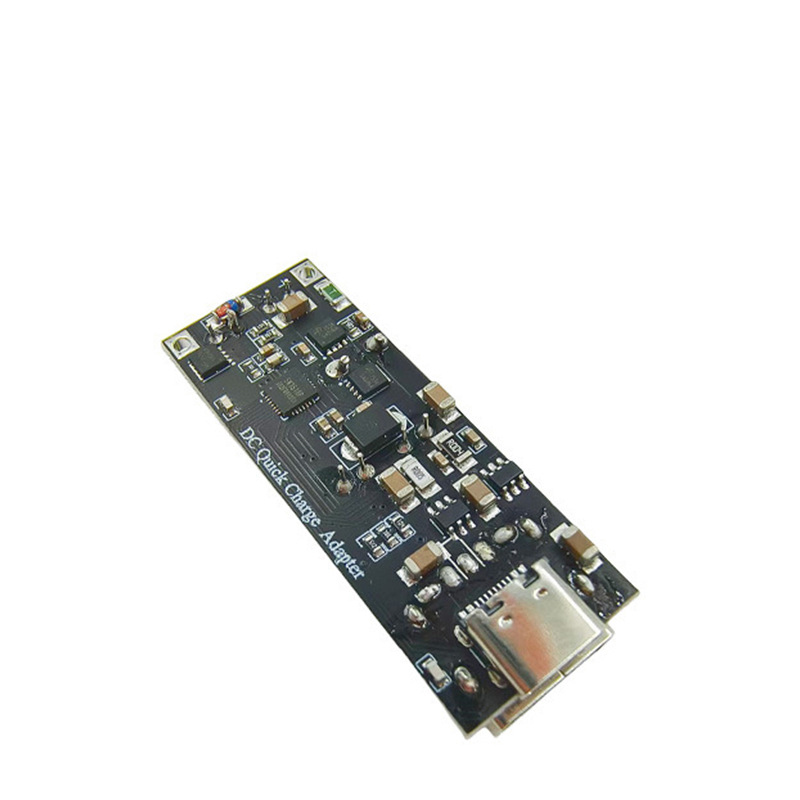

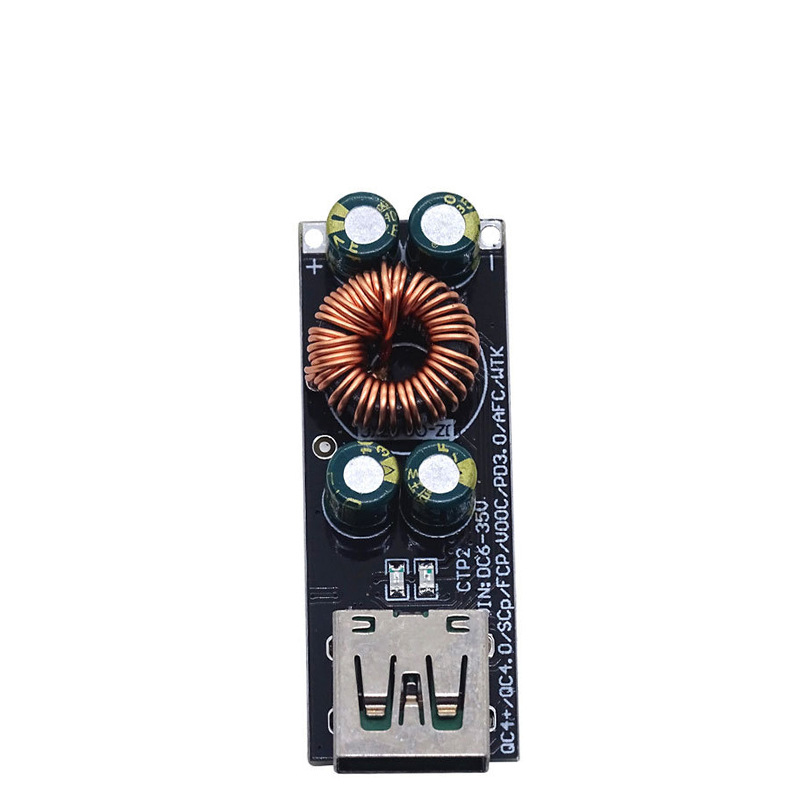

Product Details

1、This product is compact in size (50 * 17 * 12mm), suitable for users to DIY! If paired with a 12 volt power adapter, it can be used for daily fast charging of mobile phones, and can also be powered by batteries, solar panels, DC generators, etc! A great helper in outdoor/car/power outage situations! This is something that mobile phone chargers and power banks cannot do! Keep one at home, one more charging method for peace of mind! 1. Wide power supply voltage: 6 to 35V (input voltage should be greater than the output voltage you need)

2. High performance input anti reverse connection: A dedicated M0S tube is used for anti reverse connection. Although the cost is high, the effect far exceeds that of diodes and does not cause overheating! Novice DIY enthusiasts don't have to worry about backfiring!

3. Equipped with fast charging status indicator light: blue light indicates output, red light indicates fast charging status!

Product Features

Model: 3516

Support fast charging protocol compatibility: USBPD3.0(PPS)， Huawei SCP/FCP Qualcomm QC4+/QC3.0, Apple 2.4A Samsung AFC, VIVO9V2A dual engine MediaTek PE2.0

Model: 3518

Support fast charging protocol compatibility: USBPD3.0(PPS)， Huawei SCP/FCP Qualcomm QC4+/QC3.0, Apple 2.4A Samsung AFC, VIVO9V2A dual engine MediaTek PE2.0, OnePlus V00C, OPPO DASH

Product Attention

Matters Needing Attention

1. For low-voltage high current fast charging, please use the original data cable. If you want to measure the charging voltage and current, be sure to use a low internal resistance USB meter! Otherwise, it will affect the charging current!

2. TYPE C port is used for output charging; Charge your phone or laptop with the C-T0-C/TYPEC dual head data cable!

3. Charging 0PP0 and OnePlus phones requires using a USB port! (3518 style) QC4+/QC4.0/PD3.0 and other protocols require TYPEC_port!

4. When the power supply voltage is higher than 21 volts, the C-port PD protocol supports up to 20V3A output, and the module size is small. When used for laptops with PD charging, please ensure good ventilation and heat dissipation!

5. When both the USB port and TYPE C port are plugged into the phone, both ports will output 5V!

Product Features

1. Flexible power supply mode, full protocol fast charging module comes standard with red and black power lines!

2. Wide supply voltage: 6-32VDC

3. A high-performance input anti reverse connection dedicated MOS transistor is used for anti reverse connection. Although the cost is high, the effect far exceeds that of diodes and does not cause overheating! (The heat generation is close to zero)

4. The blue light of the fast charging status indicator is the output indicator, and the red light is the fast charging status indicator!

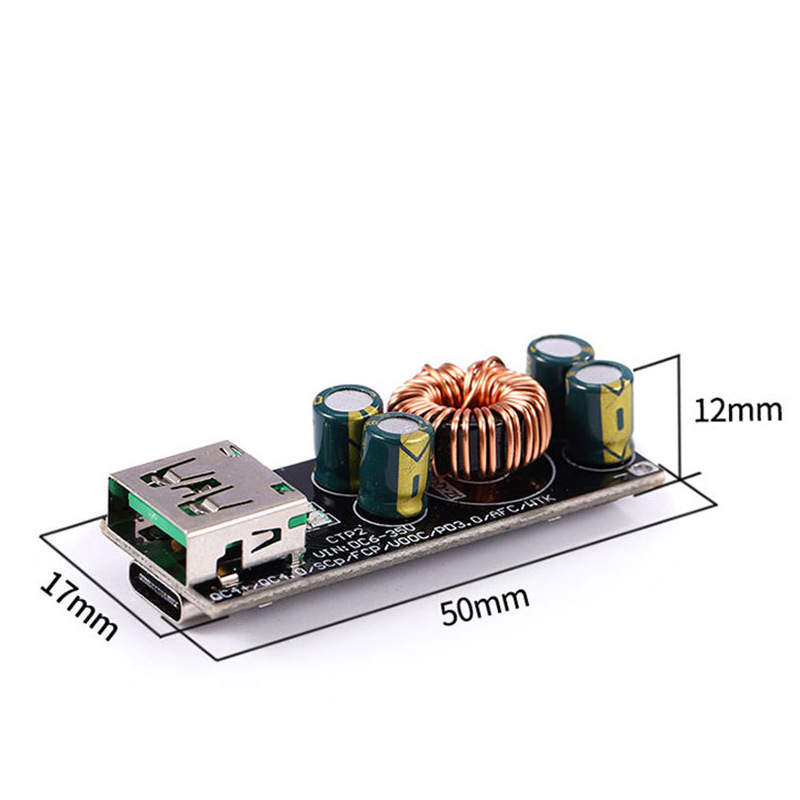

Product Size
