Product Introduction

1-way 5V low-level solid-state relay with fuse 250V 2A, can be used for circuit control switch.

Product Parameters

Supply voltage: DC 5V Supply current: 160mA

Input control signal voltage: This module is triggered at a low level, and the triggering conditions are as follows

1. Low level 0-2.5V triggers the relay to engage the load circuit and work after it is powered on:

2. High level 3.3-5V triggers the relay to disconnect the load circuit and cut off power.

Load voltage: 250VAC Load current: 2A

Product Features

(1) The product has short-circuit protection, overload protection, and overheating protection functions;

(2) One relay can independently trigger the control load circuit, and the relay has a status indicator light. When the relay is engaged, the LED light will turn on, otherwise it will not turn on.

Product Hot Tip

1. Module power supply: The power supply must be DC, and the voltage must match the voltage of the relay

2. The non electrified output of the relay acts as a switch to control the on/off of the load circuit

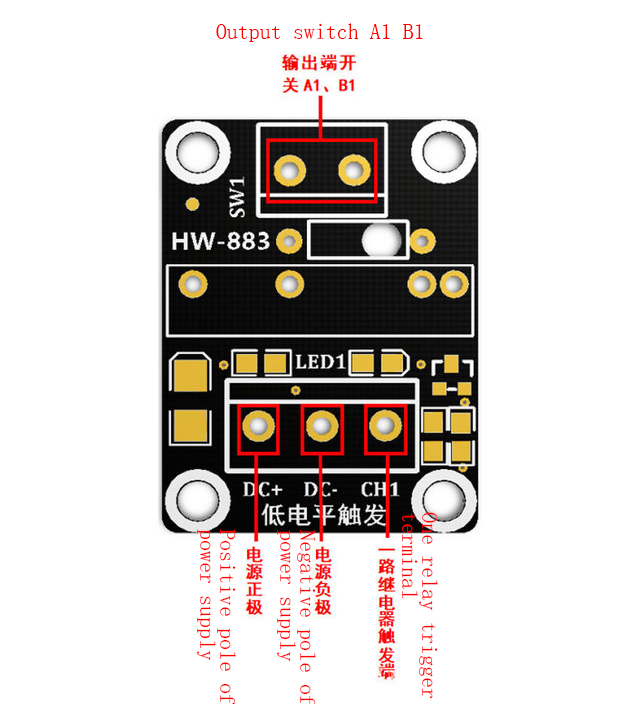

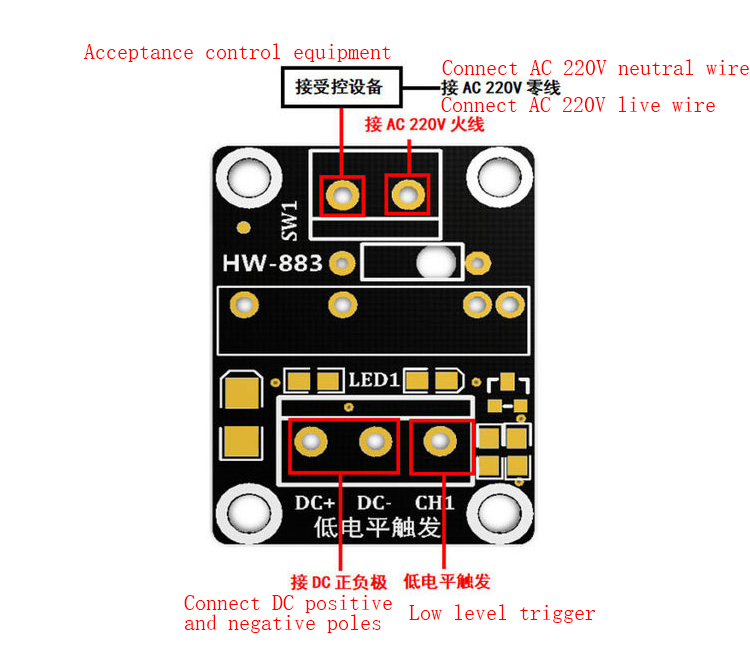

Product Funtion

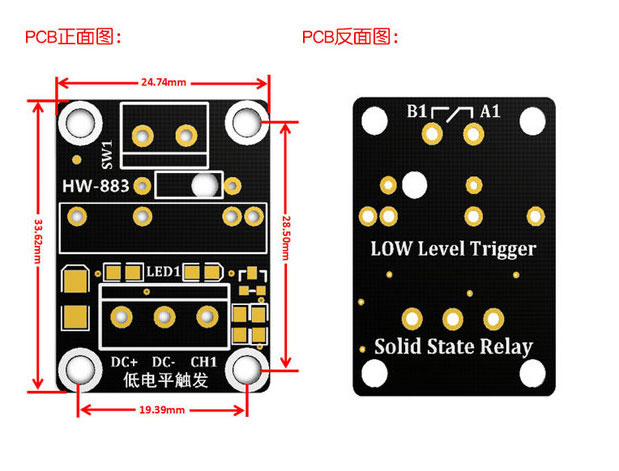

Product Size

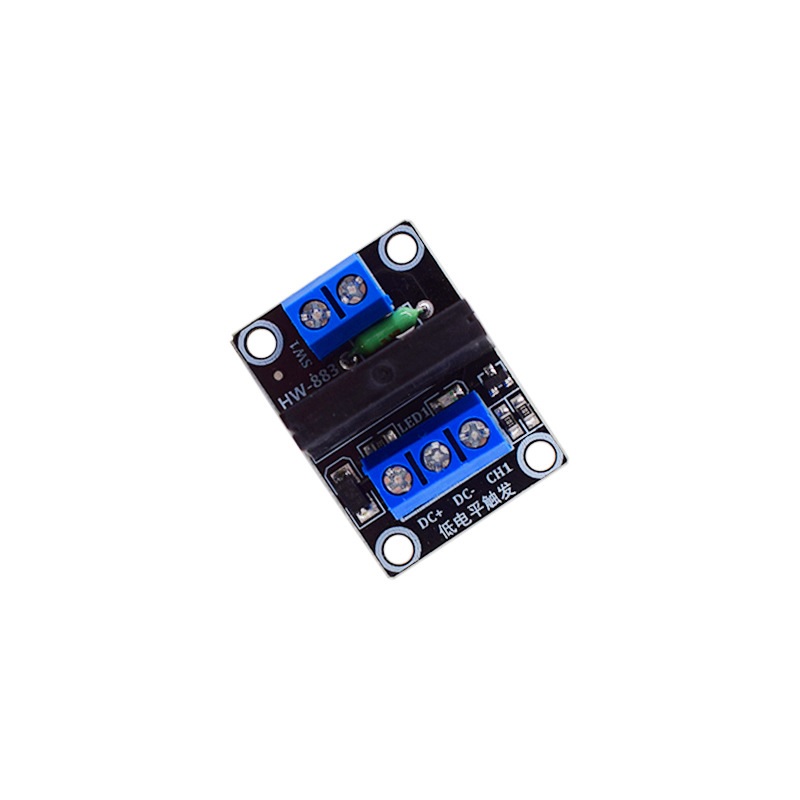

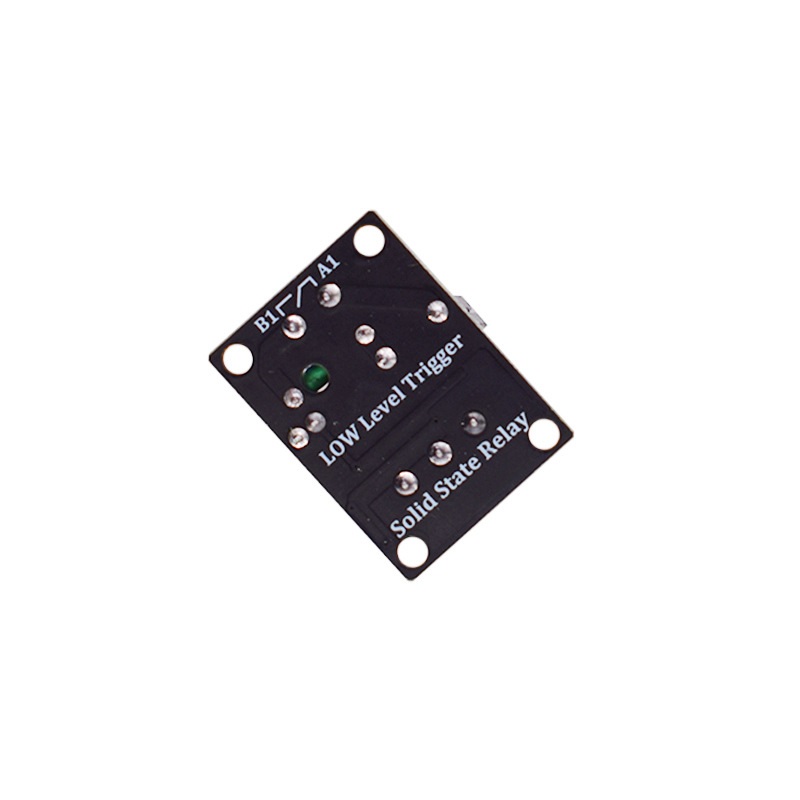

Product Show
