Product Descriptions

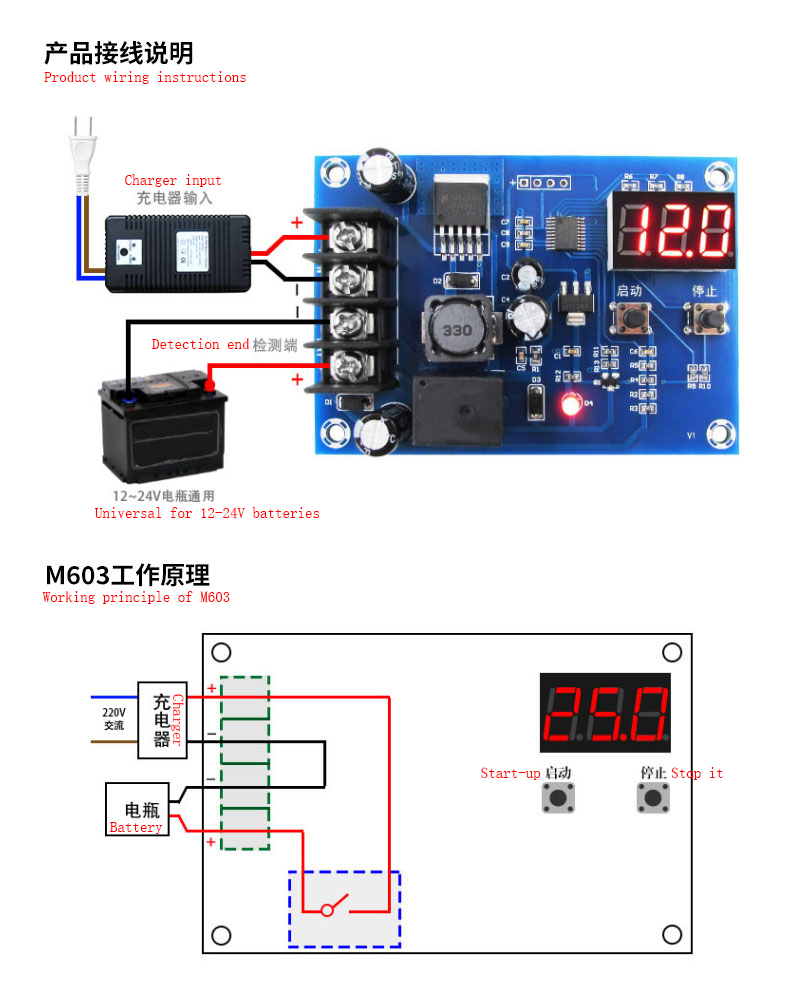

This product is suitable for 12-24 battery charging control, and can freely set the starting charging voltage and stopping charging voltage! Input the voltage of charger 12-24 at the IN end and connect it to the battery at the OUT end. For example, set 10V to start and 14V to stop. When the voltage is below 10V, the relay will close to send the charging voltage of the charger to the battery. When the voltage is above 14V, the relay will disconnect to stop charging. It can be suitable for use in household chargers, solar energy, and wind turbines.

Product Parameters

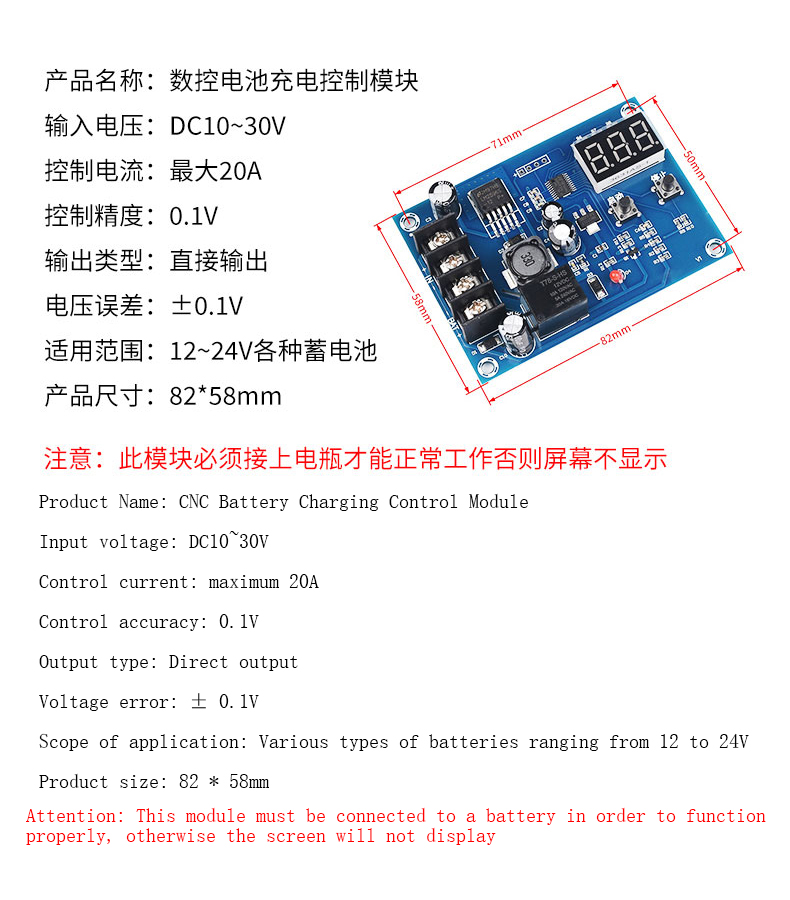

Product Name: CNC Battery Charging Control Module

Product model: HW-632

Input voltage: DC 10-30V

Display accuracy: 0.1V

Control accuracy: 0.1V

Output type: Direct output

Voltage error: ± 0.1V

Scope of application: Various types of batteries ranging from 12 to 24V

Product Funtion

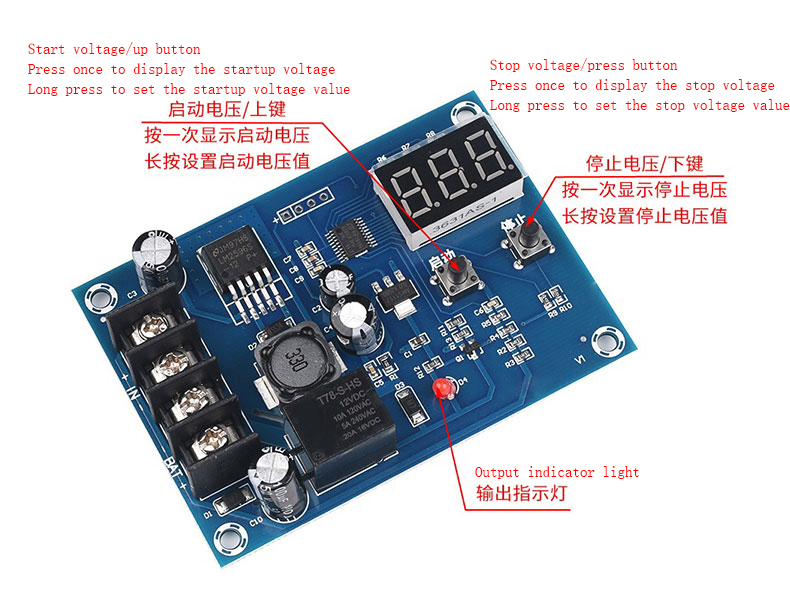

In the state of setting the voltage value, the start button plays the role of an up button, and the stop button plays the role of a down button.

Set startup voltage

Under normal display voltage status, press the start voltage button once to display the start charging voltage. Long press the start button, the digits will flash, and set the starting charging voltage value through the start and stop buttons

Set stop voltage

Under normal voltage display, press the stop voltage button once to display the stop charging voltage. Long press the stop button, the number will flash, and set the stop charging voltage value through the start and stop buttons

Restore factory settings

Press and hold the start/stop button while powered on, and the digital display will show 888, which will restore the factory settings

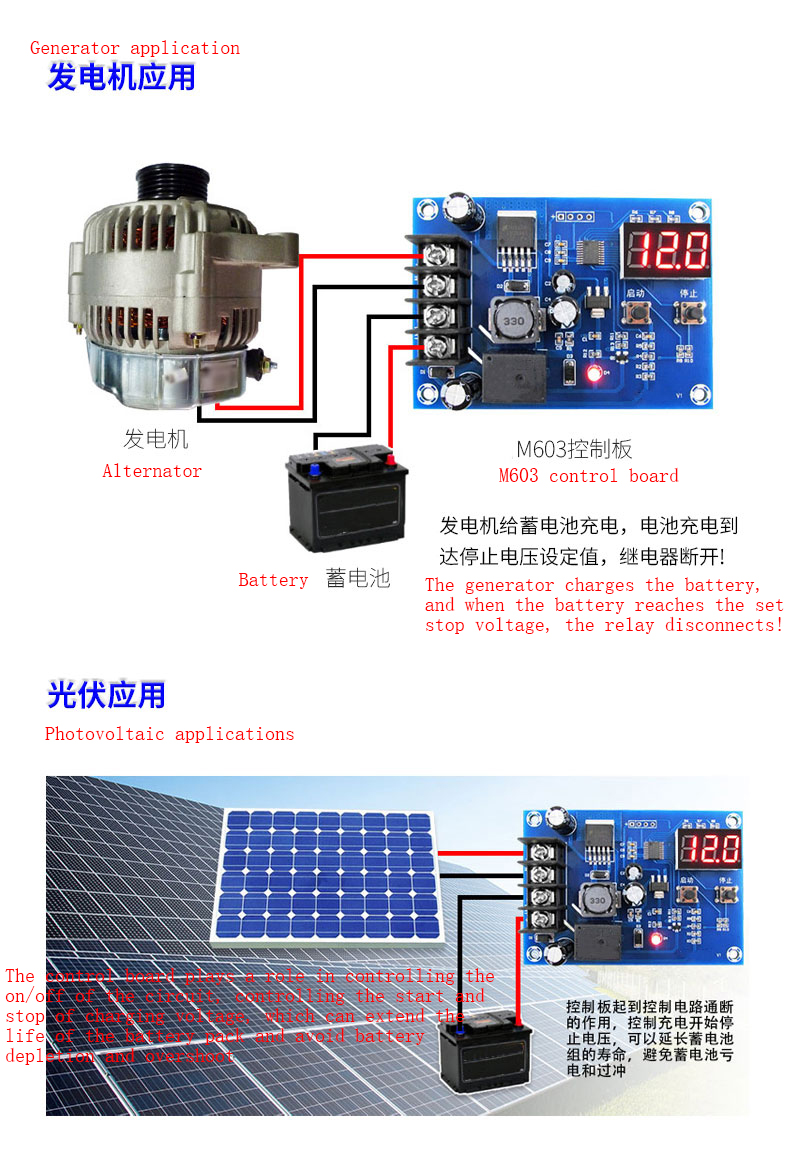

Product Applications

Product Show
