Product Parameters

Input voltage: DC4.5V-40V

Output voltage: DC5V

Output current: Peak 2A

Output enable button switch USB output, low-power button enters ultra-low power to turn off digital tube

Equipped with reverse connection, overcurrent, and over temperature protection

Product Funtion

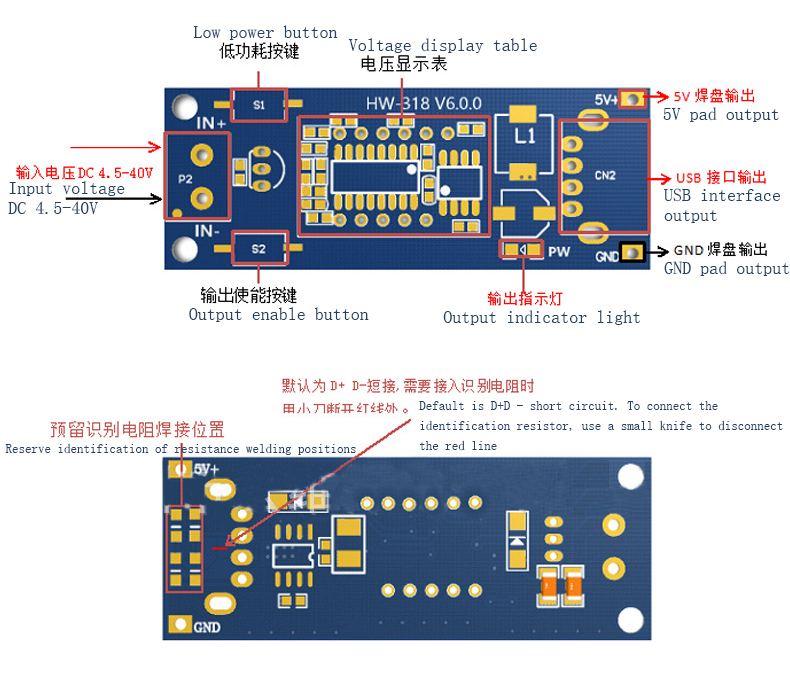

This module defaults to D+D - short circuiting and is compatible with most mobile phone charging. It also reserves installation positions for various mobile phone recognition resistors. If you need to add recognition resistors, please cut off the D+D - wire and add them yourself.

Example of use:

After the module is powered on, it can detect the voltage in real time. When it needs to charge digital products such as mobile phones, iPads, MP3 players, etc., simply touch the "Output Enable" button. At this time, the USB power indicator light will light up and the USB output voltage will be 5V.

When it is necessary to turn off the digital display, lightly touch the "Low Power" button, and the module will enter low-power standby mode, turning off the digital display.

Product Size

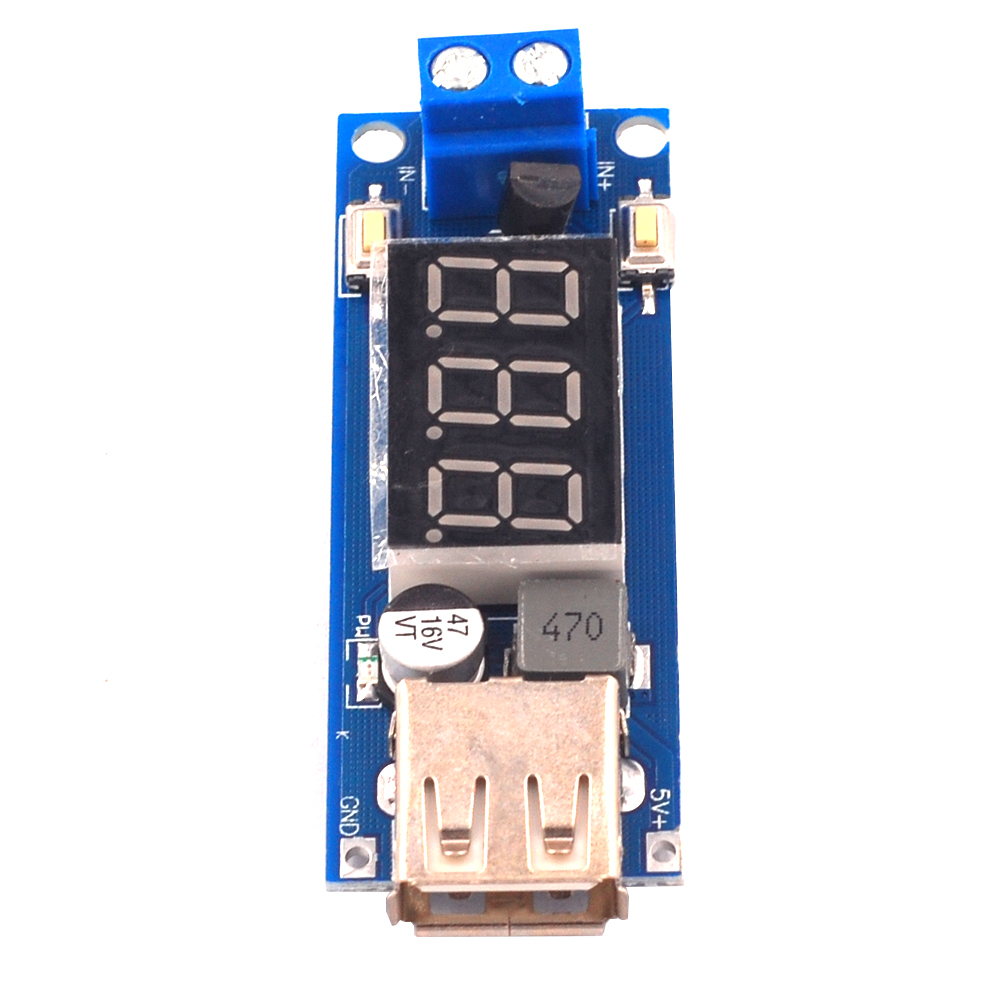

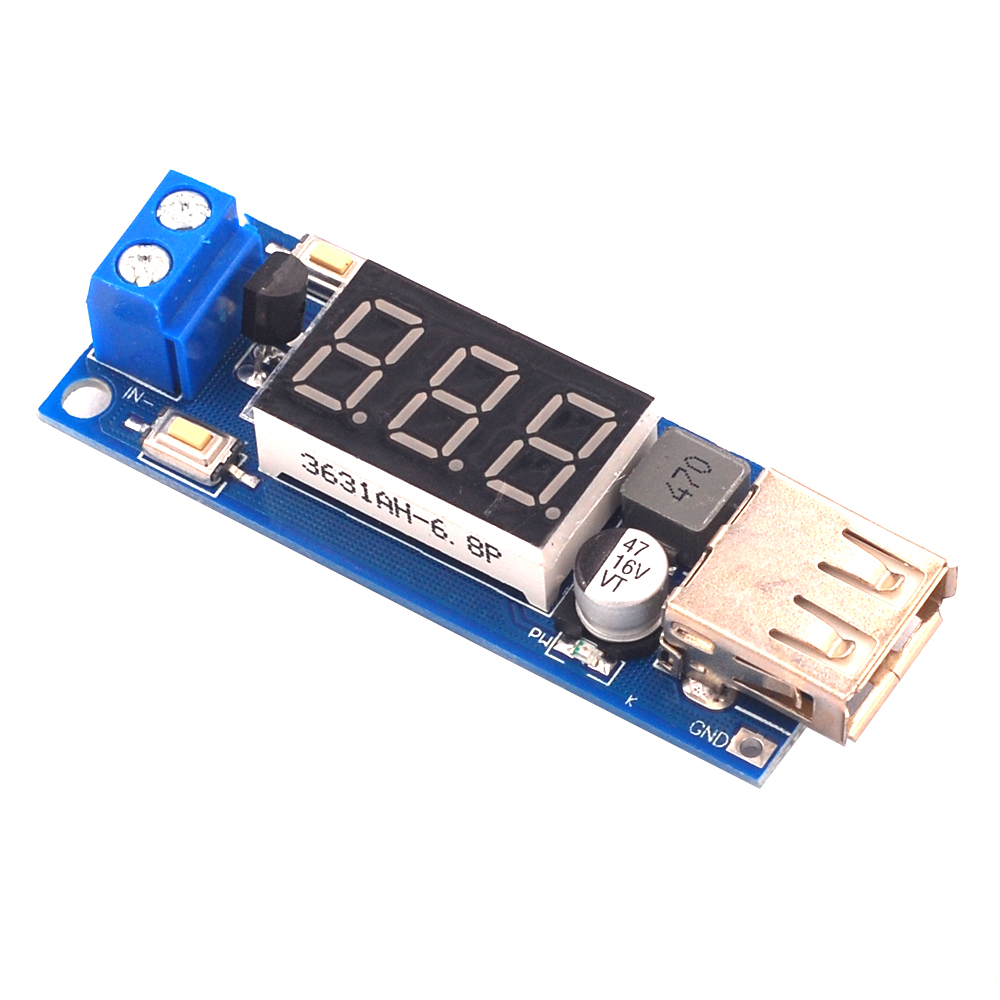

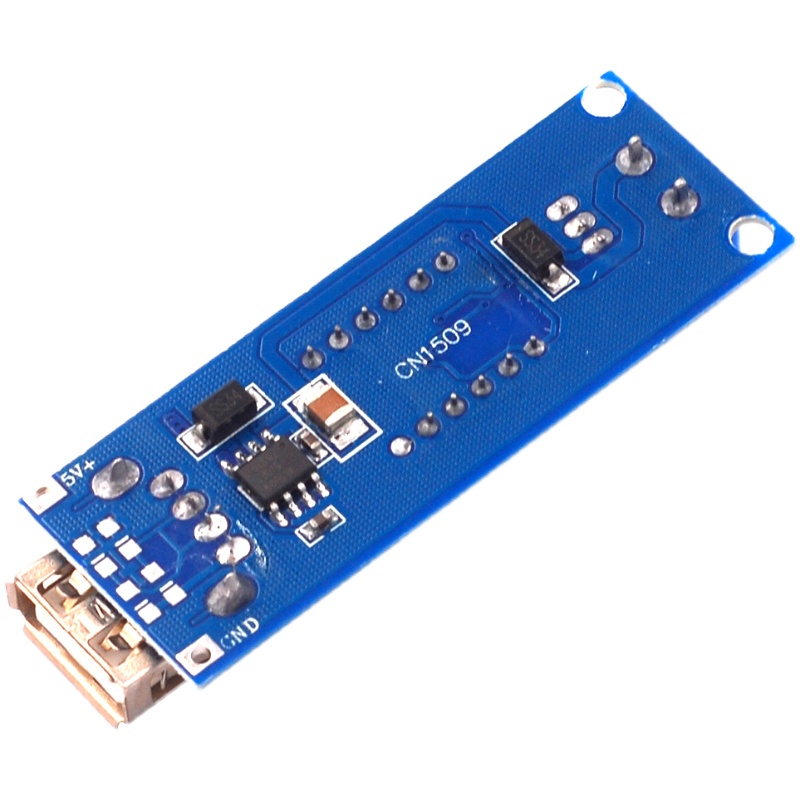

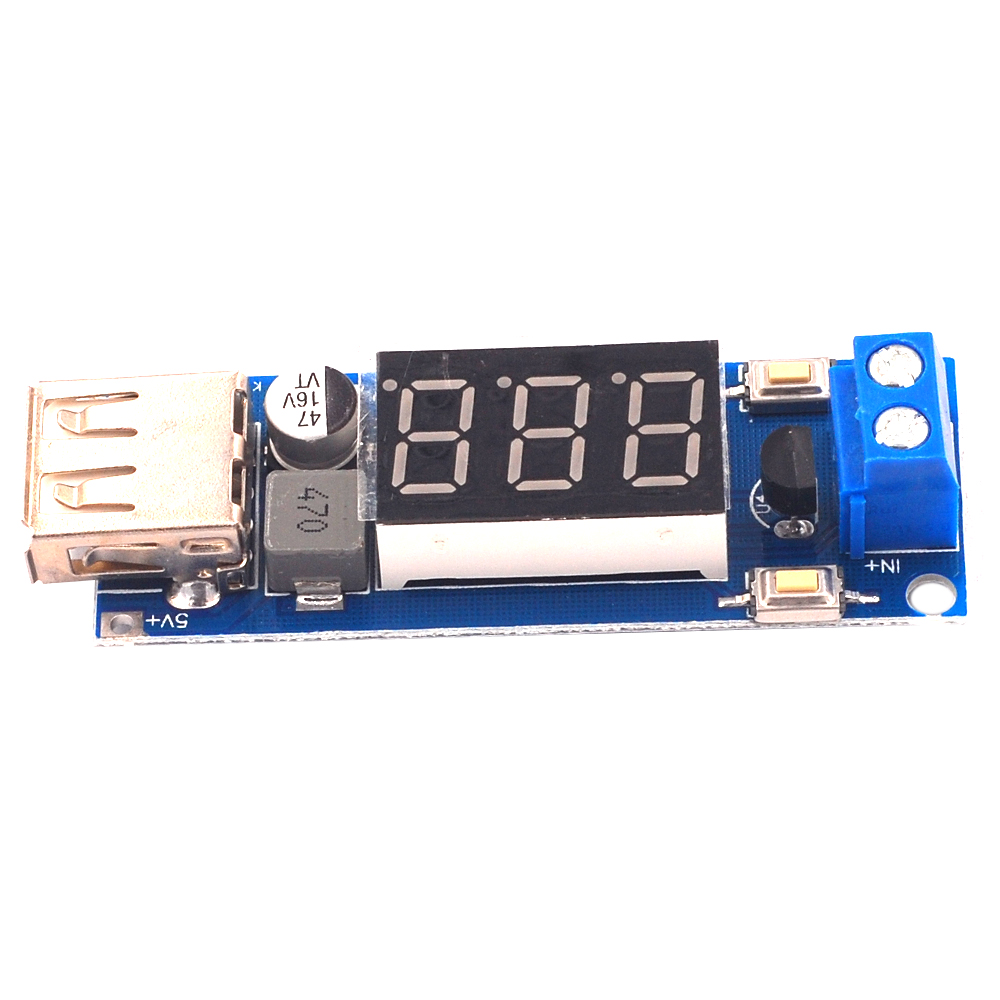

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
