Product Introduction

Disclaimer: The output power of this module is not only affected by the load capacity of the module itself, but also by various factors such as the front-end power supply and the back-end load; The following data is the result measured by professional equipment, without considering the influence of other factors.

Power modules are a type of electronic component, please purchase them with caution for those without electronic expertise.

1. This module adopts high-performance imported chips, which have better performance than ordinary modules.

2. Input any DC voltage of 0.9V~5V to stably output 5V DC voltage. With a single AA battery, it can output up to 200~300mA of current, and with two AA batteries, it can output 500~600MA of current. It can power your mobile phone, camera, microcontroller, and digital products

3. Industrial temperature range:- 40℃---+85℃

4. High conversion efficiency, Z up to 96%

5. Equipped with a USB female socket, versatile in use

6. Ultra small size (PCB board 25mm * 18mm) for installation in various small devices

7. Equipped with work indicator lights

Product Use

1. DIY power bank: When you are on a business trip or traveling and feel that your phone, MP3 player, MP4 player, PDA, or PSP doesn't have enough power, and you have extra batteries, you can consider DIY a power bank yourself; As long as you choose this module and add your [one lithium battery or 2-3 nickel hydrogen batteries], you can output 5V voltage to charge your phone, MP3, MP4, PDA, PSP, which is very simple and convenient.

2. Adjust voltage: If you need different voltage power supplies during product design and the device requires 5V power supply, choosing our module will be your best choice

3. Stabilized power supply: When your power supply is very unstable, sometimes high and sometimes low, but when your device requires 5V power supply, choosing our module will be your best choice

Does this power module have short-circuit protection? Will it burn out if I accidentally input a short circuit while using it?

Answer: There is no short-circuit protection. If you need short-circuit protection, please connect a self recovery fuse in series at the input end.

Buyers should be aware that some manufacturers may add identification resistors to products such as MP3MP4 phones for their own benefit

So if the buyer finds that this module cannot be used after purchasing it, please check if an identification resistor has been added.

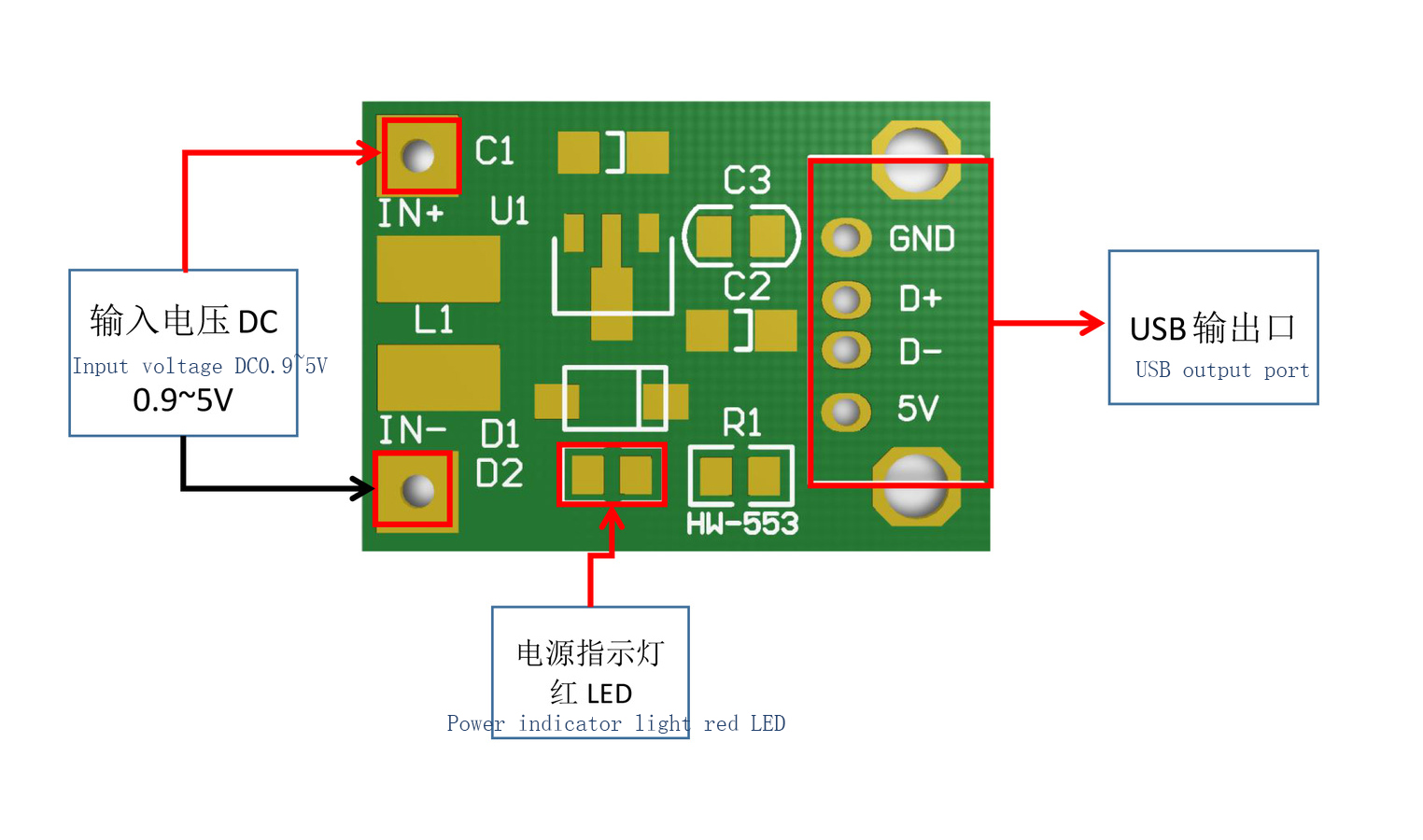

Product Funtion

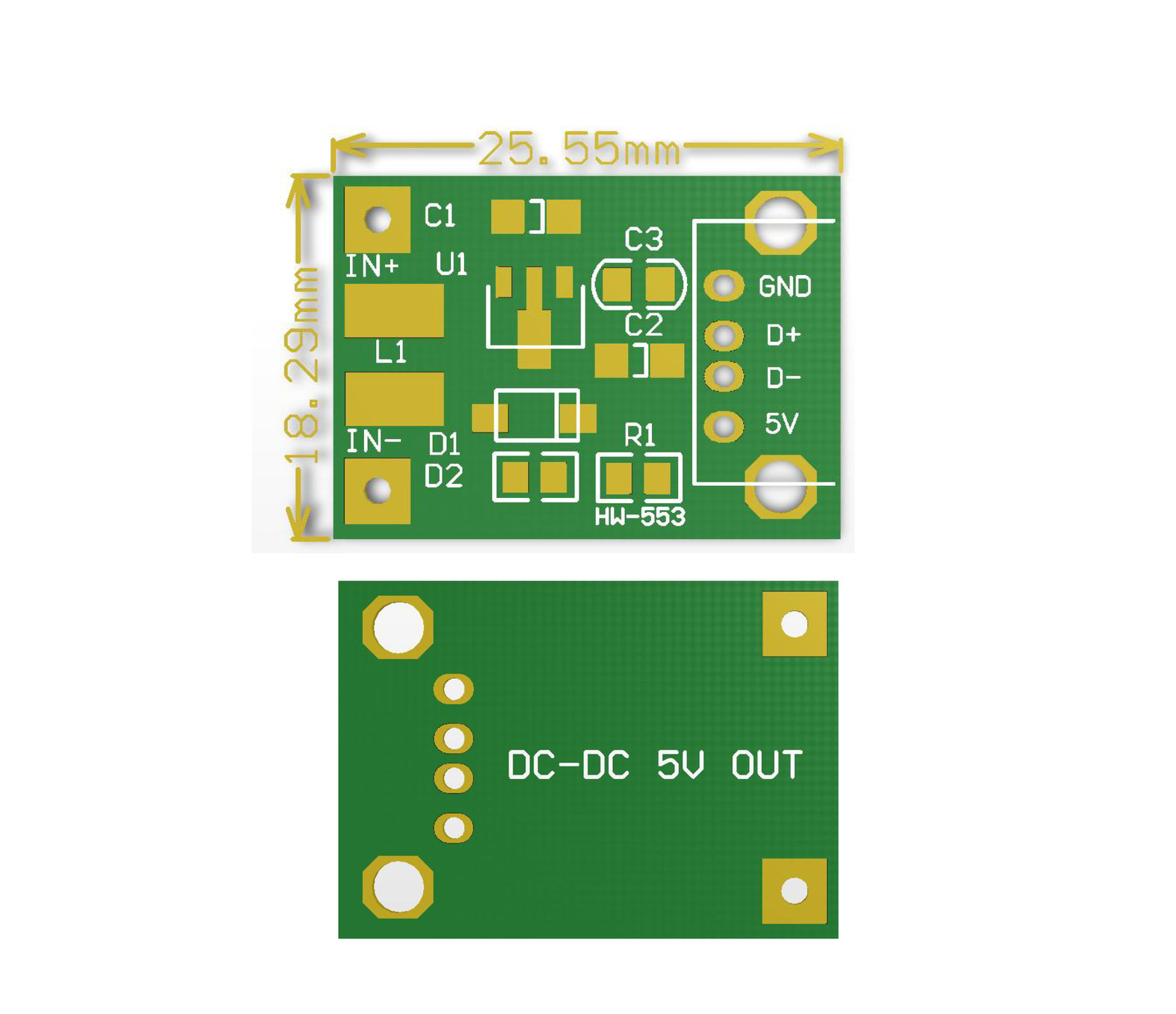

Product Size

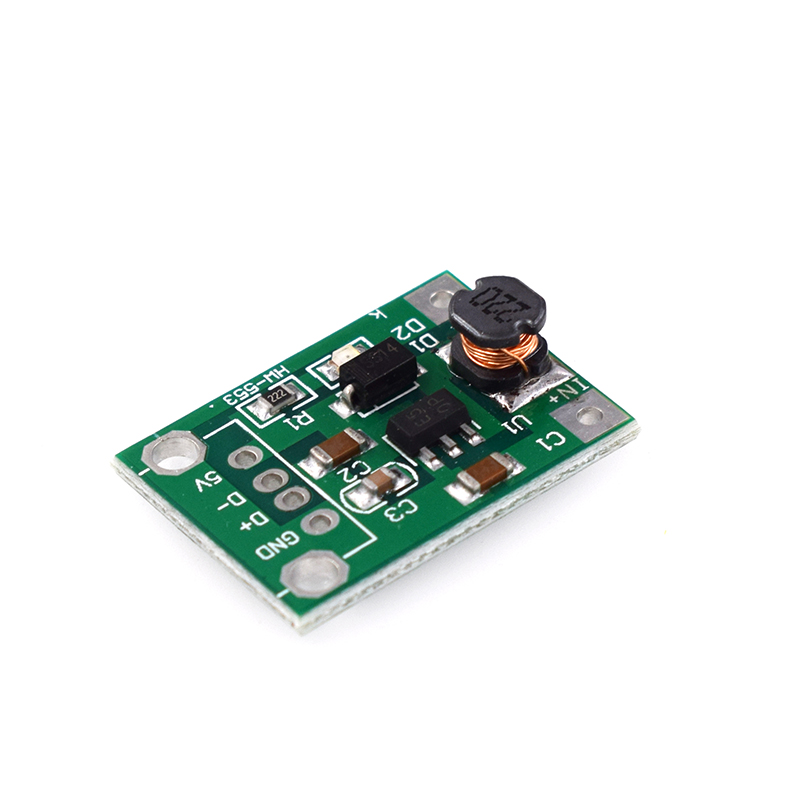

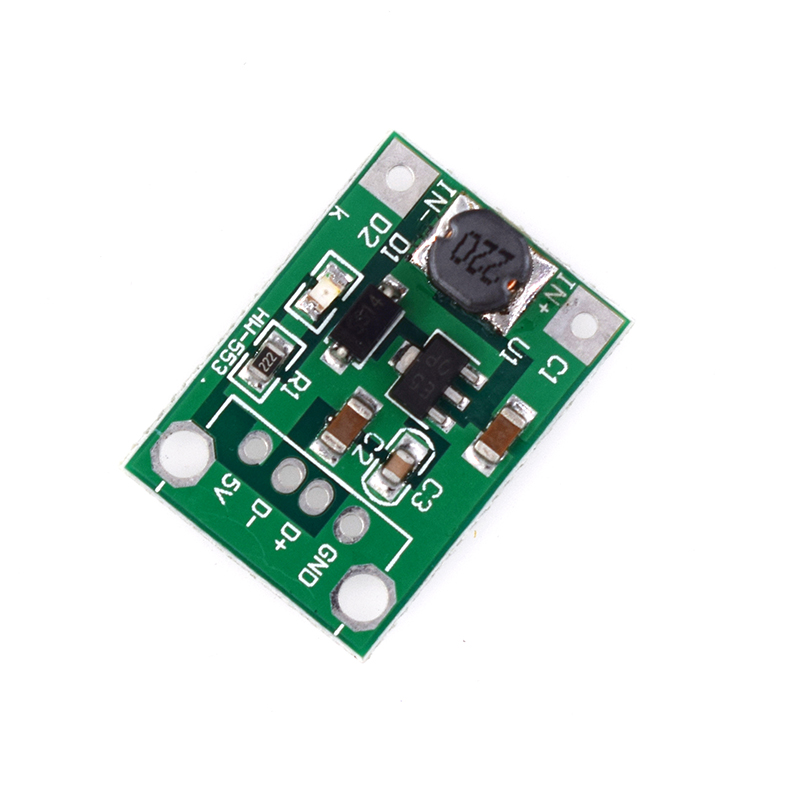

Product Show
