Product Introduction

This module is a pulse generation module that supplies signals to the stepper driver. To control a stepper motor, a driver must also be equipped.

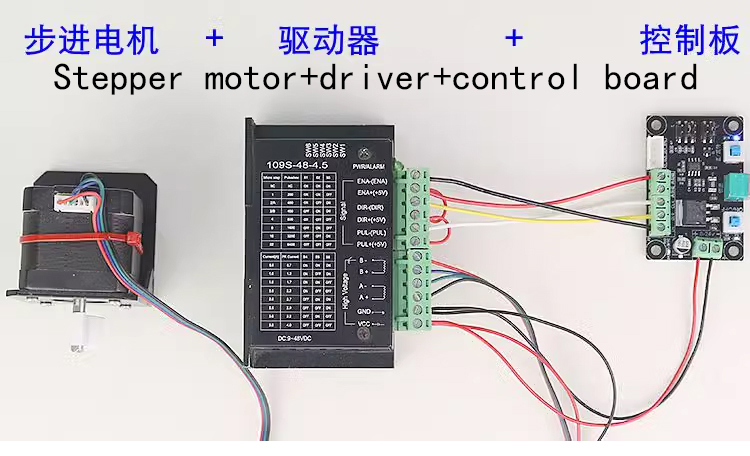

This simple controller, stepper driver, stepper motor, and DC power supply can form a simple control platform.

The controller has three frequency signals that can be selected using a jump pin: high 5.4k-160kHz, medium 540-16.6kHz, and low 80-2.4kHz.

It can generate pulse signals, PMI signals, and jumper selection.

Product parameters

• Input voltage: 8~24V




• Frequency range: High 5.4K-160KHZ, Medium 540-16.6KHZ, Low 80-2.4KHZ




• Signal type: PWM/pulse




• Size: 58 * 38.6mm

Product Features

Gongyang Connection Method

Connect EN+PUL+DIR+together to the common anode end

EN - Connect to EN

PUL - connected to CLK

DIR - Connect to DIR

Common cathodic connection method

EN-PUL-DIR - Connect together to the common cathode terminal

EN+connected to EN

PUL+connected to CLK

DIR+connected to DIR
