Product Features
【 Model/Name 】: Ultra small DC-DC buck module
【 Input voltage 】: 4.5V~28V
【 Output voltage 】: 0.8V~20V
【 Output current 】: 3A (maximum limit)
【 Conversion efficiency 】: 92% (height limit)
【 Output Ripple 】:< 30mV
【 Switching frequency 】: 1.5MHz (limited to high frequency), typical 1MHz
【 Working temperature 】:- 45℃~+85℃
【 Size 】: 22mm * 17mm * 4mm (length * width * height)

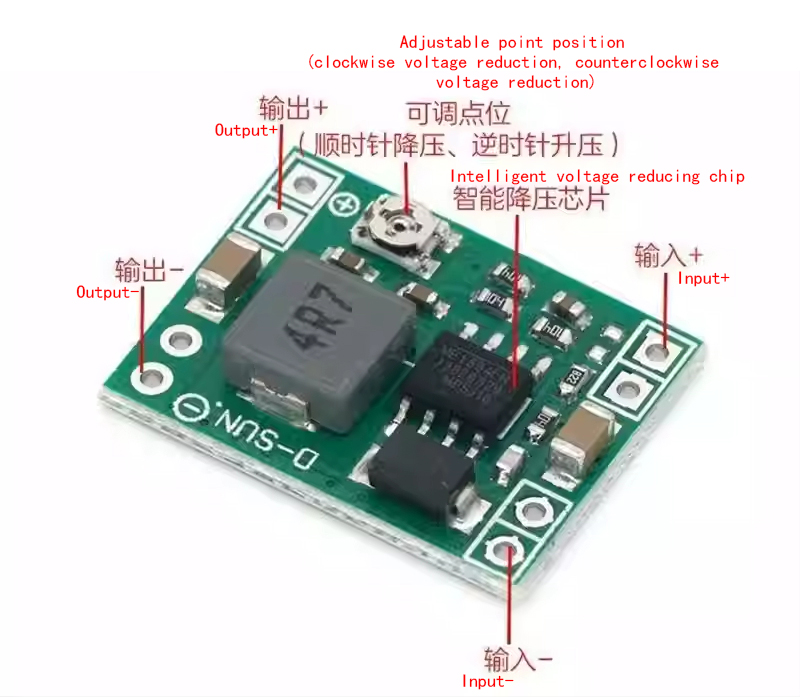

Product Function

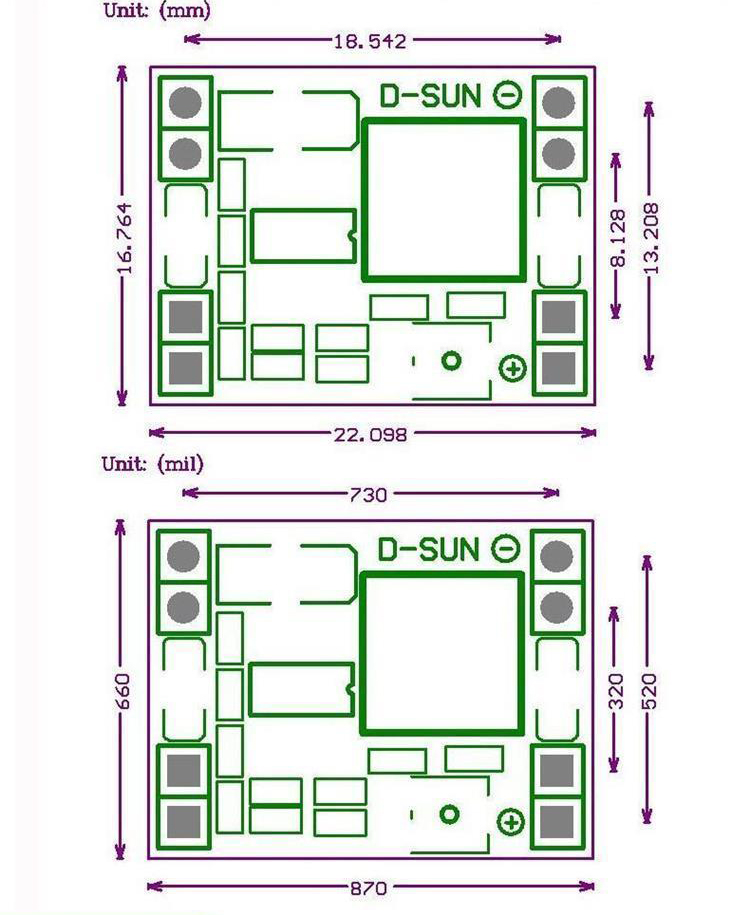

Product Size
Product Applications
DIY mobile power supply, monitoring power supply, children's car power supply, camera power supply, car power supply, communication equipment power supply, various occasions with strict requirements for volume and weight (such as aviation models, etc.)

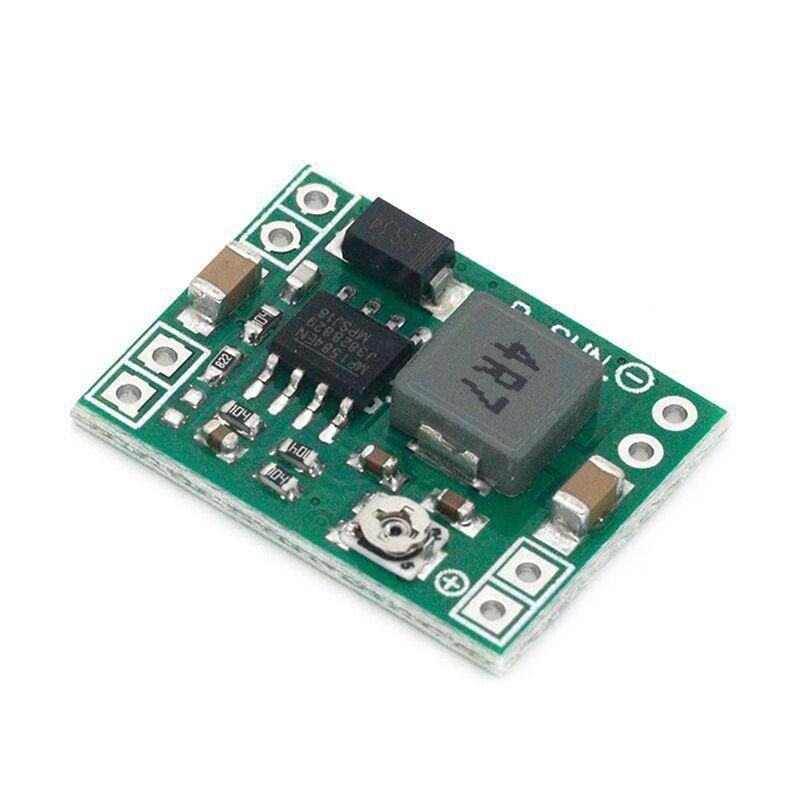

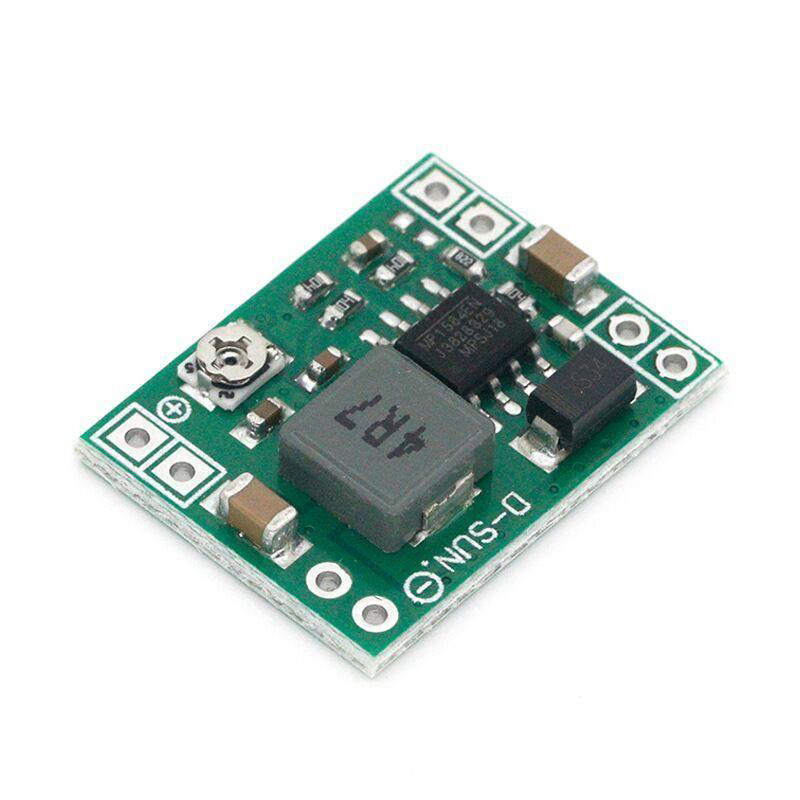

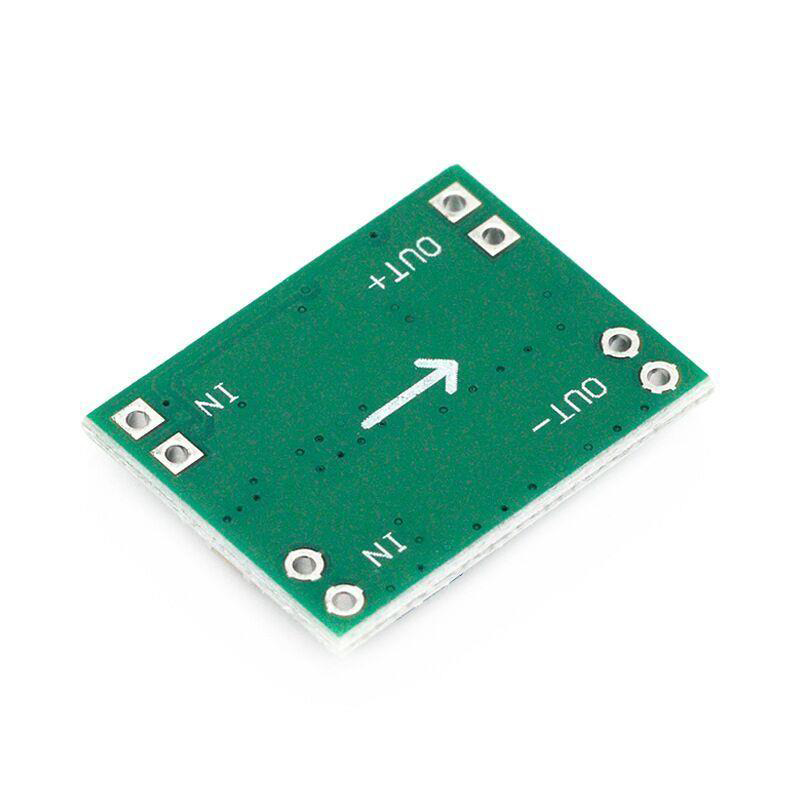

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
