Product Introduction

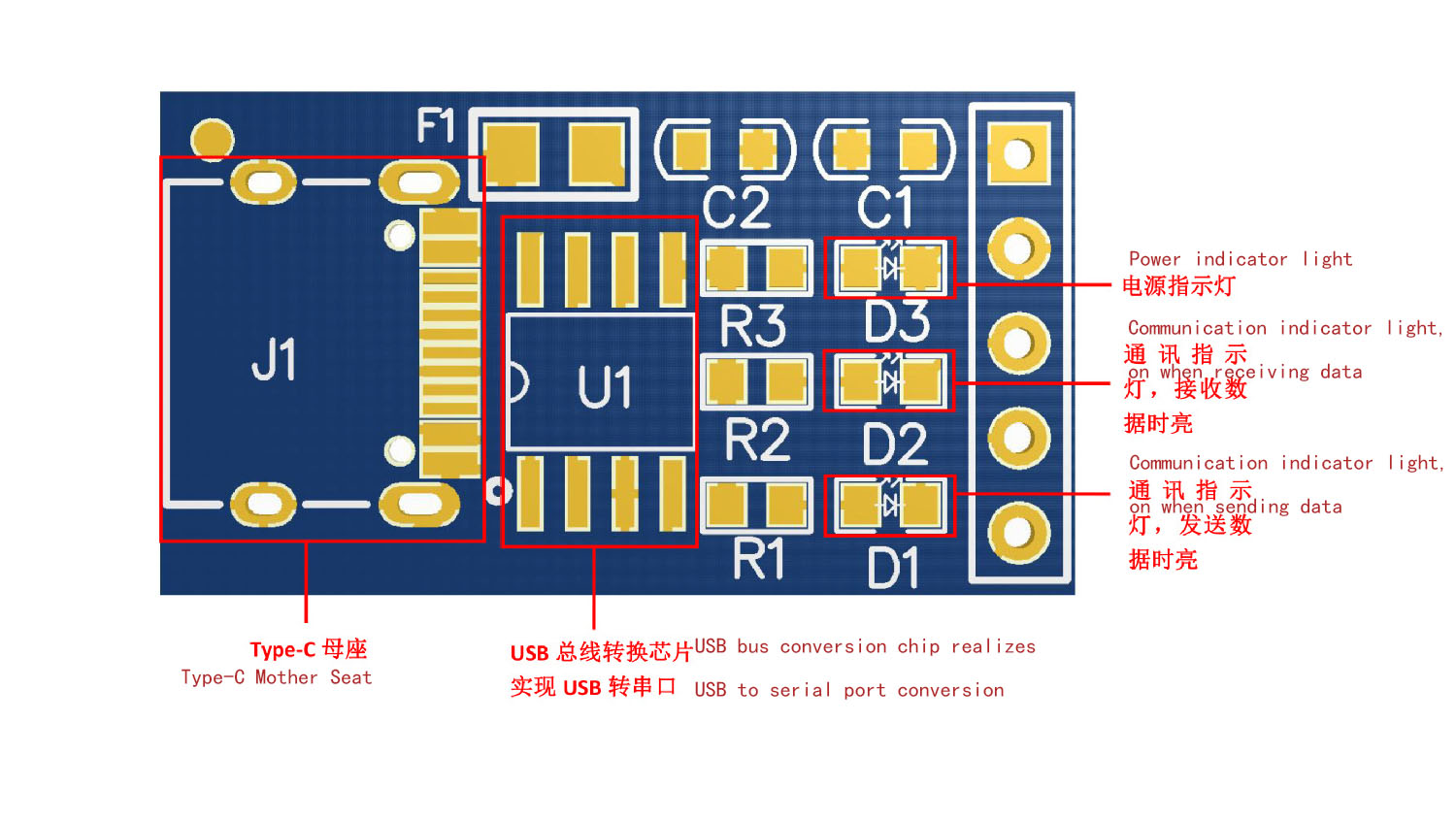

This product is a Type-C to TTL serial port module that uses a CH340N USB bus adapter chip. It comes with three indicator lights on the board, one for power and two for communication. Because serial ports no longer exist on our computers nowadays, we usually use USB to serial port modules for the sole purpose of mapping the computer's USB port to a serial port.
Product Use
|

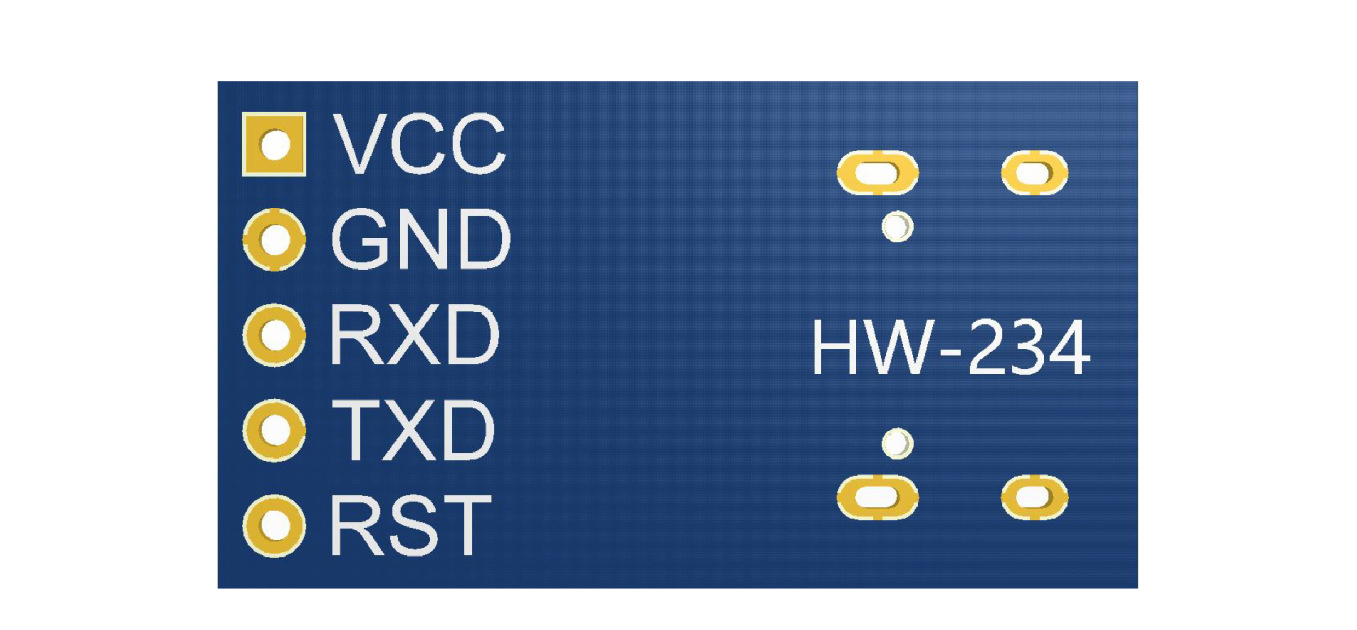

引腳 Pin |
引腳功能 Pin Function |
| VCC |
5V正極 5V positive pole |
| GND |
電源負極 Negative pole of power supply |
| RXD |
接收數據(通信時電壓 5V) Receive data (communication voltage 5V) |
| TXD |
發送數據(通信時電壓 5V) Sending data (communication voltage 5V) |
| RST |
復位引腳 Reset pin |
Special note
1. Before use, please confirm whether the Type-C cable has data transmission function.
2. The module directly outputs 5V voltage, but it can also be connected to the 3.3V pin of other devices for communication. For example, other CH340G serial port modules can be connected for data transmission and exchange.

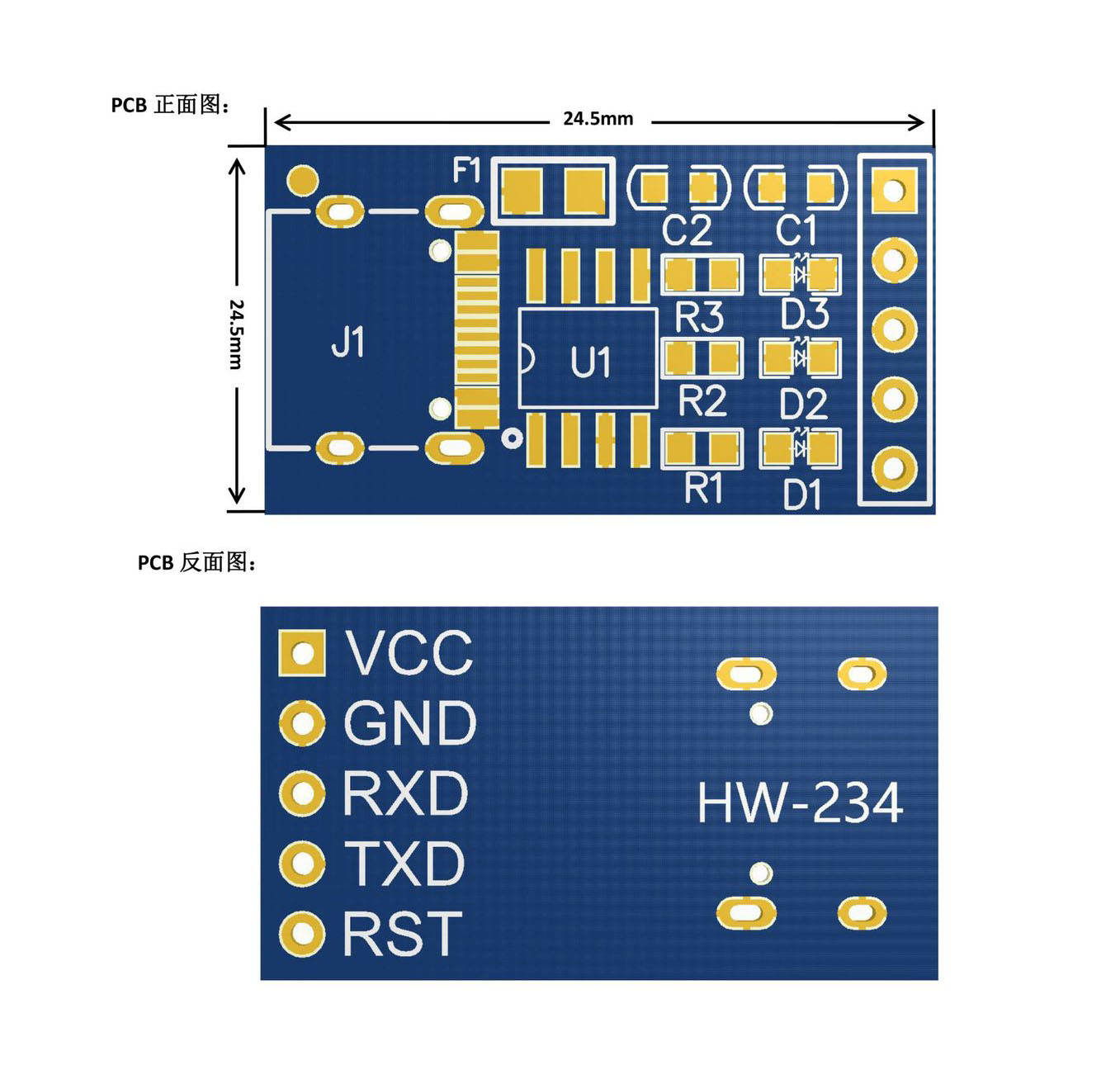

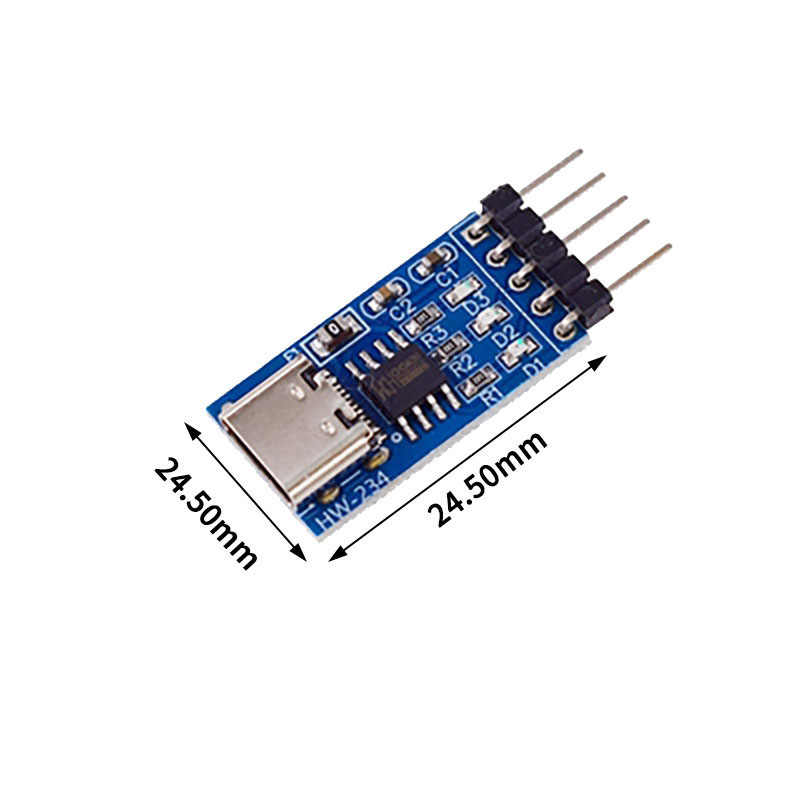

Product Size

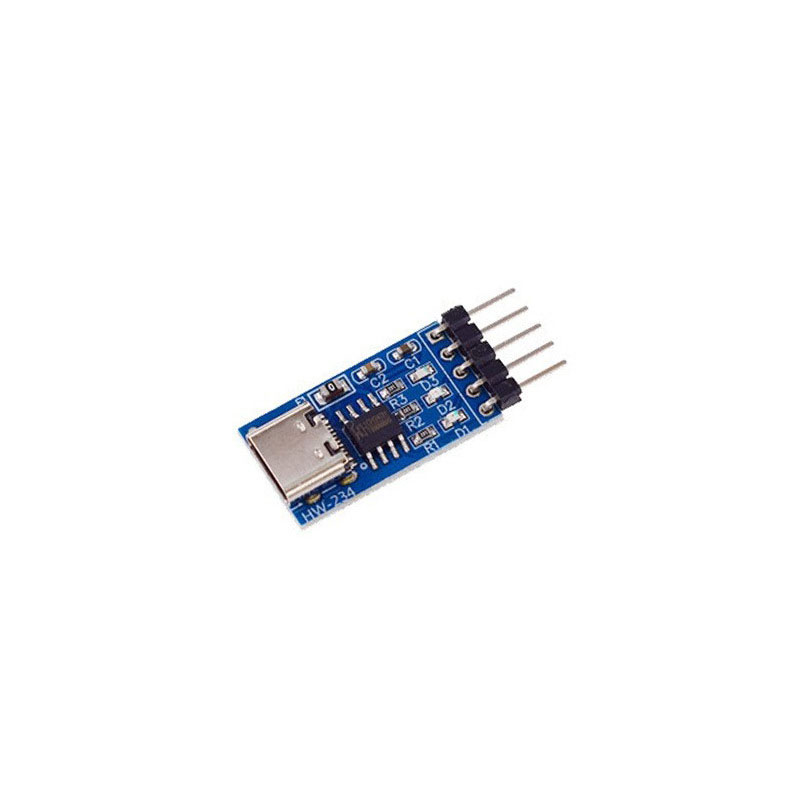

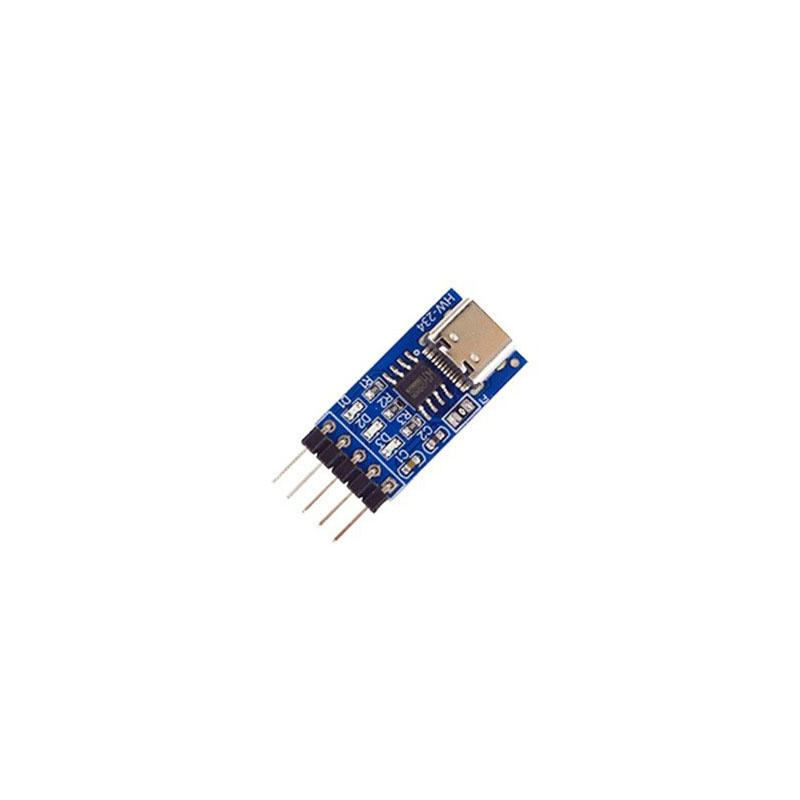

Product Show
