Module Highlights
1. Two independent PWM outputs, which can be set for frequency and duty cycle respectively;
2. Wide frequency range and high accuracy;
3. Can communicate via serial port
Dimensions: 41 * 28mm Thickness: 1.6mm
Product Descriptions
Two independent PWM outputs, which can be set for frequency and duty cycle respectively;
The frequency is divided into three ranges:
1. XXX (without decimal point): The small unit is 1Hz, with a value range of 1Hz~999Hz;
2.XX. X (decimal point to ten): The small unit is 0.1Khz; Value range: 0.1KHz~99.9KHz
3. x.X.X. (all three digits have a decimal point): The small unit is 1KHz; Value range 1KHz~150KHz
e. G. Frequency display: 100 represents PWM output of 100Hz pulses;
54.1 represents PWM output of 54.1KHz pulses;
1.2.4. Representing PWM output of 124KHz pulses
Duty cycle value range: 0~100;
Three frequency ranges share one duty cycle, all set parameters are saved in case of power failure.

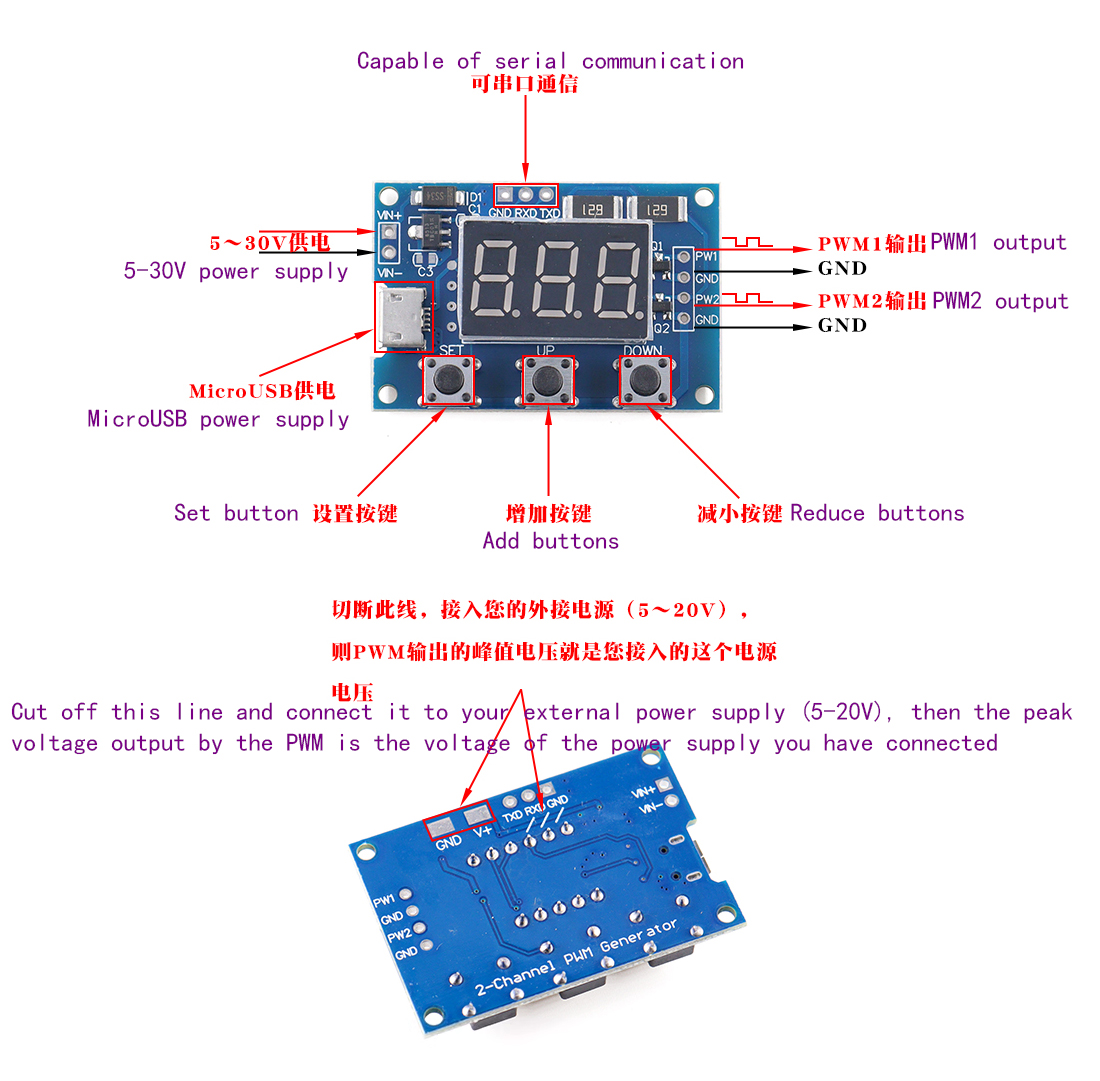

Product Use

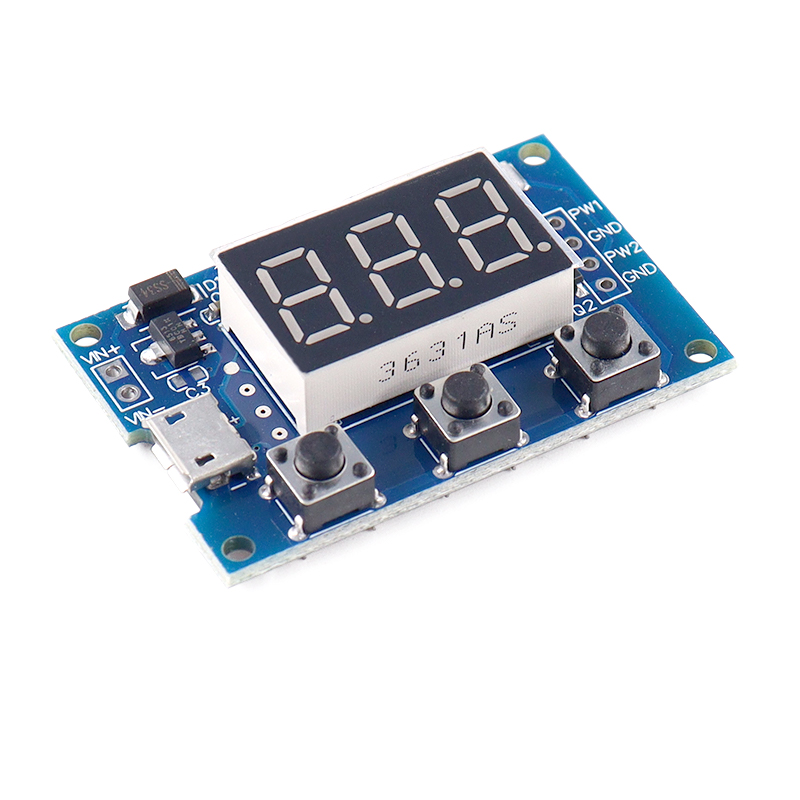

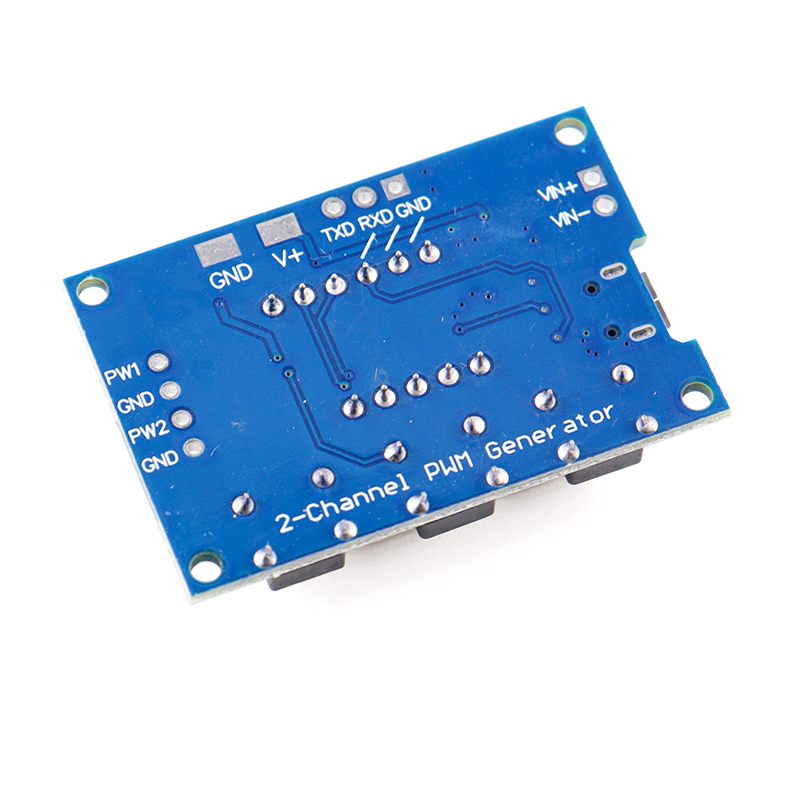

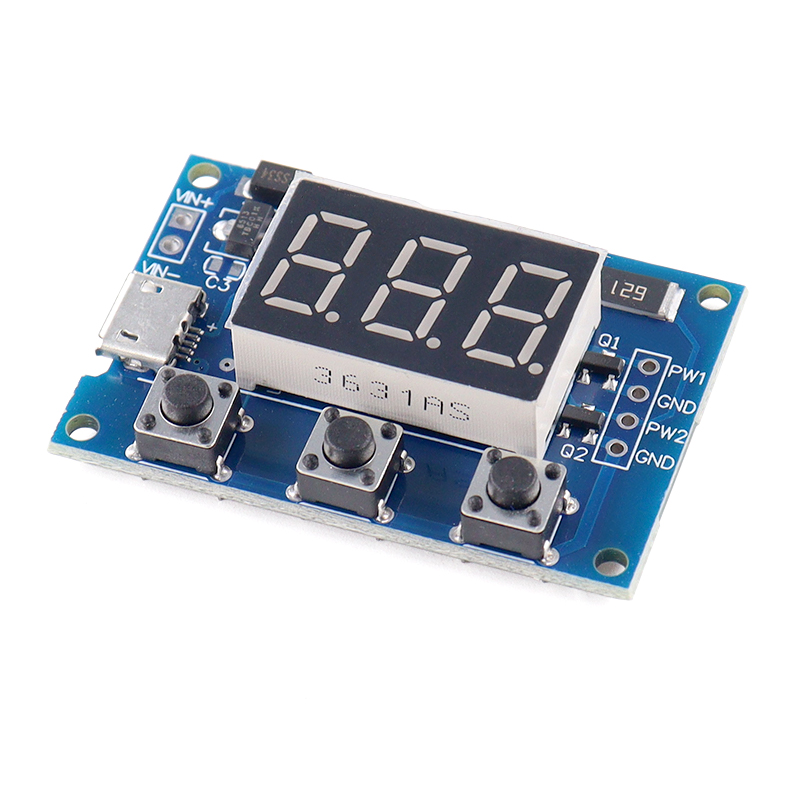

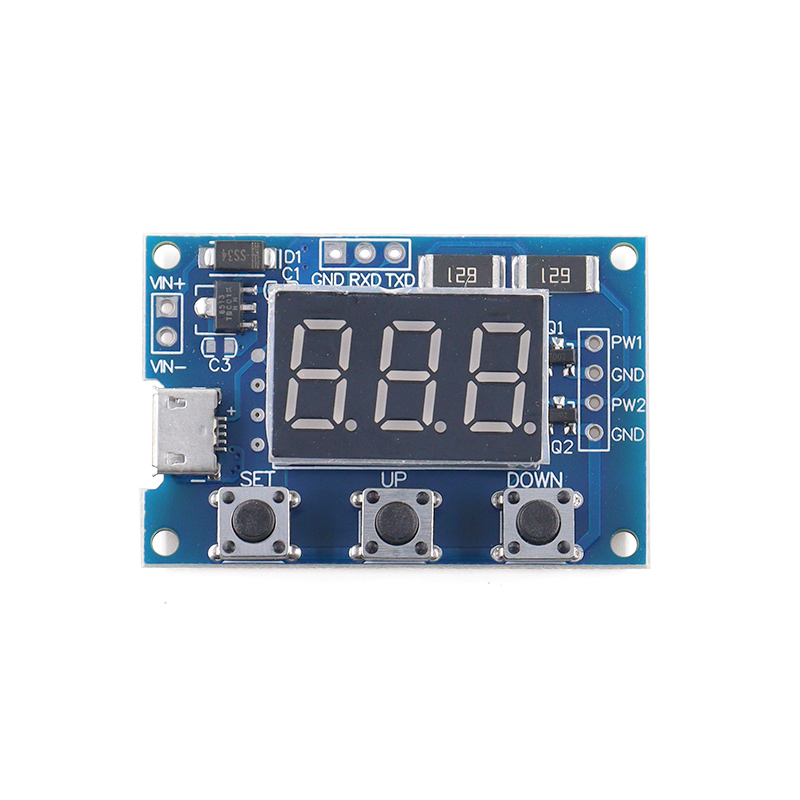

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
