Product Parameter

• Rated input current: 5A




• Rated output current: 5MA




• Change: 1000:1




• Phase difference (at rated input): less than or equal to 20 '(100 Ω)




• Linear range: 0~10A (100 Ω)




• Linearity: 0.2%




• Precision grade: 0.2 grade




• Isolation and voltage resistance purpose: 3000V measurement




• Sealing material: epoxy resin




• Working temperature:- 40°C~+70℃

Product Introduction

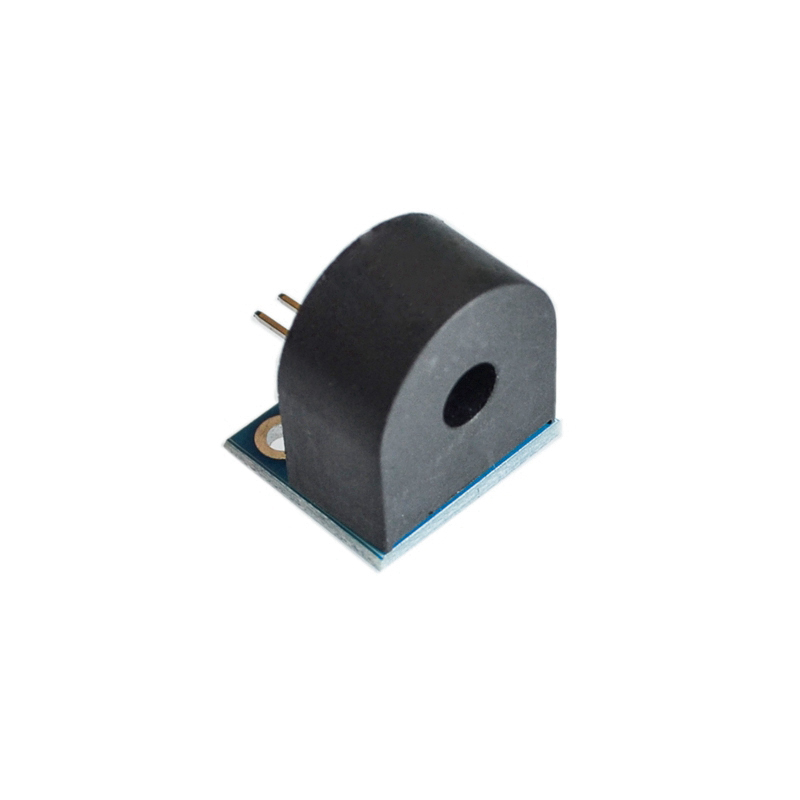

The HW-666 current transformer module is equipped with ZMCT103C series small high-precision current transformers and sampling resistors, which facilitate signal acquisition of AC currents within 5A and are suitable for current and power measurement.

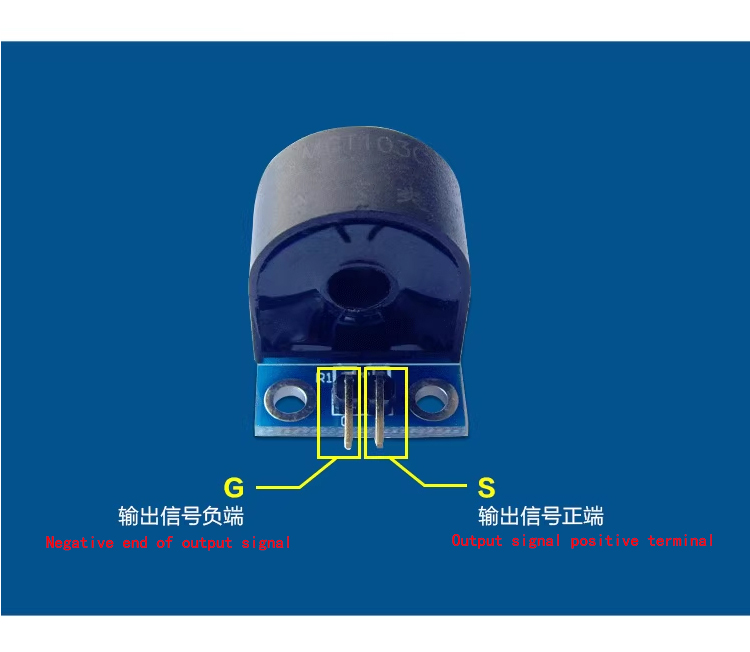

The module can measure AC current up to 5A, corresponding to a simulated output of 5A/5mA. During measurement, the measured signal wire passes through the circular hole of the transformer, and the output signal interface is S and G, with G generally serving as the signal ground. The output signal of this module is an AC voltage signal.
