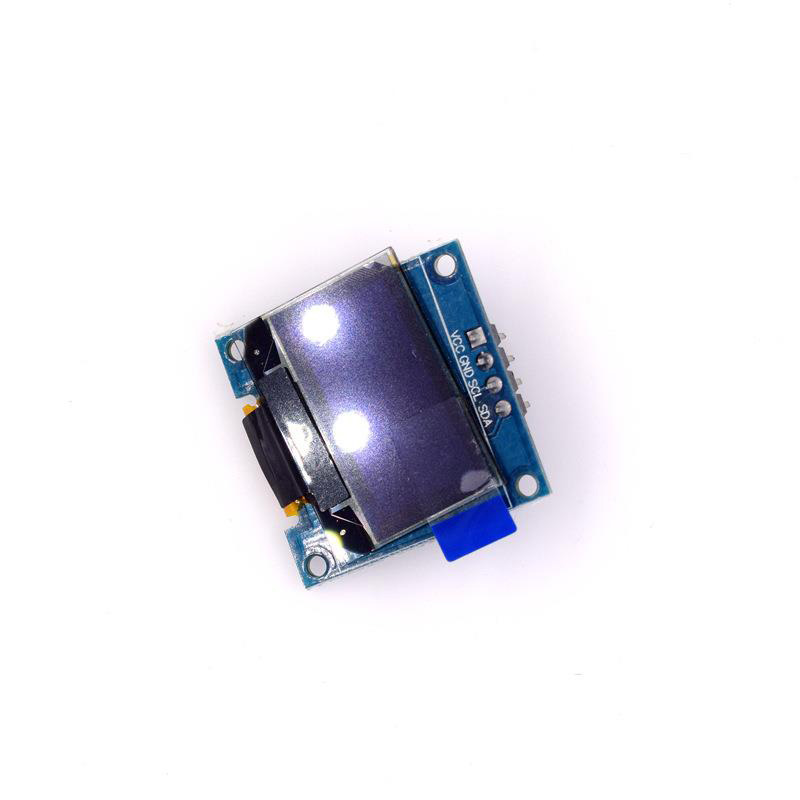

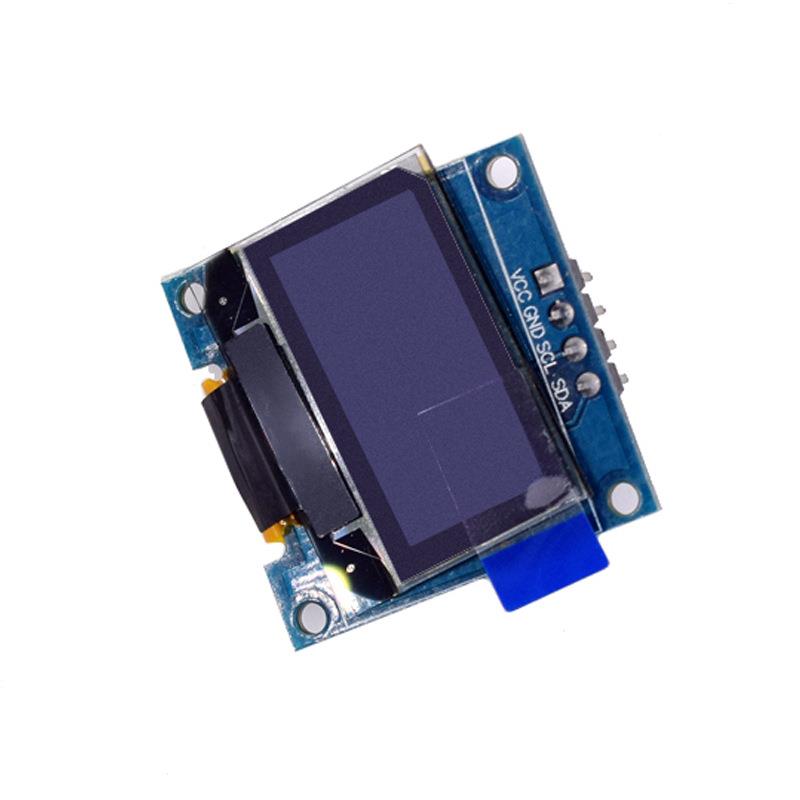

Product Parameters
Size 0.96 (INCH)
Type OLED
OLED driver chip SSD1306
Resolution 128 * 64 (PIXEL)
Module interface VCC-GND-SCL-SDA
Effective display area 21.744X10.864 (MM)
Module size 27.3X27.8 (MM)
Perspective>160 °
Working temperature -20 ° C~70 ° C Storage temperature -30 ° C~80 ° C
The working voltage is 3.3V/5V, and the power consumption is about 25MA when fully on and about 1.5MA when fully off.

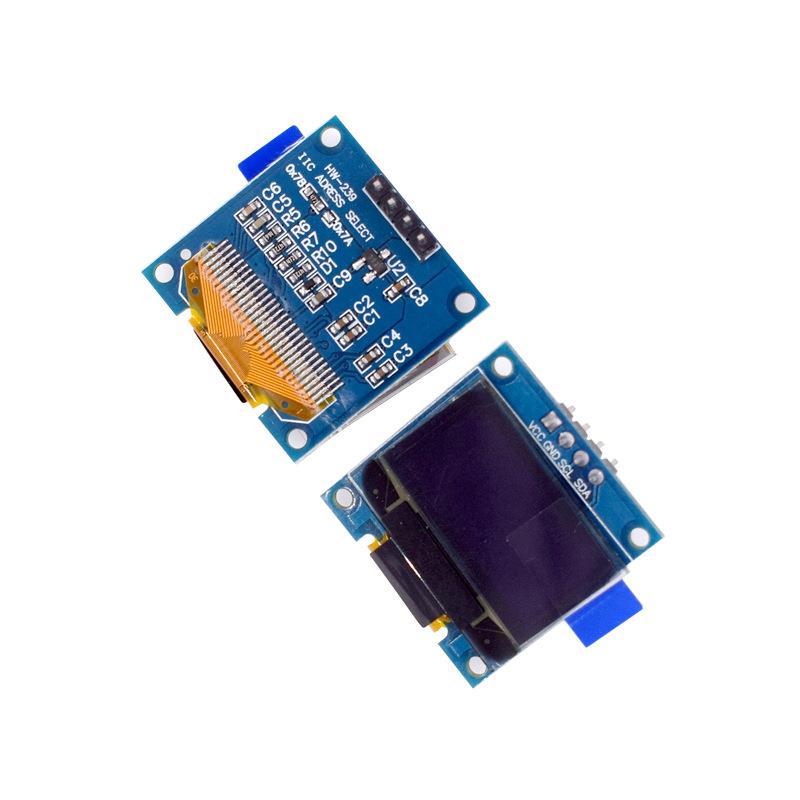

Product Descriptions
This product is an OLED screen display controlled by an I ℃ bus, with a screen size of 0.91 inches, high resolution, low power consumption, and a working voltage supply of 3V-5V. It is compatible with 3.3V and 5V level logic and does not require a level conversion chip. The module is available in three colors: white, blue, and yellow blue.

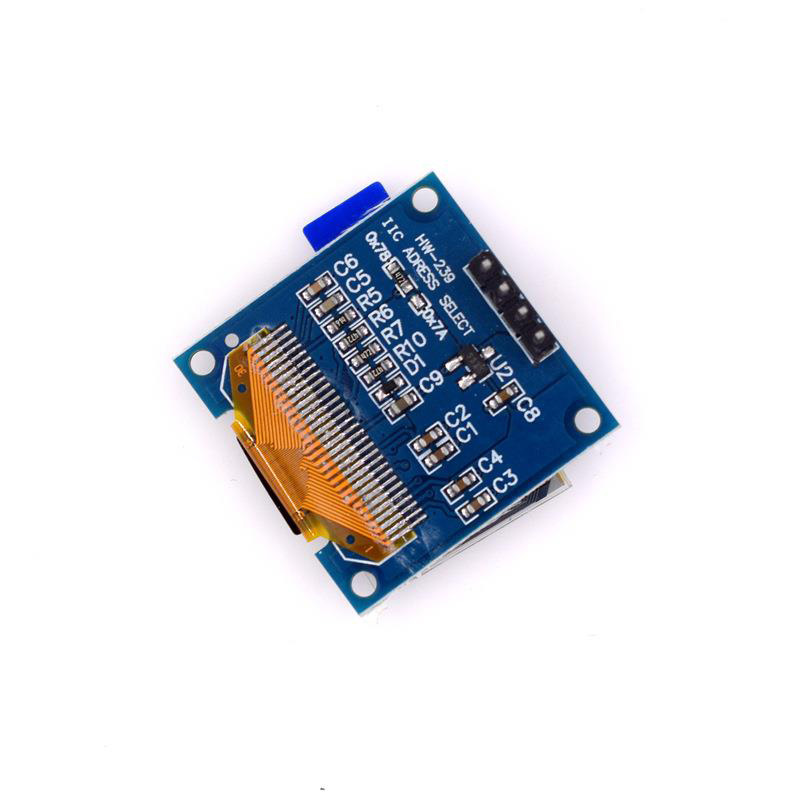

Product Function
Pin Definition:
| PIN | 標號 Grade | 引腳說明 Pin Description |
| 1 | VCC | OLED電源正(3.3V~5V) OLED power supply positive (3.3V~5V) |
| 2 | GND | OLED電源地 OLED power ground |
| 3 | SCL | OLED IIC總線時鐘信號 OLED IIC bus clock signal |
| 4 | SDA | OLED IIC總線數據信號 OLED IIC bus data signal |

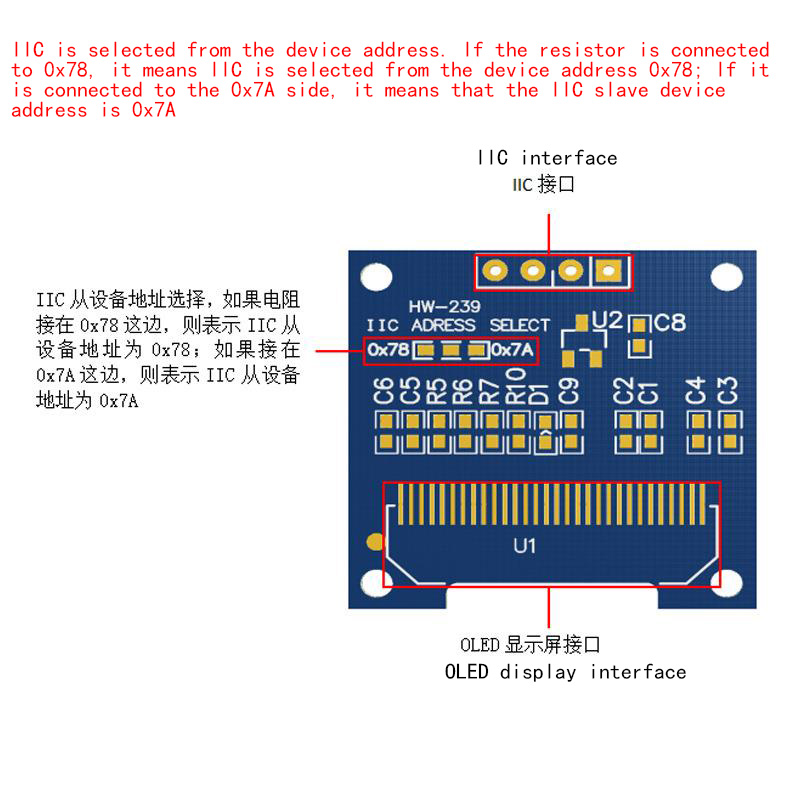

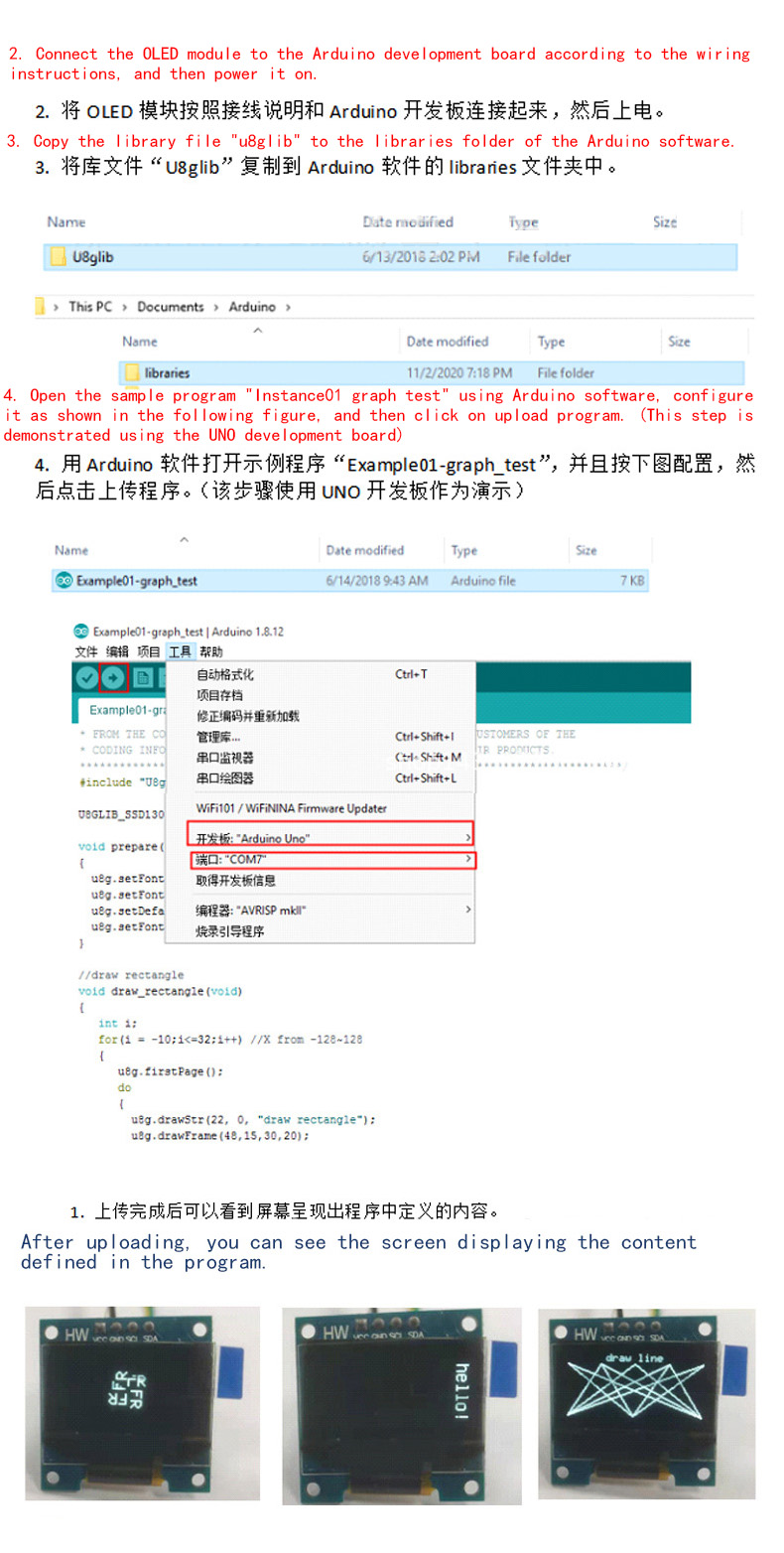

Wiring Instructions
| 與 UNO 開發板連接 Connect with UNO development board | 與 Mega2560 開發板連接 Connect with Mega2560 development board | ||
| HW-239 | UNO單片機上 On the UNO microcontroller | HW-239 | Mega2560 單片機 Mega2560 microcontroller |
| VCC | 5V | VCC | 5V |
| GND | GND | GND | GND |
| SCL | A5 | SCL | 21 |
| SDA | A4 | SDA | 20 |

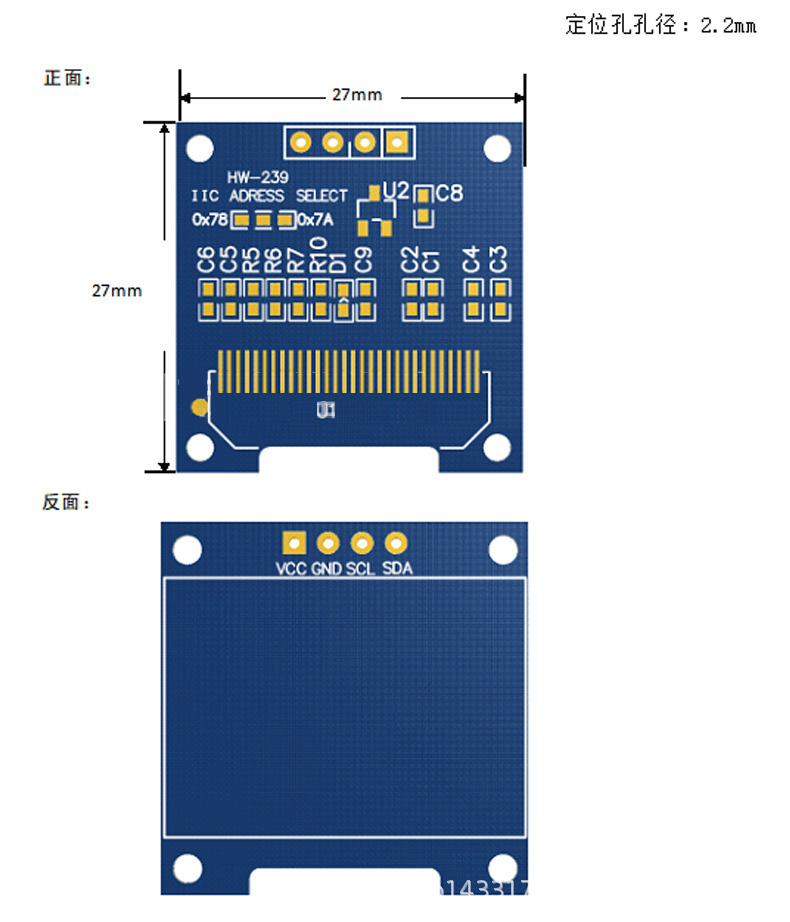

Product Size
