Module highlights

1. Adopting original imported dual MOS parallel active output, with lower internal resistance, higher current, strong power, 15A at room temperature, 400W, meeting the needs of most devices:

2. Wide voltage, supporting PWM;

3. Easily control high-power devices.

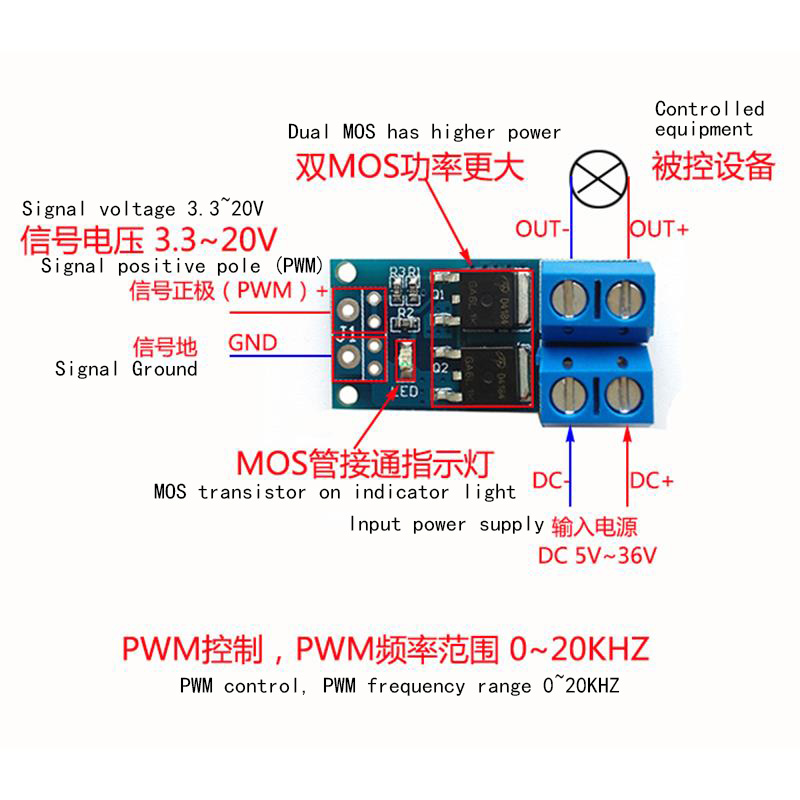

Product Pin Definition

Product Parameters and Applications

1: Working voltage: DC 5V--36V;

2: Trigger signal source: digital high and low levels (DC3.3V-20V), can be connected to microcontroller IO ports, PLC interfaces, DC power supplies, etc., can be connected to PWM signals, signal frequency support 0-20KHZ.

3: Output capability: DC 5V-36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the maximum current can reach 30A.

4: Application: The output terminal can control high-power devices, motors, light bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc. It can input PWM to control motor speed, light brightness, etc,

5: Service life: unlimited switching; Working temperature: -40-85 ℃; Size: 3.4 * 1.7 * 1.2cm

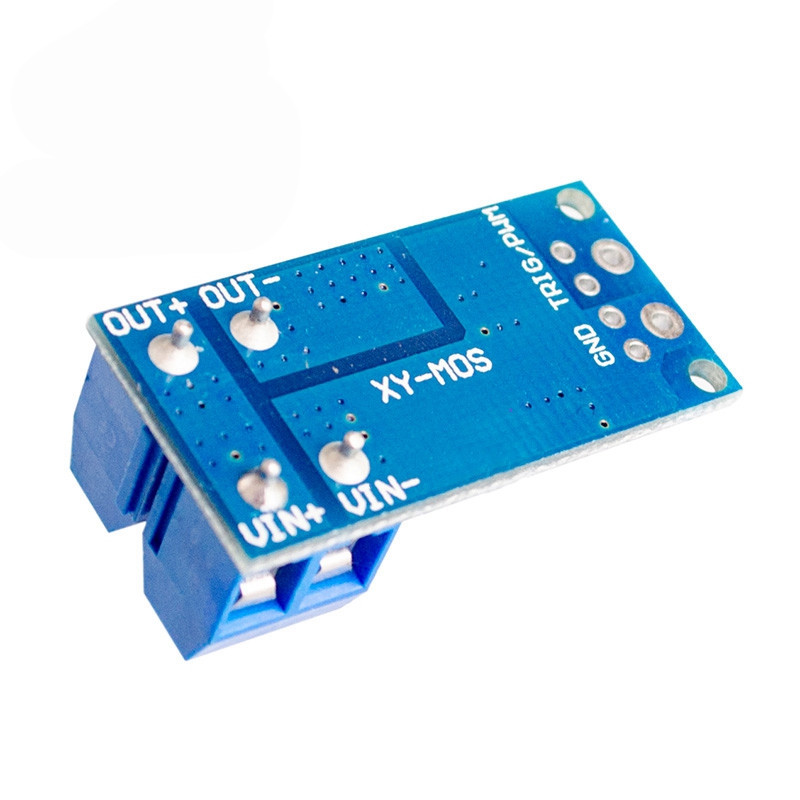

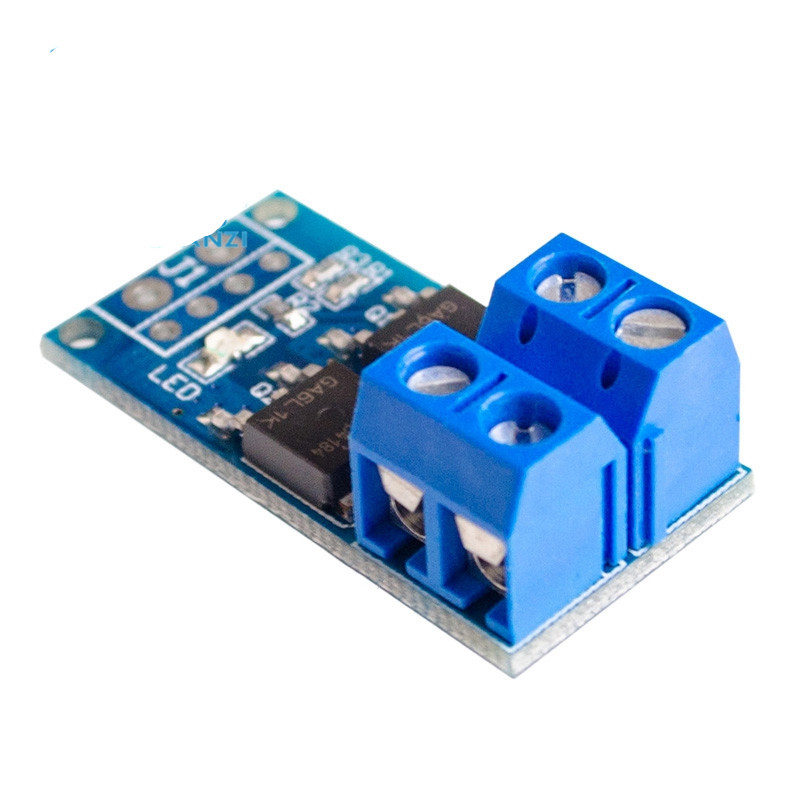

Product Show
