Product Introduction

Introduction (1)

Product Name: Sliding Resistance Module

Product model: HW-233

Input voltage: DC3.3V~5V

Port: Analog quantity

Sliding resistor resistance: 10K2

Product size: 90 * 20mm

Applicable platforms:

1. Arduino, microcontroller ARM、 And other microcontroller platforms

Introduction (2)

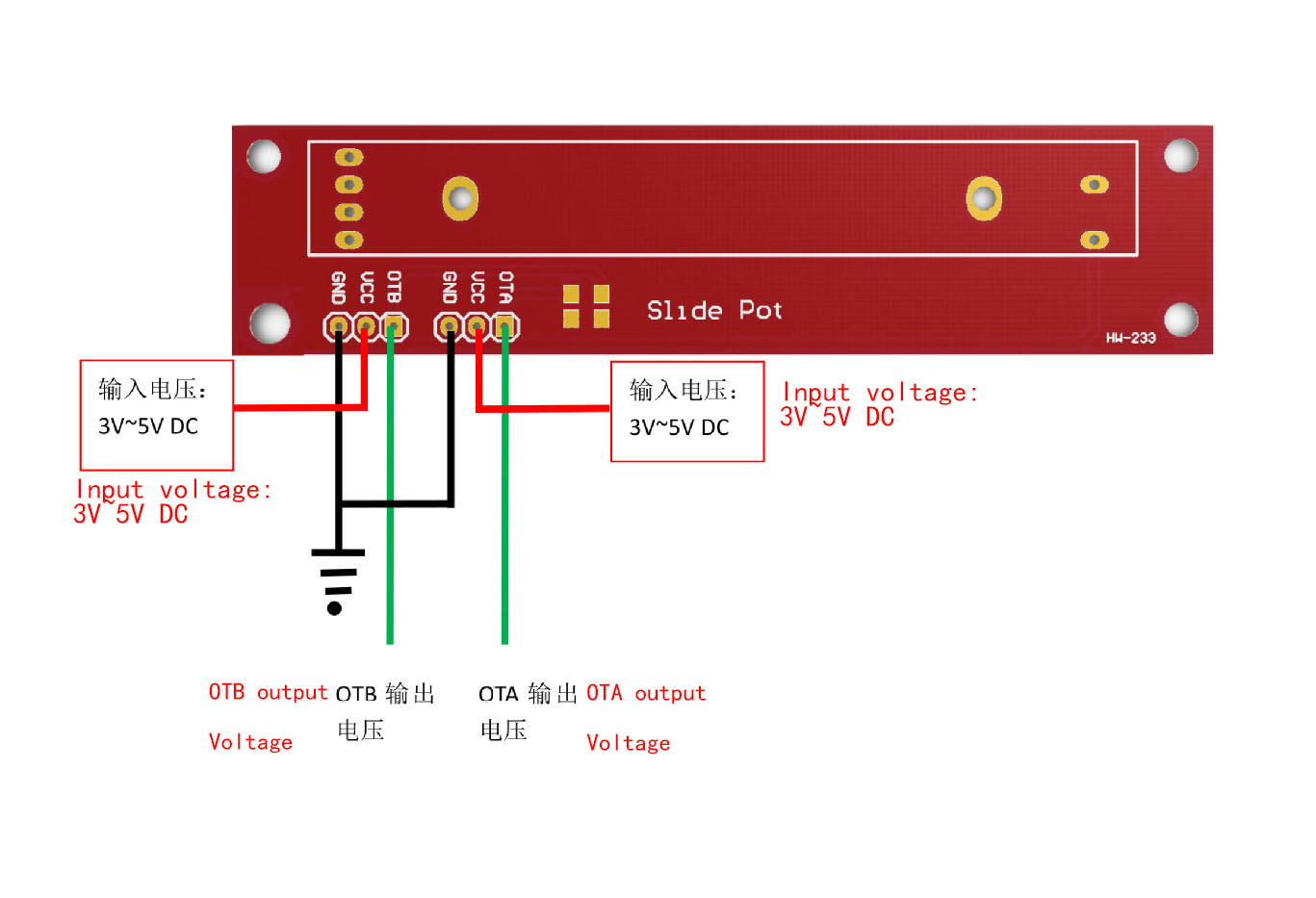

The maximum resistance of the sliding resistor in the HW-233 module is 10KQ. The module is designed with two independent input/output interfaces, which can input different voltages and output different voltages (the first group: VCC voltage input, GND, OTA input terminal, the second group: VCC voltage input, GND, OTB output terminal). Connect the power supply, slide the control lever from one end to the other, and the voltage value at the output of the potentiometer varies between 0 and the input VCC.

Product Function

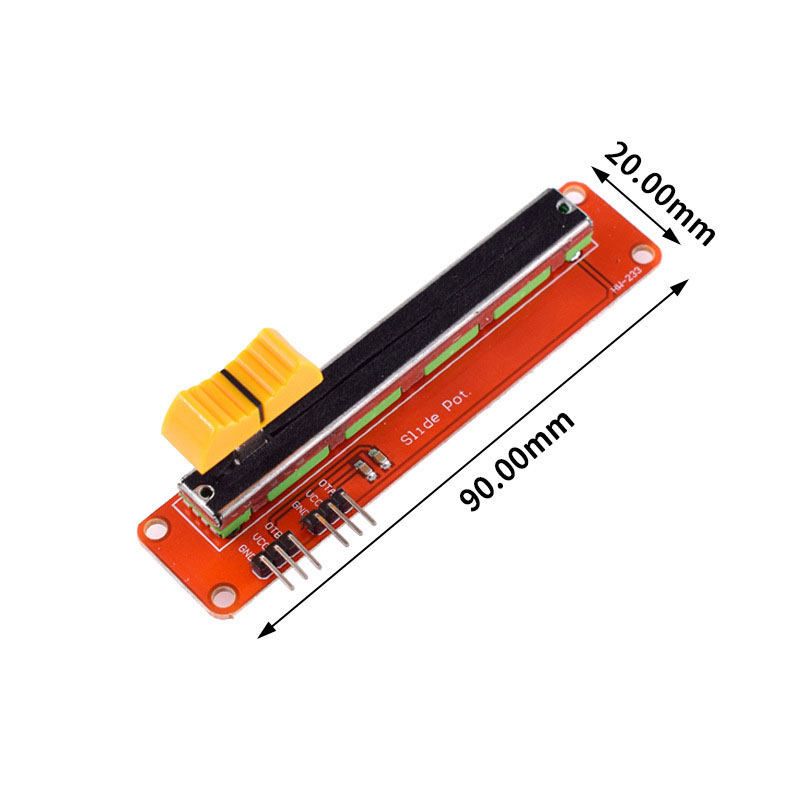

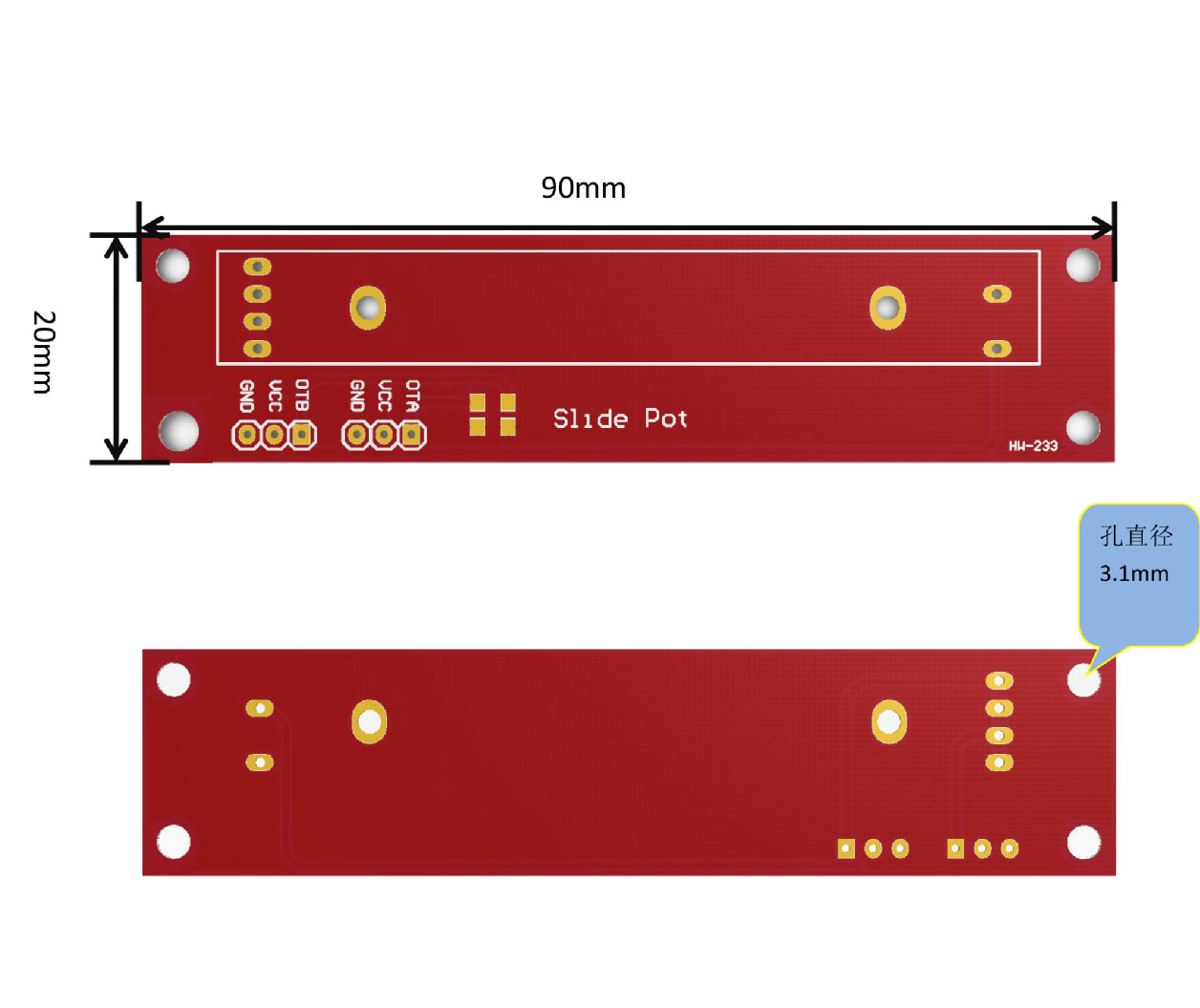

Product Size

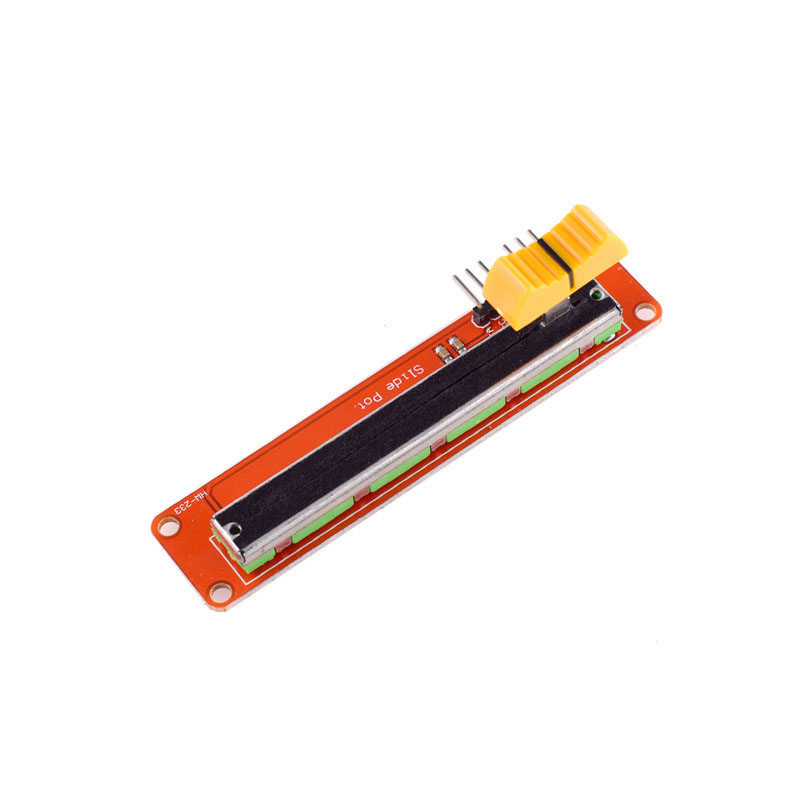

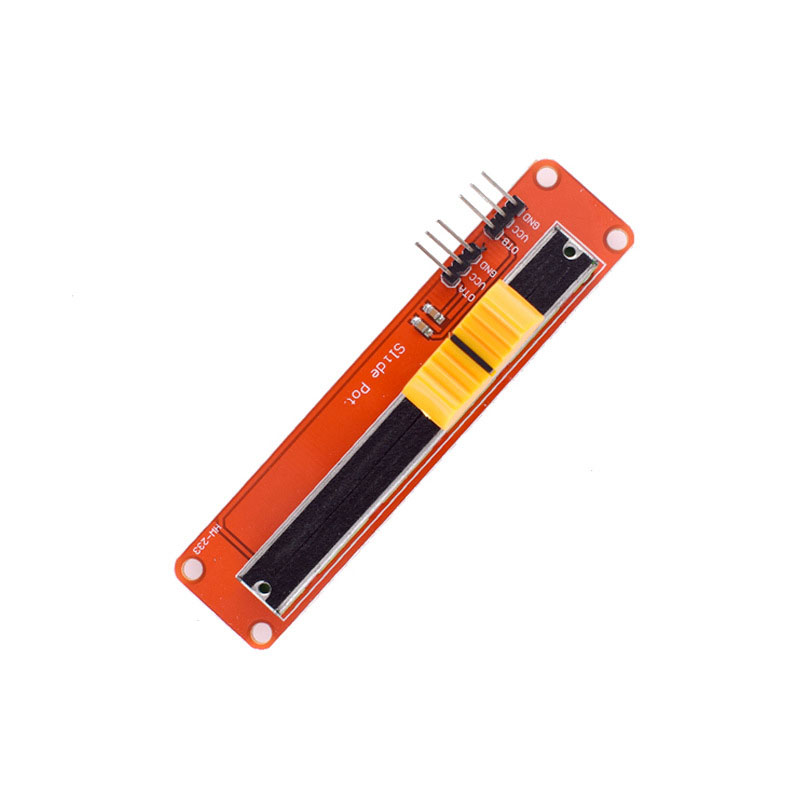

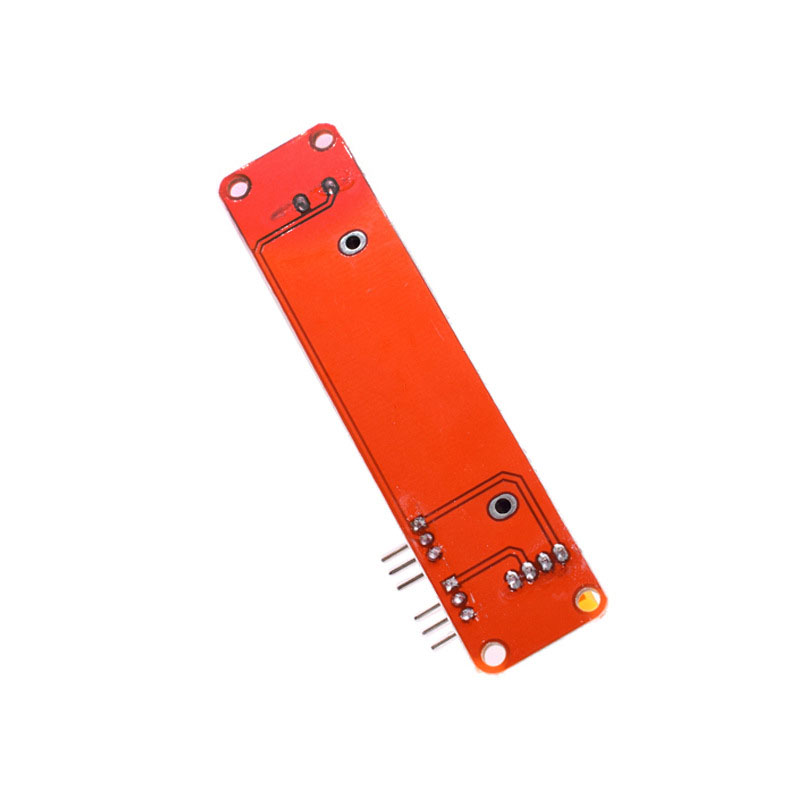

Product Show
