Product Module features:
DC-DC USB buck charging module (with working indicator light, standard contact gold-plated socket)
Compatible phone models: Android series, iPhone series, Huawei, Xiaomi, Nokia...
Product size: 33 * 33 * 8mm
Product weight: 6.2g
Input voltage range: 6-24V
Output voltage: 5.2V (considering charging line losses, the output terminal is 5.3-5.4V, and the load terminal is 5.1-5.2V)
Output current: 3A (stable output current is 2A without heat dissipation device)
Product Special note
Note 1: The input voltage should not exceed 24V, otherwise it may cause chip damage!
Note 2: The positive and negative poles of the input cannot be reversed, otherwise it may cause damage to the chip!
Attention 3: When working with power on, do not touch the resistors, capacitors, or IC pins on the circuit board with your hands, otherwise it may cause a sudden change in output voltage and damage the equipment!
Product Parameter
| 電氣參數(shù)： Electrical parameters: | ||||
| 項目 Project | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Company |
| 待機電流(Ven=0V) Standby current (Ven=0V) | 15 | 20 | 25 | μA |
| 空載電流 No load current | 8 | 12 | 16 | mA |
| 輸入電壓 Input voltage | 6 | 12 | 16 | V |
| 輸出電壓 Output voltage | 5.1 | 5.25 | 5.4 | V |
| 輸出電流 Output current | 0 | 3 | 3 | A |
| 過流保護電流 Overcurrent protection current | 5 | 5.5 | 6 | A |
| 導通內阻 Internal resistance during conduction | 80 | 100 | 120 | mΩ |
| 開關頻率 Switching frequency | 335 | 385 | 435 | KHz |
| 高溫保護 High temperature protection | 155 | 160 | 165 | ℃ |
| 轉換效率(I=7V,O=5V) Conversion efficiency (I=7V, O=5V) | 94 | 96 | 98 | % |
| 環(huán)境溫度 Ambient temperature | -40 | 25 | 85 | ℃ |

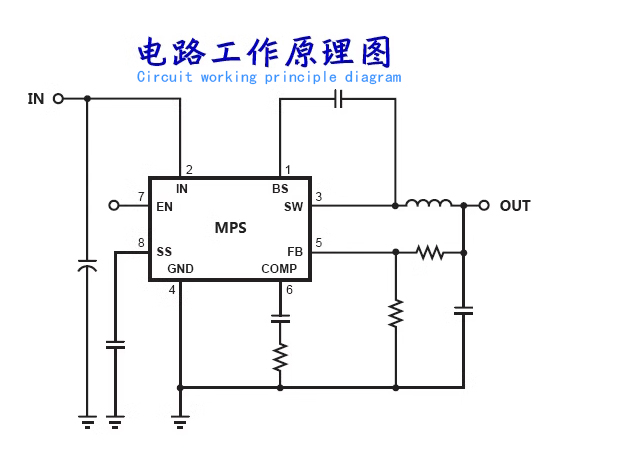

Product Function

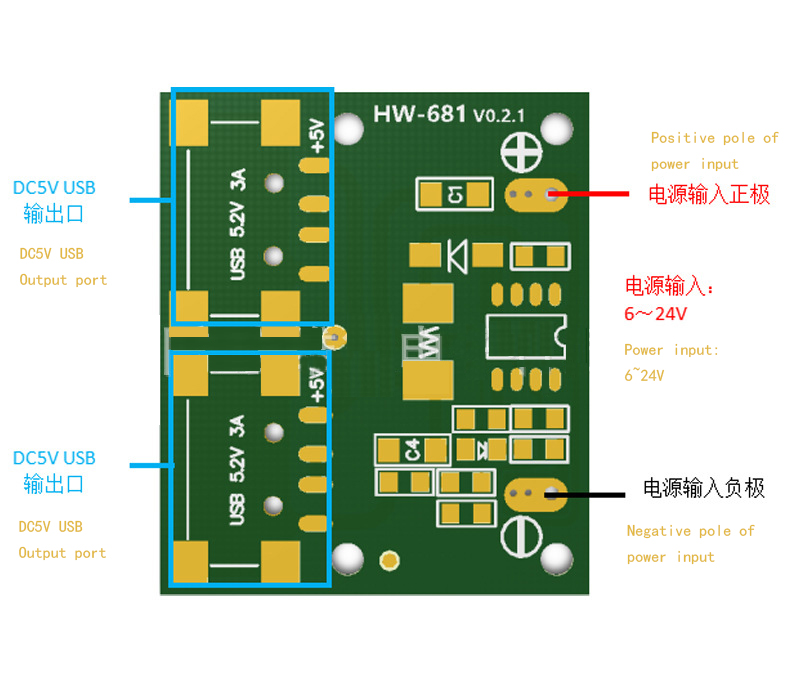

Product Wiring diagram

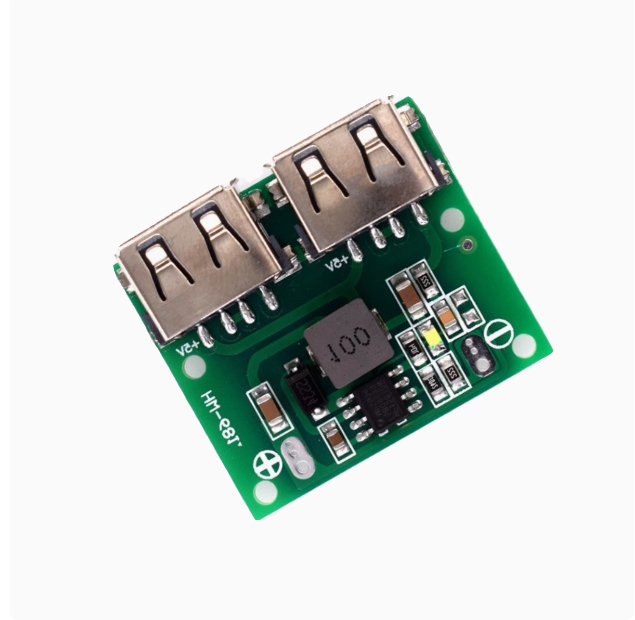

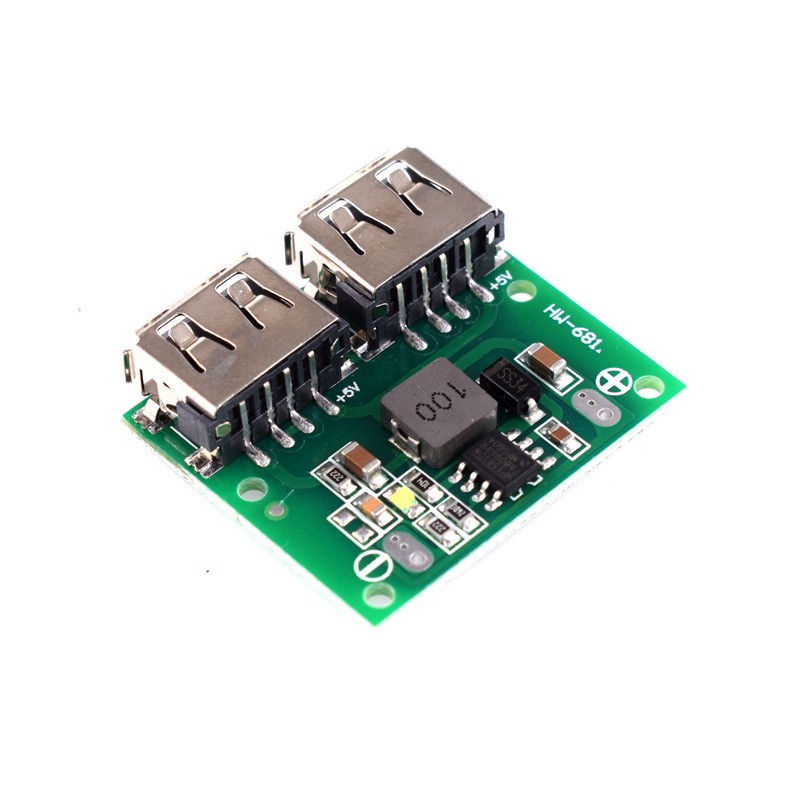

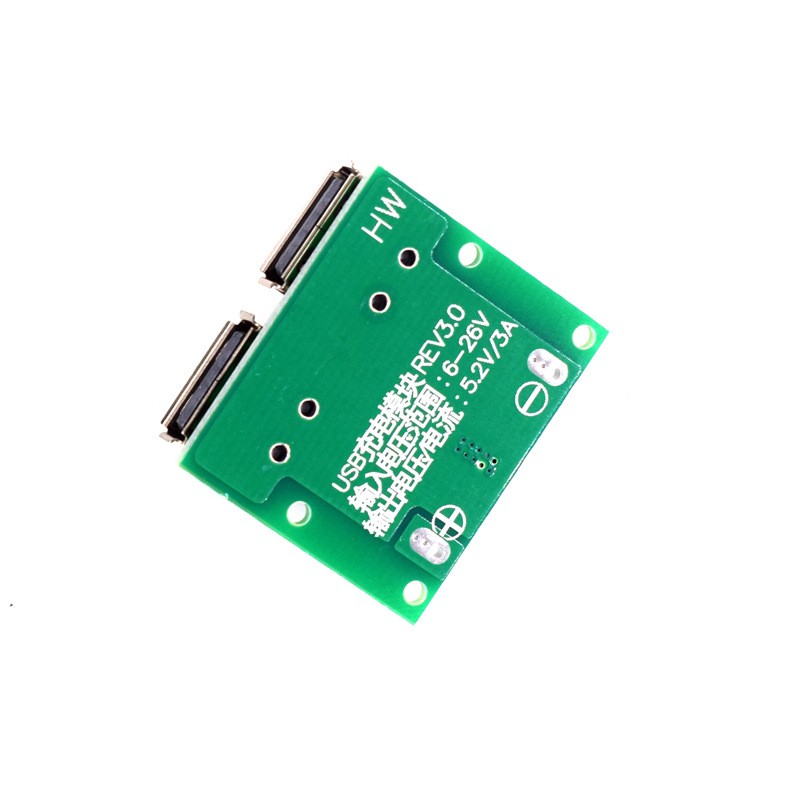

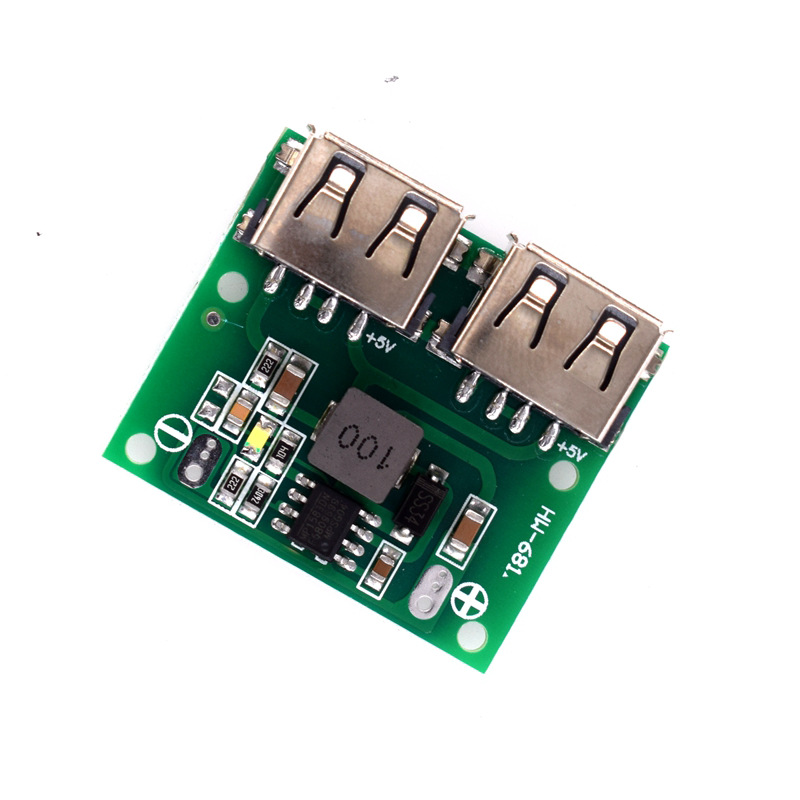

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
