Product Module features:

1. Using the highly sensitive angle switch SW-520D as the sensor

2. The comparator output has a clean signal, good waveform, and strong driving capability, exceeding 15mA.

3. Working voltage 3.3V-5V

4. Output format: Digital switch output (0 and 1)

5. Equipped with fixed bolt holes for easy installation

6. Small PCB size: 3.2cm x 1.4cm

7. Using a wide voltage LM393 comparator

Product Purpose

Various products tilt, tilt trigger alarm, tilt power-off sensor, tilt sensor.

Product Function

Gently place the module on the desktop, adjust the blue potentiometer on the board until the switch indicator light on the board is on, then slightly adjust the potentiometer to turn off the switch indicator light, and then tap the desktop with your hand to make the vibration sensor vibrate. At this point, the switch indicator light will return to the high state. When the vibration stops, the switch indicator light will also turn off. This phenomenon indicates that the vibration can trigger the module, causing the switch indicator light to turn high.

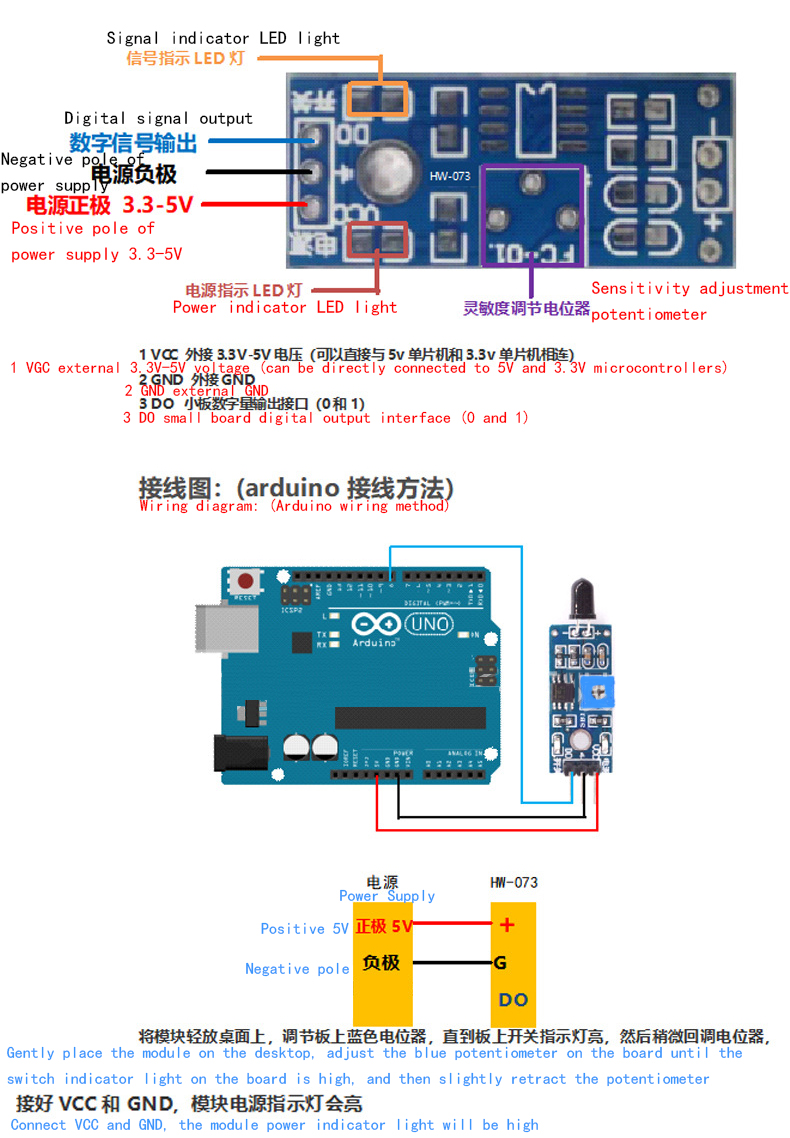

Product Wiring diagram

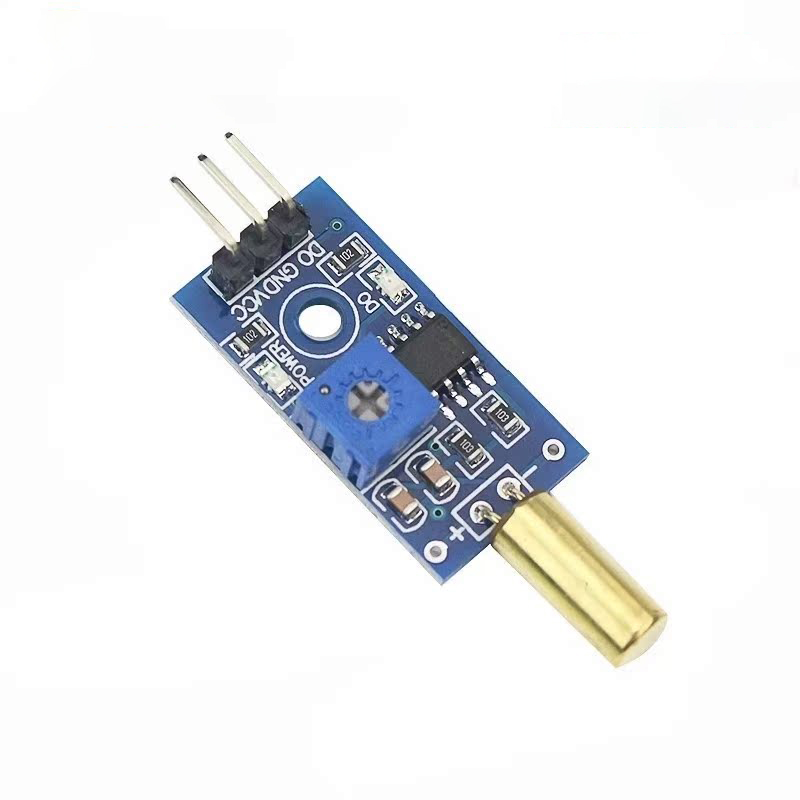

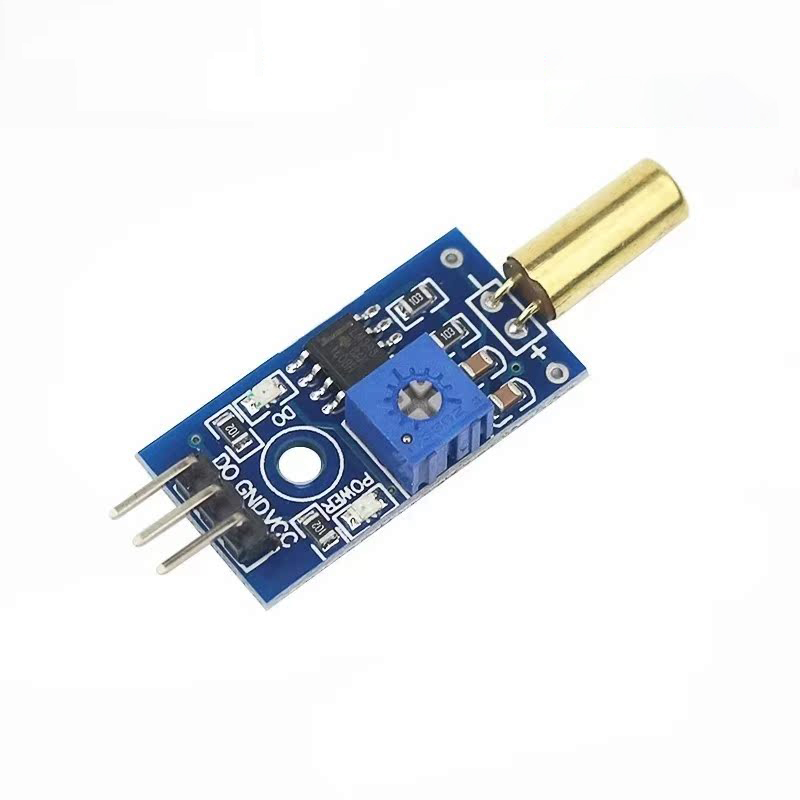

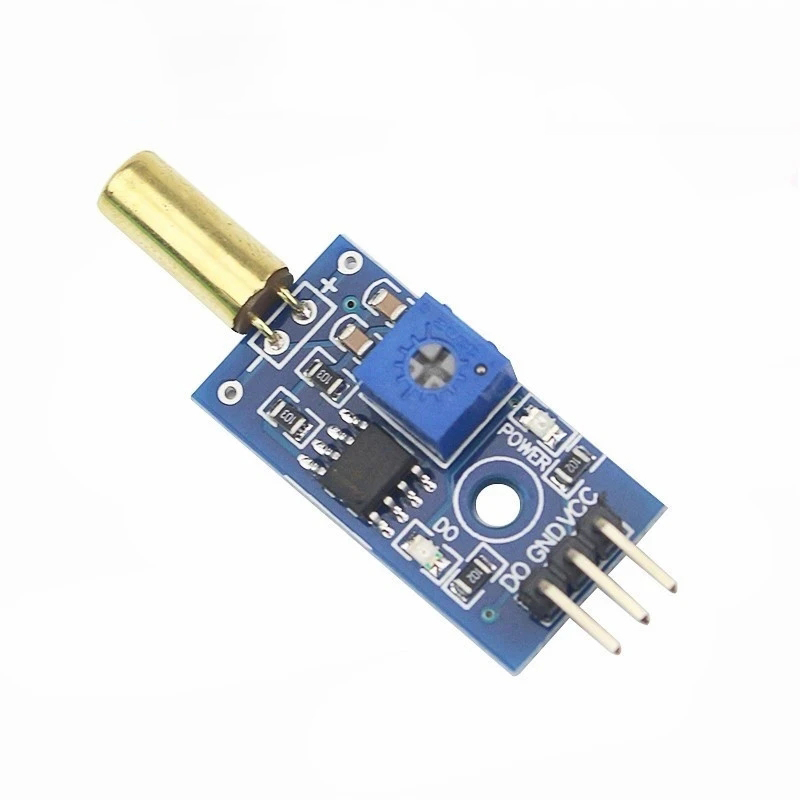

Product Show
