Product Features

• The FD decoy supports boost fast charging protocols such as PD3.0/2.0 and BC1.2, with a maximum power of 100W, and provides functions such as over temperature and over voltage protection.




• The voltage can be adjusted through a dip switch, with a maximum output voltage of 20V.




• Supports fast charging protocols such as PD3.0/2.0, BC1.2, etc




• Supports USB TyPe-C PD, supports forward and reverse plug detection and automatic switching




• Supports input voltage from 4V to 22V

Product parameters

• Input voltage: Supports 4V to 22V




• Output voltage: up to 20V




• Interface: Supports USB TYPE-C PD




• Power: Supports up to 100W




• Product size: 11 * 28MM

Product Instructions

• CFG1 corresponds to dip switch 1




• CFG2 corresponds to dip switch 2




• CFG3 corresponds to dip switch 3




• To dial down is 0, to dial up is 1 (on the 0N side).




• The toggle switch can request the corresponding voltage according to the charger protocol

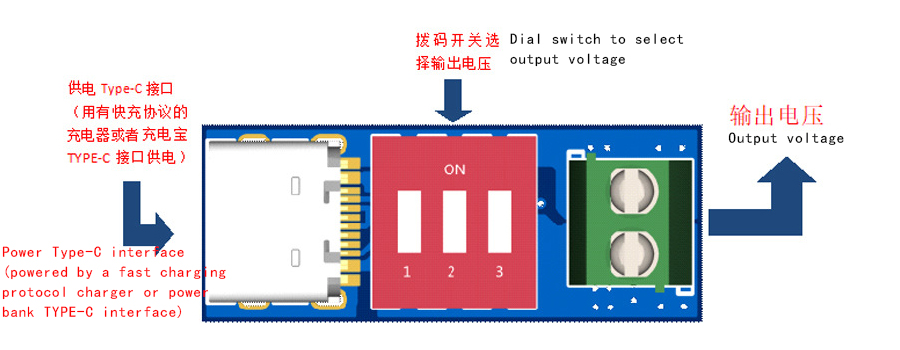

Product Function Diagram

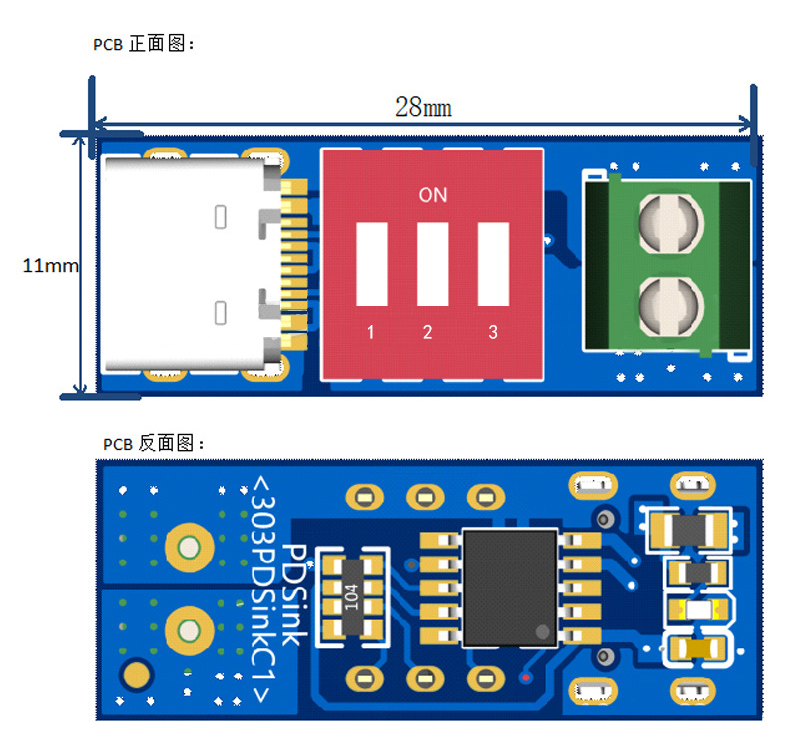

Product Size

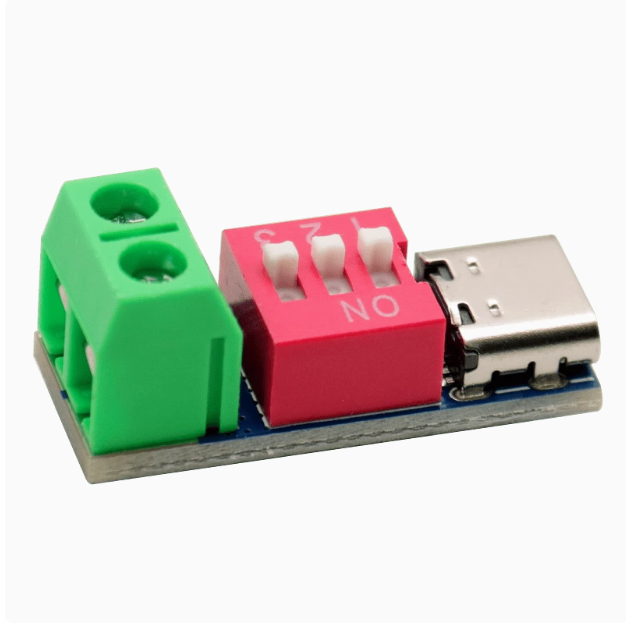

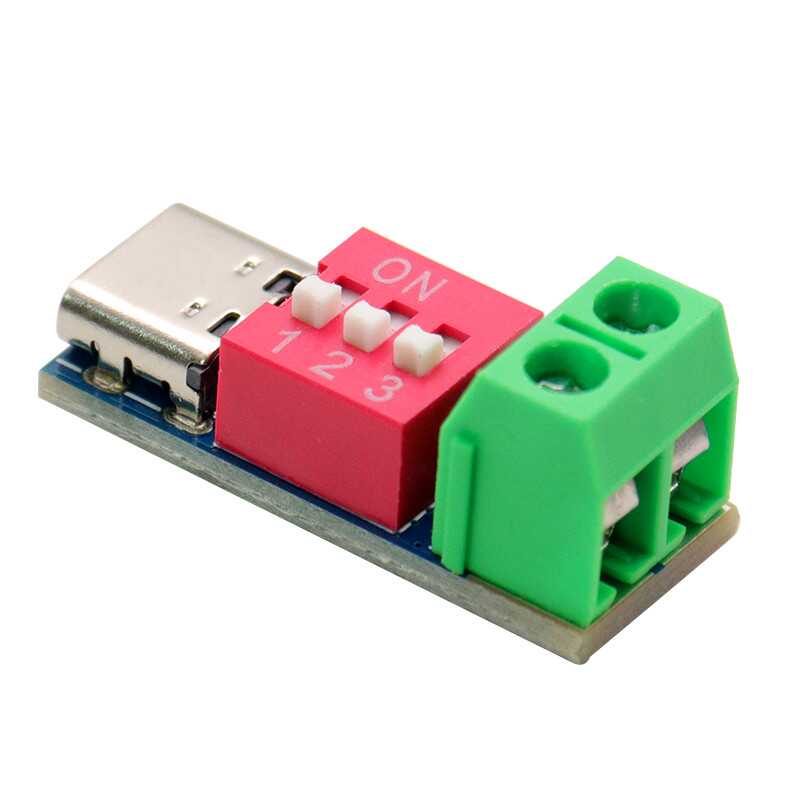

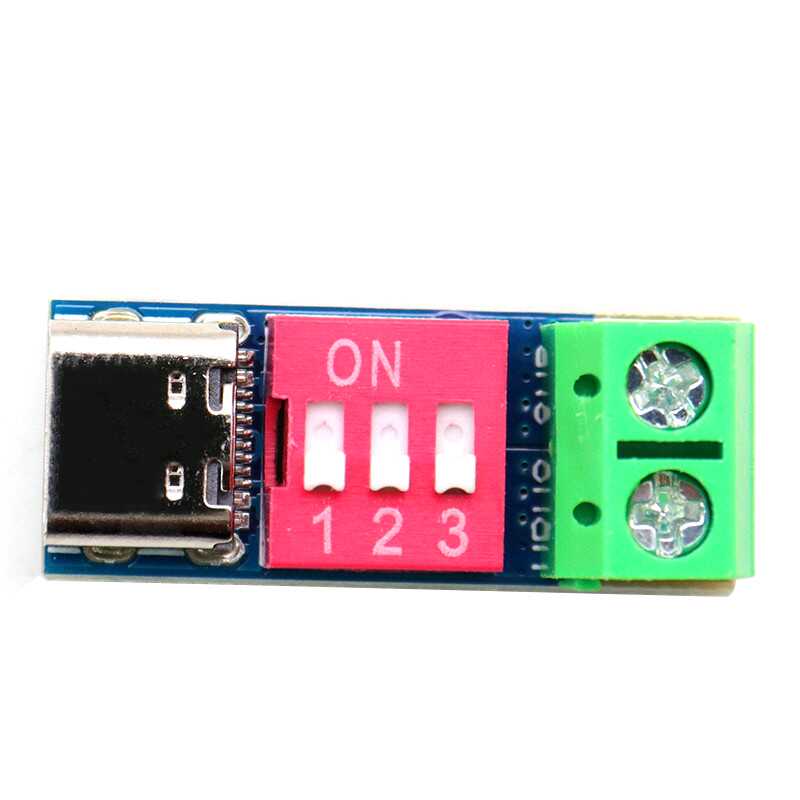

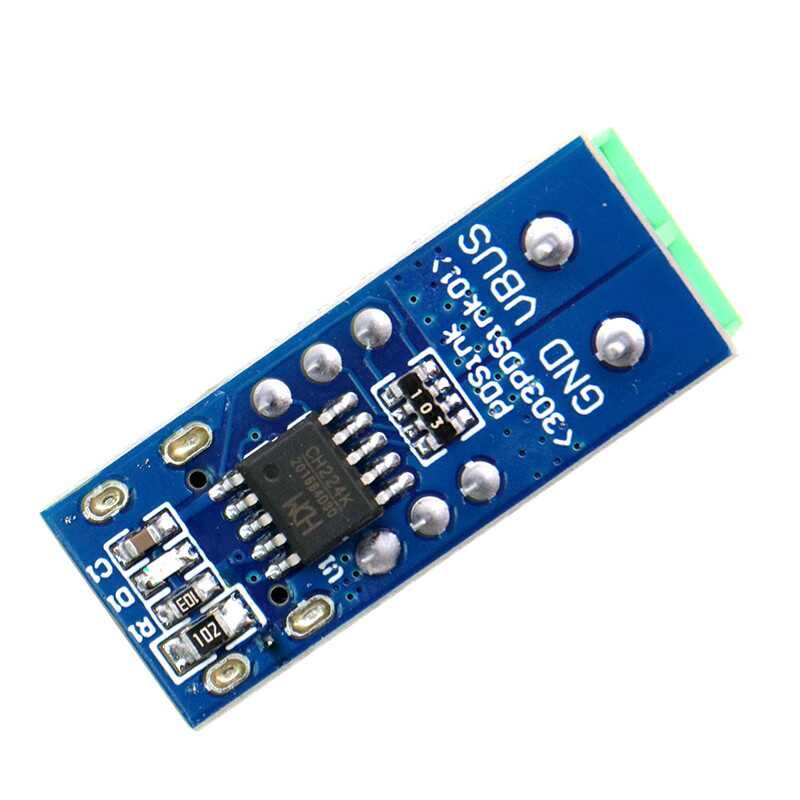

Product Show
