Production Description
This product is a TYPE-C female socket adapter board, which leads out all PIN pins of the TYPE-C socket on the board to achieve the function of connecting with a pin and a female socket.

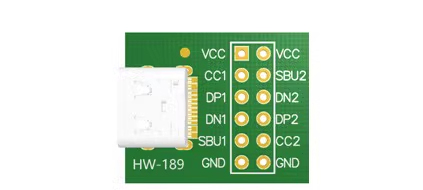

Product Function diagram
| 引腳 Pin | 引腳功能 Pin function |
| VCC | 電源正極 Positive pole of power supply |
| SBU1 | 邊帶使用 Edge use |
| SBU2 | 邊帶使用 Edge use |
| DP1 | USB2.0差分信號，positionl，正 USB 2.0 differential signal, positionl， just |
| DP2 | USB2.0差分信號，position2，正 USB 2.0 differential signal, position2， just |
| CC1 | 配置通道，用于識別、控制 Configure channels for identification and control |
| CC2 | 配置通道，用于識別、控制 Configure channels for identification and control |
| DN1 | USB 2.0差分信號，position1,負 USB 2.0 differential signal, position1, negative |
| DN2 | USB 2.0差分信號，position2,負 USB 2.0 differential signal, position2, negative |
| GND | 電源負極 Negative pole of power supply |

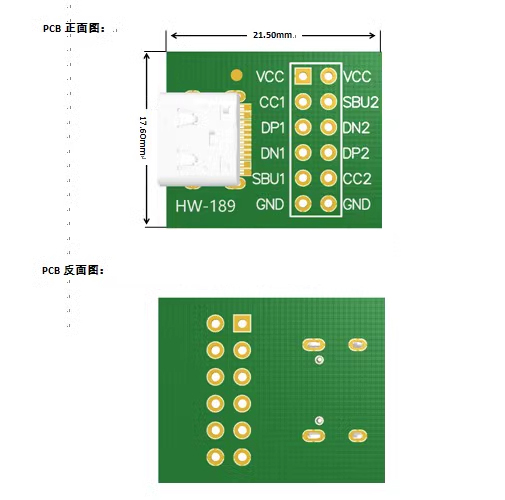

Product Size

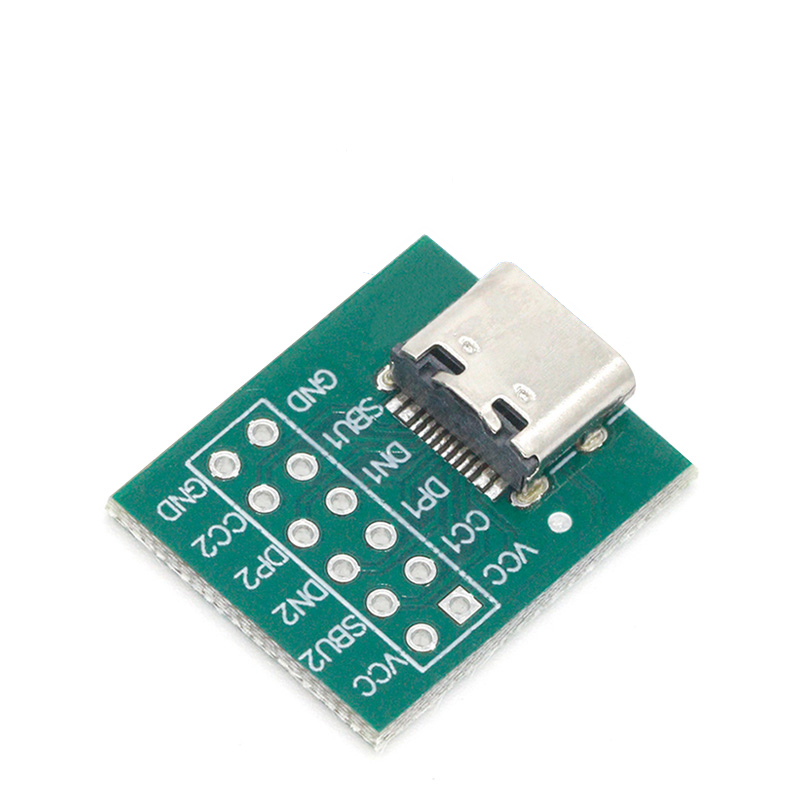

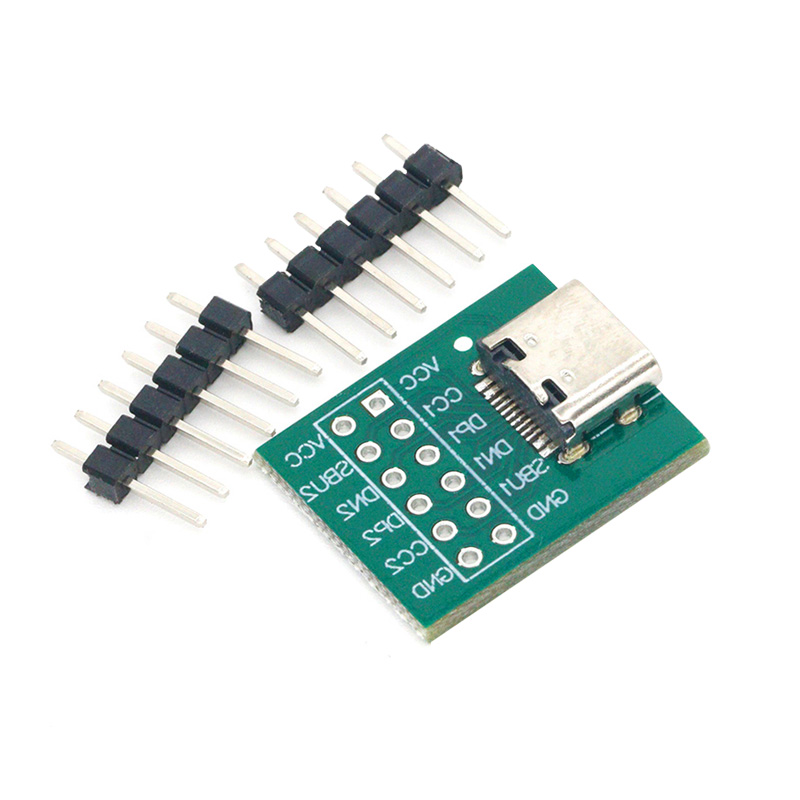

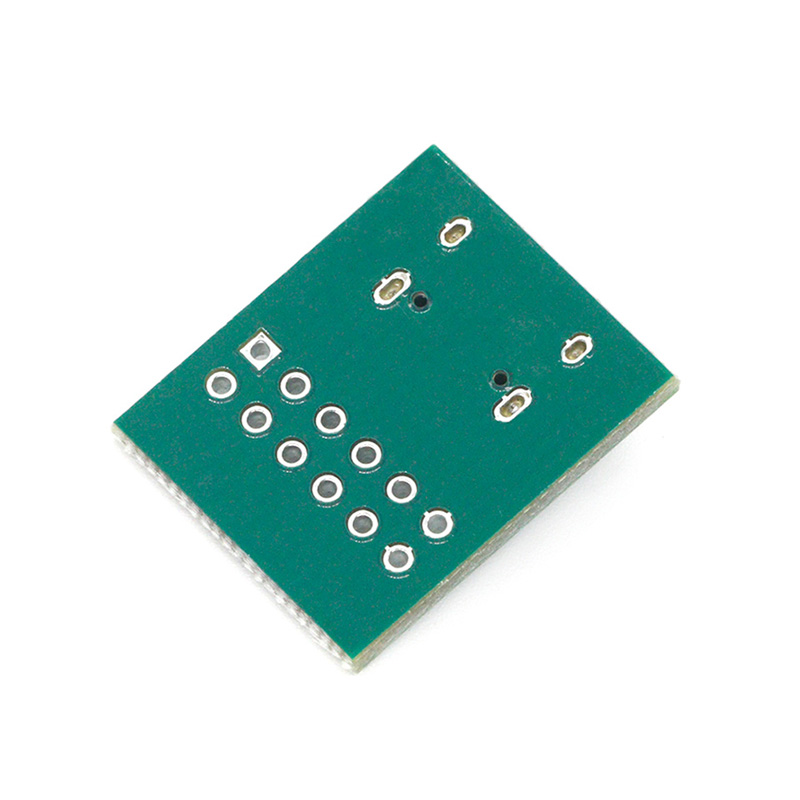

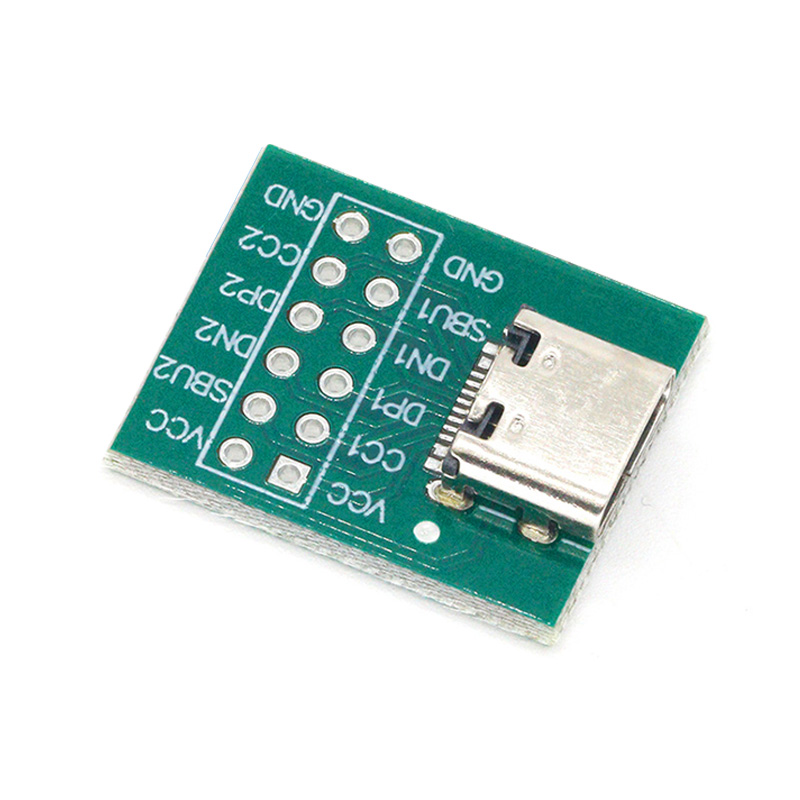

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
