Production Information

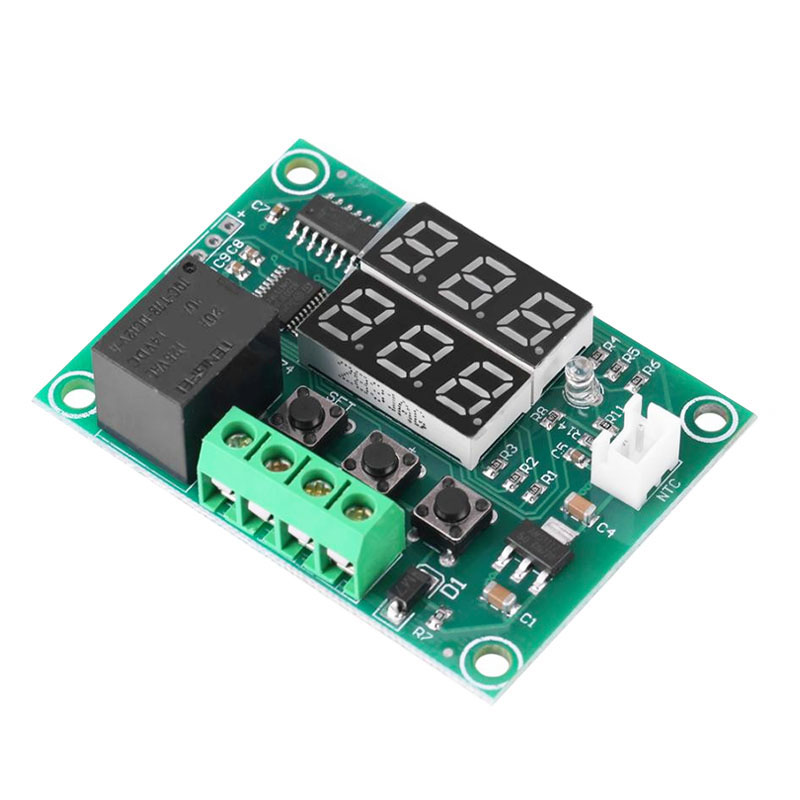

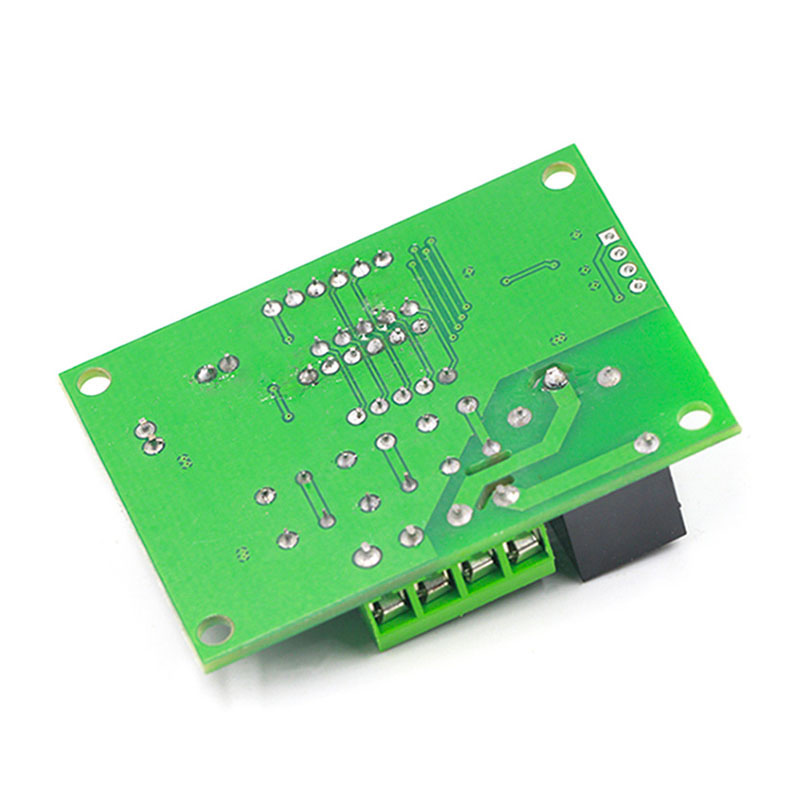

Product Name: Microcomputer Temperature Controller
Product model: XH-W1219
Control range:- 50'℃~110'℃
Control accuracy: 0.1 ℃

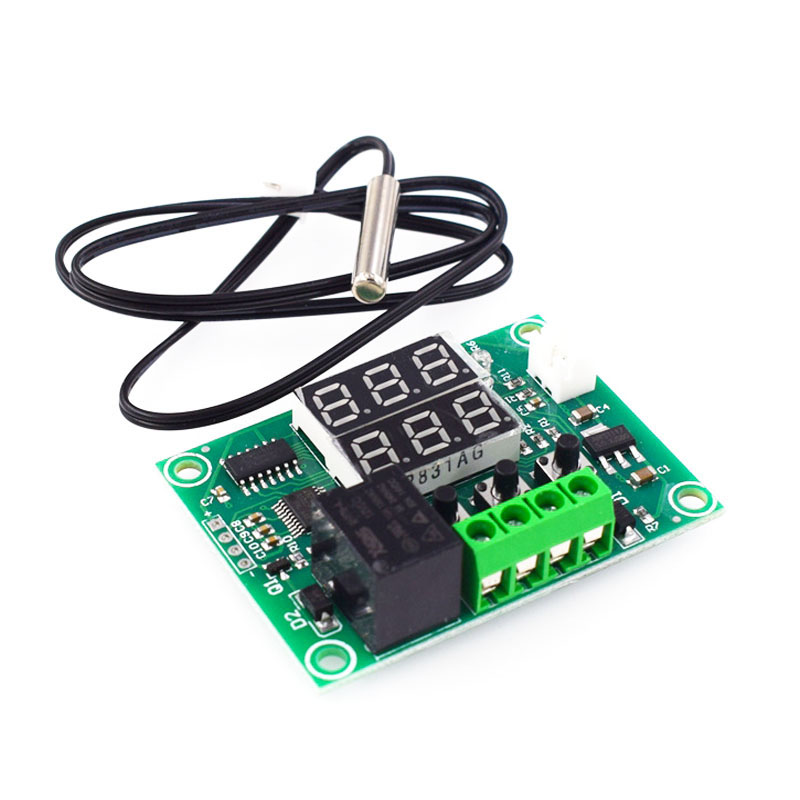

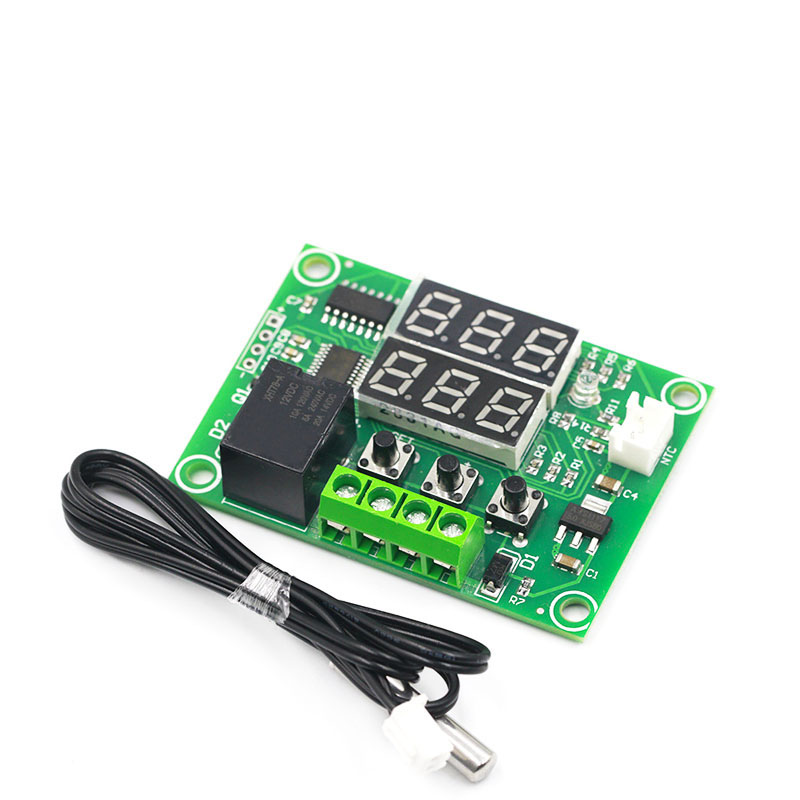

Measurement input: NTC 10K waterproof sensor L=0.5M
High temperature alarm:- 49℃~110℃
Input voltage: DC12V
Output type: Relay output maximum 10A
Return setting: 0.1~30 ℃
Delay start: 0-10 minutes
Temperature correction:- 10℃-+10℃

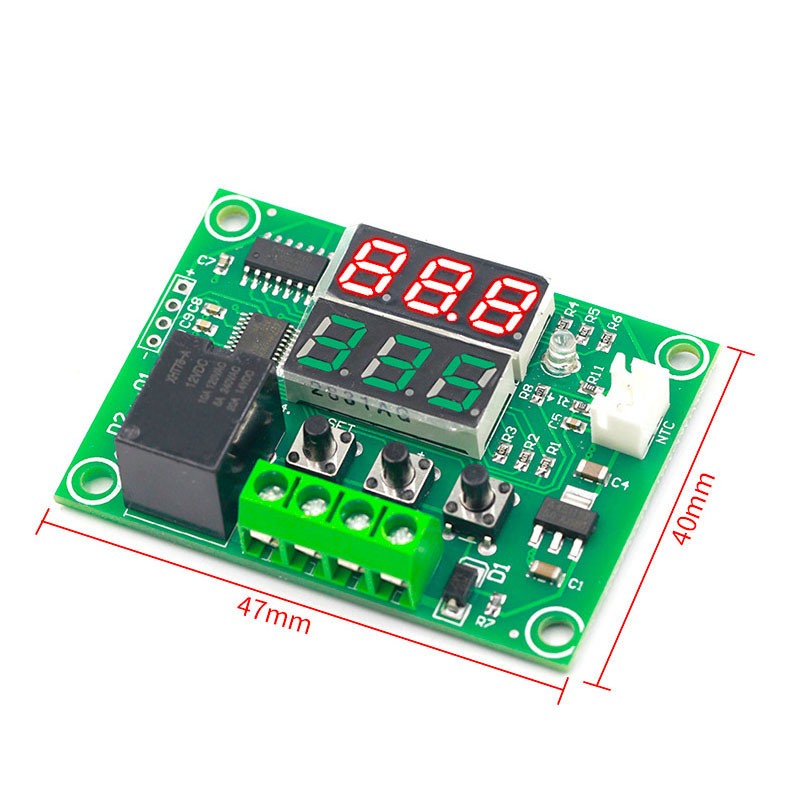

Appearance size: 60 * 43 * 16mm

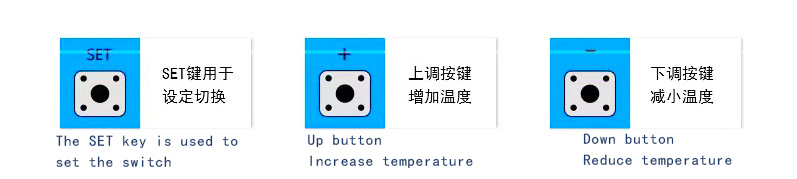

Product Function diagram
| 參數設置表 Parameter Setting Table | |||
| 代碼 Code | 說明 Explain | 設定范圍(方式) Setting Range (Method) | 出廠設定值 Factory set value |
| PO | 溫控模式 Temperature mode | H/C | C |
| P1 | 回差設定 Return difference setting | 0.1~30'℃ | 2℃ |
| P2 | 溫度校準 Temperature calibration | -10~10℃ | 0℃ |
| P3 | 延時啟動 Delay start | 0~10(分鐘/minute) | 0分鐘/minute |
| P4 | 高溫報警 High temperature alarm | -50~110℃ | 110℃ |
How to restore factory settings?
Under normal power on state, press and hold the+- keys for about three seconds to restore the factory settings
P0 temperature control mode
When using the thermostat for the first time, this value must be set. If it is used for heating, it should be set to H, and if it is used for cooling, it should be set to C. (Note: H is the abbreviation for Hot in English, C is the abbreviation for Cold in English)
P1 hysteresis setting
Long press the SET button to enter the internal settings, select P1 settings, and then press the SET button again to set the hysteresis value. (The hysteresis is the difference required for the thermostat to resume operation after reaching the set temperature and stopping. For example, if we set it to heating mode, heating to 40 degrees, stopping at 35 degrees, and starting again, the hysteresis is 5.)
P2 temperature calibration
This function is used for temperature calibration. If there is a deviation between the detected temperature and the actual temperature, this function can be used for calibration. The calibrated value=measured value+calibrated value. For example, if we measure a temperature of 25.6 degrees but the actual temperature is 25.8 degrees, we can set P4 to 0.2. Therefore, the final temperature is 25.6+0.2=25.8.
P3 delayed start
This function is generally used for compressor refrigeration. If you purchase this thermostat for use in a refrigerator or freezer, this value must be set. Depending on the back pressure of the compressor, the general setting value is 3-6 minutes. If you are not controlling the compressor or do not need the delay function, simply skip this option.
P4 high temperature alarm
Set a high temperature alarm value, and when the real-time temperature exceeds this value, the screen will flash to prompt an alarm!
| 加熱制冷模式設置實例 Example of Heating and Cooling Mode Setting | |
| 加熱模式使用實例 Example of Heating Mode Usage | 制冷模式使用實例 Example of using cooling mode |
| 控制電熱設備加熱到35℃停止加熱，當溫度降到30℃再次啟動設備加熱，怎么設置? How to set the electric heating equipment to stop heating at 35 ℃ and restart heating when the temperature drops to 30 ℃? | 控制空調設備制冷到23℃停止制冷，當溫度回升到27℃再次啟動制冷，怎么設置? How to set the air conditioning equipment to stop cooling at 23 ℃ and restart cooling when the temperature rises to 27 ℃? |
| 1.長按SET鍵3秒進入內部設置，將P0設定為H 1. Press and hold the SET button for 3 seconds to enter the internal settings and set P0 to H | 1.長按SET鍵3秒進入內部設置，將P0設定為C 1. Press and hold the SET button for 3 seconds to enter the internal settings and set P0 to C |
| 2.長按SET鍵返回到實時溫度界面，按一下SET鍵綠色數碼管閃爍，將數值設定為35°C 2. Long press the SET button to return to the real-time temperature interface, press the SET button once and the green digital tube will flash, setting the value to 35 ° C | 2.長按SET鍵返回到實時溫度界面，按一下SET鍵綠色數碼管閃爍，將數值設定為23℃ 2. Long press the SET button to return to the real-time temperature interface, press the SET button once and the green digital tube will flash, setting the value to 23 ℃ |
| 3.出廠默認回差是2℃，要想溫度降到30℃C再次加熱，需要將回差值設定為5。長按SET鍵進入內部設定，選擇P1，將P1值改為5，到此就設定完成了 3. The default hysteresis value at the factory is 2 ℃. To lower the temperature to 30 ℃ and reheat, the hysteresis value needs to be set to 5. Press and hold the SET key to enter the internal settings, select P1, change the P1 value to 5, and the settings are now complete | 3.出廠默認回差是2℃，要想溫度回升到27℃再次制冷，需要將回差值設定為4。長按SET鍵進入內部設定，選擇P1，將P1值改為4，到此就設定完成了 3. The default hysteresis value at the factory is 2 ℃. In order to cool again when the temperature rises to 27 ℃, the hysteresis value needs to be set to 4. Press and hold the SET key to enter the internal settings, select P1, change the P1 value to 4, and the settings are now complete |
