Product Description

This L298N driver module adopts the L298N chip from ST company, which can directly drive two 3-30V DC motors and provide a 5V output interface. It can supply power to the 5V microcontroller circuit system and support 3.3V MCU control. It can easily control the speed and direction of the DC motor, as well as the 2-phase stepper motor. It is a must-have for smart cars.

Product Parameters

1. Driver chip: L298N dual H-bridge driver chip

2. Power supply range of the drive terminal VMS:+ 5V～＋35V

3. Peak current of the driving part Io: 2A/bridge

4. The power supply range of the logic terminal is Vss: 4.5-5.5V

5. Operating current range of logic part: 0-36mA

6. Control signal input voltage range: High level 4.5-5.5V, Low level 0V

7. Maximum power consumption: 20W

8. Storage temperature: - 25℃～＋130℃

9. Driver board size: 55mm * 60mm * 30mm

10. Weight of drive board: 33g

11. Other functions: control direction indicator light, power indicator, current detection, logic board internal power interface.

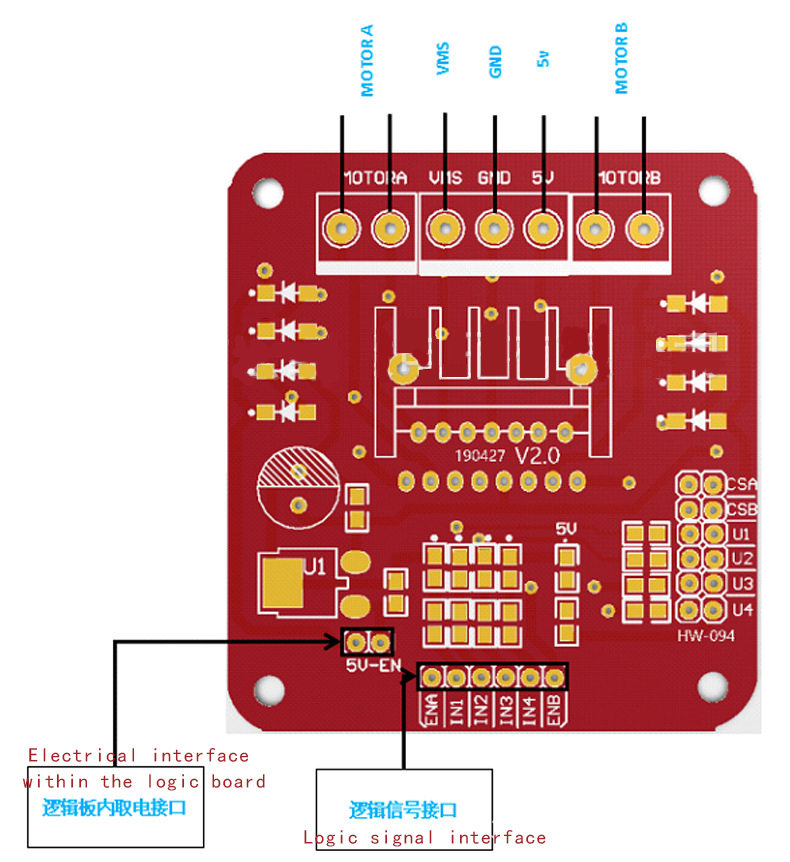

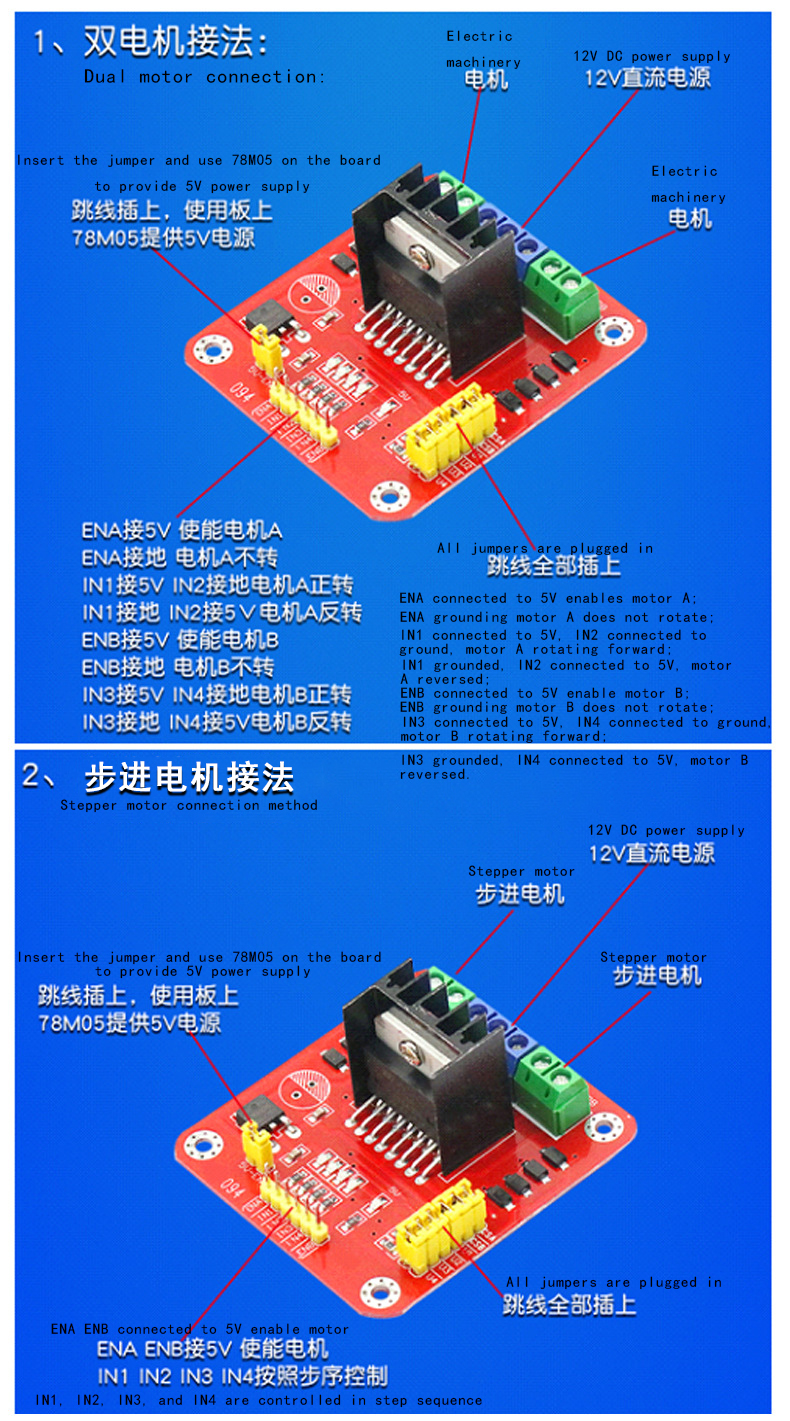

Product Function diagram

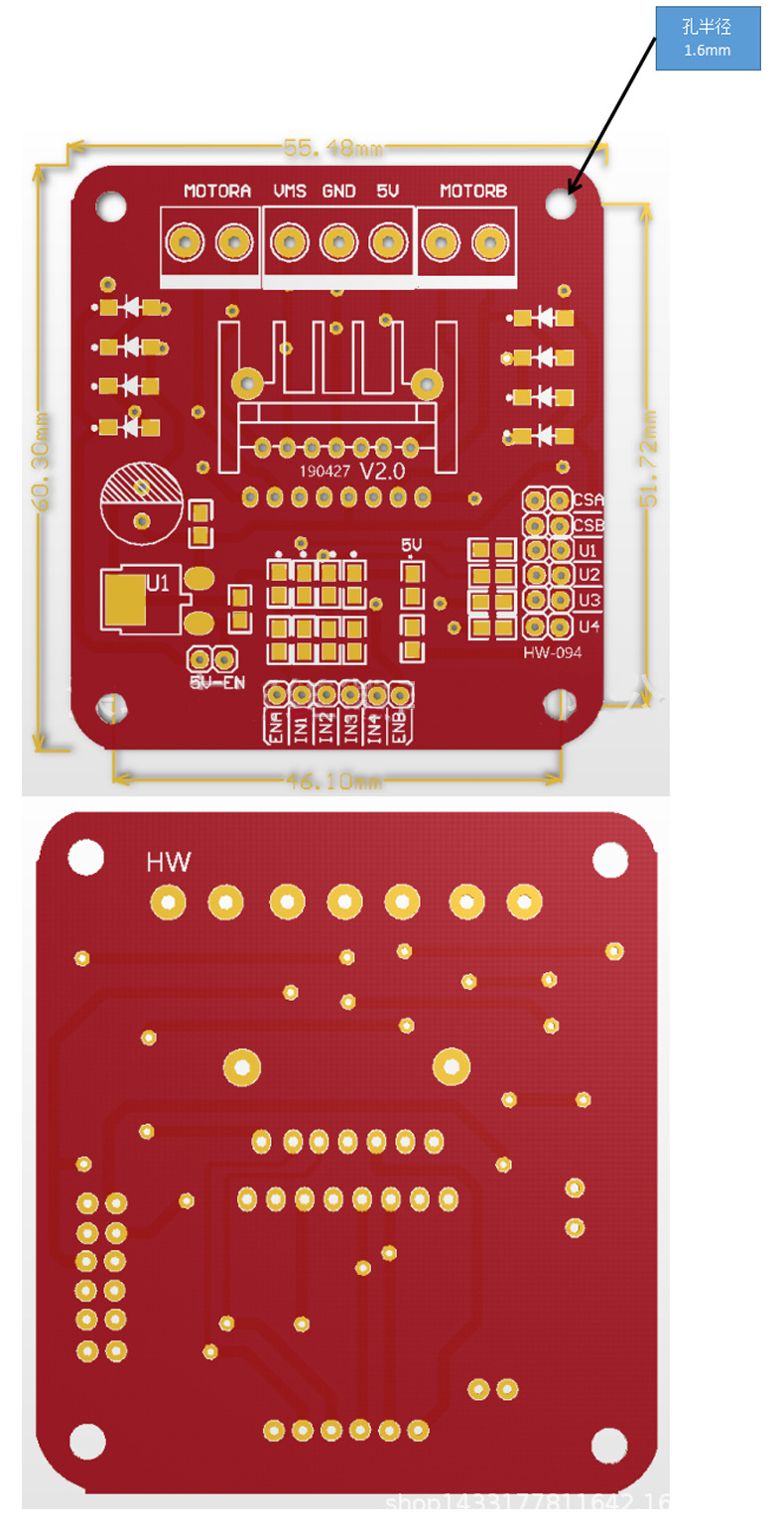

Product Size

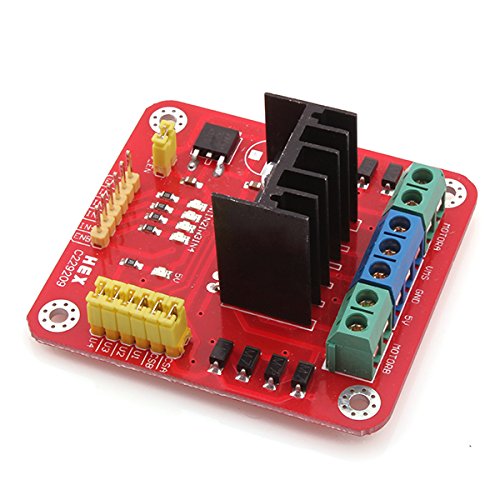

Product Show
