Product Descriptions

APDS-9930 is a digital I2C compatible interface ambient light sensor (ALS) and proximity sensor with IR LED in a single 8-pin package.  The

ambient light sensor utilizes dual photodiodes to approximate the human eye response with a low lux performance at 0.01 lux.  This high

sensitivity allows for the device to operate behind a darkened glass. The proximity sensor is fully calibrated to detection of objects  to 100 mm

thus eliminating the need for factory calibration of the end equipment or sub-assembly. The proximity detection feature operates well from

bright sunlight to dark rooms. The addition of the micro-optics lenses within the module, provide highly efficient transmission and reception of

infrared energy which lowers overall power dissipation.  In addition, an internal state machine provides the ability to put the device into a low

power mode in between ALS and proximity measurements providing very low average power consumption.

Product Features

ALS, IR LED and Proximity Detector in an Optical Module

Ambient Light Sensing (ALS)

– Approximates Human Eye Response

– Programmable Interrupt Function with Upper and Lower Threshold

– Up to 16-Bit Resolution

– High Sensitivity Operates Behind Darkened Glass

– LowLux Performance at 0.01 lux

Proximity Detection

– Fully Calibrated to 100 mm Detection

– Integrated IR LED and Synchronous LED Driver

– Eliminates “Factory Calibration” of Proximity sensor

Programmable Wait Timer

– Wait State Power – 90 μA Typical

– Programmable from 2.7 ms to > 8 Sec

I2C Interface Compatible

– Up to 400 kHz (I2C Fast-Mode)

– Dedicated Interrupt Pin

Sleep Mode Power - 2.2 μA Typical

Small Package L3.94 x W2.36 x H1.35 mm

Product Applications

Cell Phone Backlight Dimming

Cell Phone Touch-screen Disable

Notebook/Monitor Security

Automatic Speakerphone Enable

Automatic Menu Pop-up

Digital Camera Eye Sensor

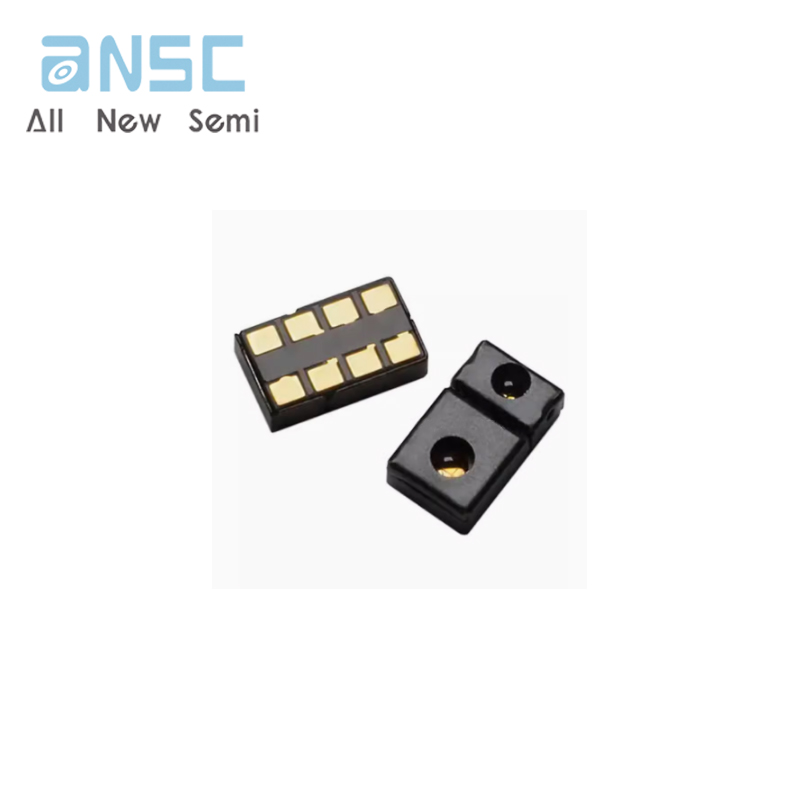

Product Images
