Product Descriptions

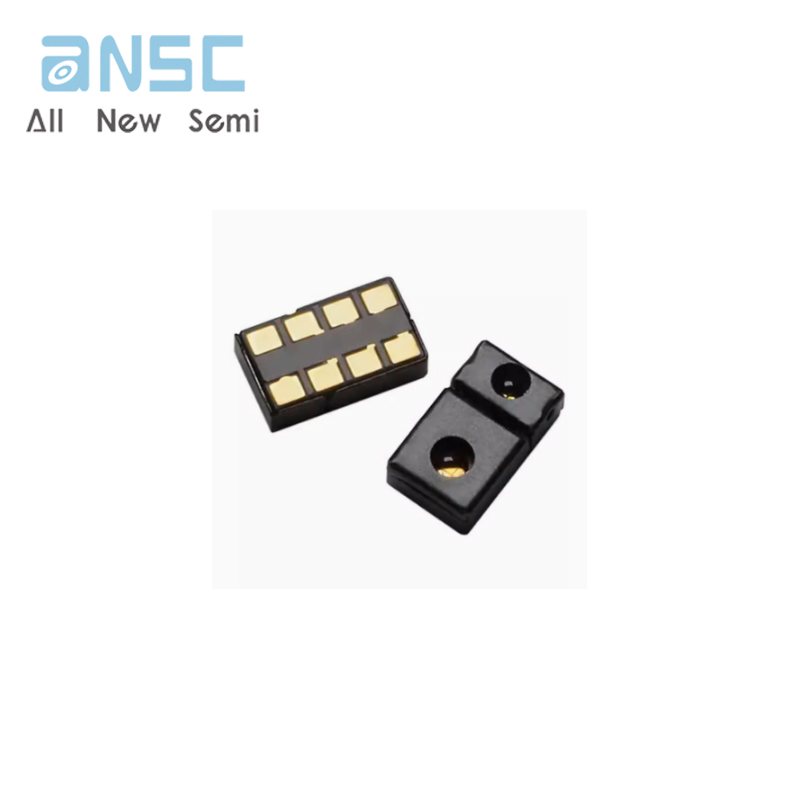

The APDS-9960 device features advanced Gesture detection, Proximity detection, Digital Ambient Light Sense (ALS) and Color Sense (RGBC).

The slim modular package, L 3.94 x W 2.36 x H 1.35 mm, incorporates an IR LED and factory calibrated LED driver for drop-in compatibility with

existing footprints.

Gesture detection

Gesture detection utilizes four directional photo diodes to sense reflected IR energy (sourced by the integrated LED) to convert physical motion

information (i.e. velocity, direction and distance) to a digital information. The architecture of the gesture engine features automatic activation

(based on Proximity engine results), ambient light subtraction, cross-talk can celation, dual 8-bit data converters, power saving inter-conversion

delay, 32-data set FIFO, and interrupt driven I2C communication. The gesture engine accommodates a wide range of mobile device gesturing

requirements: simple UP-DOWN-RIGHT-LEFT gestures or more complex gestures can  be accurately sensed. Power consumption and noise are

minimized with adjustable IR LED timing.

Product Features

? Ambient Light and RGB Color Sensing, Proximity Sensing, and Gesture Detection in an Optical Module

? Ambient Light and RGB Color Sensing

- UV and IR blocking filters

- Programmable gain and integration time

- Very high sensitivity – Ideally suited for operation behind dark glass

? Proximity Sensing

- Trimmed to provide consistent reading

- Ambient light rejection

- Offset compensation

- Programmable driver for IR LED current

- Saturation indicator bit

? Complex Gesture Sensing

- Four separate diodes sensitive to different directions

- Ambient light rejection

- Offset compensation

- Programmable driver for IR LED current

- 32 data set storage FIFO

- Interrupt driven I2C communication

? I2C-bus Fast Mode Compatible Interface

- Data Rates up to 400 kHz

- Dedicated Interrupt Pin

? Small Package L 3.94 × W 2.36 × H 1.35 mm

Product Applications

? Gesture Detection

? Color Sense

? Ambient Light Sensing

? Cell Phone Touch Screen Disable

? Mechanical Switch Replacement
