Product Description
| Type# | Description |
| ANSC PART# | ANSC - BAT85 |
| Ihs Manufacturer | Original |
| Part Package Code | DO-34 |
| Package Description | HERMETIC SEALED, GLASS PACKAGE-2 |
| Pin Count | 2 |
| Additional Feature | ULTRA HIGH SPEED SWITCH |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.8 V |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 0.6 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Output Current-Max | 0.2 A |
| Package Body Material | GLASS |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Reference Standard | CECC50001-059 |
| Rep Pk Reverse Voltage-Max | 30 V |
| Reverse Current-Max |
2 μA |
| Reverse Recovery Time-Max | 0.004 μs |
| Surface Mount | NO |
| Technology | SCHOTTKY |
| Terminal Finish | Tin (Sn) |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |

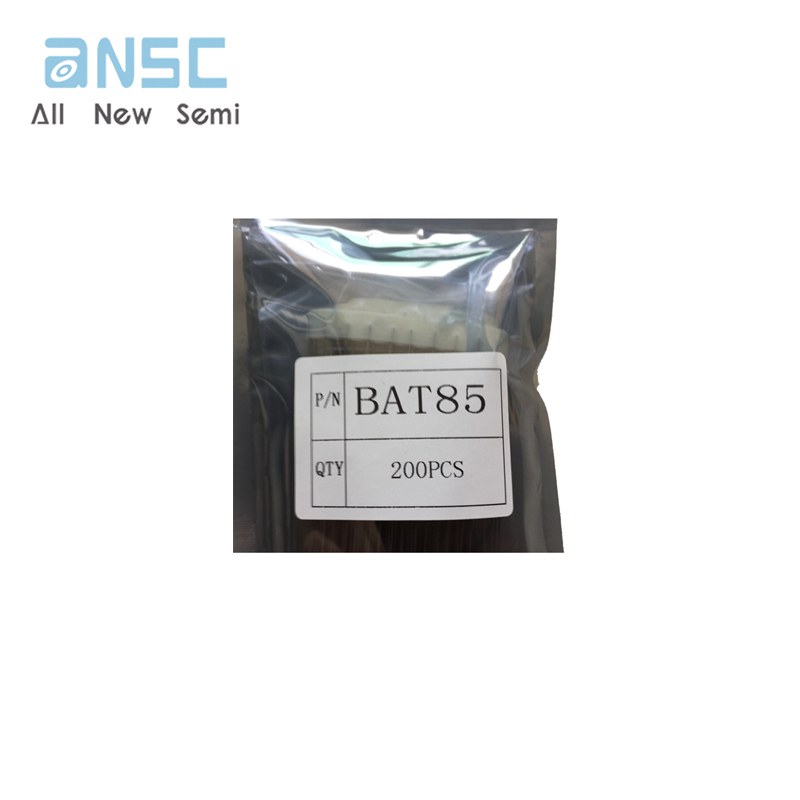

Product Photos

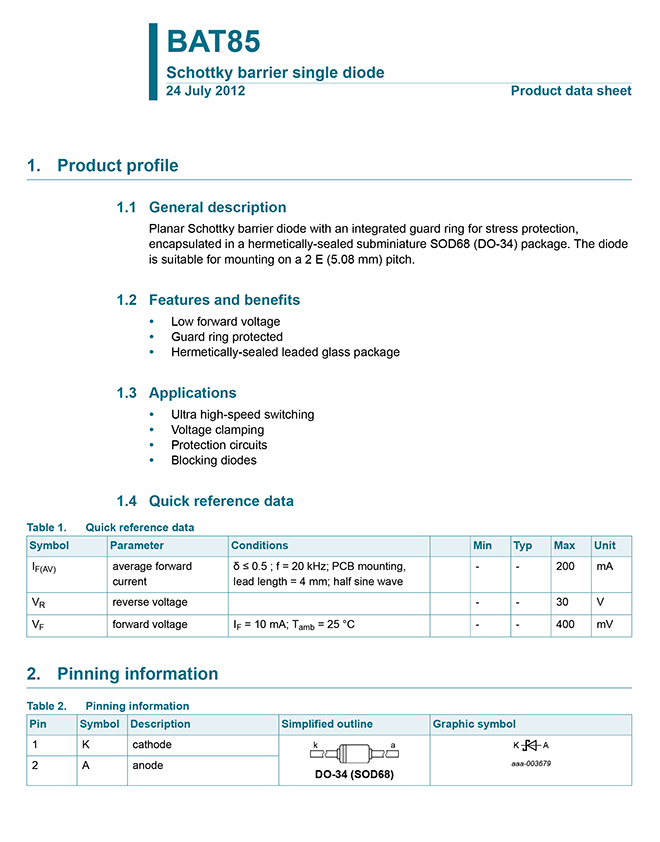

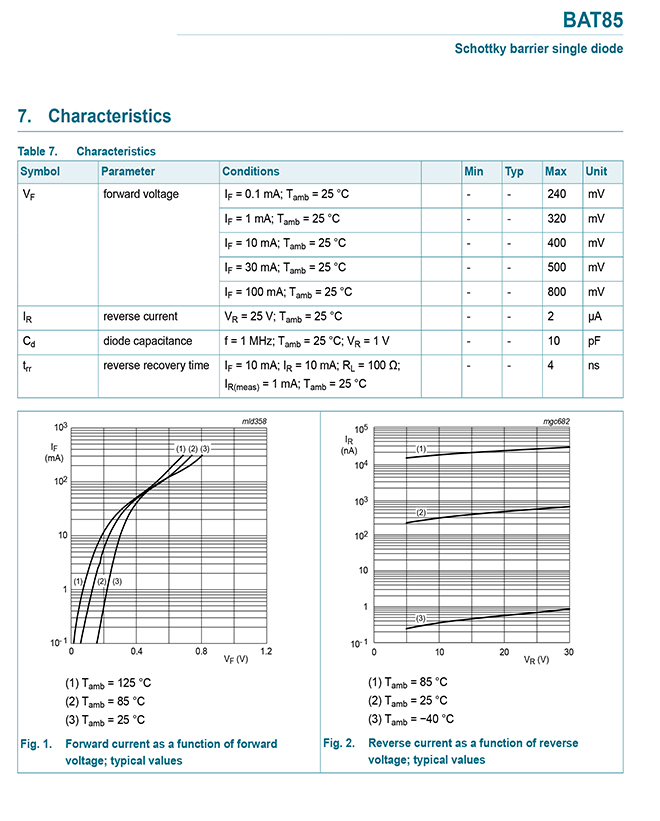

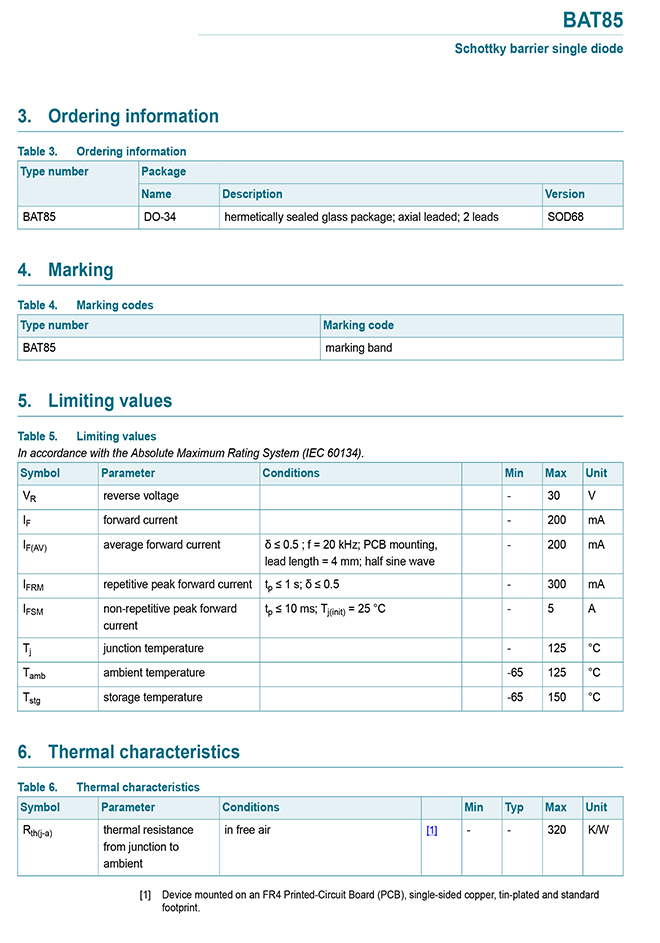

Product datasheet
For more information, please download
