Product Description
? Core technology
Adopting independently developed barcode core decoding technology, it can quickly recognize various quality barcodes.
? High integration
The integrated design of decoding board and camera reduces the volume to the extreme, meeting the needs of various miniaturized applications
? Full code system
Can solve the mainstream one and two-dimensional codes on the market, and can customize special decoding requirements for one and two-dimensional codes.
? High precision and high density recognition ability
Strong recognition ability for high-density, multi data two-dimensional codes, as well as longer one-dimensional barcodes.
? Quick start
Short startup time.
? Clear aiming
Even in bright lighting environments, it can provide clear point like aiming, ensuring accurate barcode scanning,
? Green and low-power consumption
By adopting an independent low-power control method, the operating power consumption is greatly reduced and the service life of the product is extended.
? Global exposure sensor
Enhance environmental adaptability, enabling quick decoding in both dark and bright environments.
? Heartbeat monitoring
Monitor the working status of the module at any time, especially suitable for high strength and harsh environmental conditions.
Product Application
PDA equipment matching, tablet equipment matching, lightweight equipment matching, traditional self-service equipment matching, etc.

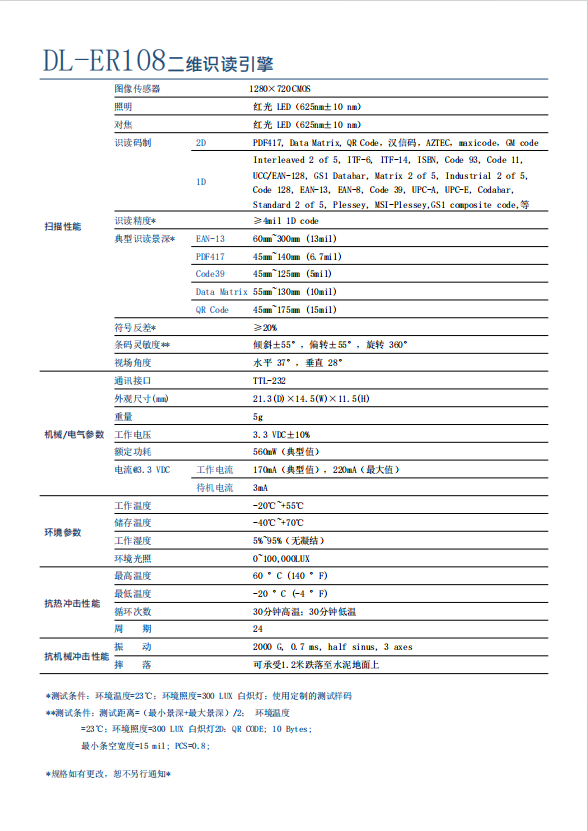

Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-DL-ER108 | |
| Image sensor | 1280 × 720 CMOS | |
| Lighting | Red LED (625nm ± 10 nm) | |
| Focused | Red LED (625nm ± 10 nm) | |
| Reading code system | 2D | PDF417, Data Matrix, QR Code, Hanxin Code, AZTEC, maximcode, GM code |
| 1D | Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, Code 11,UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Standard 2 of 5, Plessey, MSI Plessey, GS1 composite code, etc | |
| Reading accuracy * | ≥ 4mil 1D code | |
| Typical Reading Depth of Field* | EAN-13 | 60mm~300mm (13mil) |
| PDF417 | 45mm~140mm (6.7mil) | |
| Code39 | 45mm~125mm (5mil) | |
| Data Matrix | 55mm~130mm (10mil) | |
| QR Code | 45mm~175mm (15mil) | |
| Sign contrast* | ≥ 20% | |
| Barcode sensitivity** | Tilt ± 55 °, deflection ± 55 °, rotation 360 ° | |
| Field of view angle | Horizontal 37 °, vertical 28 ° |

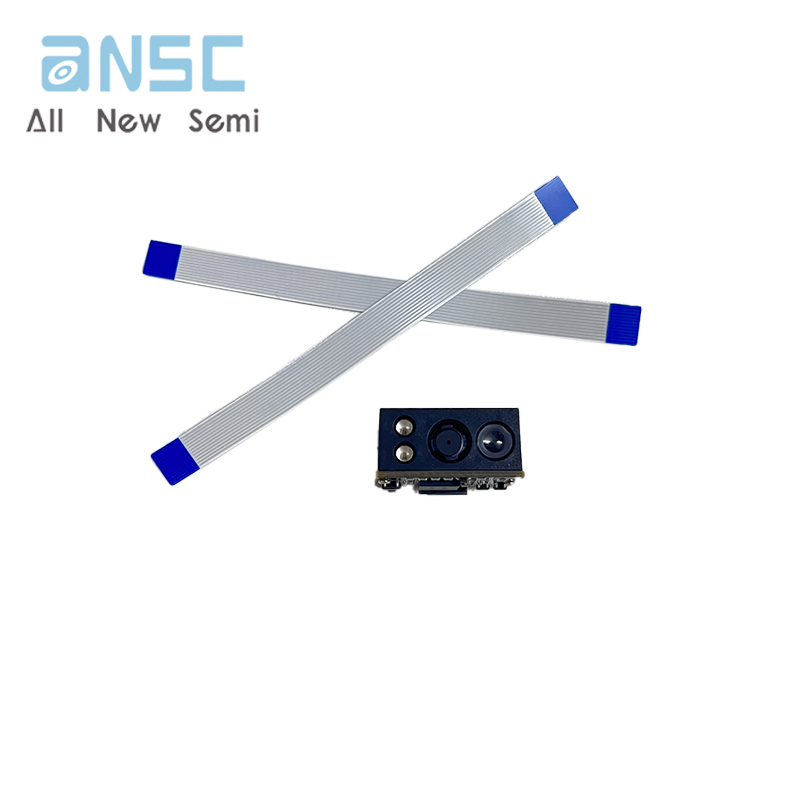

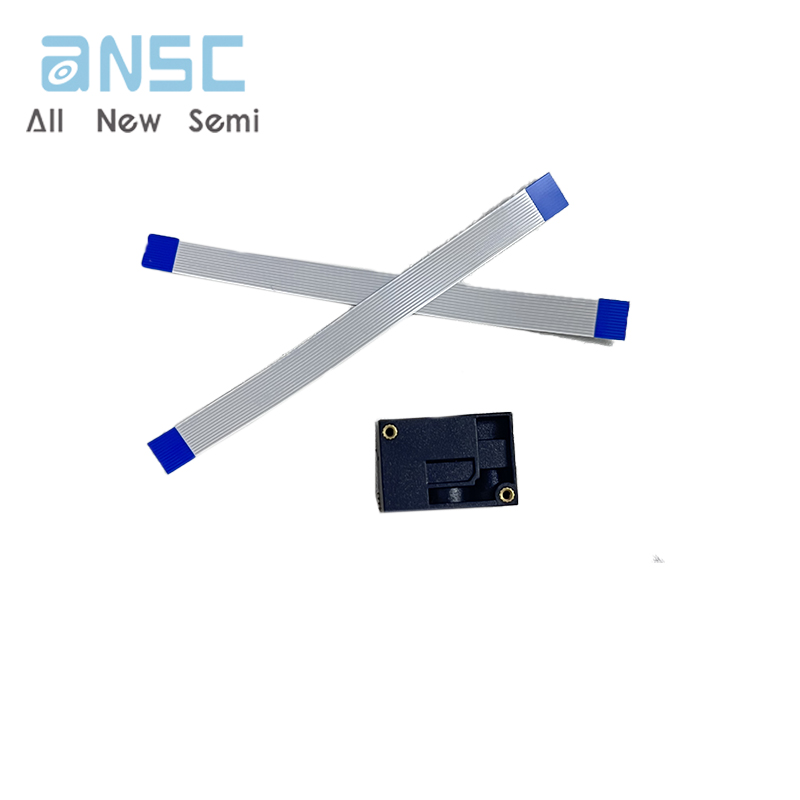

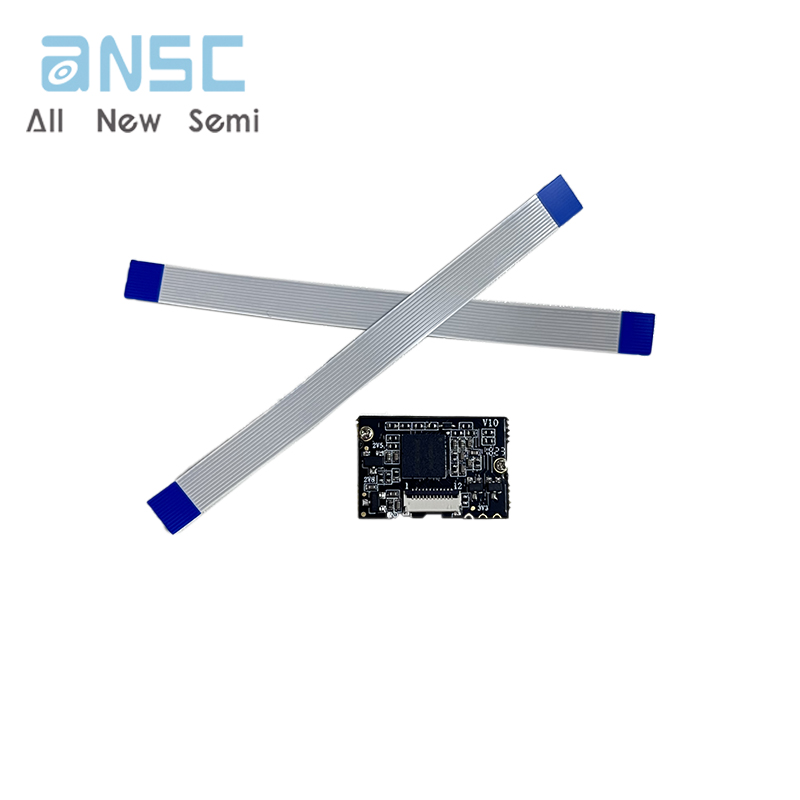

Actual product photos

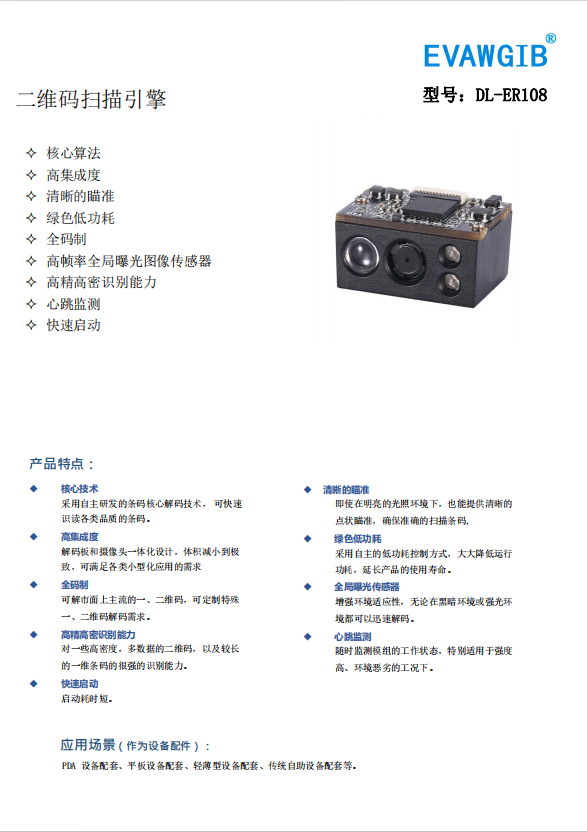

Product Data Book：
For more product information, please download the PDF
