Product Descriptions
E22-230TBL-01 is a set of test kits formed by serial SD serial port module combined with USB to TTLserial port for customer's testing and
development, which greatly reduces the dificulty of testing and developmentAbout more details, please refer to manual of module E22-
230T22S.
Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E22-230TBL-01 | |
| Working frequency | 220.125~236.125 MHz | Default: 230.125MHz |
| Transmitting power | 22 dBm | Max. Power (160mW) |
| Receiving sensitivity | -138 dBm | - |
| Air data rate | 0.3k~15.6kbps | - |
| Test distance | 5000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |
| Size | 16 * 26 mm | |
| Antenna type | IPEX / Stamp hole | |
| Communication interface | UART | |
| Package | SMD |

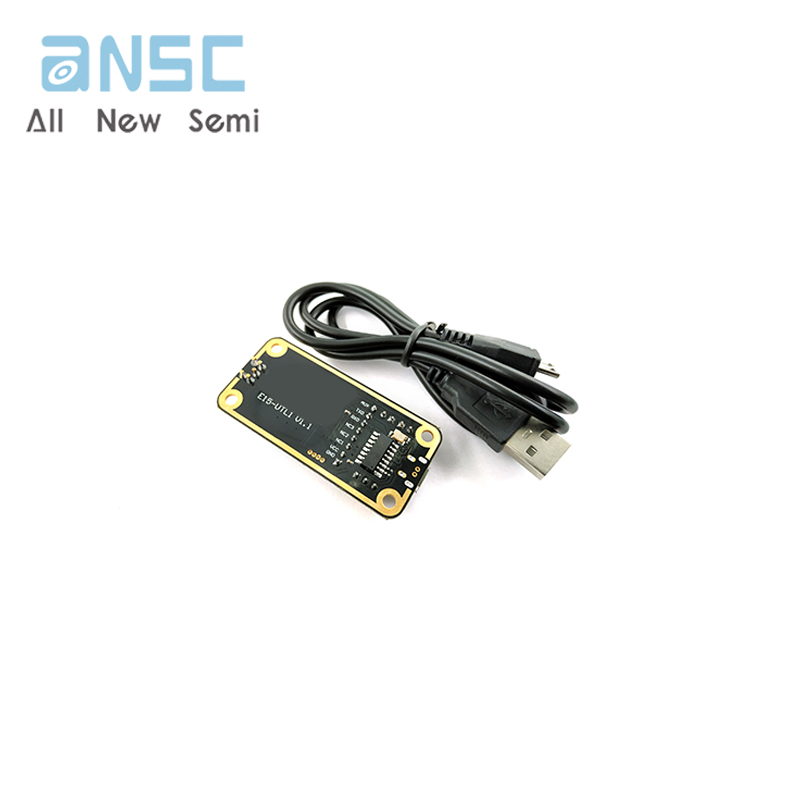

Actual product photos

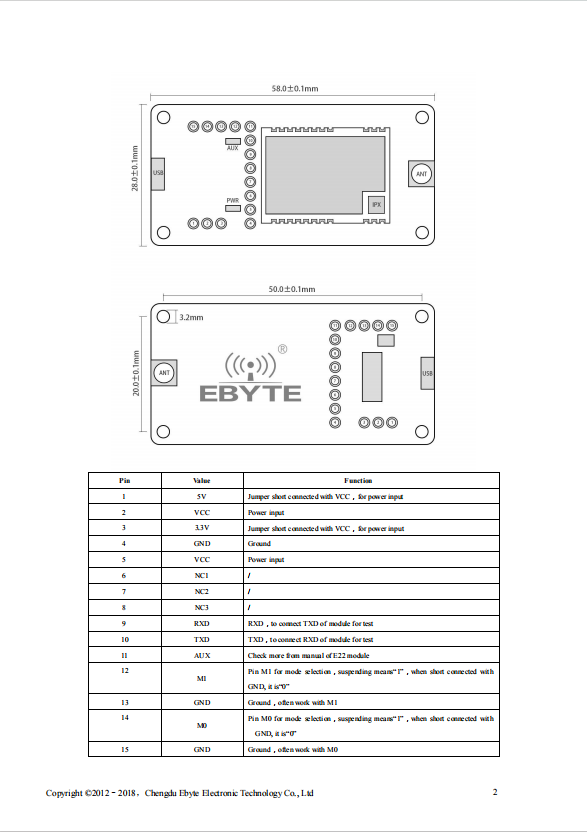

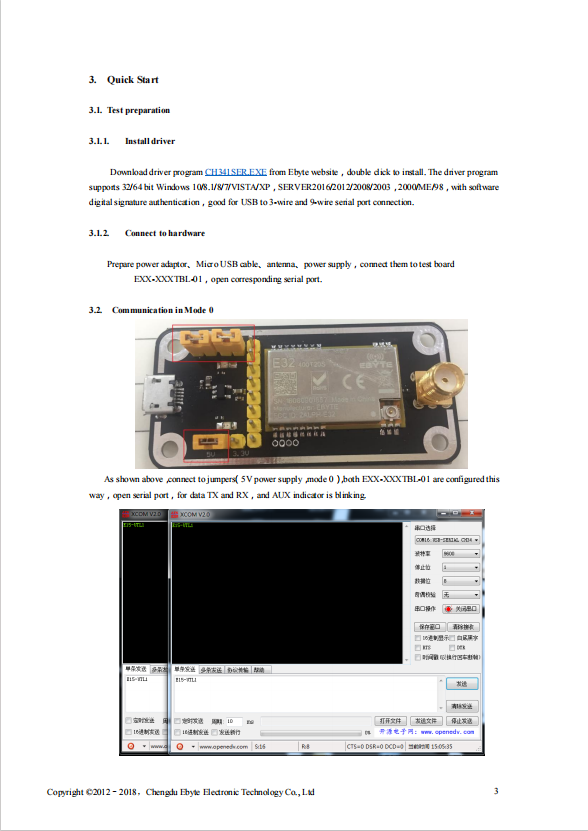

Product Data Book：
For more product information, please download the PDF
