Product Details
GENERAL DESCRIPTION
The TCS450 s a high power COMMON BASE bipolar transistor. It is designed for pulsed systems in the frequency band 1030-1090 MHz, with the pulse width and duty required for TCAS applications. The device has gold thin-film metallization and diffused ballasting for proven highest MTTF. The transistor includes input prematch for broadband capaility. Low thermal resistance package reduces junction temperature, extends life.
Product Description
ANSC PART# | ANSC- TCSCS0J106MPAR |
Part# | TCSCS0J106MPAR |
Type： | / |
Manufactor | Original |
DC | new |
Product Attributes
| Mount | Surface Mount |
| Package / Case | Molded |
| Terminal Shape | WRAPAROUND |
| Dielectric Material | TANTALUM (DRY/SOLID) |
| Packaging | Tape & Reel |
| Tolerance | 20% |
| JESD-609 Code | e3 |
| Number of Terminations | 2 |
| ECCN Code | EAR99 |
| Terminal Finish | Tin (Sn) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Voltage - Rated | 6.3V |
| HTS Code | 8532.21.00.50 |
| Capacitance | 10μF |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH |
| Depth | 1.25mm |
| Capacitor Type | TANTALUM CAPACITOR |
| ESR (Equivalent Series Resistance) | 5Ohm |
| Polarity | POLARIZED |
| Size Code | 0805 |
| Leakage Current | 0.0006mA |
| Tan Delta | 0.08 |
| Height | 1.1mm |
| Length | 2mm |
| Radiation Hardening | No |
| RoHS Status | RoHS Compliant |

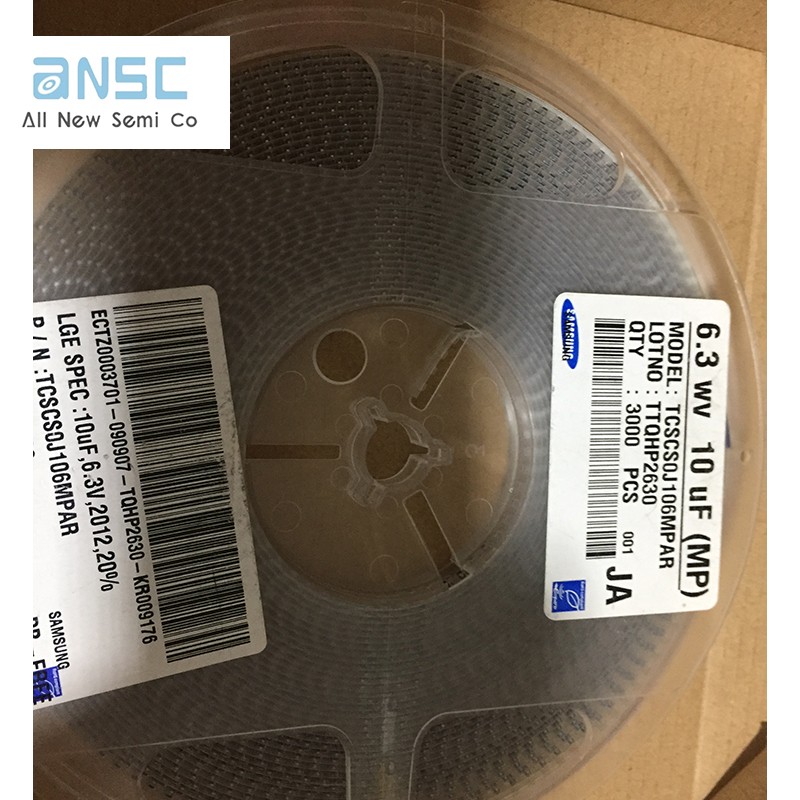

Actual image of the product

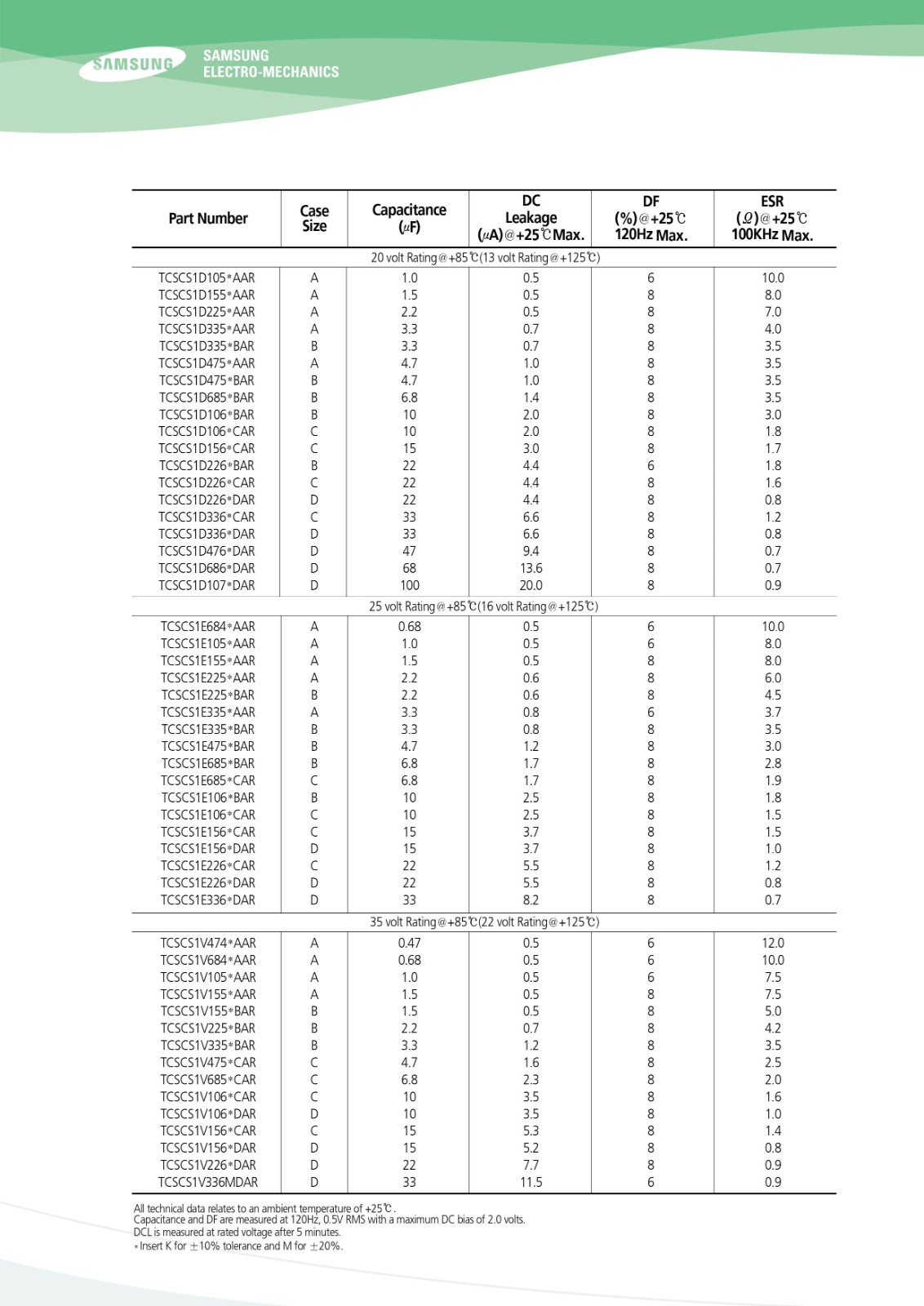

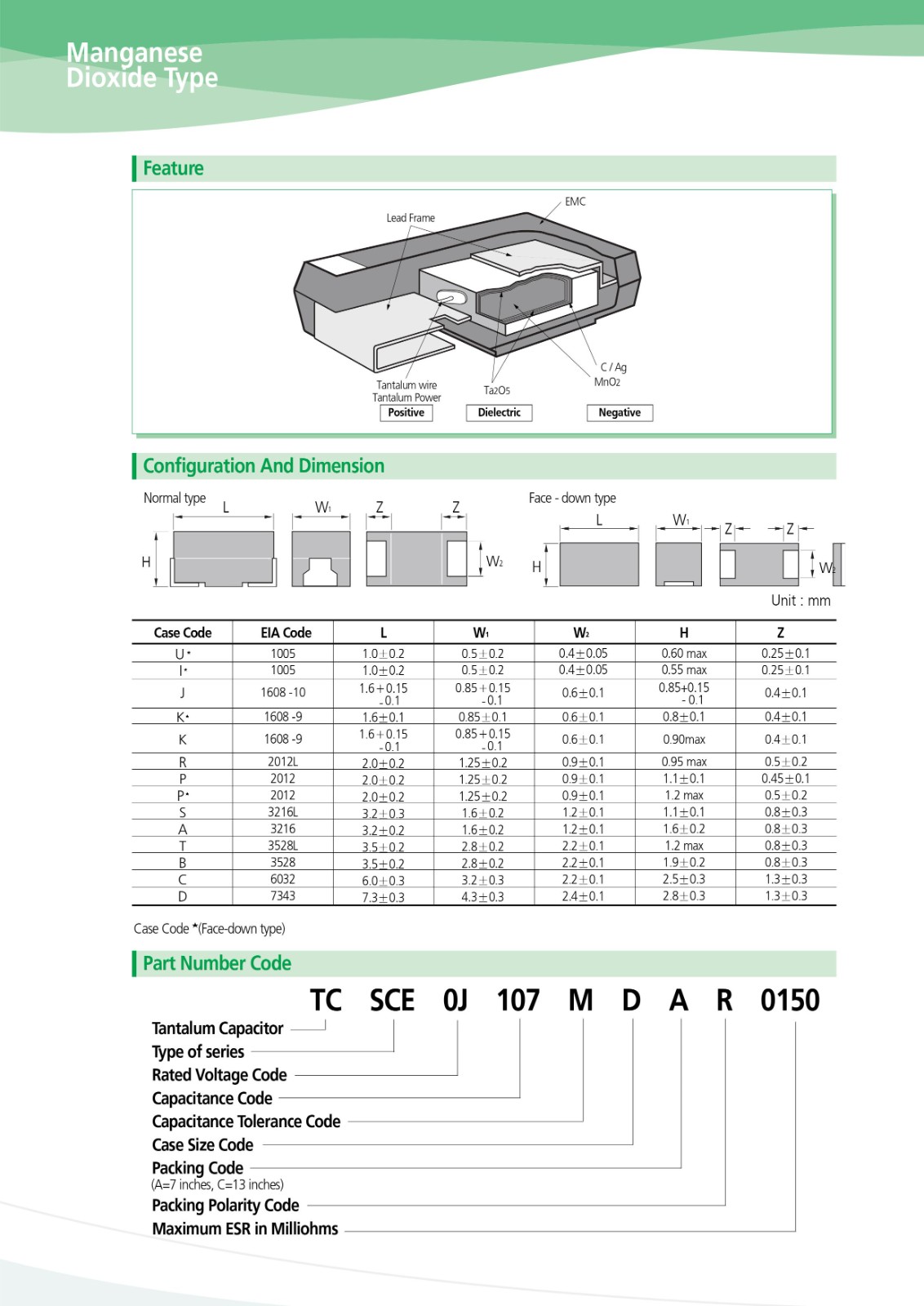

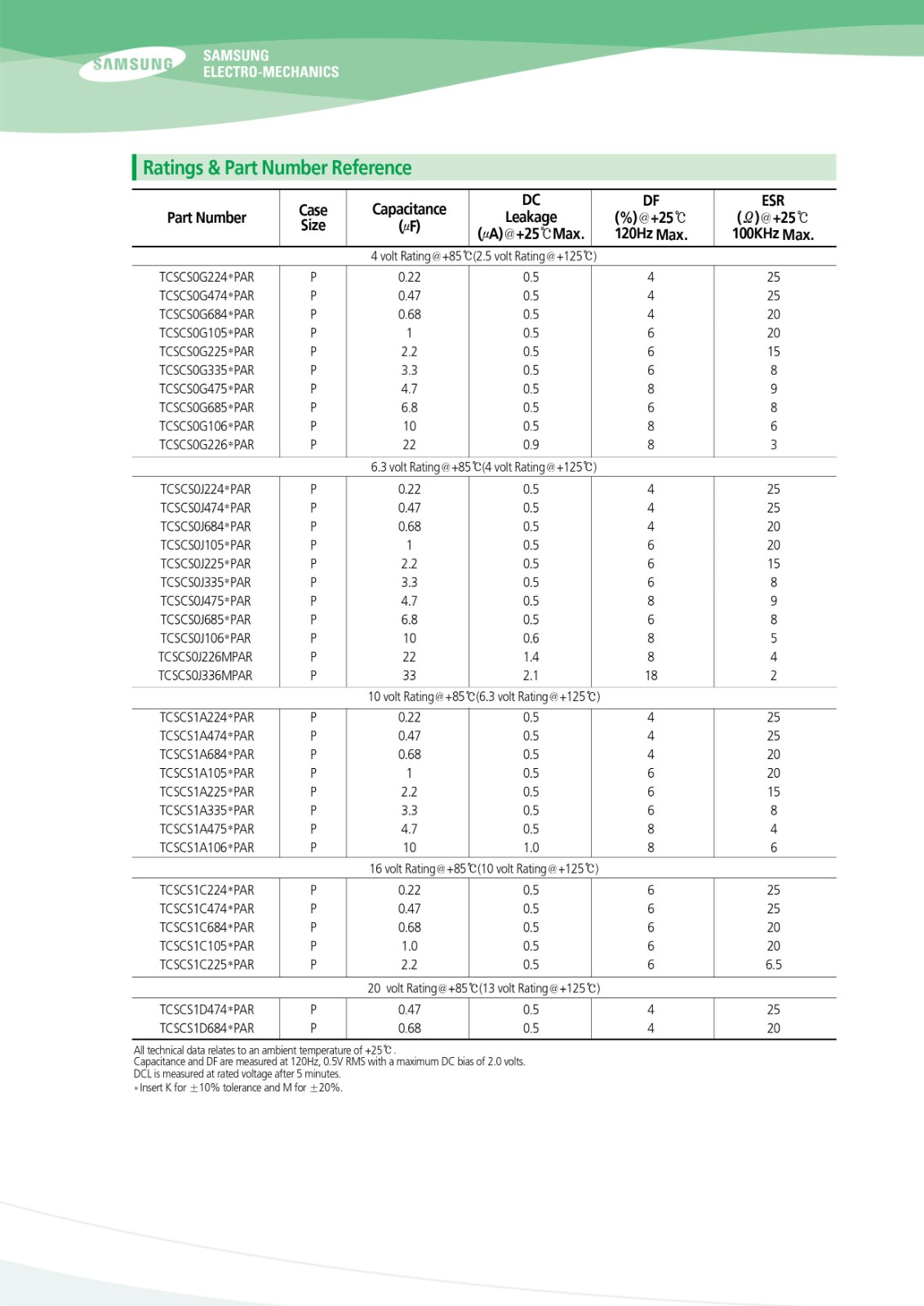

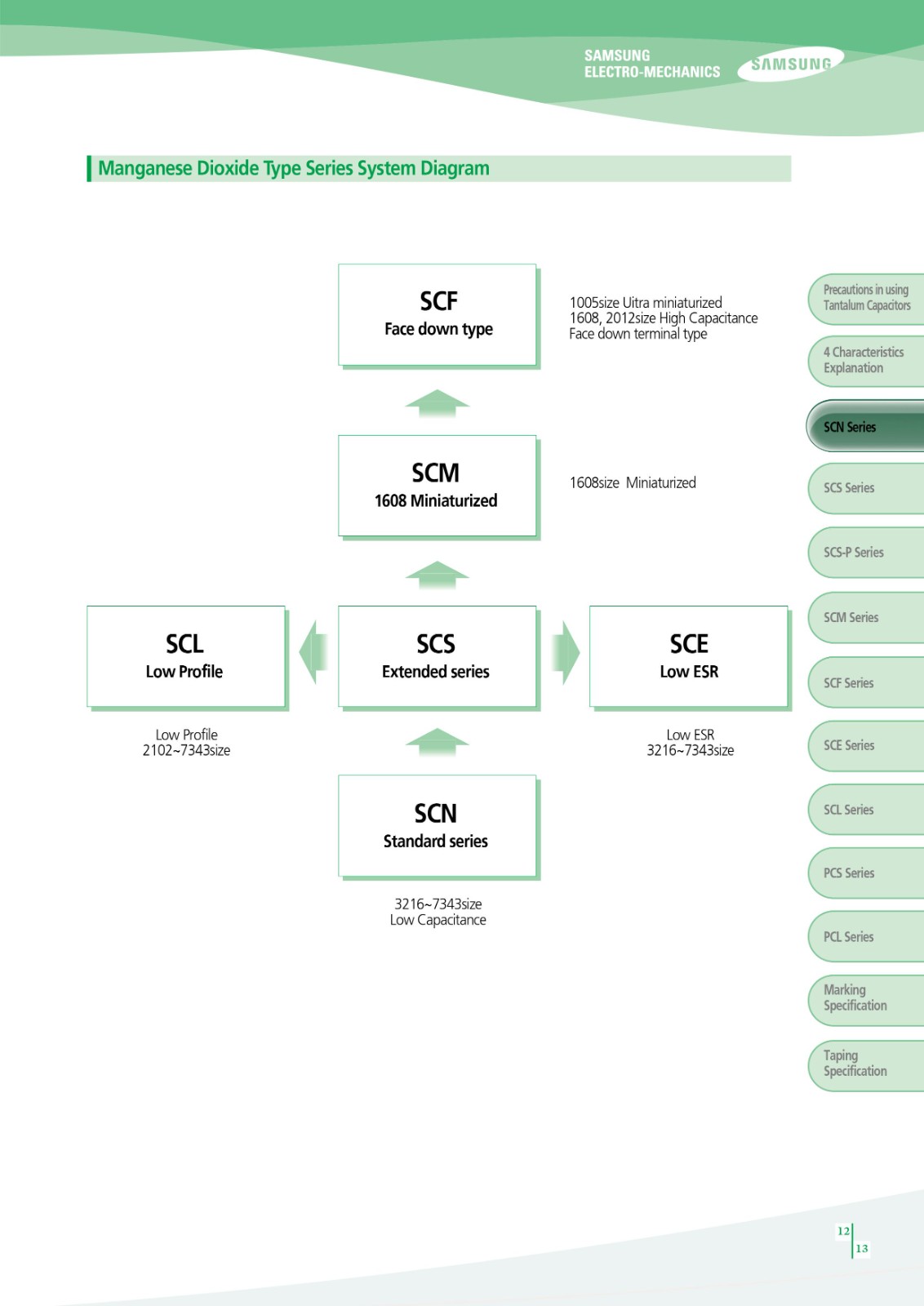

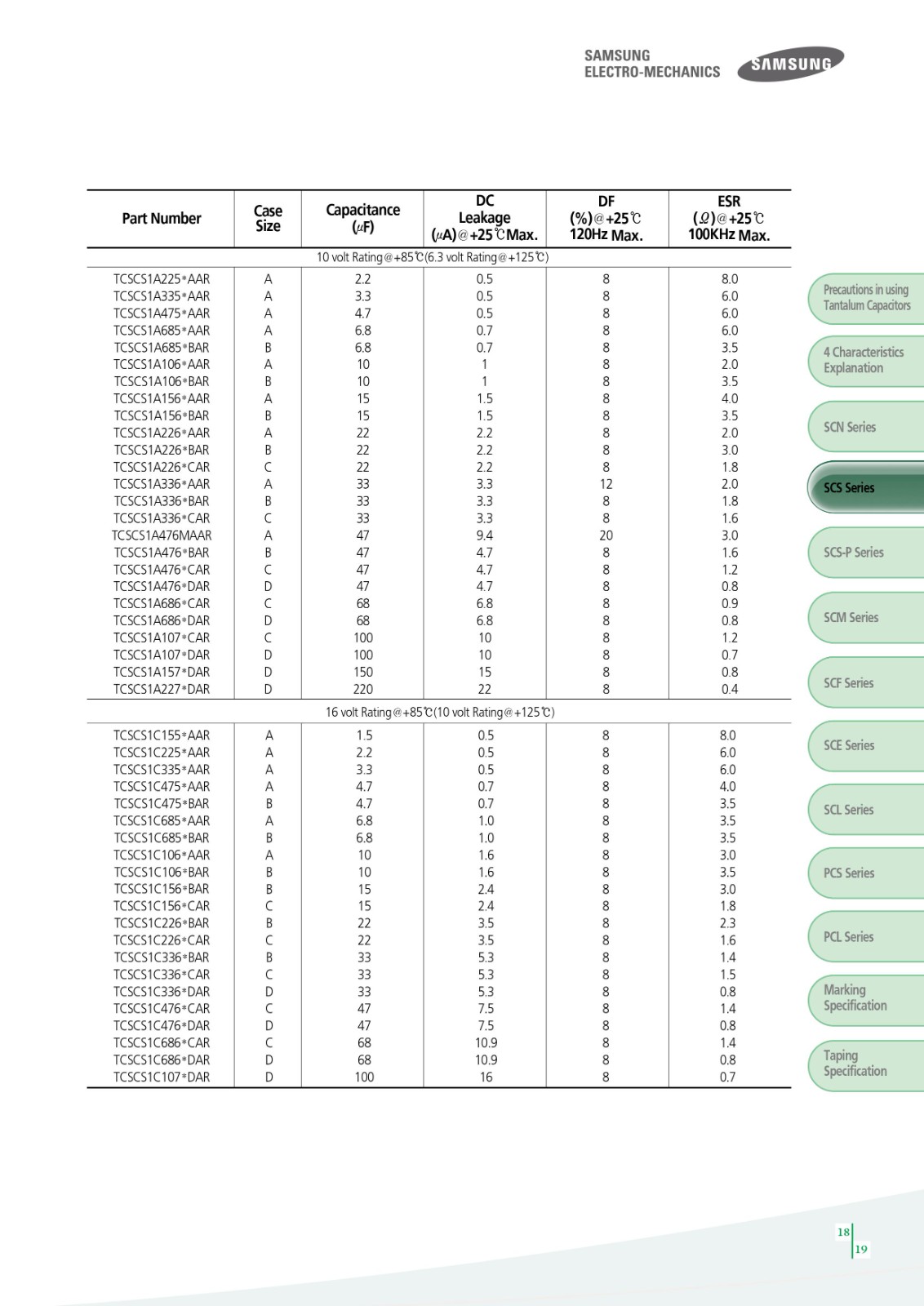

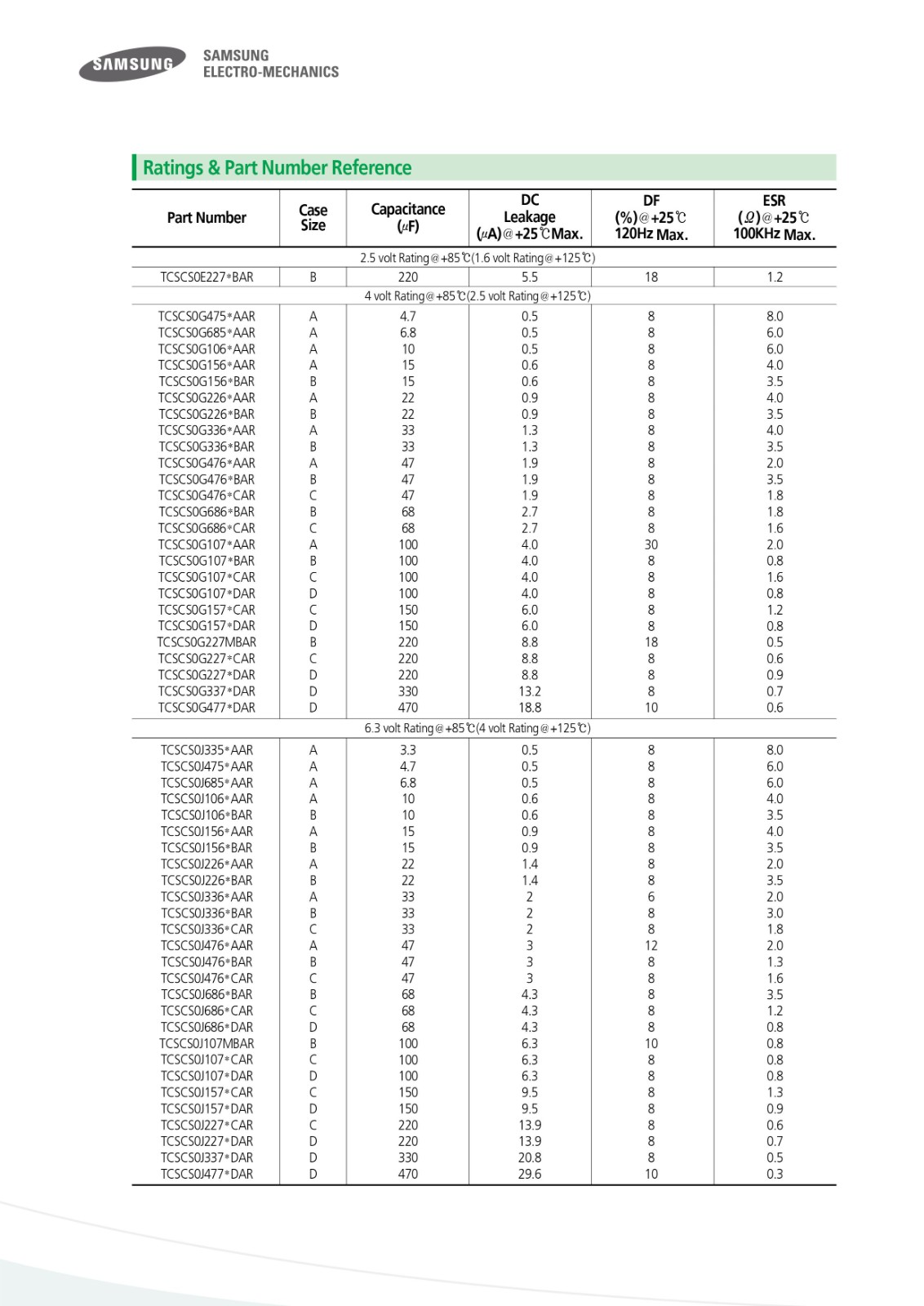

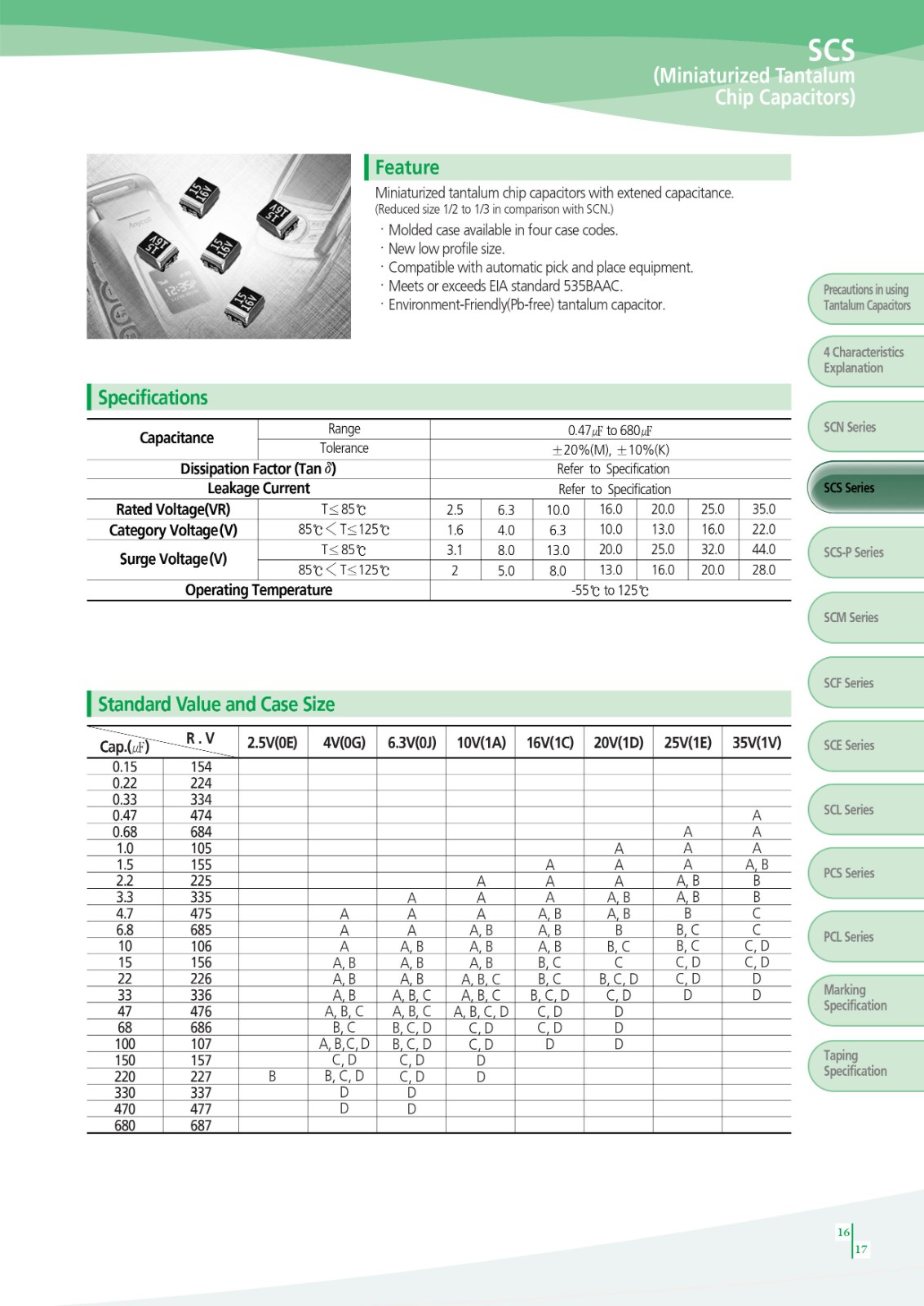

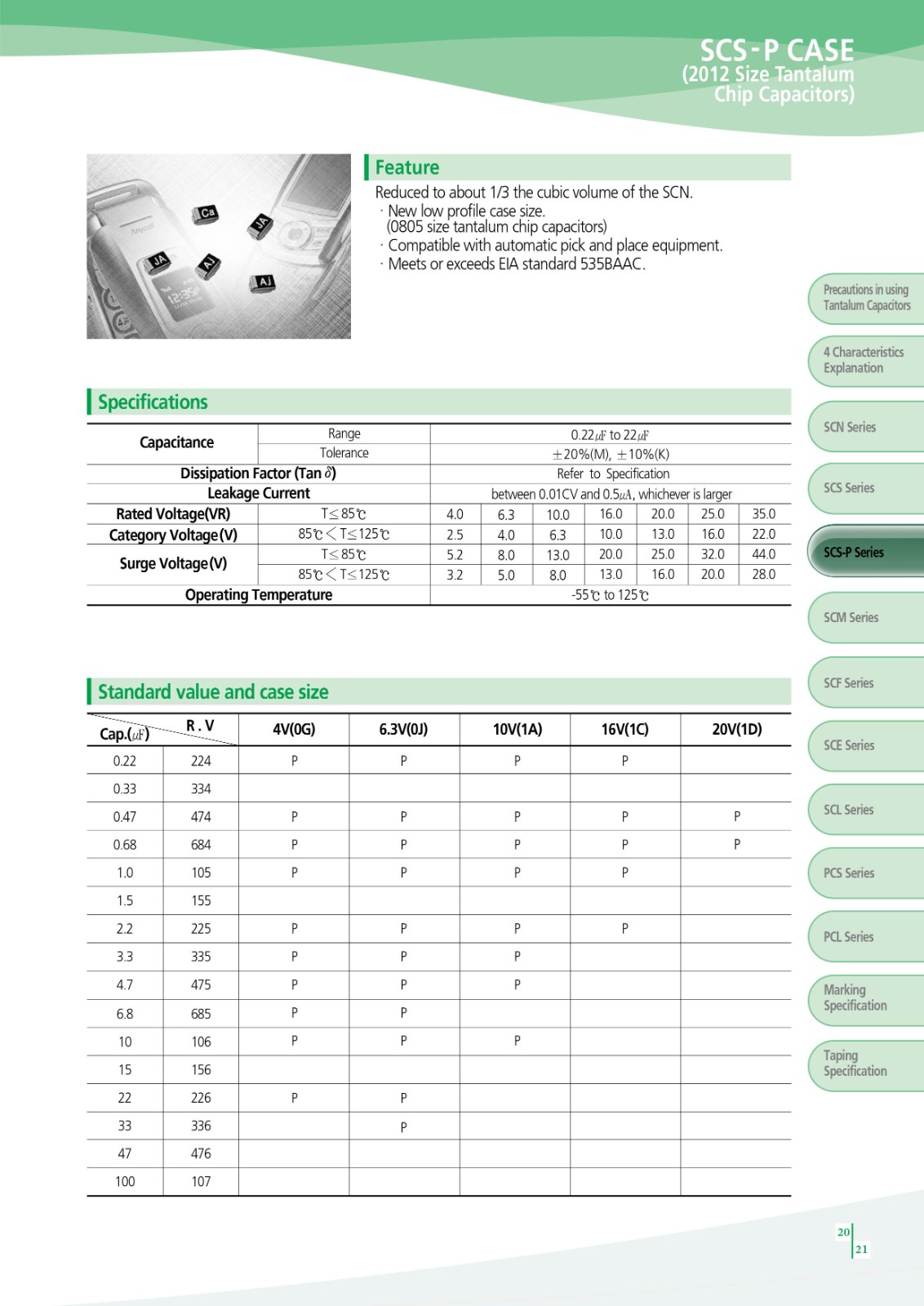

Product Data Book
For more information, please download
