Product Details
FEATURES
? Breakdown voltage between contacts and coil: 2,000 V
? Surge withstand between contacts and coil: 2,500 V
? High contact capacity: 2 A 30 V DC
? Surface-mount type available
Product Description
| Type | Description |
| ANSC PART# | ANSC- TX2SS-5V |
| Category | Relays |
| Signal Relays, Up to 2 Amps | |
| Manufacturer | Original |
| Series | TX |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 220VDC - Max |
| Load - Max Switching | 60W |
| Coil Current | 28.1 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Gull Wing |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | BSI, cURus |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Coil Resistance | 178 Ohms |
| Base Product Number | TX2SS |

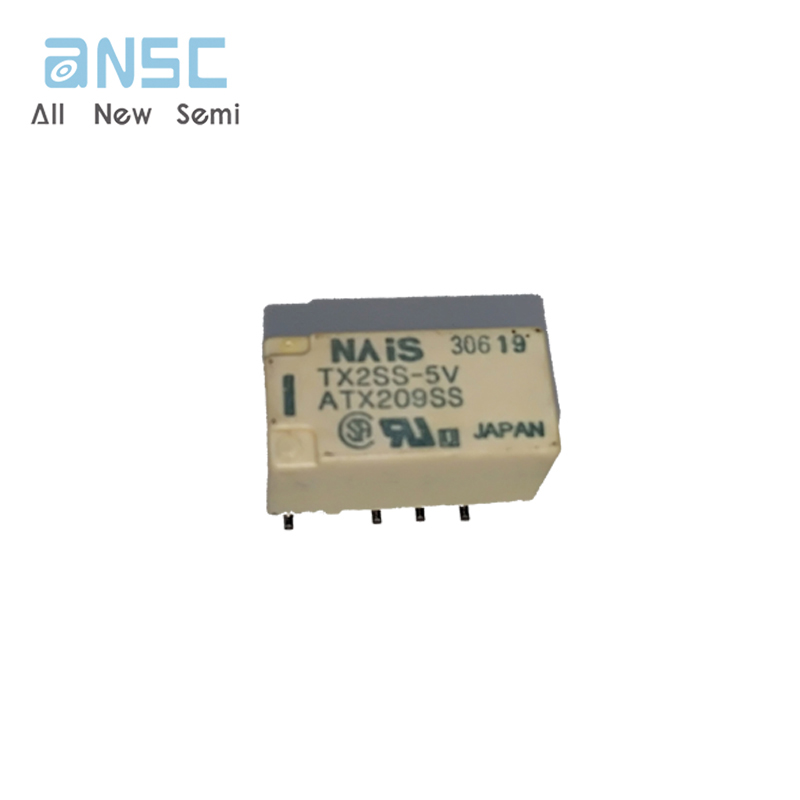

Product Photos
