RT8059GJ5 Overview
As a result of the use of the Tape & Reel (TR) package, the performance of this voltage regulator is optimized. As you can see, this harley voltage regulator contains 5 terminations. Space-saving SOT-23-5 Thin, TSOT-23-5 packages are available for this harley voltage regulator. There are 1 outputs configured on the voltage regulator. ICs such as this voltage regulator are capable of generating Adjustable outputs through their output pins. The voltage regulator 12v fits the Surface Mount mounting hole. This voltage regulator 12v should operate at a temperature of -40°C~85°C TA when operating. 1.5MHz is the switching frequency of this DC-DC switching regulator. A dc to dc voltage regulator's minimum input voltage of 2.8V is required for this voltage regulator to operate. The output voltage of this voltage regulator (Min/Fixed) amounts to 0.6V volts. Featuring a maximum design flexibility of 1A, dc to dc voltage regulator has a maximum output current of 1A. Voltage of voltage regulator can be delivered at 5.5V volts. In order to operate voltage regulator, there are 5 pins that must be connected. For this switching regulator, it is recommended that the output voltage is at least 600mV volts. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 5.5V.
RT8059GJ5 Features
1 outputs
5 pins
RT8059GJ5 Applications
There are a lot of Richtek USA Inc.
RT8059GJ5 Voltage Regulators applications.
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Product Description
Richtek USA Inc. RT8059GJ5
5 Terminals 2.8V 5-Pin DC DC Voltage Regulator 1 Outputs 1.5MHz Tape & Reel (TR) 1A SOT-23-5 Thin, TSOT-23-5
| ANSC PART# | ANSC- RT8059GJ5 |
| Part# | RT8059GJ5 |
| Type： | Integrated Circuits(ICs) |
| Manufactor | Richtek USA Inc. |
| DC | new |
| Package / Case | TSOT-23-5 |
| Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
Mfr | Richtek USA Inc. |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel? |
Product Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 2.8V |
Voltage - Input (Max) | 5.5V |
Voltage - Output (Min/Fixed) | 0.6V |
Voltage - Output (Max) | 5.5V |
Current - Output | 1A |
Frequency - Switching | 1.5MHz |
Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | SOT-23-5 Thin, TSOT-23-5 |
Supplier Device Package | TSOT-23-5 |
Base Product Number | RT8059 |

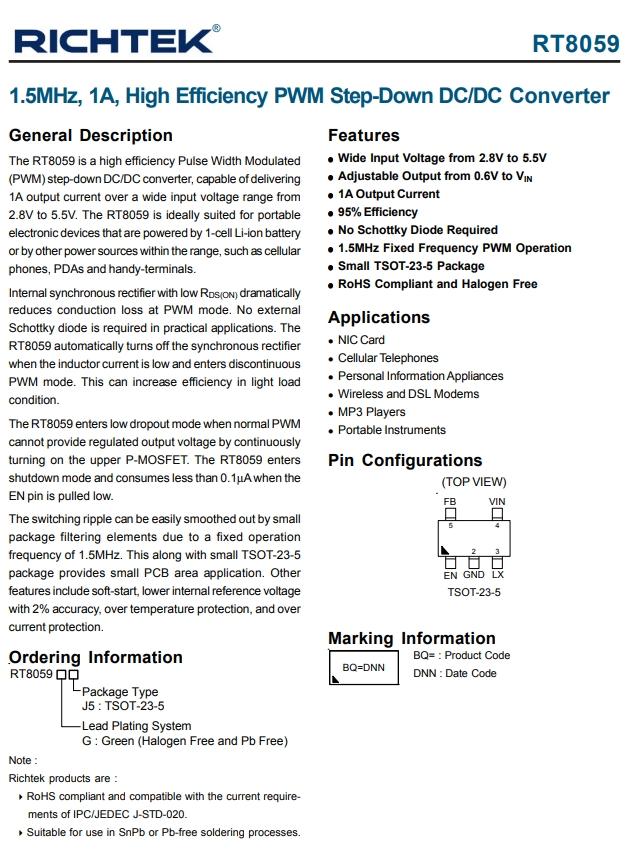

Product Data Book
For more information, please download
Payment&Transportation
Official Certificate&Certificate

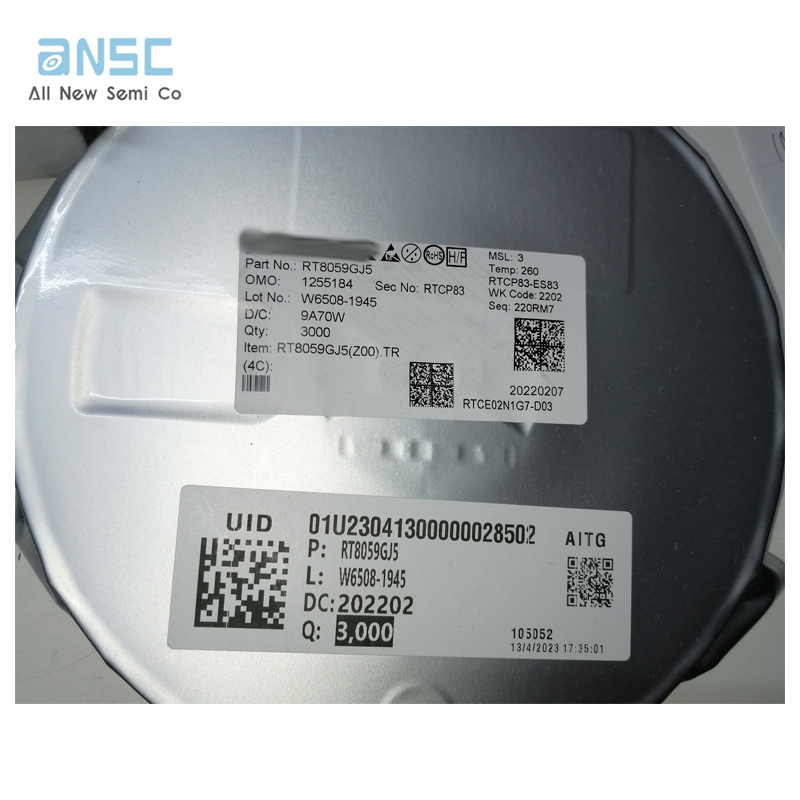

Standard packaging
